Tempered Glass Door Network Cabinet – AS Series AS6642 | FINEN

Product Overview

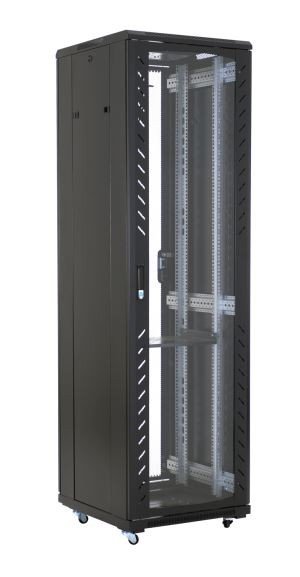

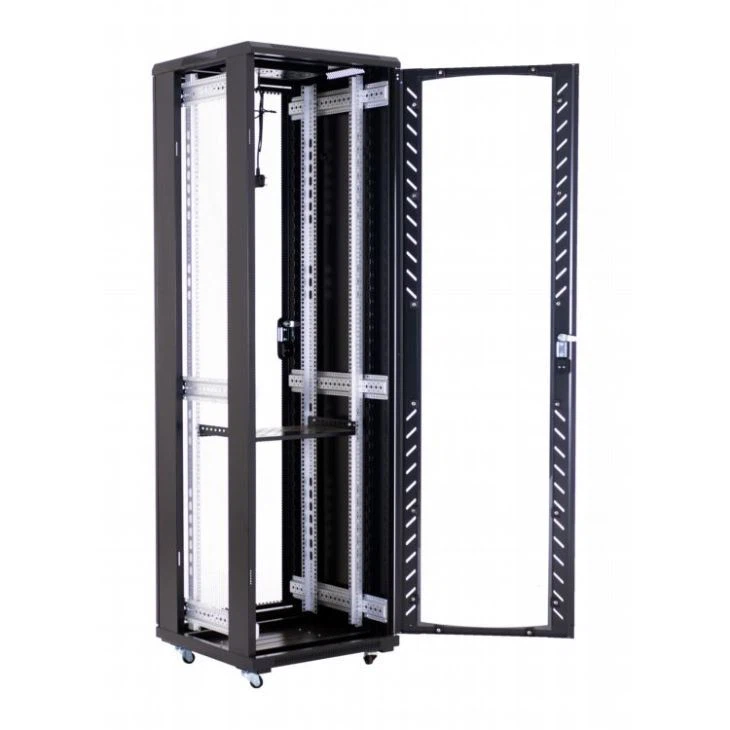

The Tempered Glass Door Network Cabinet is a premium 19-inch server cabinet equipped with a tempered glass front door. It securely houses servers and critical network devices in a firm, fixed position, ensuring stable and reliable operation around the clock.

Model Number: AS Series AS6642

Standards & Compliance

This network cabinet complies with the following international standards:

  • ANSI/EIA RS-310-D

  • DIN41497 Part 1

  • IEC297-2

  • DIN41494 Part 7

  • GBIT3047.2-92

Front Door: Tempered Glass Door

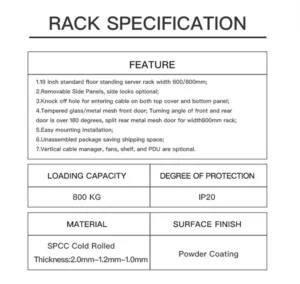

Quick Details

Specification Details
Place of Origin Beijing, China
Brand Name FINEN
Model Number AS Series
Material SPCC Cold Rolled Steel
Degree of Protection IP20
Type Network Cabinet
Capacity 18U / 22U / 27U / 32U / 37U / 42U / 47U
Color Black, Gray, White
Installation 19″ Installation
Depth 600mm / 800mm / 1000mm
Width 600mm / 800mm
Front Door Single Flat Tempered Glass Door
Rear Door Single Flat Perforated Metal Mesh Rear Door

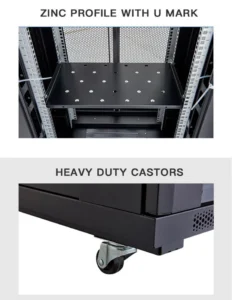

Mounting Profile Galva Clean Al-Zn Coated Steel Plate – 2.0mm
Loading Capacity 800kgs (=1763lbs)

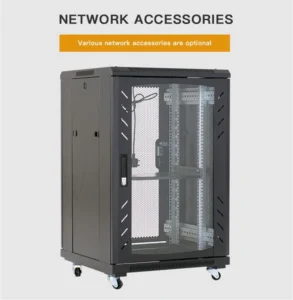

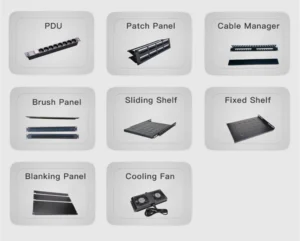

Optional Accessories Fans, Shelf, PDU, Cable Manager, and Others
Packing Unassembly or Assembly Packing
Shipping Sea, Air, Train, Truck
HS Code 8.47E+09

Product Size Chart

Model No. Capacity (U) Width (mm) Depth (mm) Height (mm) Volume (CBM)
AS.6618 18 600 600 988 0.131
AS.6818 18 600 800 988 0.152
AS.6018 18 600 1000 988 0.182
AS.8818 18 800 800 988 0.212
AS.8018 18 800 1000 988 0.24
AS.6622 22 600 600 1165 0.146
AS.6822 22 600 800 1165 0.169
AS.6022 22 600 1000 1165 0.202
AS.8822 22 800 800 1165 0.238
AS.8022 22 800 1000 1165 0.267
AS.6627 27 600 600 1388 0.166
AS.6827 27 600 800 1388 0.189
AS.6027 27 600 1000 1388 0.227
AS.8827 27 800 800 1388 0.268
AS.8027 27 800 1000 1388 0.299
AS.6632 32 600 600 1610 0.186
AS.6832 32 600 800 1610 0.211
AS.6032 32 600 1000 1610 0.252
AS.8832 32 800 800 1610 0.301
AS.8032 32 800 1000 1610 0.333
AS.6637 37 600 600 1833 0.229
AS.6837 37 600 800 1833 0.265
AS.6037 37 600 1000 1833 0.315
AS.8837 37 800 800 1833 0.364
AS.8037 37 800 1000 1833 0.405
AS.6642 42 600 600 2055 0.248
AS.6842 42 600 800 2055 0.285
AS.6042 42 600 1000 2055 0.339
AS.8842 42 800 800 2055 0.394
AS.8042 42 800 1000 2055 0.437
AS.6647 47 600 600 2277 0.291
AS.6847 47 600 800 2277 0.339
AS.6047 47 600 1000 2277 0.402
AS.8847 47 800 800 2277 0.457
AS.8047 47 800 1000 2277 0.509

Key Advantages

  1. Secure, Firm & Reliable – Durable construction ensures long-lasting protection for your critical equipment.

  2. Easy Equipment Maintenance – Tempered glass front door allows quick visual inspection and easy access.

  3. Two Packing Options:

    • Assembly Packing – Saves labor costs; ready to resell or use immediately.

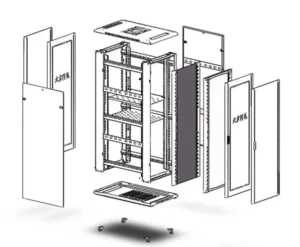

    • Disassembly Packing – Saves space and transport costs; easy to assemble on-site.

  4. Certifications – ISO 9001:2000, CE, RoHS compliant.

  5. OEM/ODM Services Available – Custom branding and design solutions tailored to your needs.

  6. Tempered Glass Door – Strong, durable, and easy to monitor equipment status.

Applications of Network Cabinet

  • Protect and accommodate servers

  • DVR, security equipment, and hubs

  • Patch panels and circuit switches for communication centers

  • Data center systems and PABX

  • Network and communications equipment

  • Uninterruptible Power Systems (UPS) and storage devices

  • Intelligent monitoring systems and other 19-inch standard equipment
