Double Sections Wall Network Cabinet – FINEN WMG Series WMG6606 | Zoomtech

A double sections wall network cabinet is designed as a cost-effective data management solution for installers and customers who require quick installation and great value for money. Zoomtech supplies the FINEN double sections wall network cabinet (Model: WMG Series WMG6606) — designed to be easily wall-mounted with a swing rear panel that makes wire and cable management easier.

Product Overview

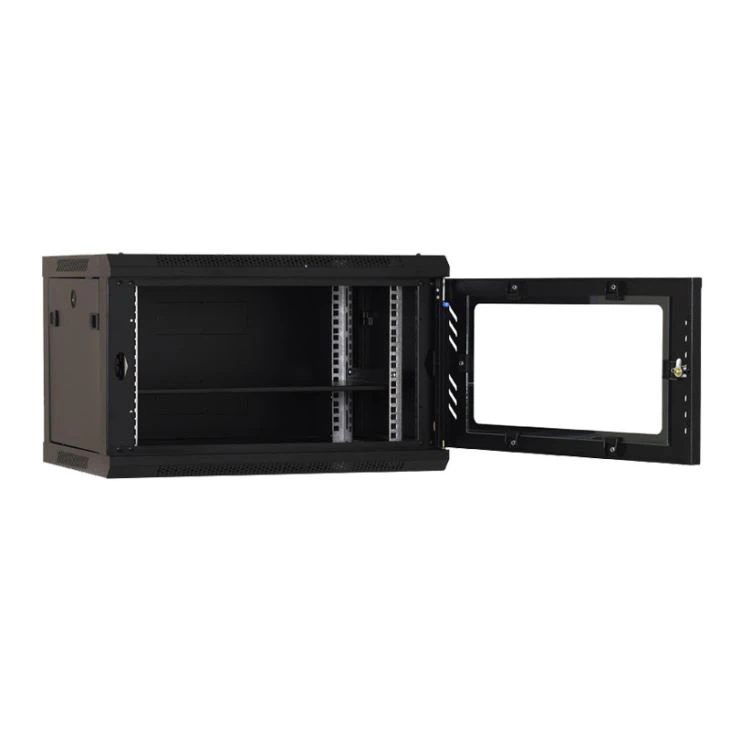

The double sections wall network cabinet (Model: WMG Series WMG6606), available through Zoomtech, is manufactured by FINEN from high-quality cold rolled steel with a welded frame for stable structure. This double sections wall network cabinet features a 5mm tempered glass front door, a 100mm wide back swing panel, removable side panels with optional locks, and cable entry from both top and bottom.

Available from Zoomtech — manufactured by FINEN.

Standards & Compliance

This double sections wall network cabinet complies with the following international standards:

  • ANSI/EIA RS-310-D

  • DIN41497 Part 1

  • IEC297-2

  • DIN41494 Part 7

  • GBIT3047.2-92

Front Door: Tempered Glass Door

General Description

  1. Tempered glass front door

  2. 100mm width for back swing panel

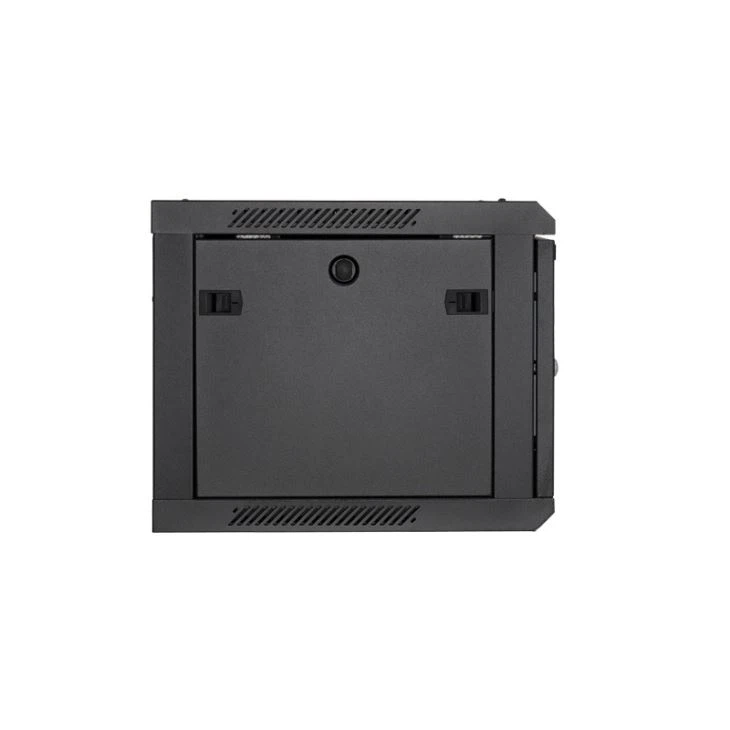

  3. Removable side panels with lock optional

  4. Weld frame for stable structure

  5. Cable entry from top and bottom

  6. PDU, fans, or other accessories are optional

Quick Details

Specification Details
Supplier Zoomtech
Manufacturer FINEN
Model Number WMG Series WMG6606
Material High Quality Cold Rolled Steel
Degree of Protection IP20
Type Double Sections Wall Network Cabinet
Height 4U / 6U / 9U / 12U / 15U / 18U
Color Black, Gray, White
Depth 550mm / 600mm
Width 600mm
Front Door 5mm Thickness Tempered Glass Door
Thickness Mounting Profile 2.0mm; Mounting Angle 1.2mm
Cable Access Top Open Brackets for Cable and Wire Access
Loading Capacity 60kgs (Static)
Packing Export Cartons or Pallet if Necessary
Package Include 1 x Network Cabinet, 1 Set of Keys, Some Screws
HS Code 8473309000

Product Size Chart

Model No. Capacity (U) Width (mm) Depth (mm) Height (mm) Packing Dimension (mm) Volume (CBM)
WMG.6504 4 600 450+100 280 635×485×330 0.1016
WMG.6604 4 600 500+100 280 635×535×330 0.1121
WMG.6506 6 600 450+100 368 635×485×330 0.1016
WMG.6606 6 600 500+100 368 635×535×330 0.1121
WMG.6509 9 600 450+100 501 635×535×330 0.1121
WMG.6609 9 600 500+100 501 635×535×330 0.1121
WMG.6512 12 600 450+100 635 625×670×290 0.1214
WMG.6612 12 600 500+100 635 635×670×290 0.1214
WMG.6515 15 600 450+100 769 635×800×290 0.1473
WMG.6615 15 600 500+100 769 635×800×290 0.1473
WMG.6518 18 600 450+100 901 635×935×290 0.1722
WMG.6618 18 600 500+100 901 635×935×290 0.1722

Features and Inclusions

  • Zinc plated mounting profile

  • Meets IP20 protection grade

  • Supplied fully assembled or unassembled

  • Constructed from high-quality cold-rolled steel

  • Reversible front door

  • Excellent air ventilation design with 2-way ceiling mount fan kit (fans are optional)

  • 6-way rack mount power rail (optional)

  • Hinged swing frame enclosure with reversible drop hinge

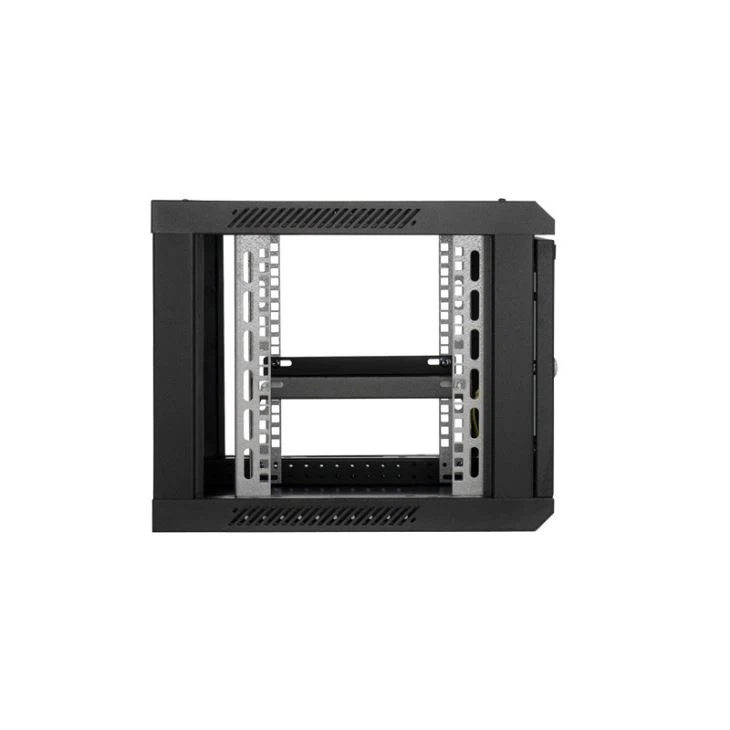

  • Adjustable 19″ L rails front and rear of cabinet with U marking

  • Three ways — top, bottom, and rear cabling tunnels

  • Easy to install and maintain

  • Certification: ISO 9001:2000

  • Secure, firm and reliable

  • OEM service available

  • 10 sets of cage nuts

  • Loading capacity 60kg

  • 3-year warranty

Key Advantages

  1. Double Section Design with Swing Rear Panel – 100mm back swing panel makes wire and cable management easier.

  2. 5mm Tempered Glass Front Door – Strong, reversible, and easy to monitor equipment.

  3. Welded Frame – Stable structure for secure equipment mounting.

  4. Removable Side Panels – Convenient access with optional locks.

  5. Three-Way Cabling Tunnels – Top, bottom, and rear cable access.

  6. 3-Year Warranty – Confidence in long-term reliability.

Why Buy from Zoomtech?

  • Authorized supplier of FINEN network cabinets and wall mount enclosures.

  • Expert product guidance — we help you match the right cabinet to your equipment and space.

  • Competitive pricing on single units and bulk orders.

  • Fast response on quotes, lead times, and shipping.

  • After-sales support for configuration, accessories, and replacements.

About the Manufacturer – FINEN

FINEN is a 100% manufacturer with 24 years’ experience, covering an area of 50,000 square meters. Their steel is sourced with higher quality assurance, and their advanced equipment — imported from Japan and Germany — includes AMADA CNC Punch Machines, TRUMPF Laser Cutting Machines, AMADA CNC Bending Machines, and CNC Automatic Spraying Lines. Production capacity is 12,000 sets per month. Packing uses 5-ply corrugated cartons with imported Meika outer paper, glued to avoid scratches for more careful protection. A professional container loading team maximizes space and reduces delivery costs. Short lead times: 7 days for stock products; 15–20 days for mass production. On-time delivery rate exceeds 95%.

Applications

  • Protect and accommodate servers

  • DVR, security equipment, and hubs

  • Patch panels and circuit switches for communication centers

  • Data center systems and PABX

  • Network and communications equipment

  • Uninterruptible Power Systems and storage devices

  • Intelligent monitoring or other 19-inch standard equipment

Useful Resources

External resources: IEC Standards | EIA-310 Rack Standards
