Zyr digital repeater
Zyr digital repeater | Cofem Fire Safety
The Zyr digital repeater is a professional fire safety product from Cofem, a specialist manufacturer of fire detection and extinguishing systems for commercial, industrial and residential applications.

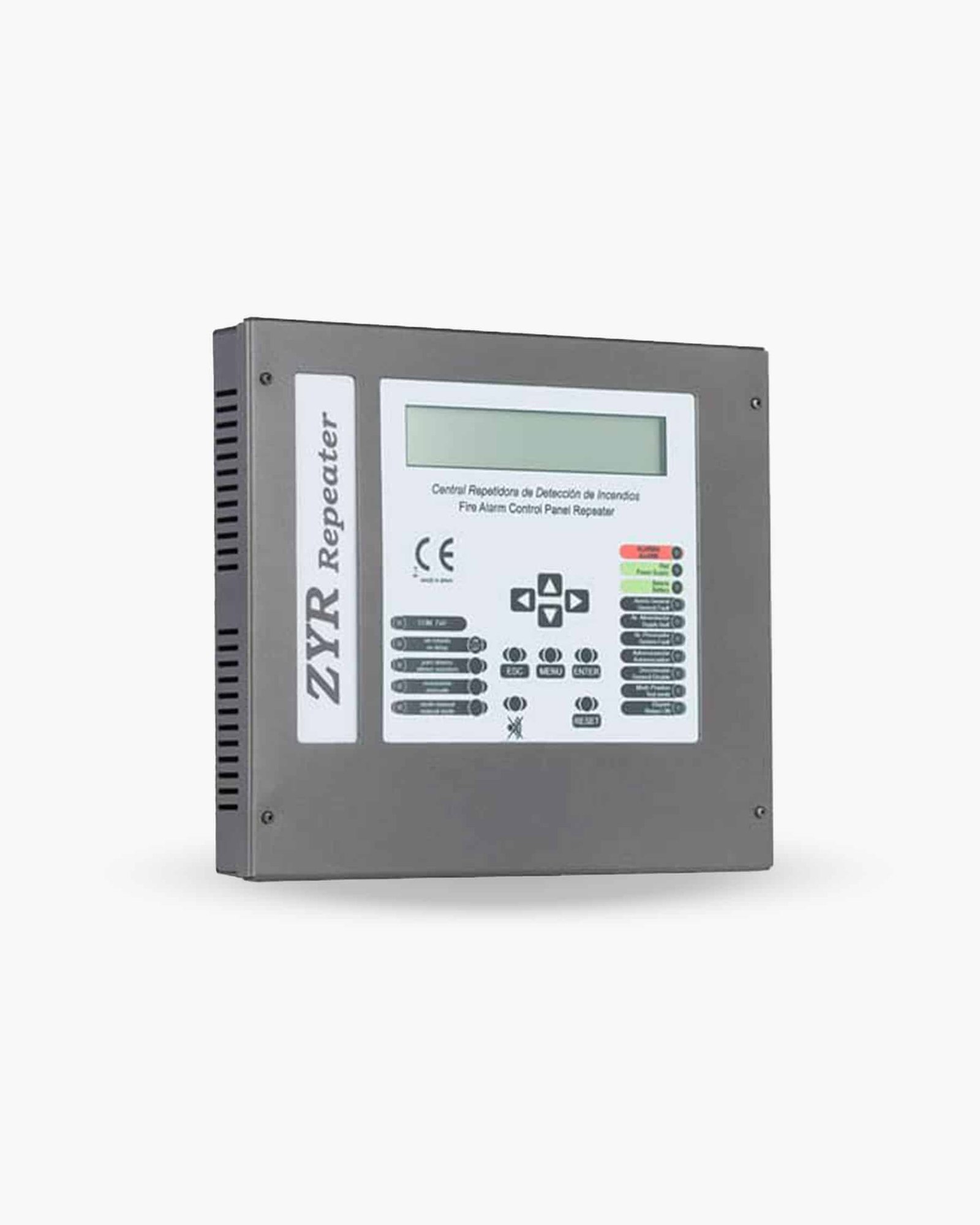

Zyr digital repeater
Digital repeater for Lyon Remote, Zafir and Compact Lyon algorithmic control panels certified EN 54-2 and EN 54-4.
Connect up to 15 repeaters via 4-wire RS485 bus (two power, two communication). Maximum cable length 1200 meters.
Lyon Remote powers 3 repeaters from 30V output; C-Lyon and Zafir power 1; additional need external 30V supply.
Key Features
- Up to 15 ZYR Repeaters on RS-485 bus
- 4-wire 1.5 mm² bus
- Max cable length 1,200 m
- Power consumption surveillance 150 mA
- Temperature -10°C to +50°C
- IP30 protection
- Dimensions 283 × 240 × 35 mm
Why Choose Cofem?
- Proven Reliability – Designed for continuous operation in demanding environments
- System Compatibility – Fully compatible with Cofem algorithmic and conventional systems
- Professional Installation – Clear documentation and support for installers
- Compliance Ready – Built to meet EN 54 and applicable fire safety standards
Contact us for pricing, technical datasheets and integration support.
| Brand | Cofem |
|---|---|
| Product Type | Fire Safety Products |
