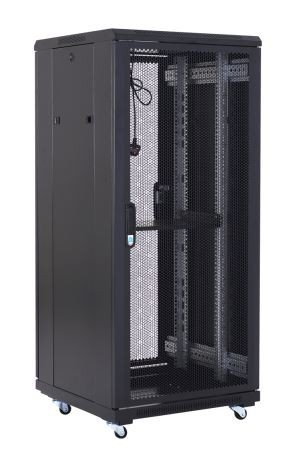

Perforated Metal Mesh Door Cabinet Rack – A3 Series A36627 | FINEN

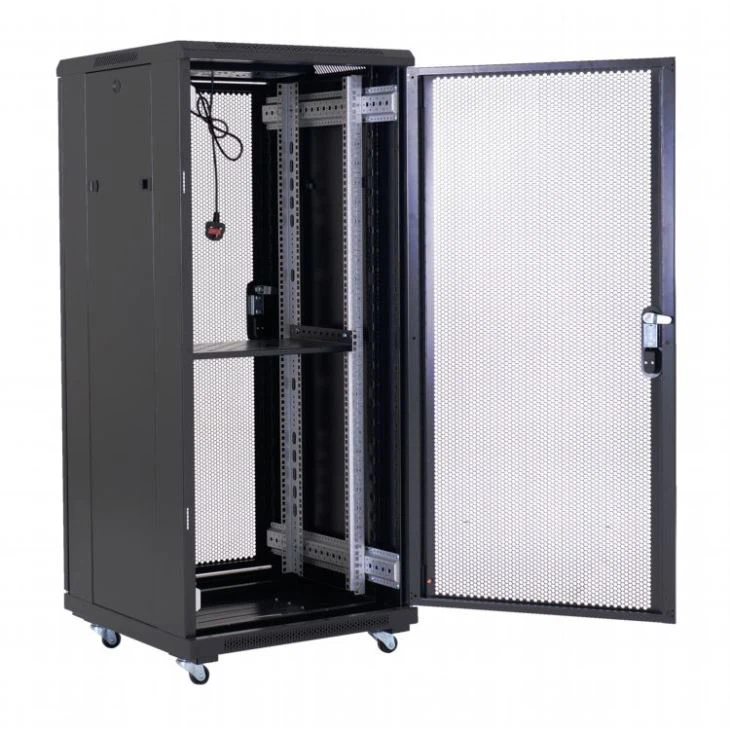

Perforated metal mesh door cabinet rack – FINEN A3 Series A36627 floor standing 19-inch network cabinet with perforated metal mesh doors.

Perforated Metal Mesh Door Cabinet Rack

Categories: , , Brand:

Perforated Metal Mesh Door Cabinet Rack – A3 Series A36627 | FINEN


A perforated metal mesh door cabinet rack is a combination of hardware structures designed to accommodate technical equipment including routers, switches, hubs, storage devices (UPSs), cables, and servers. The FINEN A3 Series A36627 perforated metal mesh door cabinet rack delivers superior heat dissipation, lockable security, and fully adjustable mounting rails — making it an ideal floor standing network cabinet for data centers, server rooms, and telecommunication facilities.

Product Overview

The perforated metal mesh door cabinet rack (Model: A3 Series A36627) is a floor standing 19-inch network cabinet built from durable SPCC steel. With perforated front and rear doors, this perforated metal mesh door cabinet rack ensures excellent airflow and heat dissipation, keeping your critical IT equipment cool and operating reliably.

Standards & Compliance

This perforated metal mesh door cabinet rack complies with the following international standards:

  • ANSI/EIA RS-310-D

  • DIN41497 Part 1

  • IEC297-2

  • DIN41494 Part 7

Front Door: Perforated Metal Mesh Door

Quick Details

Specification Details
Place of Origin Beijing, China
Brand Name FINEN
Model Number A3 Series
Material SPCC
Degree of Protection IP20
Type Floor Standing Network Cabinet
Capacity 18U – 47U
Color RAL7035, RAL9004, etc.
Depth 600mm / 800mm / 900mm / 1000mm / 1100mm / 1200mm
Width 600mm / 800mm
Front Door Single Perforated Metal Mesh Door
Rear Door Single Flat Perforated Metal Mesh Rear Door
Mounting Profile Galva Clean Al-Zn Coated Steel Plate – 2.0mm
Loading Capacity 800kg
Optional Accessories Cooling Fans, Shelf, PDU, Patch Panel, Switch, and Others
Packing Assembly or Dis-assembly Packing Carton
Certificate CE, RoHS
HS Code 8517709000

Product Size Chart

Model No. Capacity (U) Width (mm) Depth (mm) Height (mm) Volume (CBM)
A3.6618 18 600 600 988 0.131
A3.6818 18 600 800 988 0.152
A3.6018 18 600 1000 988 0.182
A3.8818 18 800 800 988 0.212
A3.8018 18 800 1000 988 0.24
A3.6622 22 600 600 1165 0.146
A3.6822 22 600 800 1165 0.169
A3.6022 22 600 1000 1165 0.202
A3.8822 22 800 800 1165 0.238
A3.8022 22 800 1000 1165 0.267
A3.6627 27 600 600 1388 0.166
A3.6827 27 600 800 1388 0.189
A3.6027 27 600 1000 1388 0.227
A3.8827 27 800 800 1388 0.268
A3.8027 27 800 1000 1388 0.299
A3.6632 32 600 600 1610 0.186
A3.6832 32 600 800 1610 0.211
A3.6032 32 600 1000 1610 0.252
A3.8832 32 800 800 1610 0.301
A3.8032 32 800 1000 1610 0.333
A3.6637 37 600 600 1833 0.229
A3.6837 37 600 800 1833 0.265
A3.6037 37 600 1000 1833 0.315
A3.8837 37 800 800 1833 0.364
A3.8037 37 800 1000 1833 0.405
A3.6642 42 600 600 2055 0.248
A3.6842 42 600 800 2055 0.285
A3.6042 42 600 1000 2055 0.339
A3.8842 42 800 800 2055 0.394
A3.8042 42 800 1000 2055 0.437
A3.6647 47 600 600 2277 0.291
A3.6847 47 600 800 2277 0.339
A3.6047 47 600 1000 2277 0.402
A3.8847 47 800 800 2277 0.457
A3.8047 47 800 1000 2277 0.509



Key Advantages of the Perforated Metal Mesh Door Cabinet Rack

  1. Fully Adjustable Vertical Mounting Rails – Flexible positioning for all 19-inch equipment.

  2. Lockable Doors for System Security – Protect valuable hardware from unauthorized access.

  3. Perforated Front & Rear Doors – Excellent heat dissipation for optimal airflow.

  4. Two Packing Ways – Assembled or unassembled packing to suit your logistics needs.

  5. Available in Black or Gray – Multiple color options including RAL7035 and RAL9004.

Applications of the Perforated Metal Mesh Door Cabinet Rack

Rack cabinets for information technology and telecommunication appliances:

  • Various 19-inch servers

  • Digital Video Recorders (DVR), KVM, and routers

  • Patch panels, switches, and CCTV system equipment

  • Telephone systems and communication equipment

  • Network cabling and data center systems

  • UPS and weak current equipment

  • Other rack mount equipment
