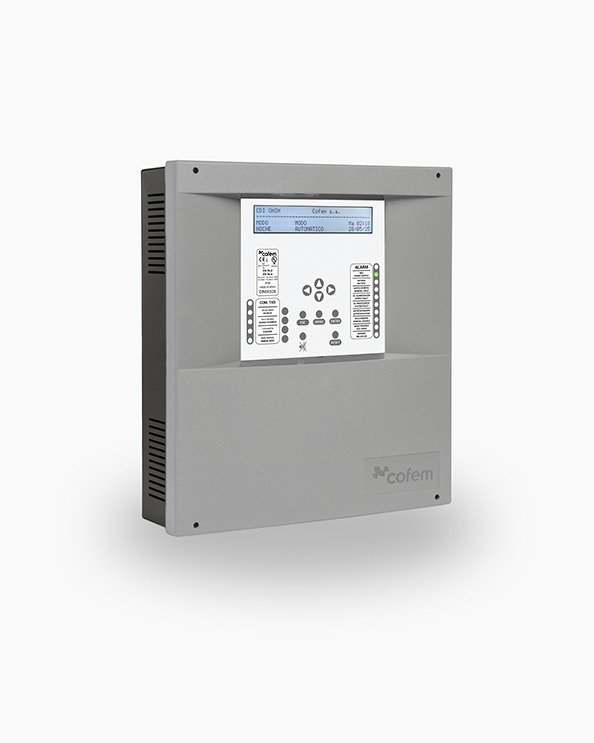

ONIX control panel

The ONIX control panel is a professional fire safety product from Cofem, a specialist manufacturer of fire detection and extinguishing systems for commercial, industrial and residential applications.

Onix control panel, versatility and connectivity

Control panel with capacity to adapt optimally to small and medium-sized installations.

The ONIX control panel has a capacity of 1 or 2 loops, with 226 elements and 64 relays per loop (452 elements and 128 relays in total), allowing for maximum performance when using A50xxLD fire detectors, which have built-in sound and visual alarm notification.

They have 2 independent sounder outputs, 2 independent 24/30V auxiliary power supply connectors with programmable reset, functionality to configure points in sequential order in the loop, to assist in locating open loops, the possibility of configuring points with the Cofem Installer mobile application with Android and IOS operating systems, I-Link software (for PC configuration), etc.

Enables Cofem 360 remote functionality on demand, receiving notifications of alarms, faults, etc., from a mobile phone with internet access.

Key Features

• Control panel with 1 or 2 loops
• Loop capability 226 points
• Capacity for 64 relays per loop and 128 in total
• Allows A50xxLD detectors with visual and sound alarm notification
• Programming of 99 zones
• Registry with capacity of 6601 events
• 2 independent programmable sounder outputs
• Configurable via PC software, I-Link
• Connection of up to 15 repeaters and/or 15 network control panels
• UL/EU certification EN 54-2 and EN 54-4

Why Choose Cofem?

• Proven Reliability – Designed for continuous operation in demanding environments
• System Compatibility – Fully compatible with Cofem algorithmic and conventional systems
• Professional Installation – Clear documentation and support for installers
• Compliance Ready – Built to meet EN 54 and applicable fire safety standards

Contact us for pricing, technical datasheets and integration support.
