LD Systems U508 CST
Available in three versions operating in the 554 – 586 MHz, 662 – 694 MHz or 823 – 832 MHz & 863 – 865 MHz frequency bands, the U500® conference microphone base sports a combination power and mute switch, high contrast OLED display, adjustable gain and a 130 Hz low cut filter to eliminate low…

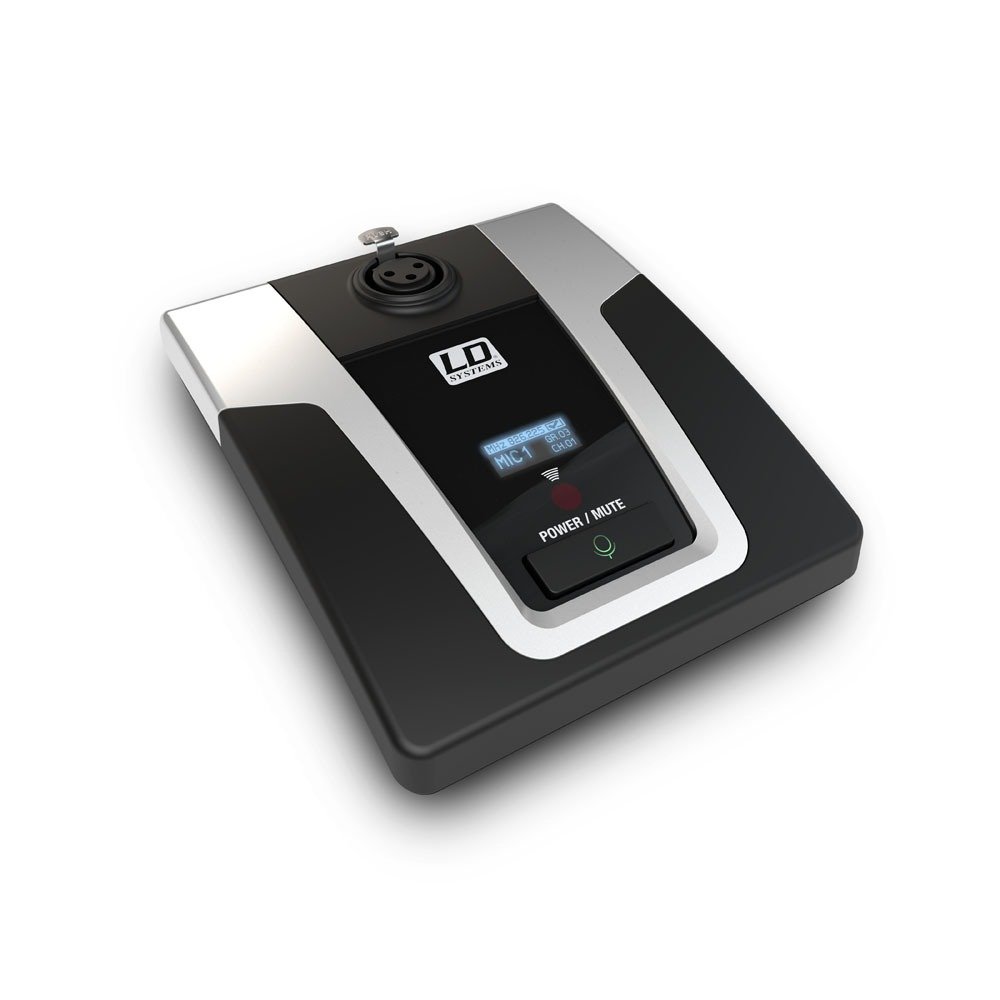

U508 CST – U 500 Conference System Microphone Base 823 – 832 MHz & 863 – 865 MHz.
Available in three versions operating in the 554 – 586 MHz, 662 – 694 MHz or 823 – 832 MHz & 863 – 865 MHz frequency bands, the U500® conference microphone base sports a combination power and mute switch, high contrast OLED display, adjustable gain and a 130 Hz low cut filter to eliminate low frequency rumble. It provides a 3-pin XLR input for the U 500® Gooseneck Conference Microphone (sold separately, item no. LDU500GM530CC).

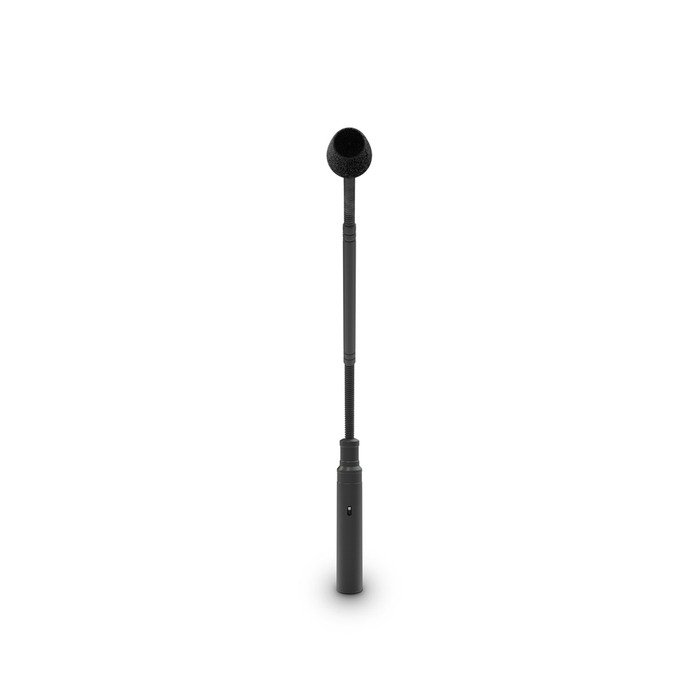

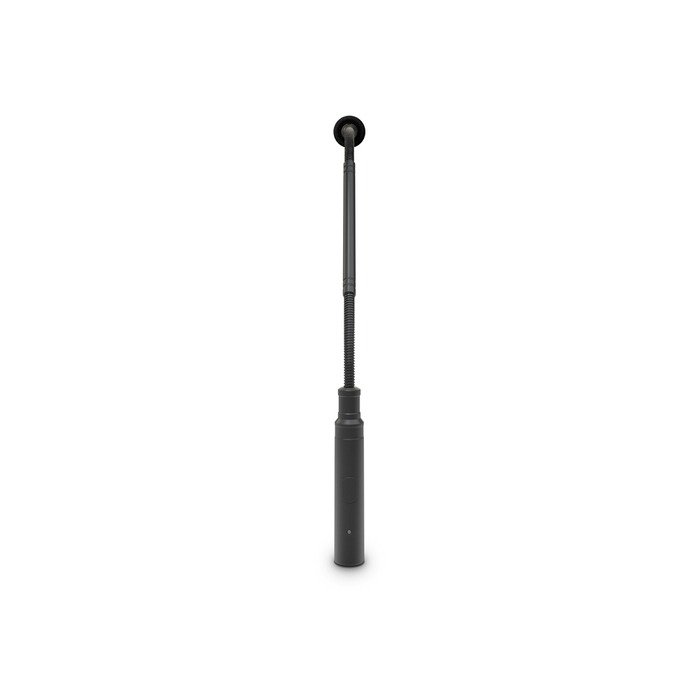

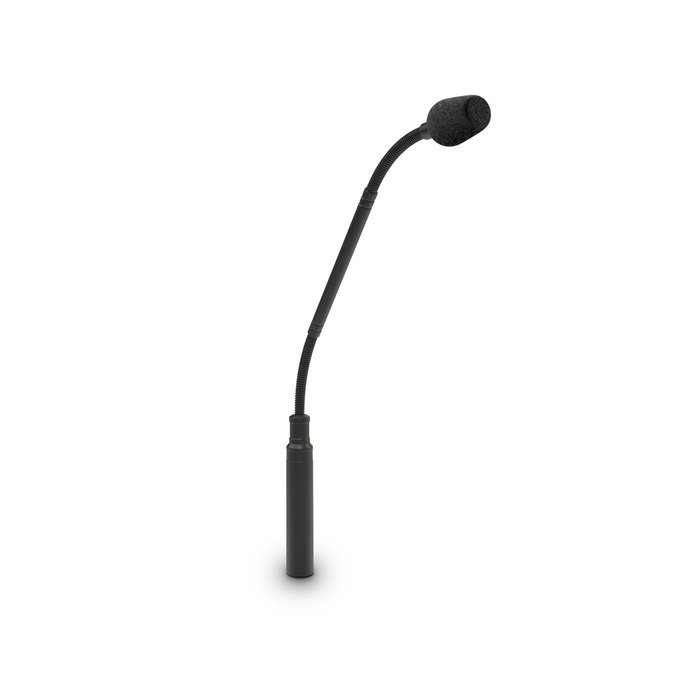

U 500 Gooseneck Conference Microphone
or
LD Systems® is a brand of the Adam Hall Group
© 2026 Adam Hall Group. All Rights Reserved.
Adam Hall Group is an EMAS validated company.
Technical Specifications
| Product type | Microphone Accessories |
|---|---|
| Transmission frequency range | 863 – 865, 823 – 832 |
| Channels | 60 (6 x 10) |
| Groups | 6 |
| Inputs | XLR |
| Frequency response | 60 – 16000 |
| Signal-to-noise ratio | > 100 dB |
| Rated HF output power | 10 mW |
| Controls | Power / Mute, Low Cut, Gain |
| Indicators | OLED Display, LED |
| Power supply | 2 x AA battery |
| Operating time | up to 8 hrs., battery-dependent |
| Width | 115 mm |
| Height | 54 mm |
| Depth | 135 mm |
Item No.: LDU508CST
| Series | ] |
|---|---|
| Product Type | Microphone Accessories |
