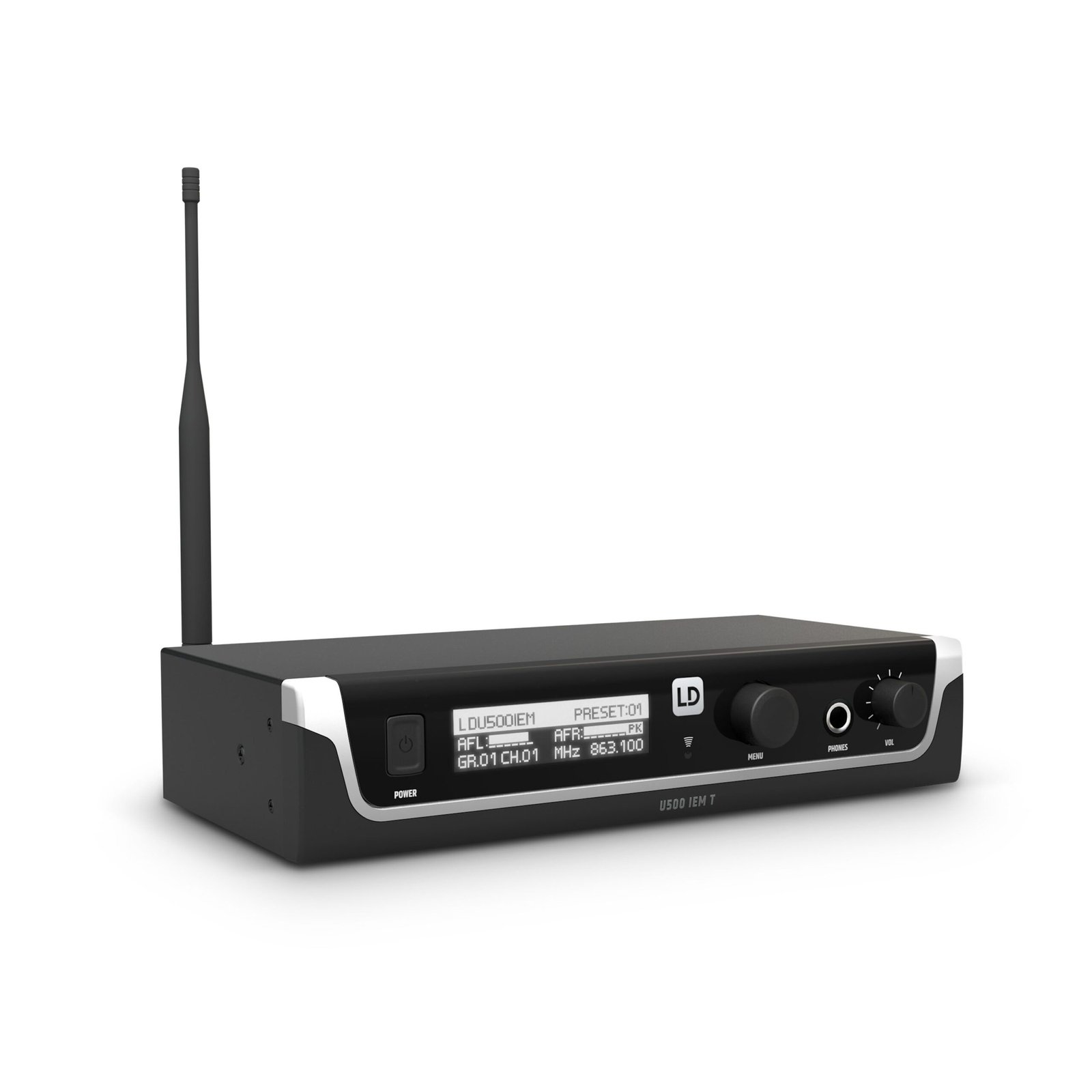

LD Systems U506 IEM T
Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and…
U506 IEM T – Transmitter.
Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems noise floor is exceptionally low.
To deliver pristine, precise audio U500® IEM Transmitters include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and provide a convenient direct monitoring headphone output.
Adapter BNC male to TNC female
Rackmount Kit for U500 Receiver
Antenna Cable BNC to BNC 10 m
Antenna Cable BNC to BNC 0.5 m
Technical Specifications
| Material | Steel sheet |
|---|---|
| Coating | Powder coated |
| Wireless frequencies | 655 – 679 MHz |
| Frequency response (-6 dB, rel. Avg) | 40 Hz – 16000 Hz |
| Colour | Black |
Item No.: LDU506IEMT
| Series | ] |
|---|---|
| Colour | Black |
