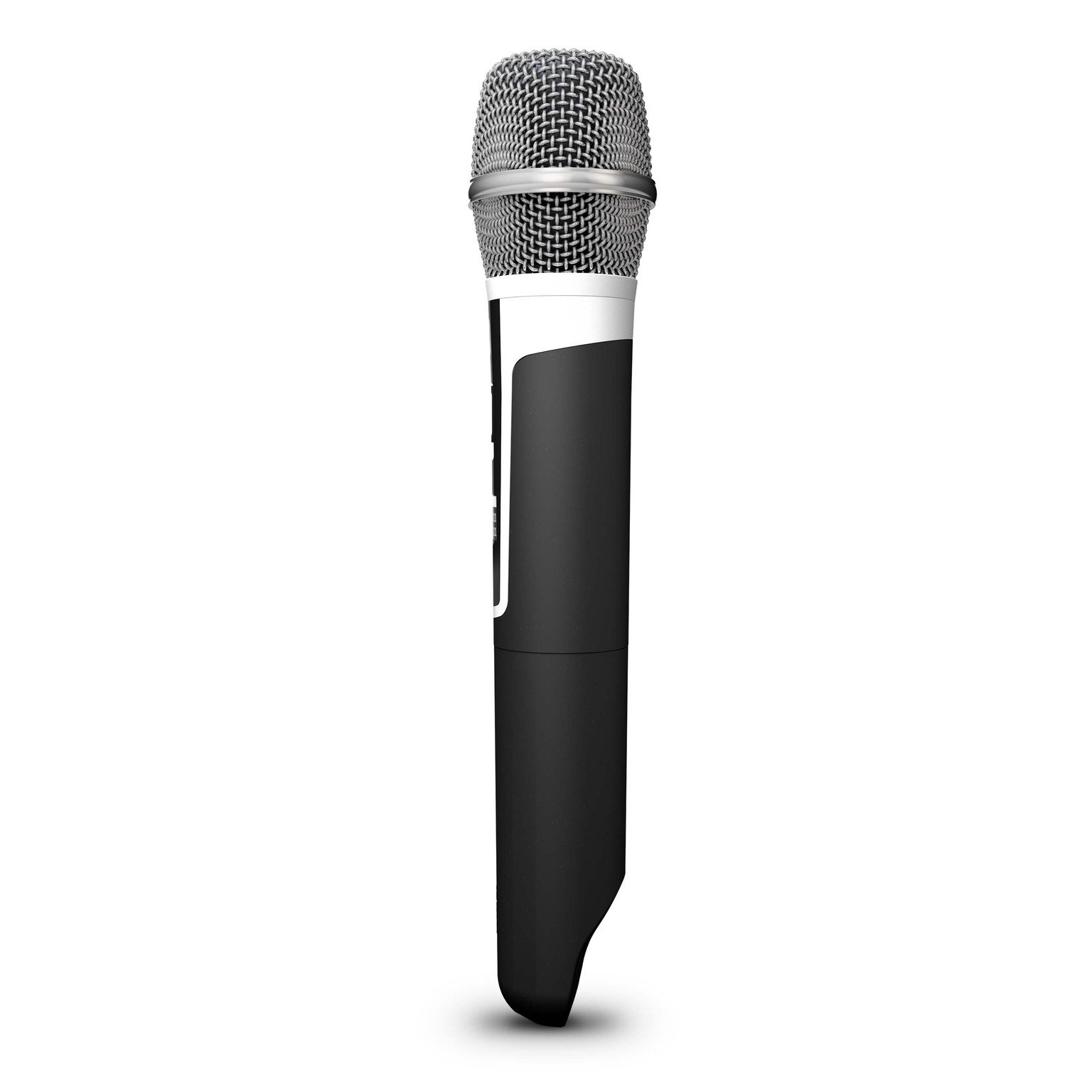

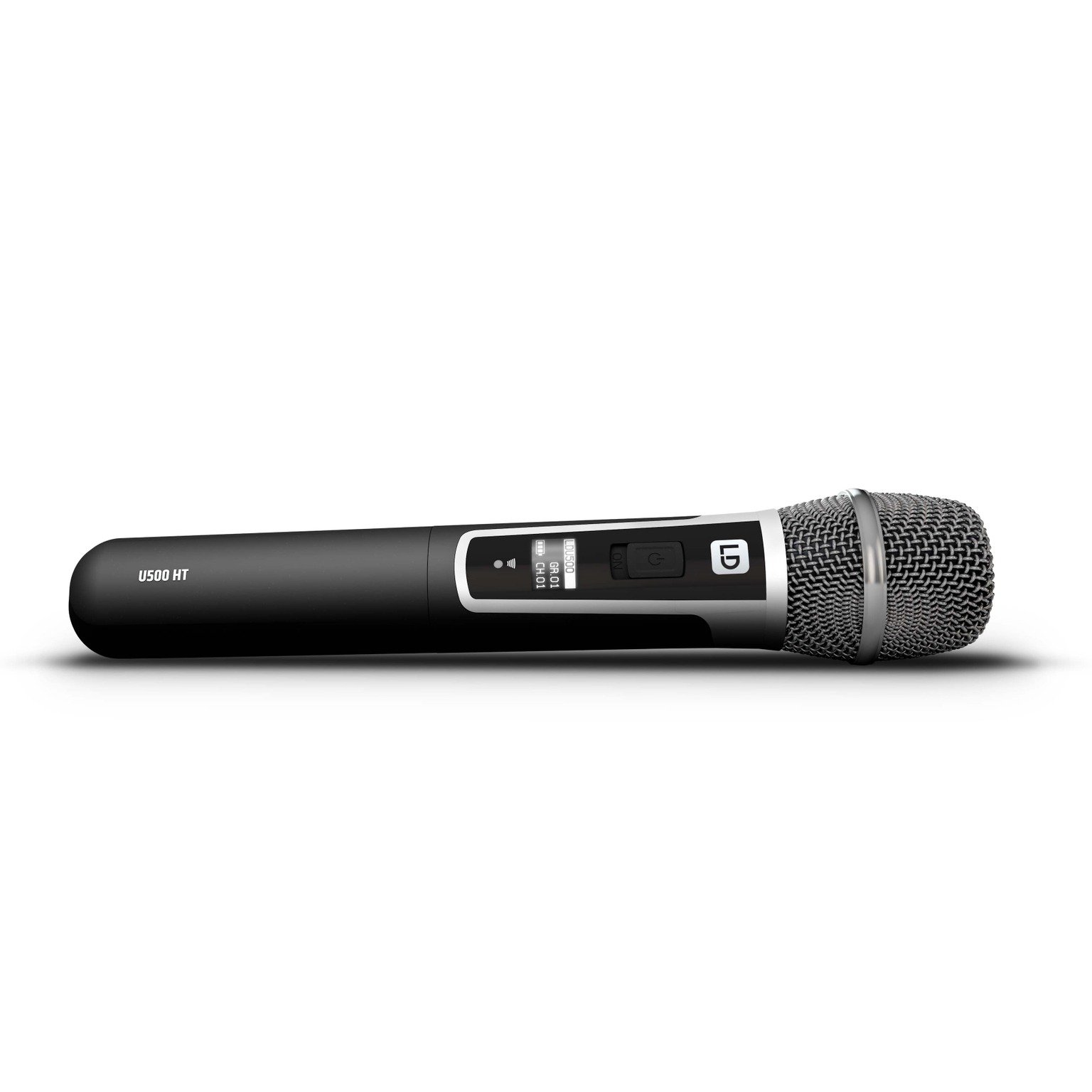

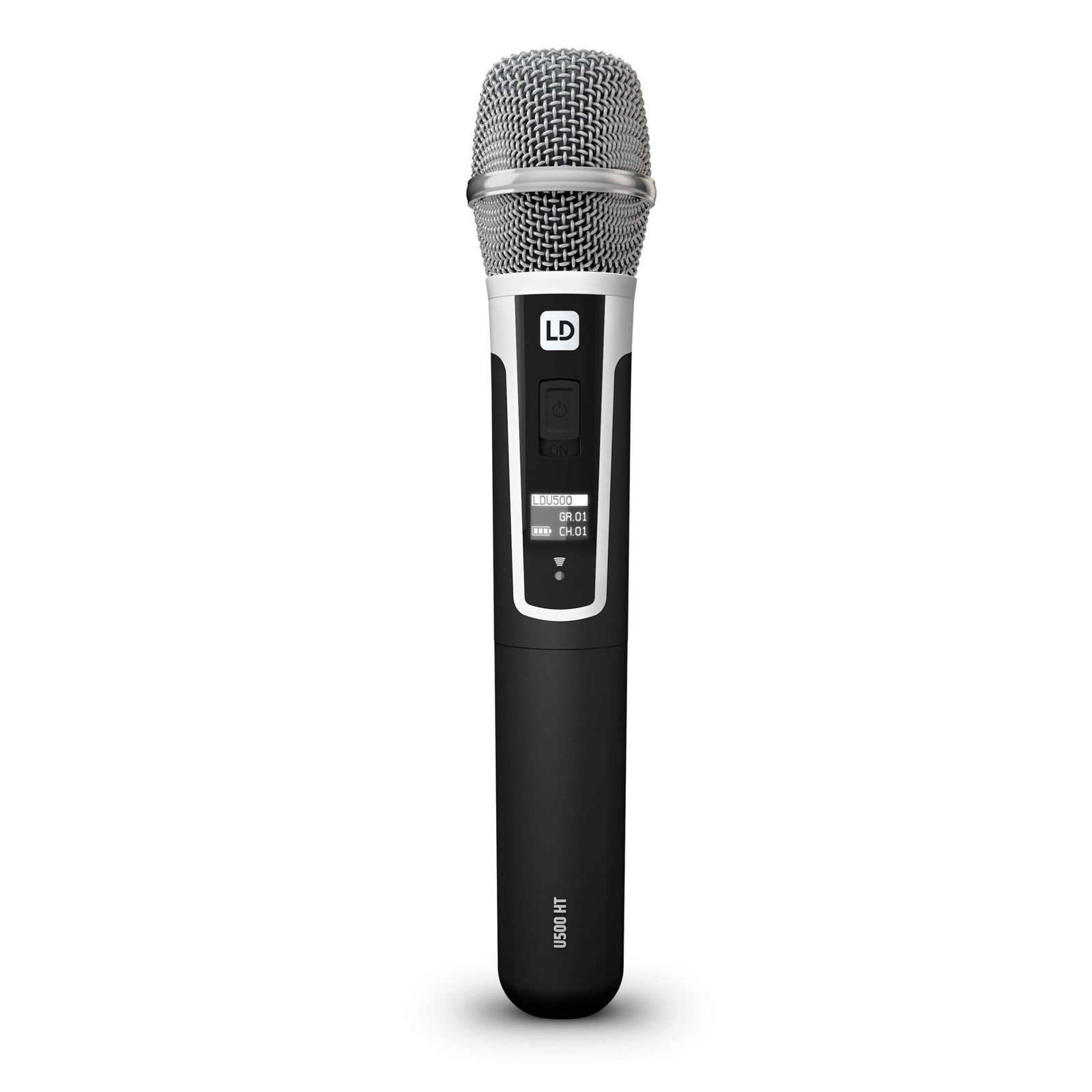

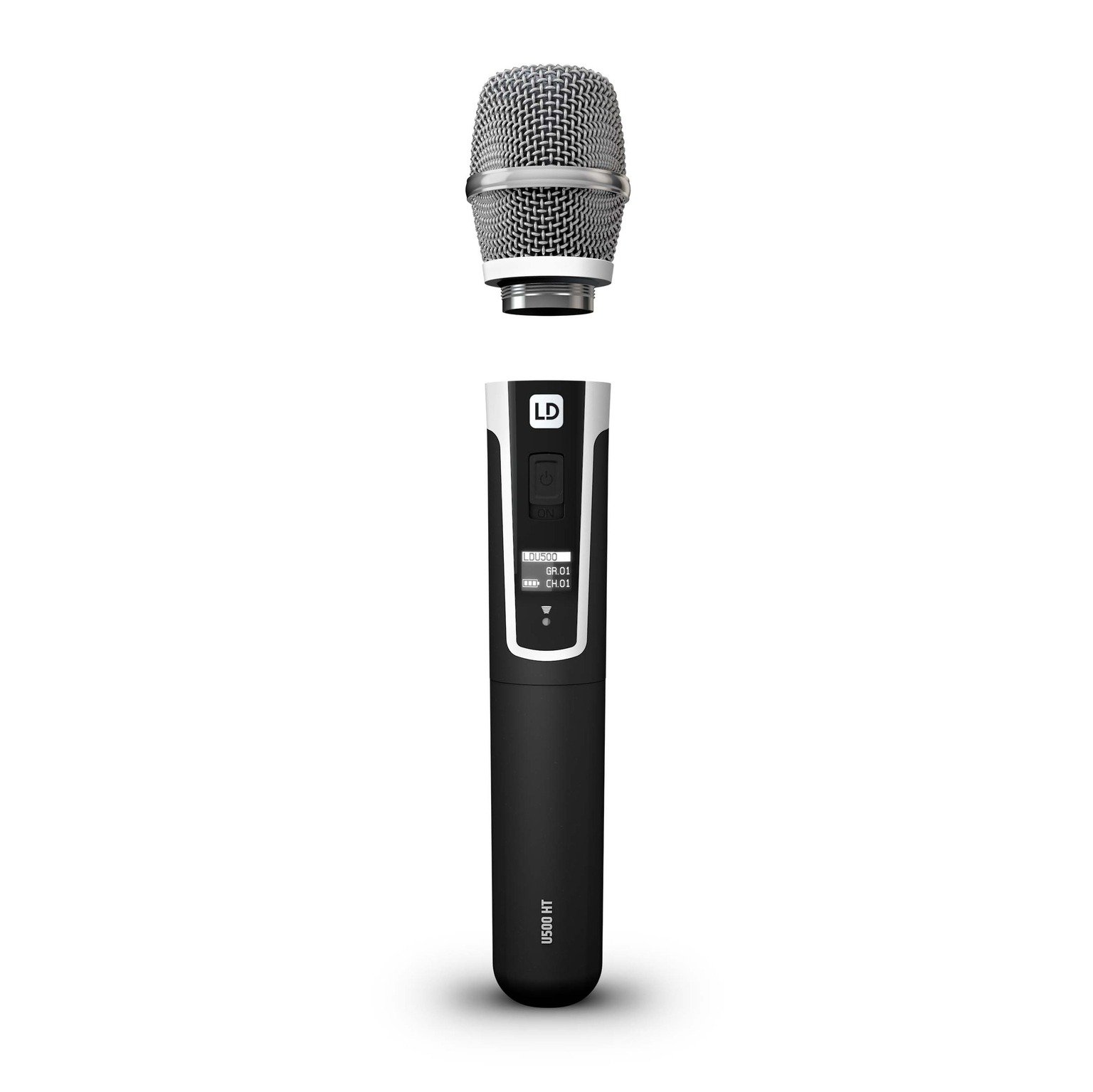

LD Systems U505 MC
Cardioid Condenser Microphone Head
U505 MC — Condenser handheld microphon”
Cardioid Condenser Microphone Head
Hypercardioid Condenser Microphone Head
Cardioid Dynamic Microphone Head
Hypercardioid Dynamic Microphone Head
Universal bag for wireless microphones
or
Technical Specifications
| Product type | Wireless Microphone System Accessories |
|---|---|
| Type | Microphones |
| TransTransmission frequency range | 584 – 608 |
| Channels | 96 (8 groups of 12 channels) |
| Groups | 8 |
| Microphone type | condenser |
| Directivity | Cardioid |
| Frequency response | 60 – 16,000 |
| Signal-to-noise ratio | >95 dB |
| Rated HF output power | Variable (2mW, 10mW, 30mW) |
| Controls | select, Power, Power On/Off, arrow keys (up/down value entry) |
| Indicators | OLED Display |
| Power supply | 2 x AA battery |
| Operating time | >10 h (with alkaline batteries) |
| Length | 257 mm |
| Diameter | 50 mm |
| Other features | IR frequency synchronisation, incl. batteries |
