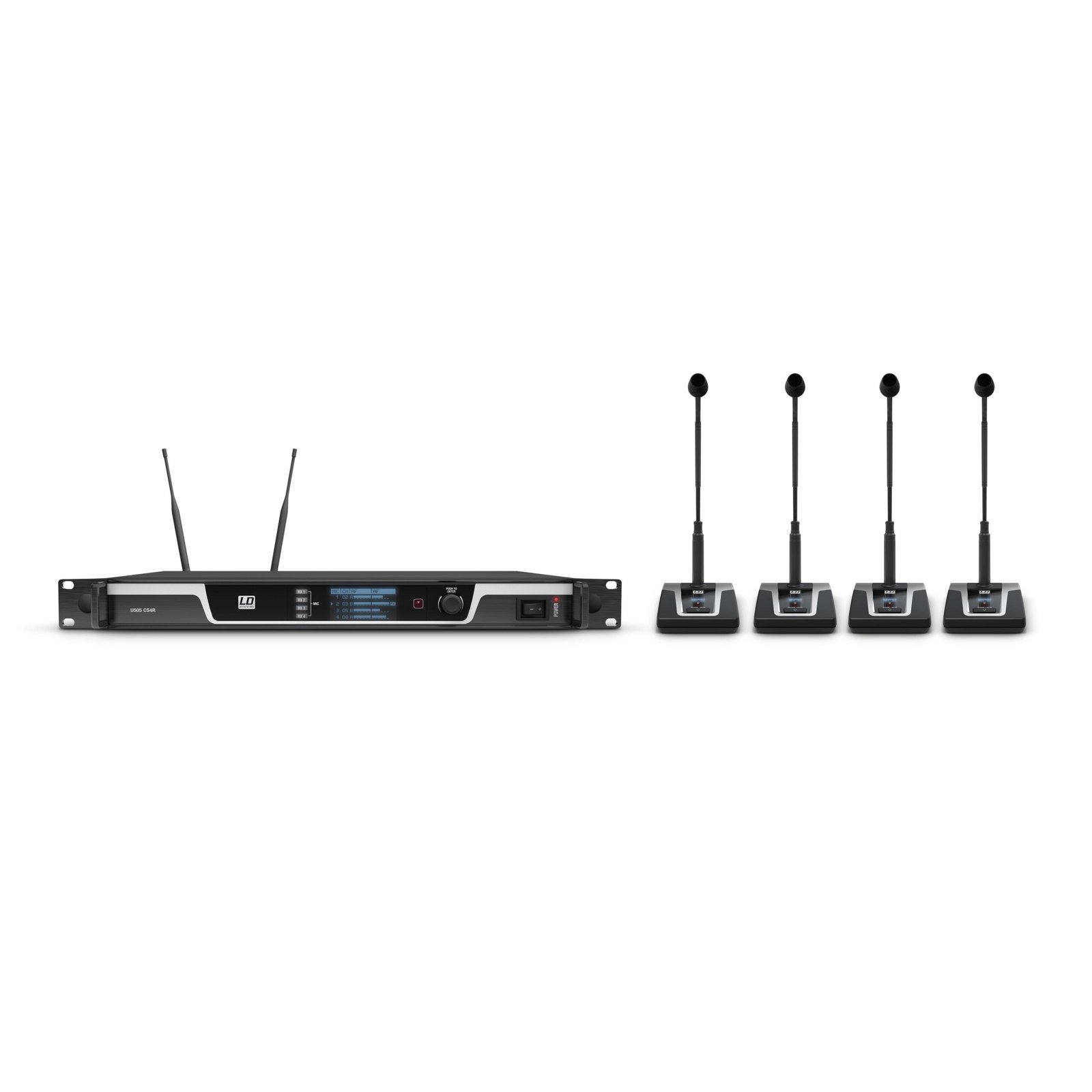

LD Systems U505 CS 4

U505 CS 4 — 4-Channel Wireless Conference Syste”

We have developed the U500– in Germany to meet all of your requirements of a wireless conference system. It offers a professionally equipped solution for effective communication and interaction with advanced technology, excellent speech intelligibility and an elegant appearance. The user-friendly True Diversity UHF system with 60 channels in 6 groups facilitates easier installations and turns conferences, meetings and round tables into successful events.

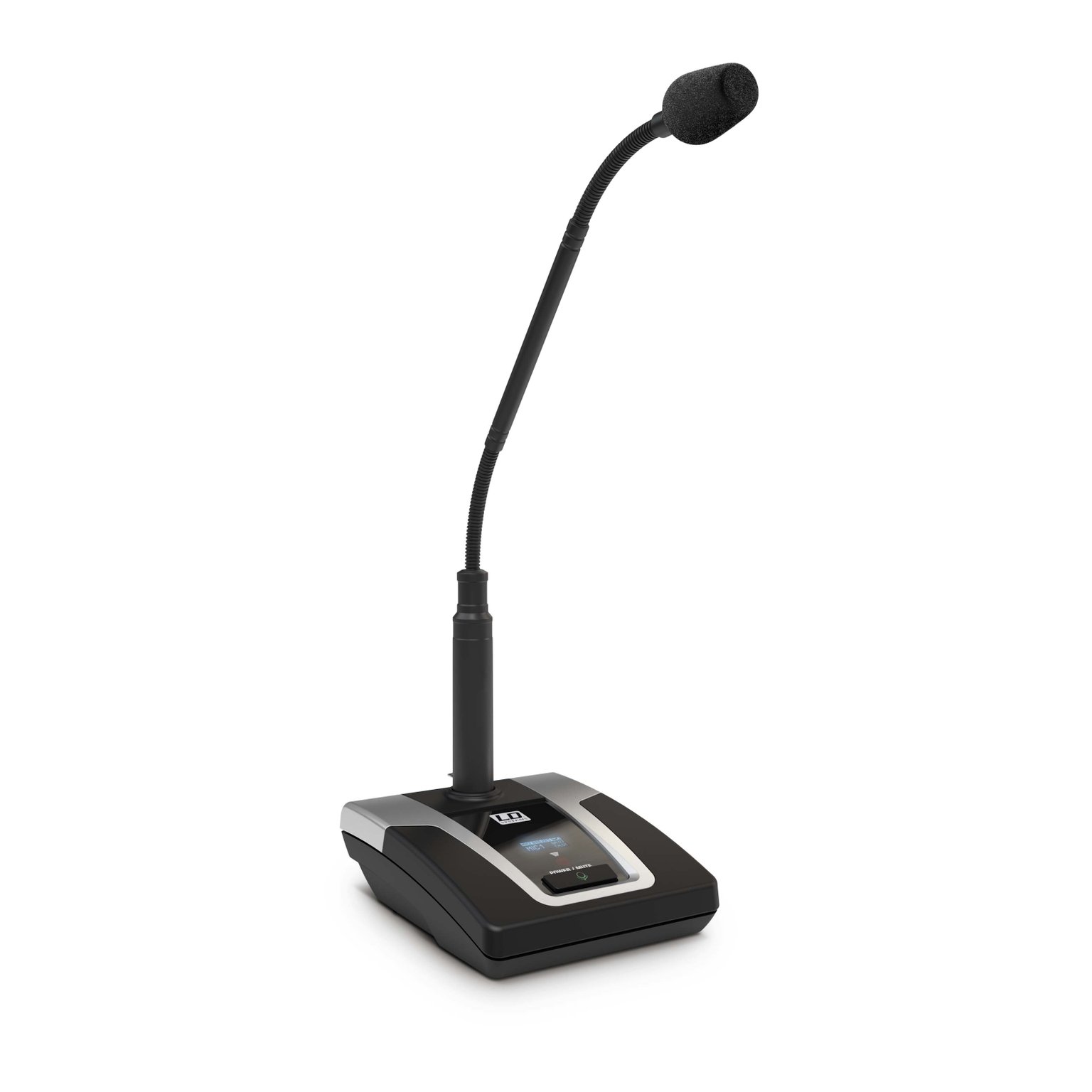

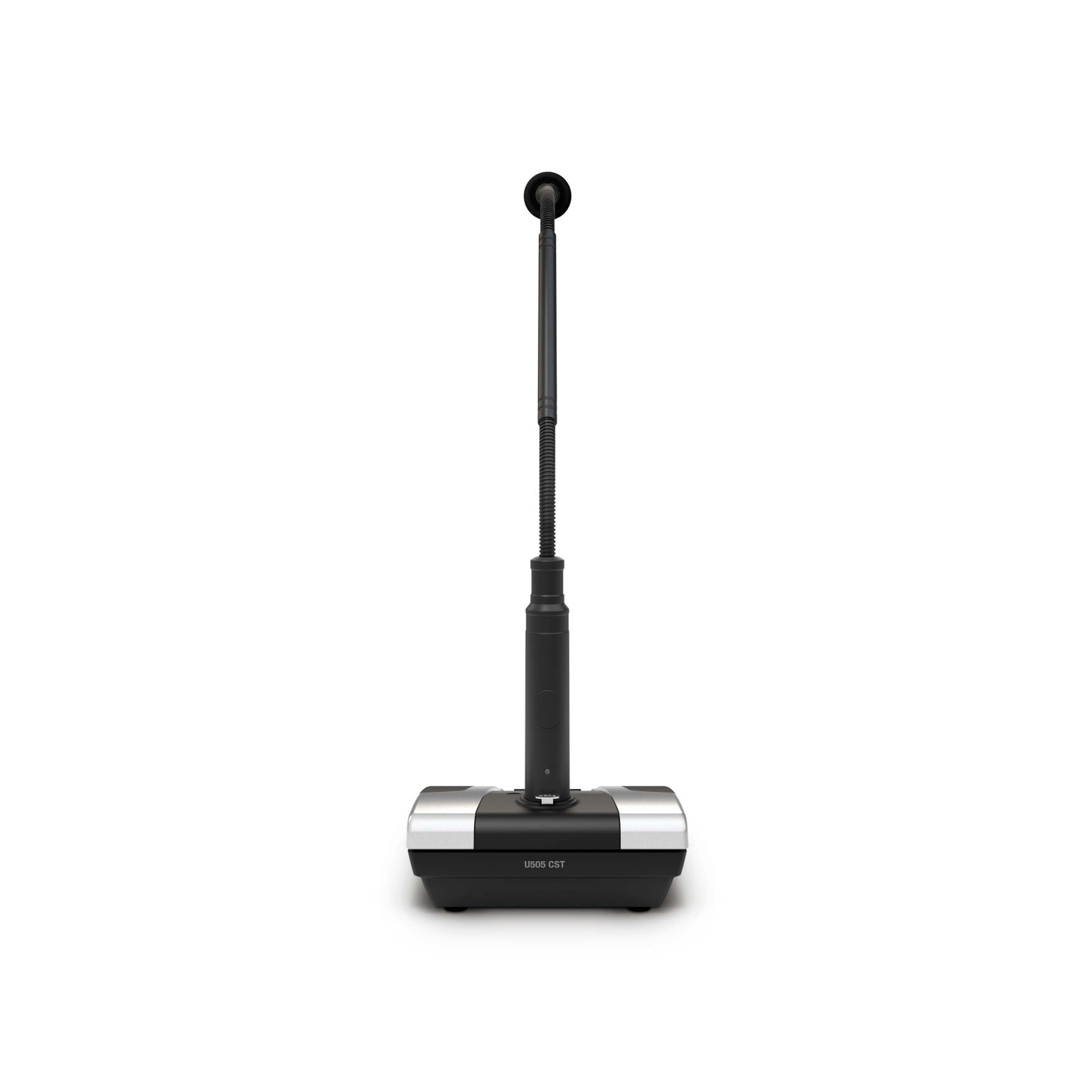

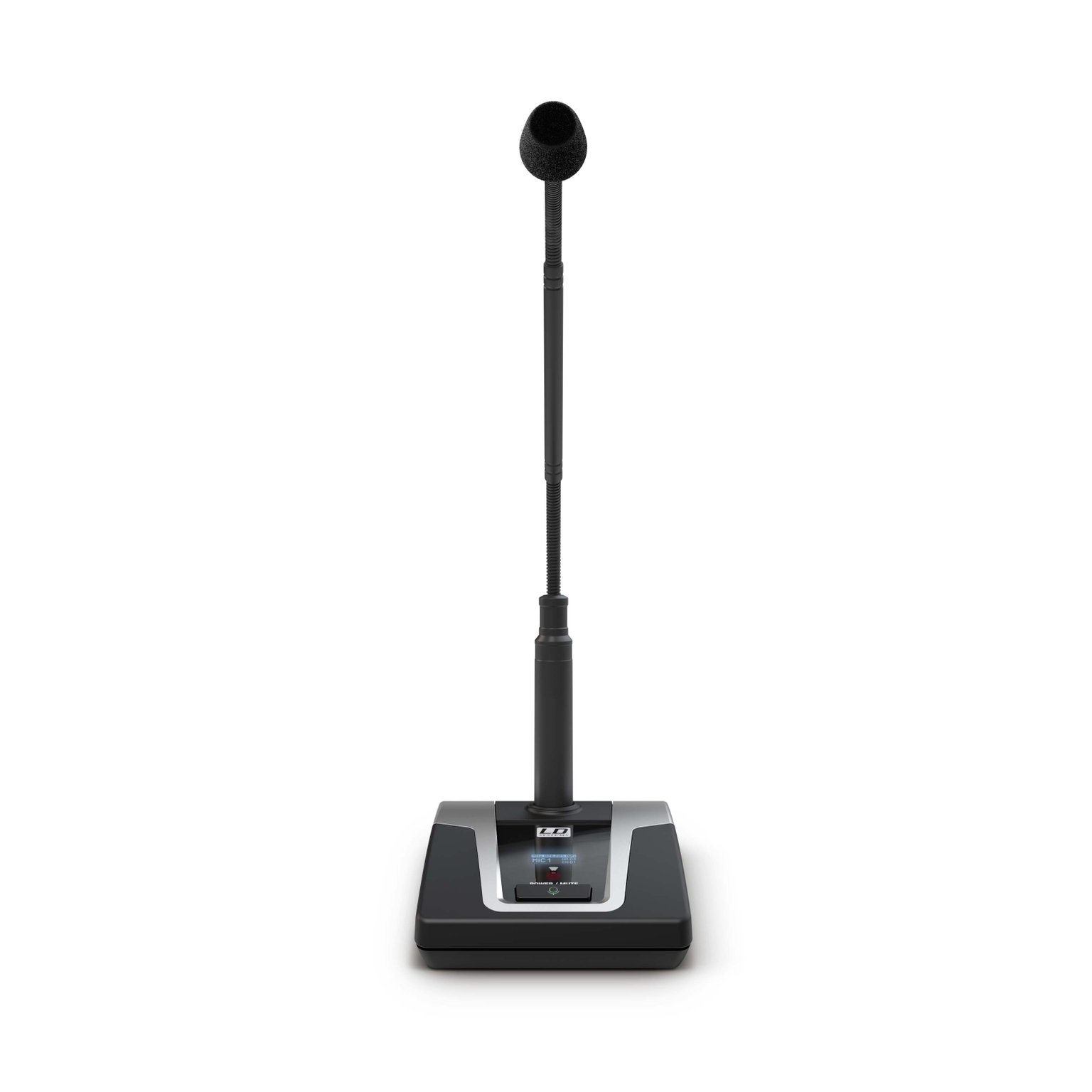

The U500– terminals feature a gooseneck condenser microphone with cardioid characteristic and a light ring to display status. The heavy table stand features an XLR microphone input, 28 V phantom power, an on-off-mute switch, as well as a gain control and a selectable 130 Hz high-pass filter to effectively reduce proximity effect and structure-borne sound. A high-contrast OLED display shows radio frequency, battery status, terminal number, group and channel. The audio transion range is 60 Hz – 16 kHz.

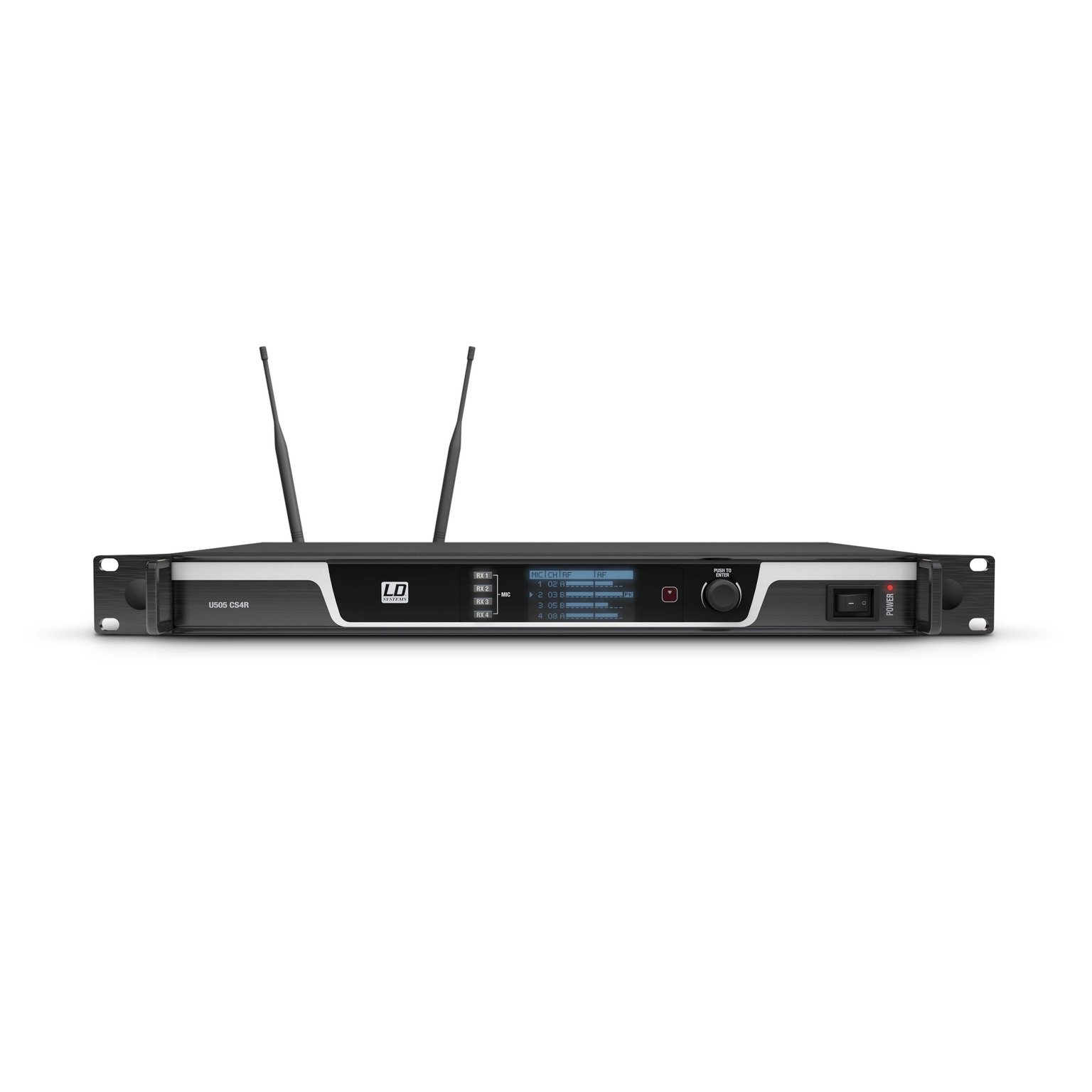

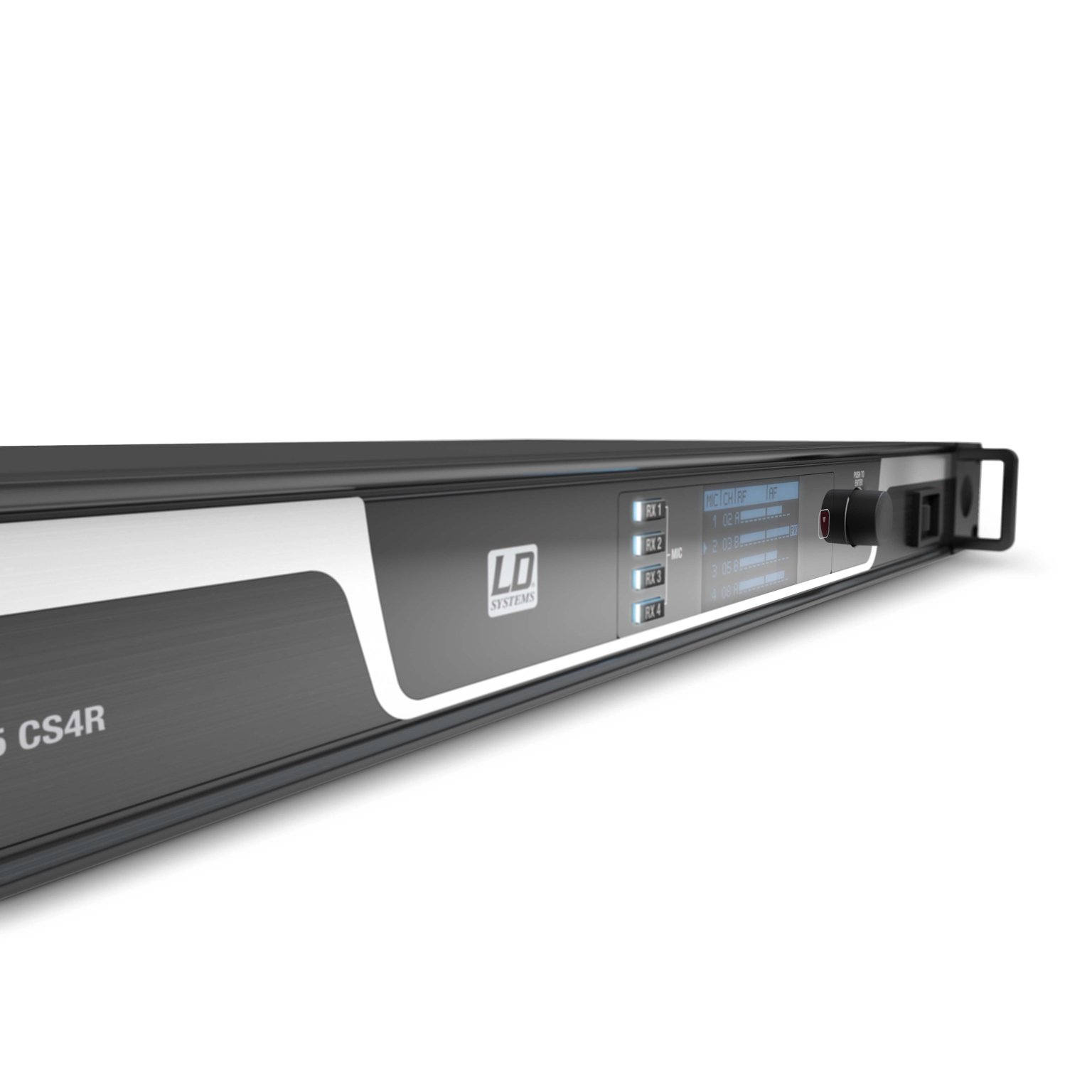

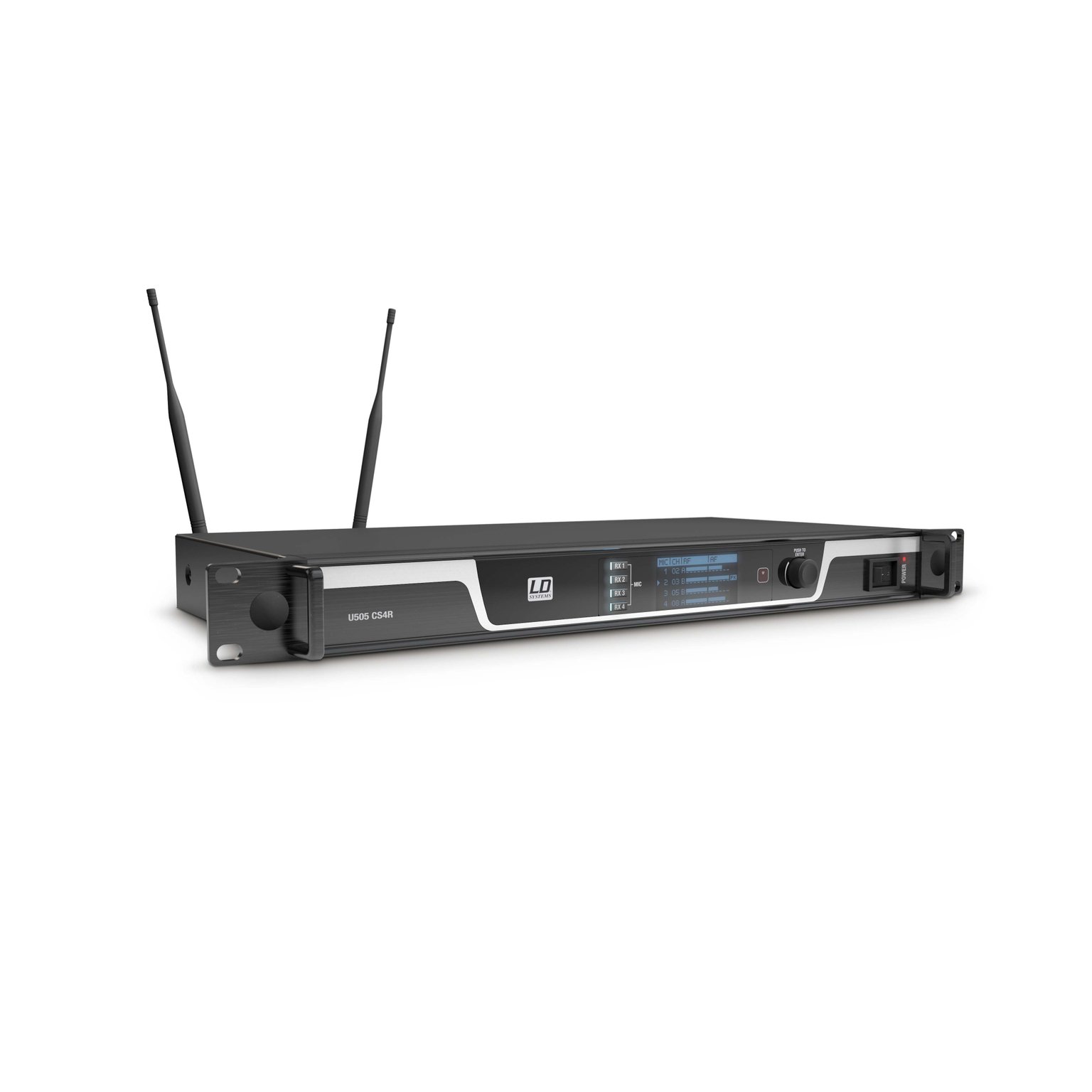

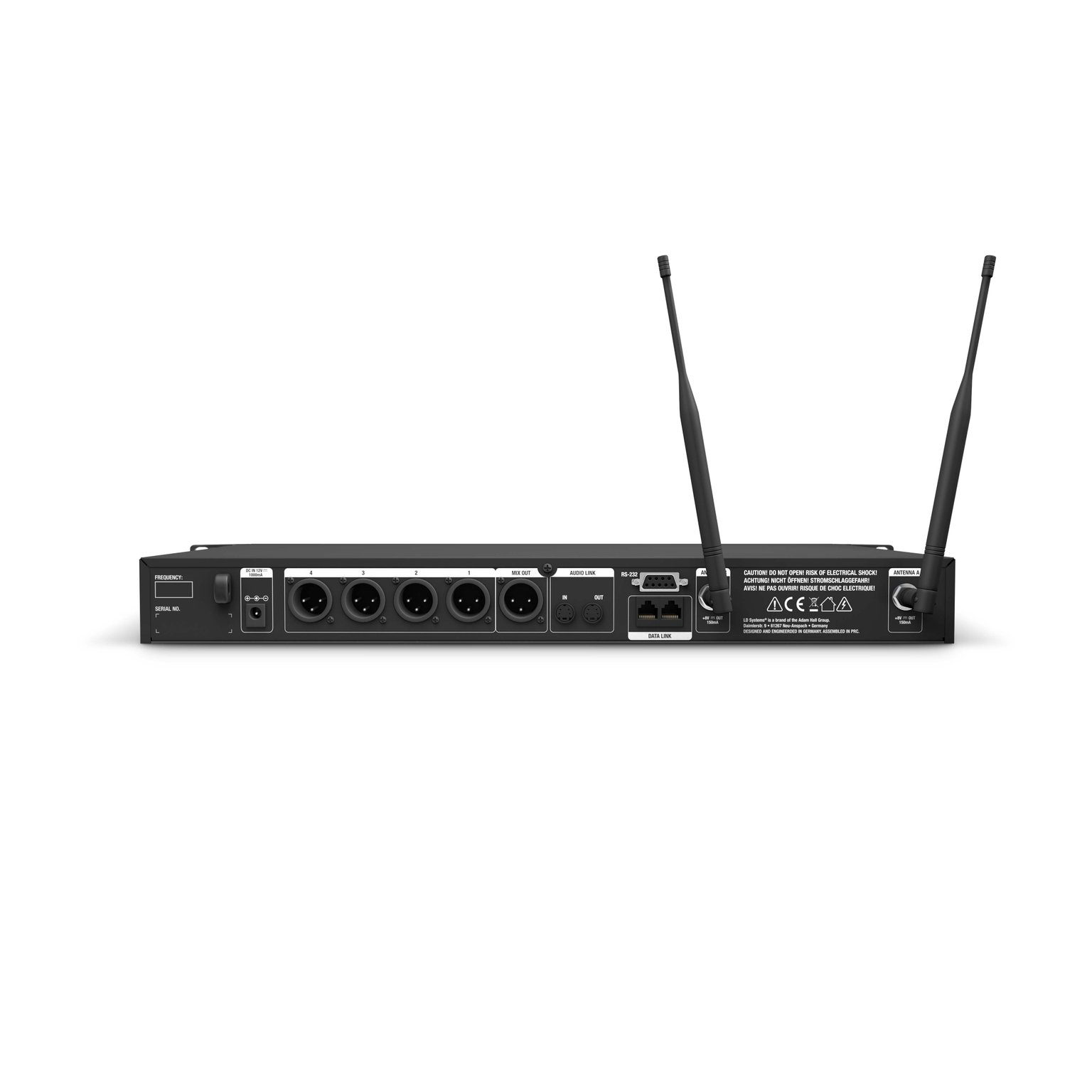

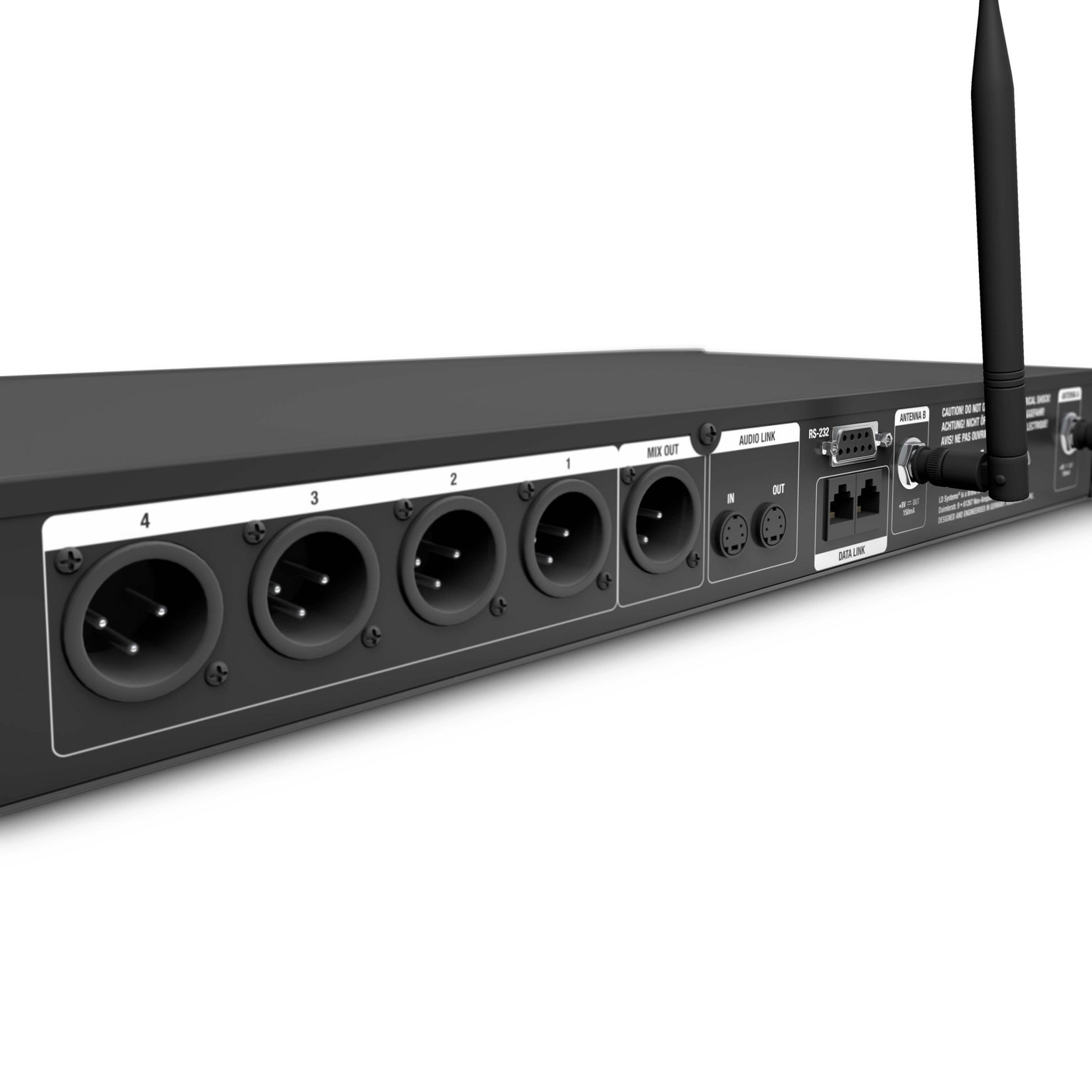

For simple, fast configuration,hannel U500– conference system receiver features automatic frequency and channel scanning, infrared synchronisation, a digital encoder and 4 buttons to directly access the individual channels. The high-contrast OLED display provides a comprehensive overview of all functions and settings such as audio and radio signal strength, and priority and battery status of the terminals. The number of simultaneously-live microphones can be configured in order to eliminate crosstalk, feedback and comb filter effects. Selectable automatic or manual gate settings and a pilot tone ensure that the U500– conference system delivers superb sound quality with excellent noise immunity. In addition to its individual channel outputs, the receiver also has a master output, an access lock to prevent unauthorised adjustment of settings, and the RS-232 interface to facilitate integration into external control systems.

For system expansion, up to five U50 receivers can be cascaded and used in master-slave mode, making a of 20 terminals possible. The U500– conference system is available in three versions which work in the following frequency areas: 554 – 586 MHz, 662 – 694 MHz or 823 – 832 MHz + 863 – 865 MHz

U 500 Conference System Microphone Base 554 – 586 MHz

U 500 Gooseneck Conference Microphone

Technical Specifications

>
