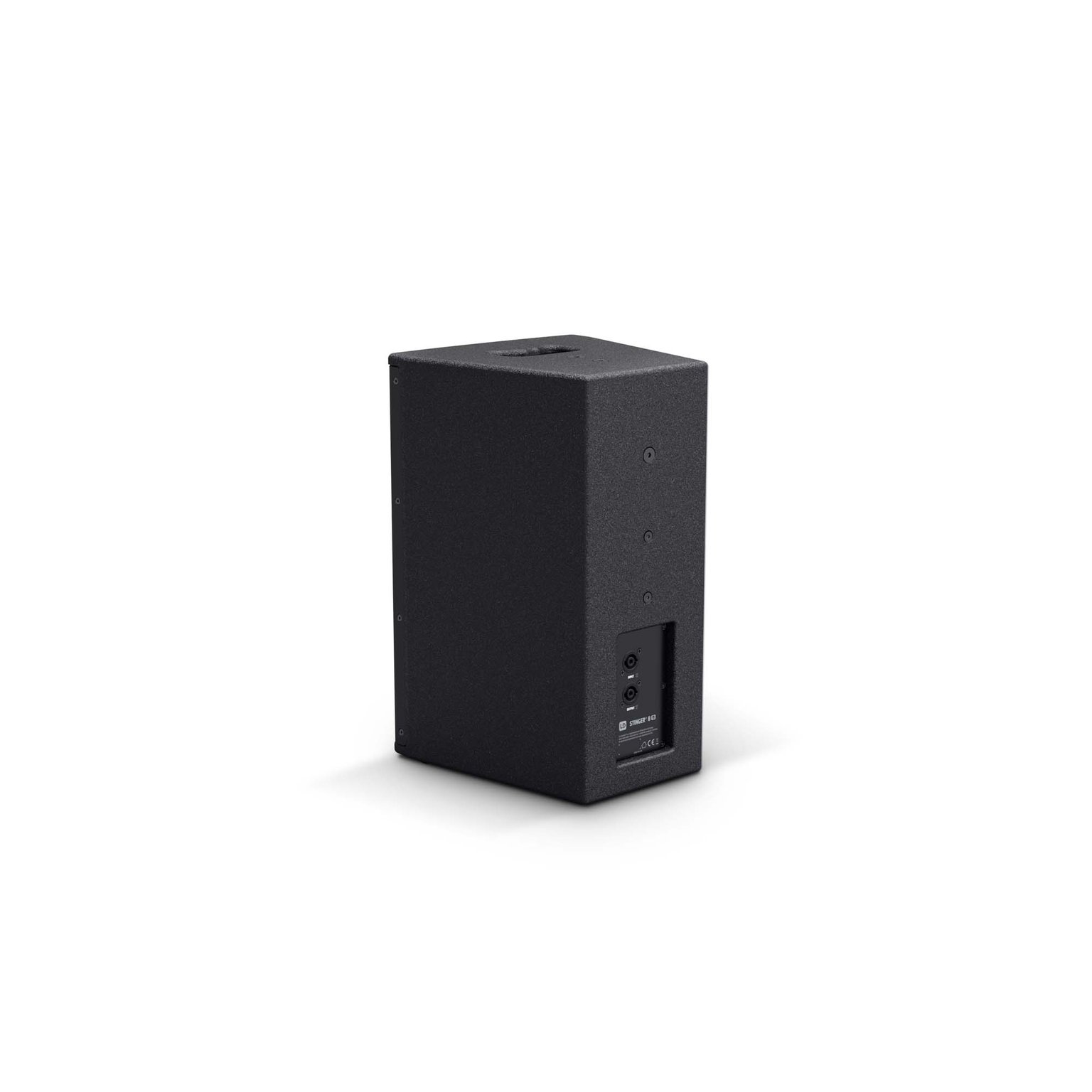

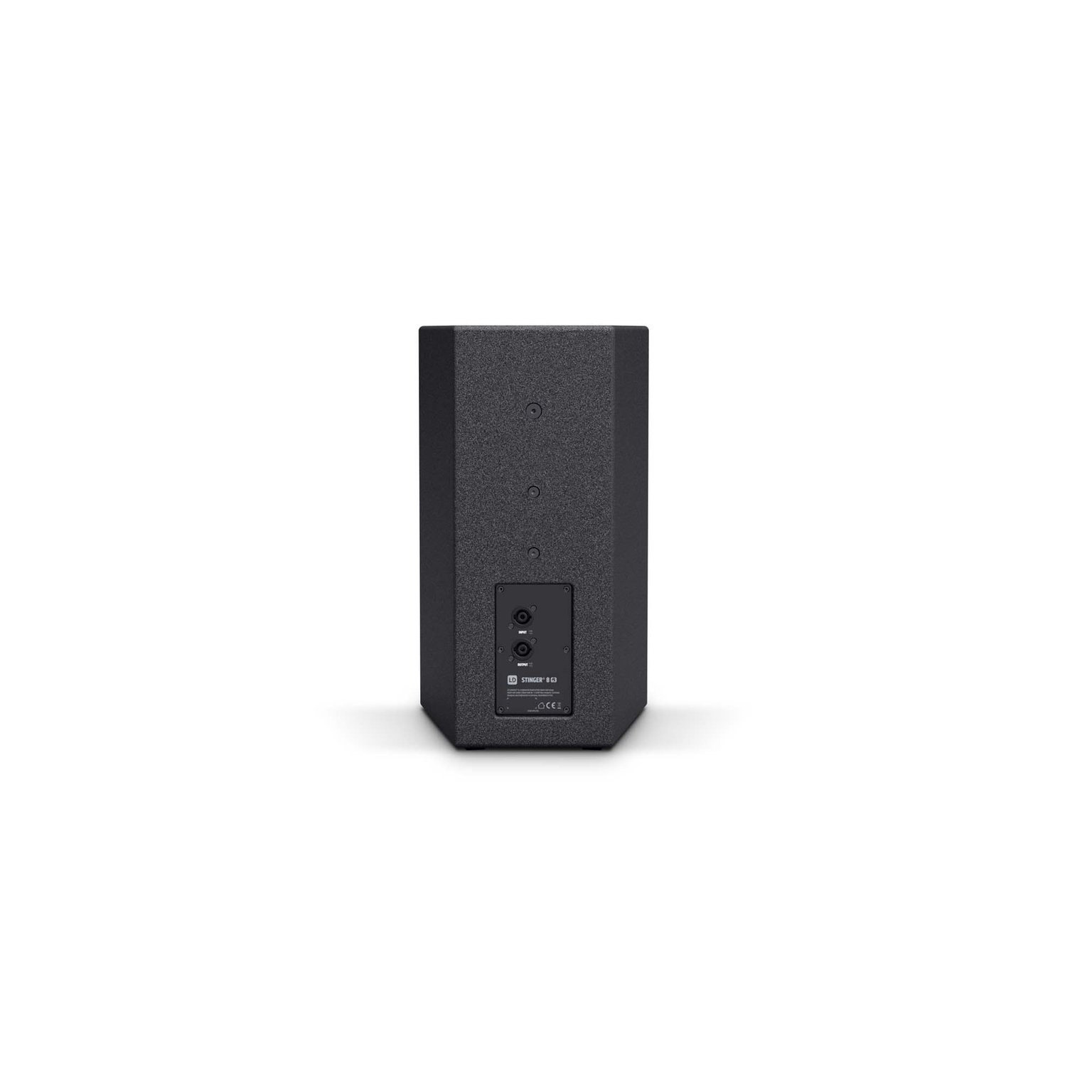

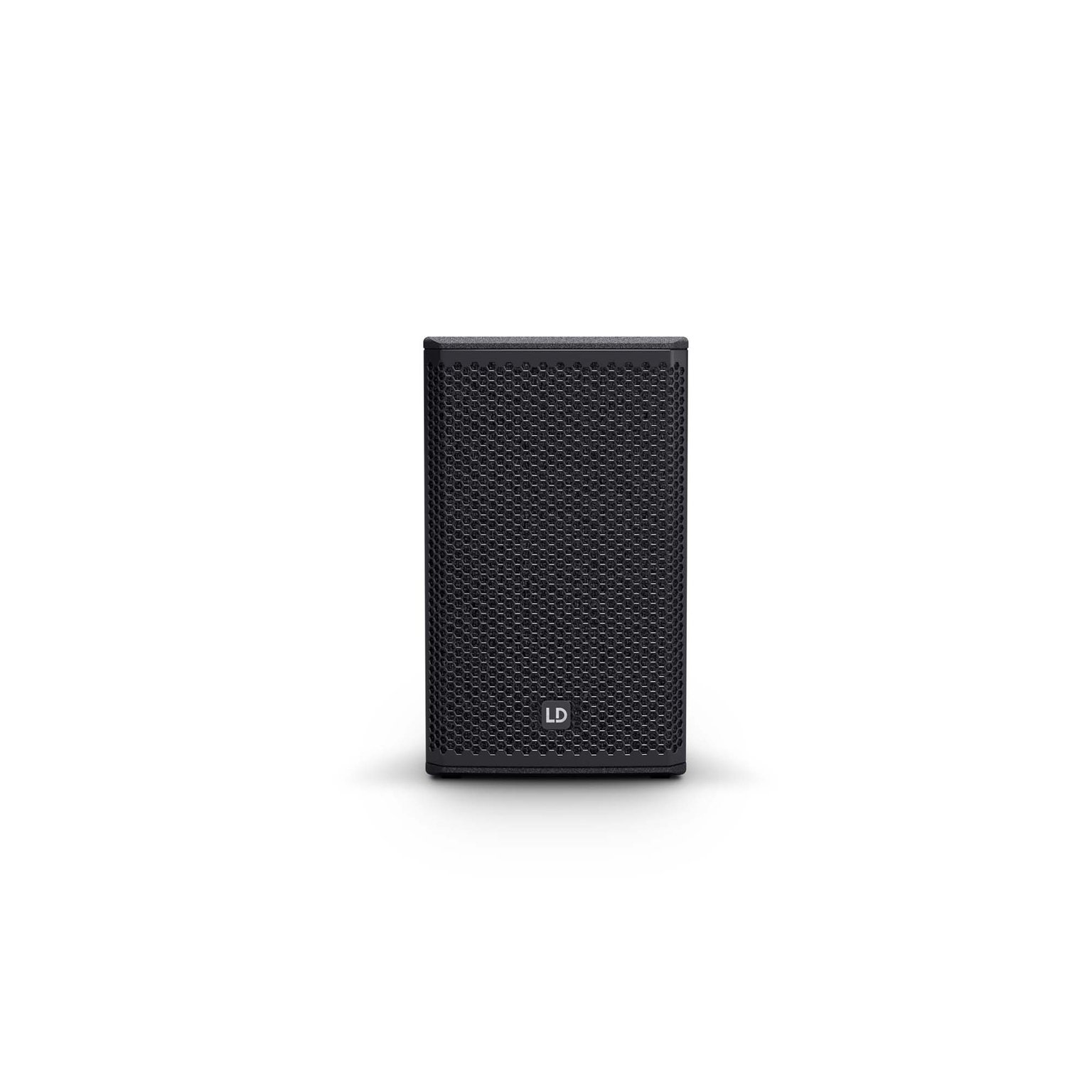

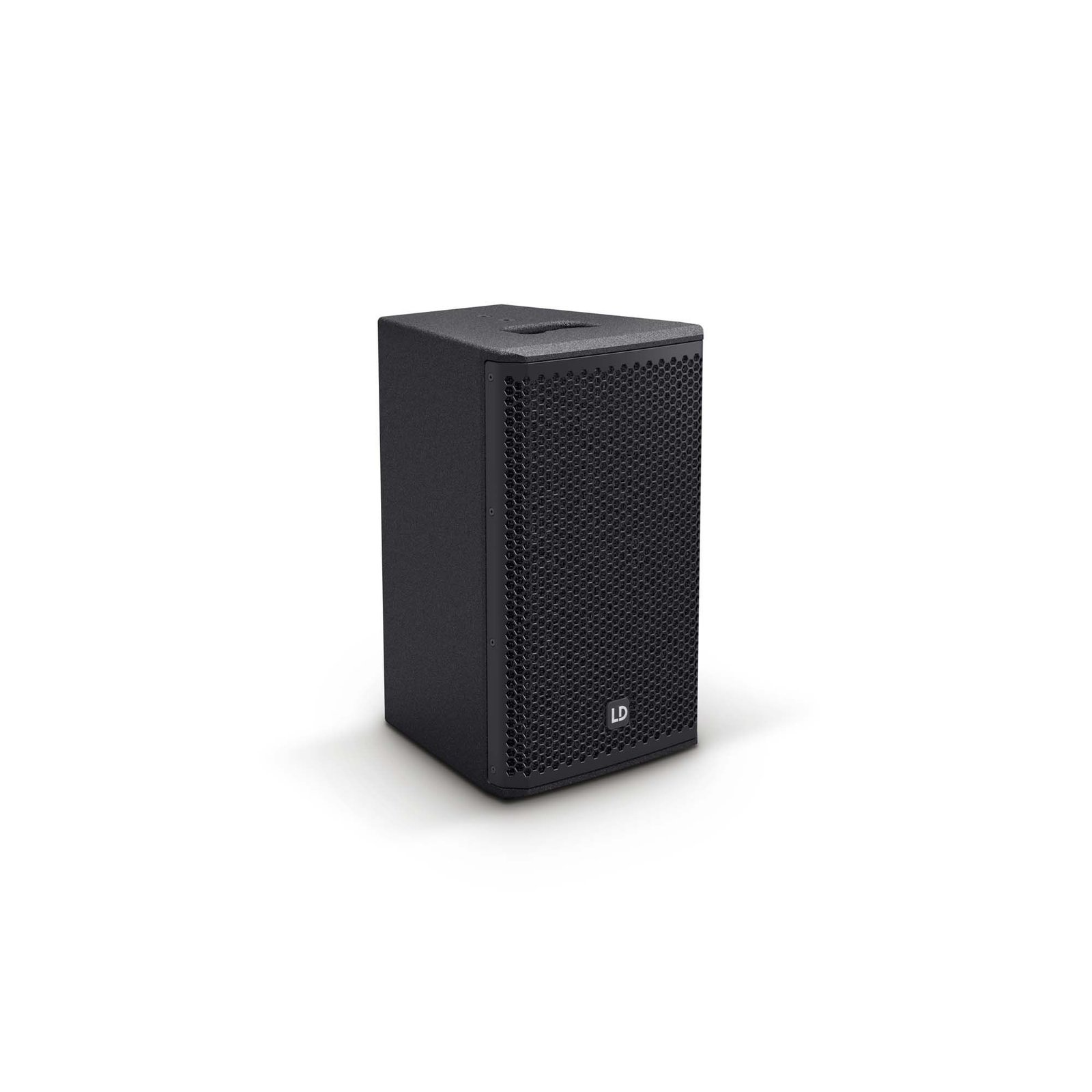

LD Systems STINGER 8 G3
This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 8 G3 provides 250 watts of continuous power; the…
STINGER 8 G3 – 2-Way Passive 8” Bass Reflex PA Loudspeaker.

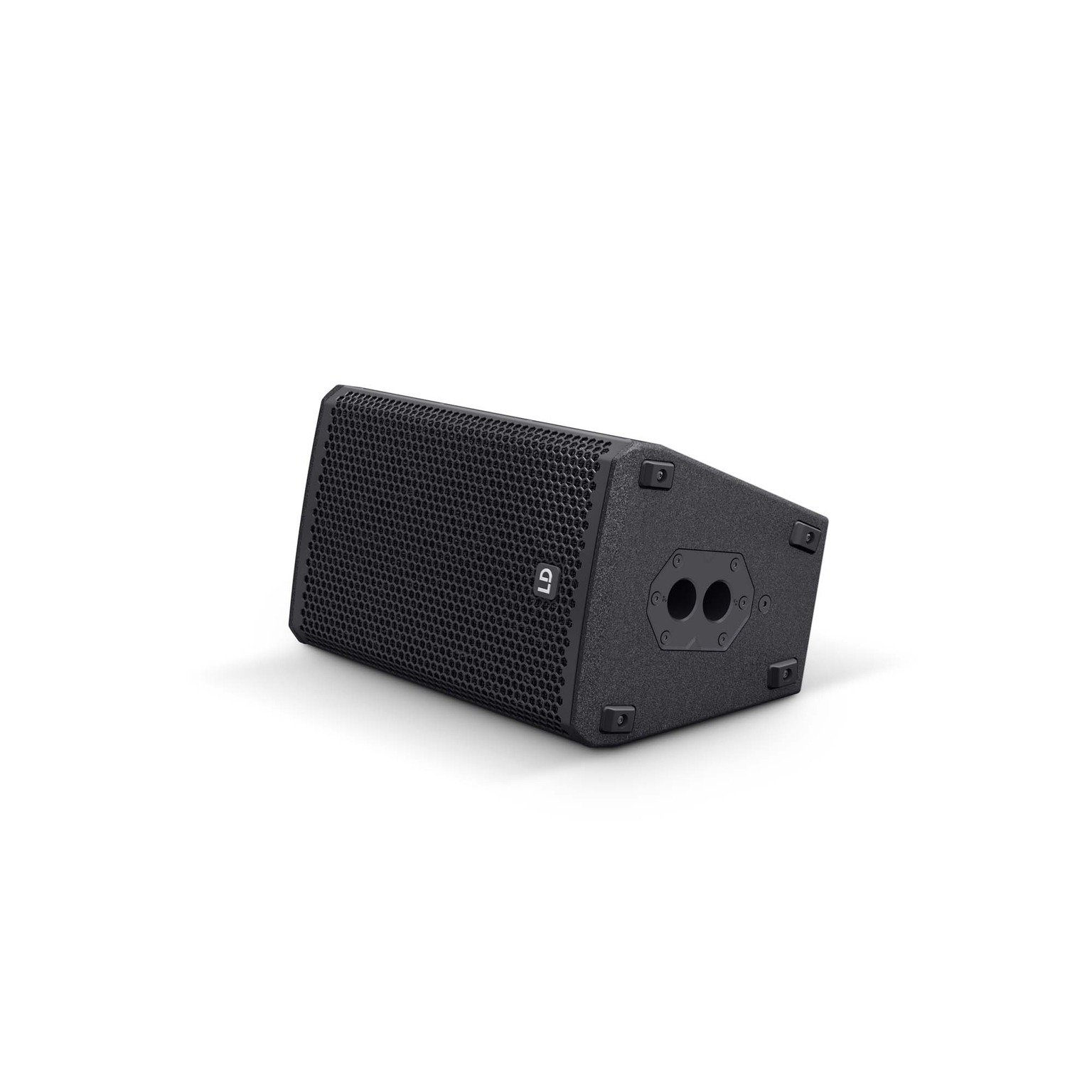

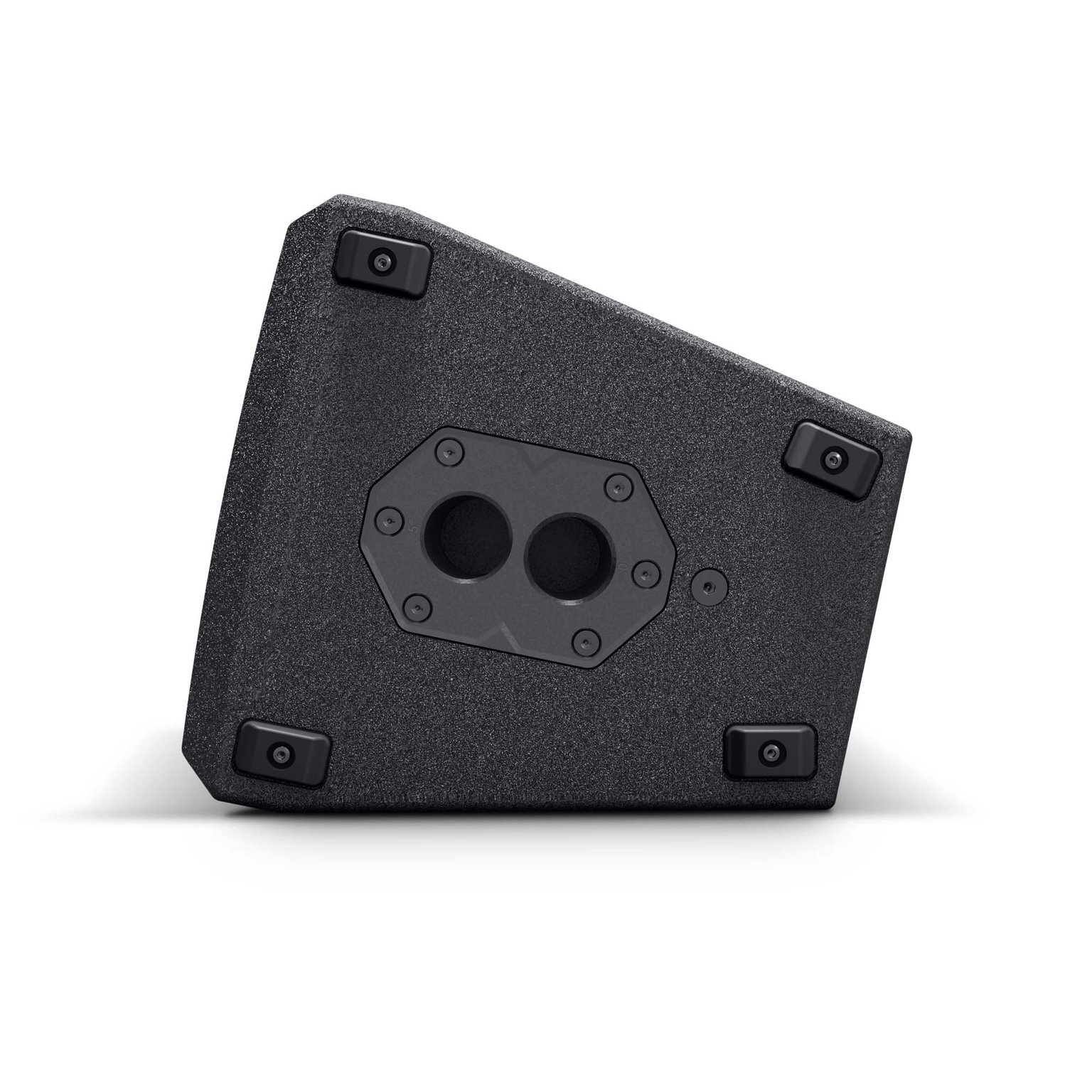

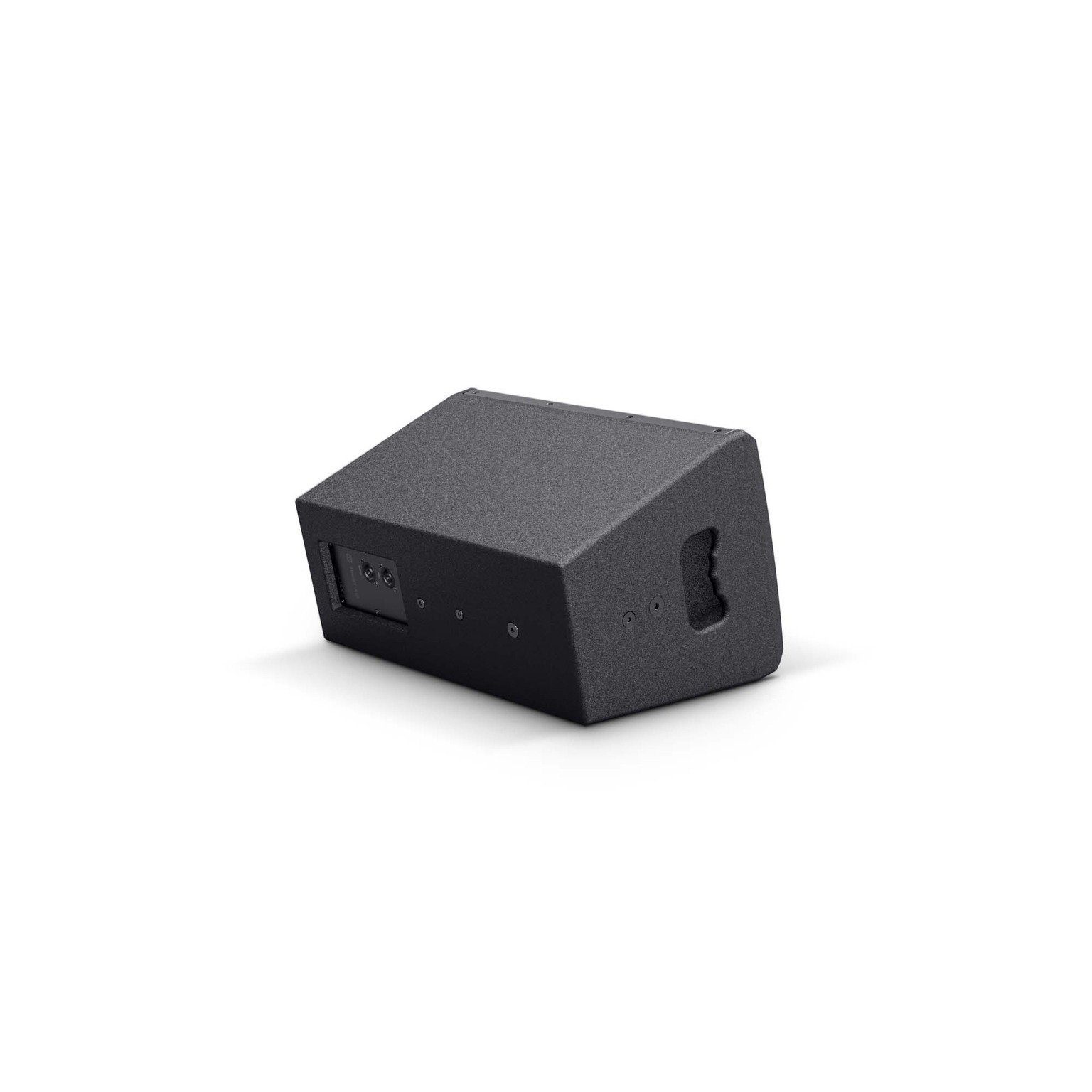

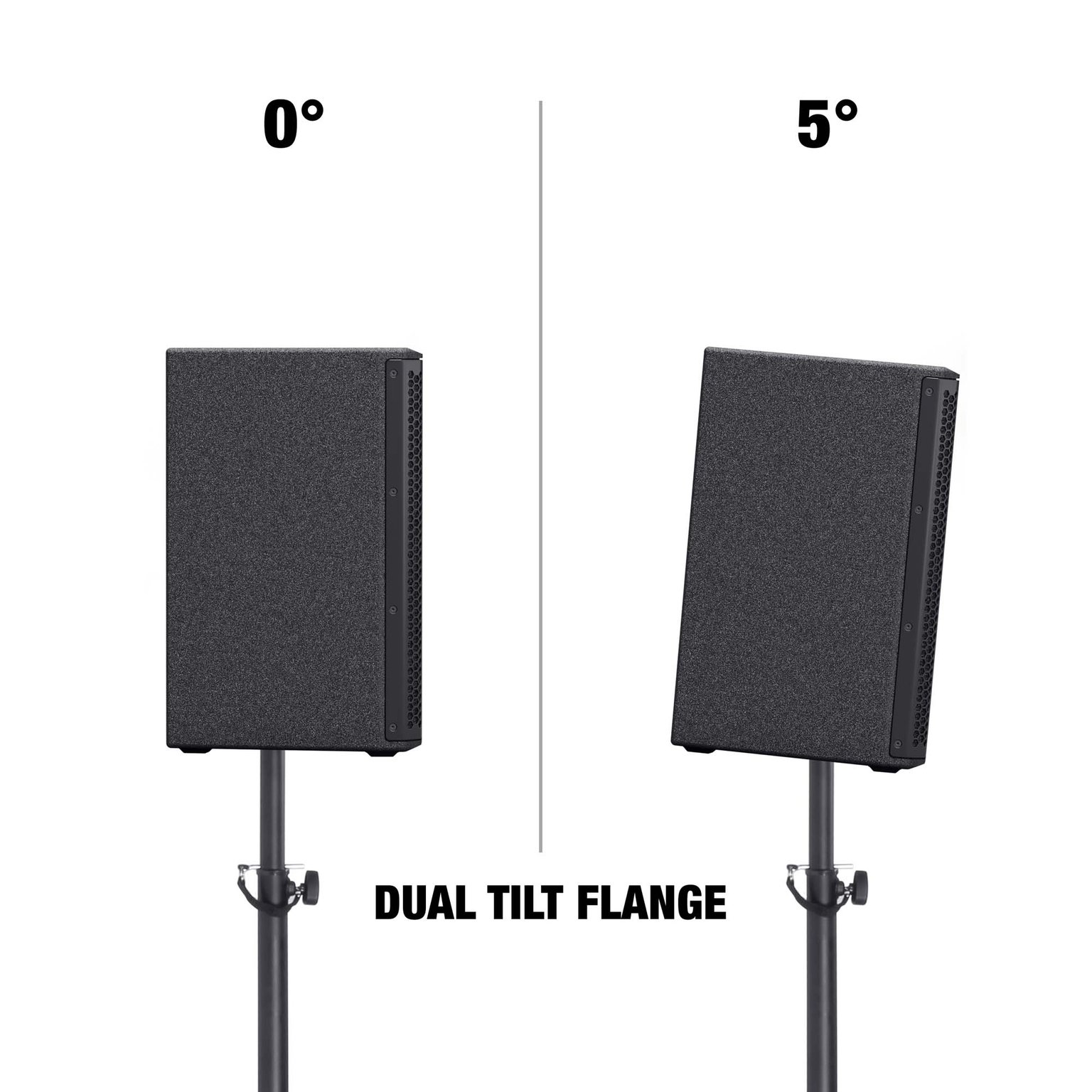

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 8 G3 provides 250 watts of continuous power; the maximum sound pressure level is 118 dB. Its specially developed 8" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The STINGER® 8 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 8 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
4-channel amplifier with DSP & Dante®
4-channel amplifier with DSP & Dante®
Tilt & Swivel Wall Mount, Suitable for STINGER 8 G3 (Passive)
Swivel Wall & Ceiling Mount for STINGER G3 8" Models
Super Clamp Truss Mount for Loudspeaker
Technical Specifications
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 500 W |
| Power handling (RMS) | 250 W |
| SPL (1 W/1 m) | 95 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 119 dB |
| Frequency response | 70 – 20000 |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Dispersion | Hor.: 90° / Vert.: 50° |
| Number of inputs | 1 |

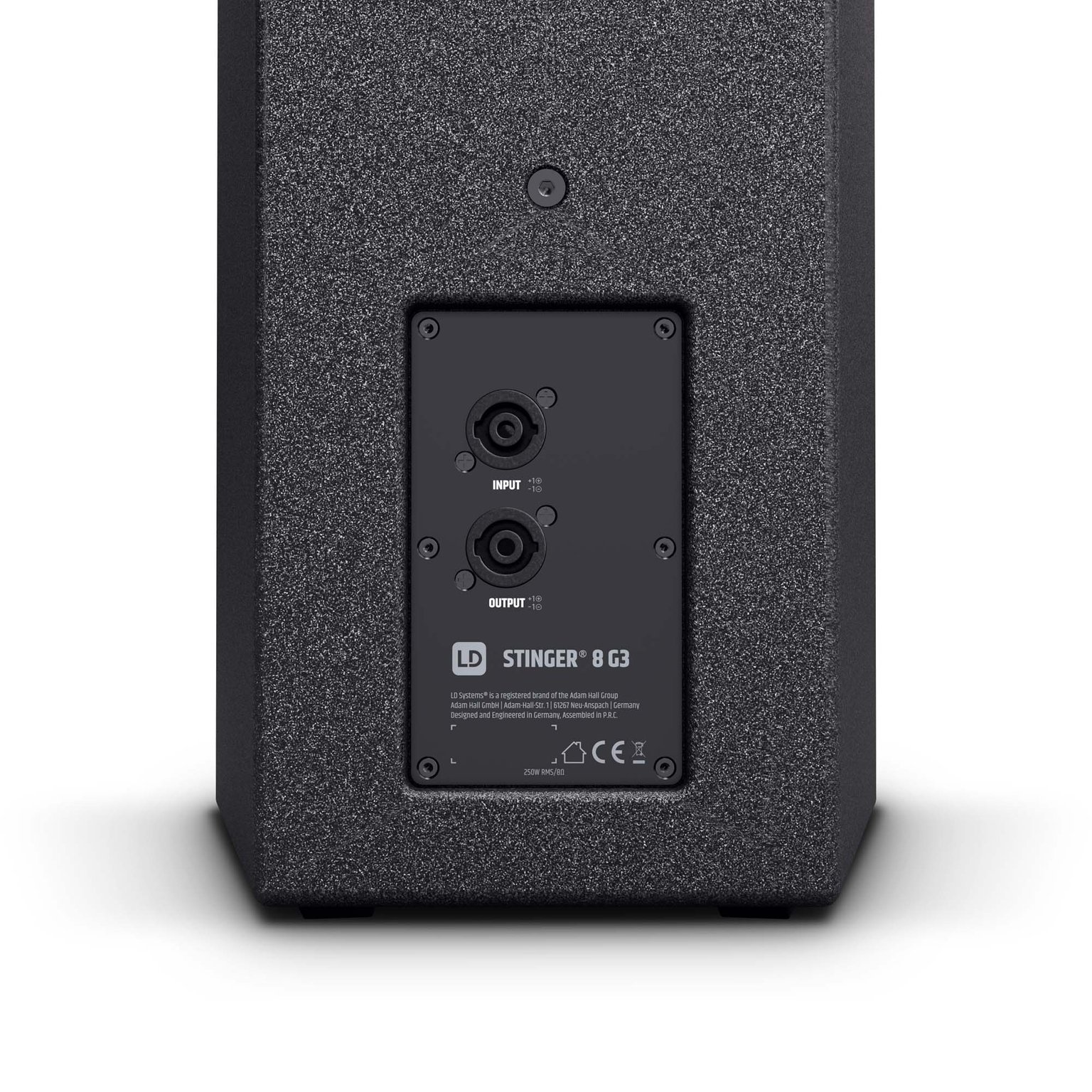

| Input connector types | Standard speaker connector 4-pole male & speakON® |
| Number of outputs | 1 |
| Output connector types | Standard speaker connector 4-pole male & speakON® |
| Colour | Black |
Item No.: LDEB82G3
| Series | ] |
|---|---|
| Colour | Black |
