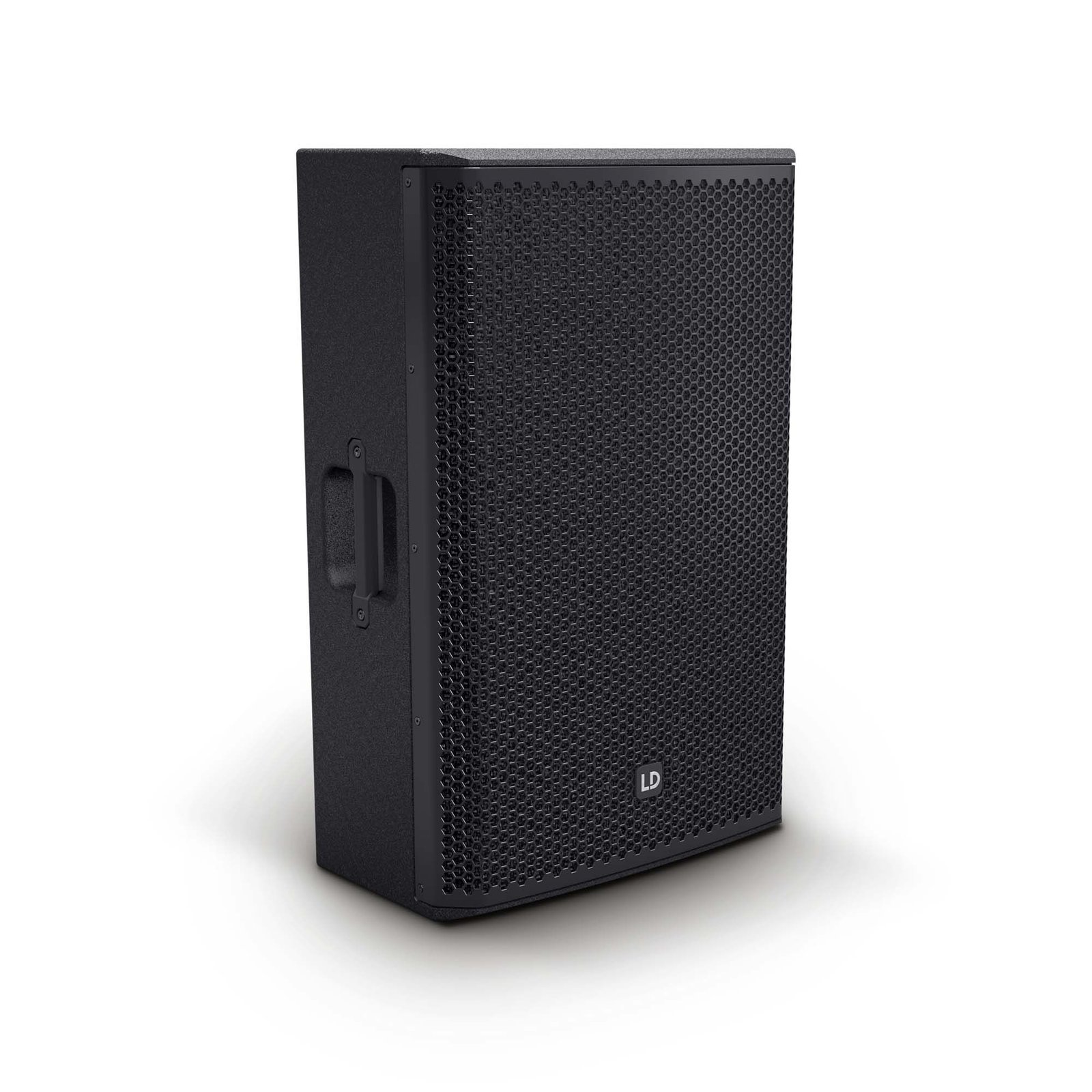

LD Systems STINGER 15 G3

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 15 G3 provides 500 watts of continuous power; the…

STINGER 15 G3 – 15" PA Loudspeaker passive.

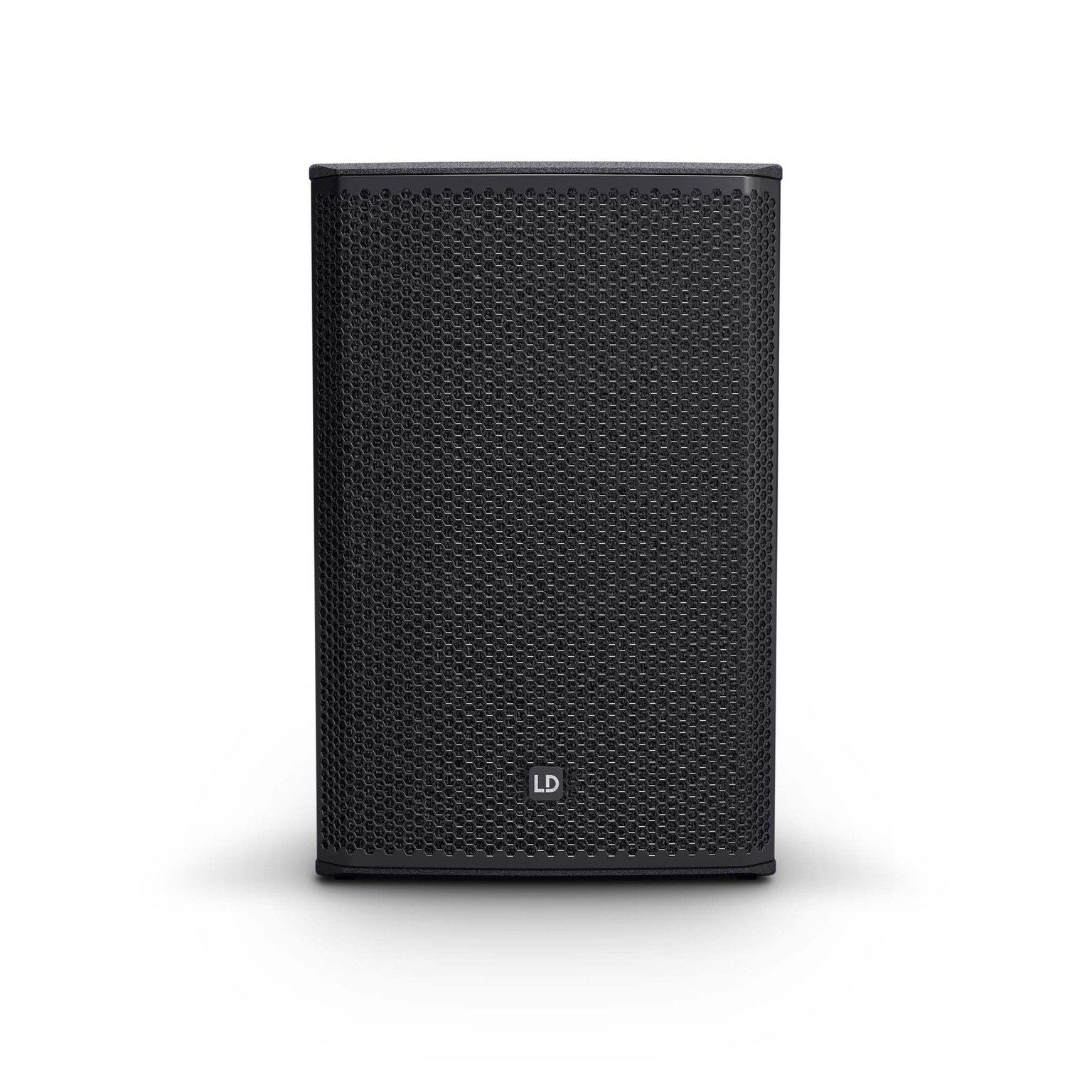

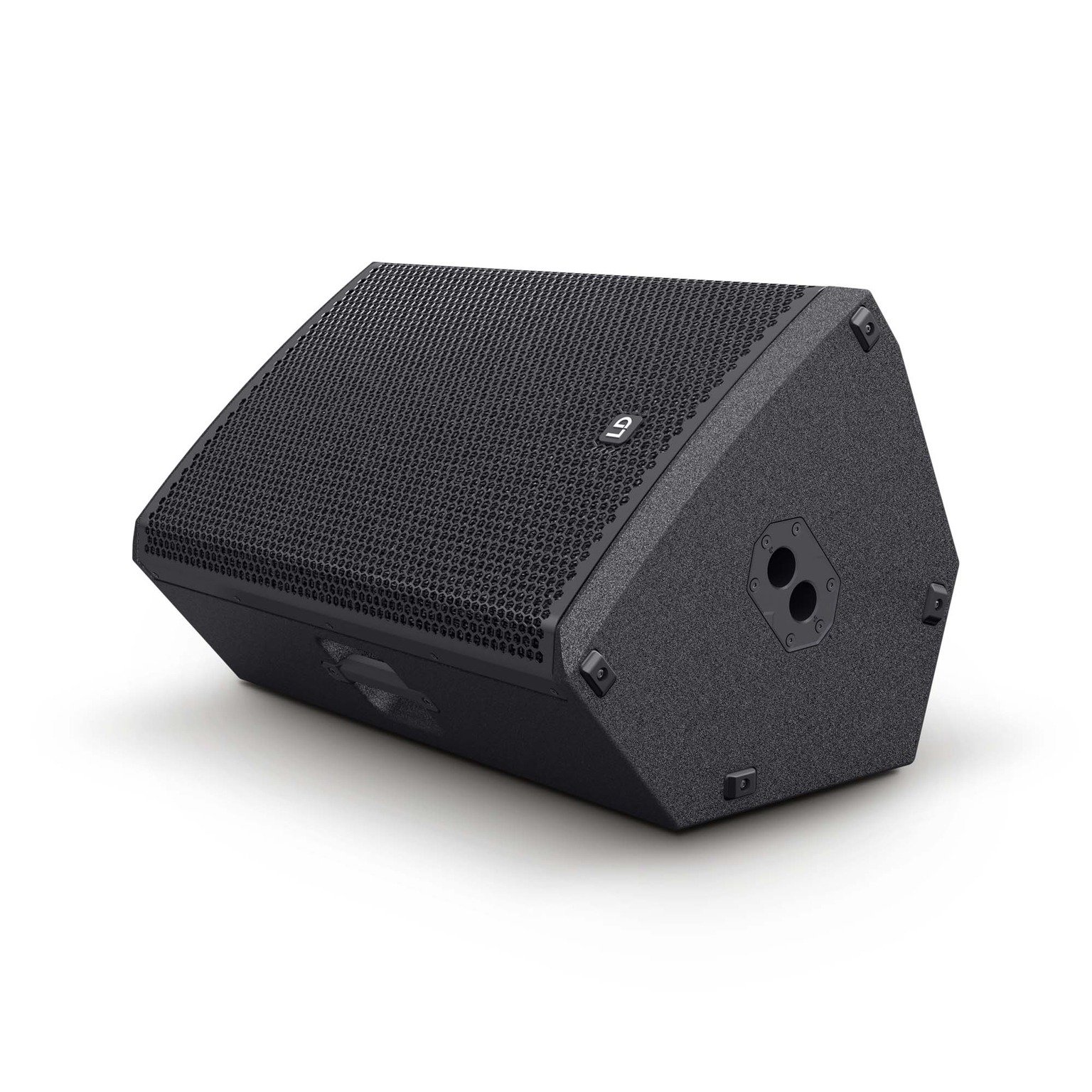

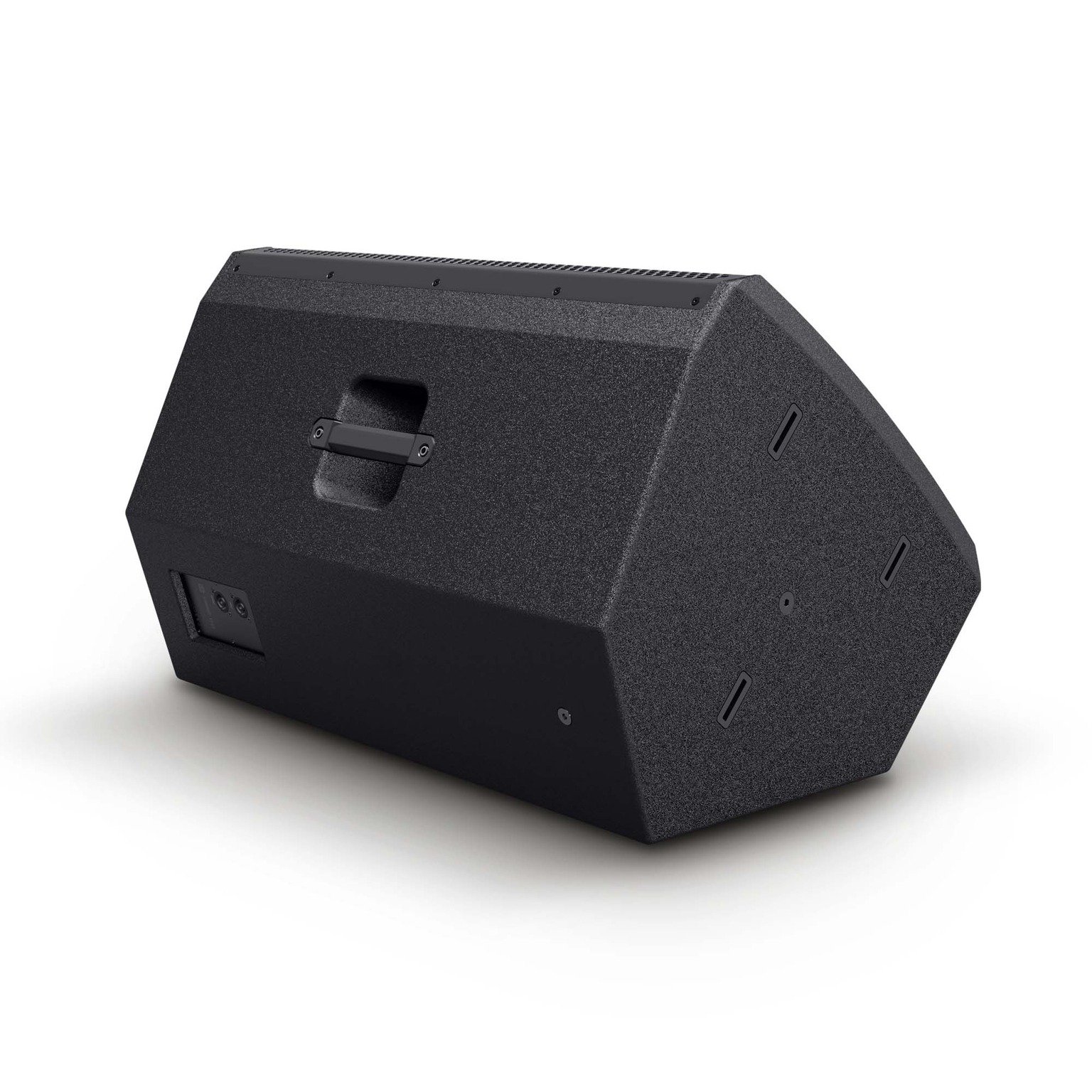

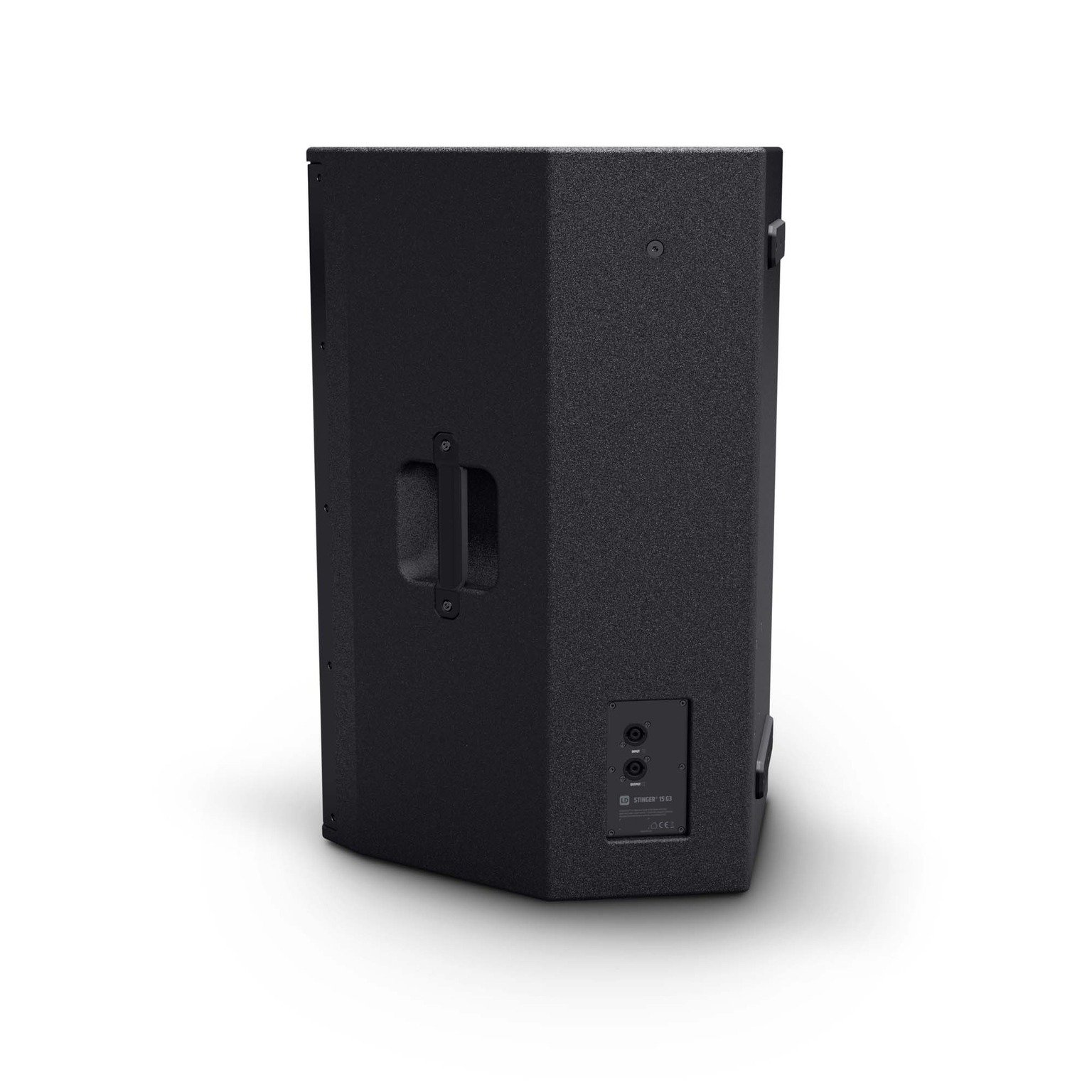

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

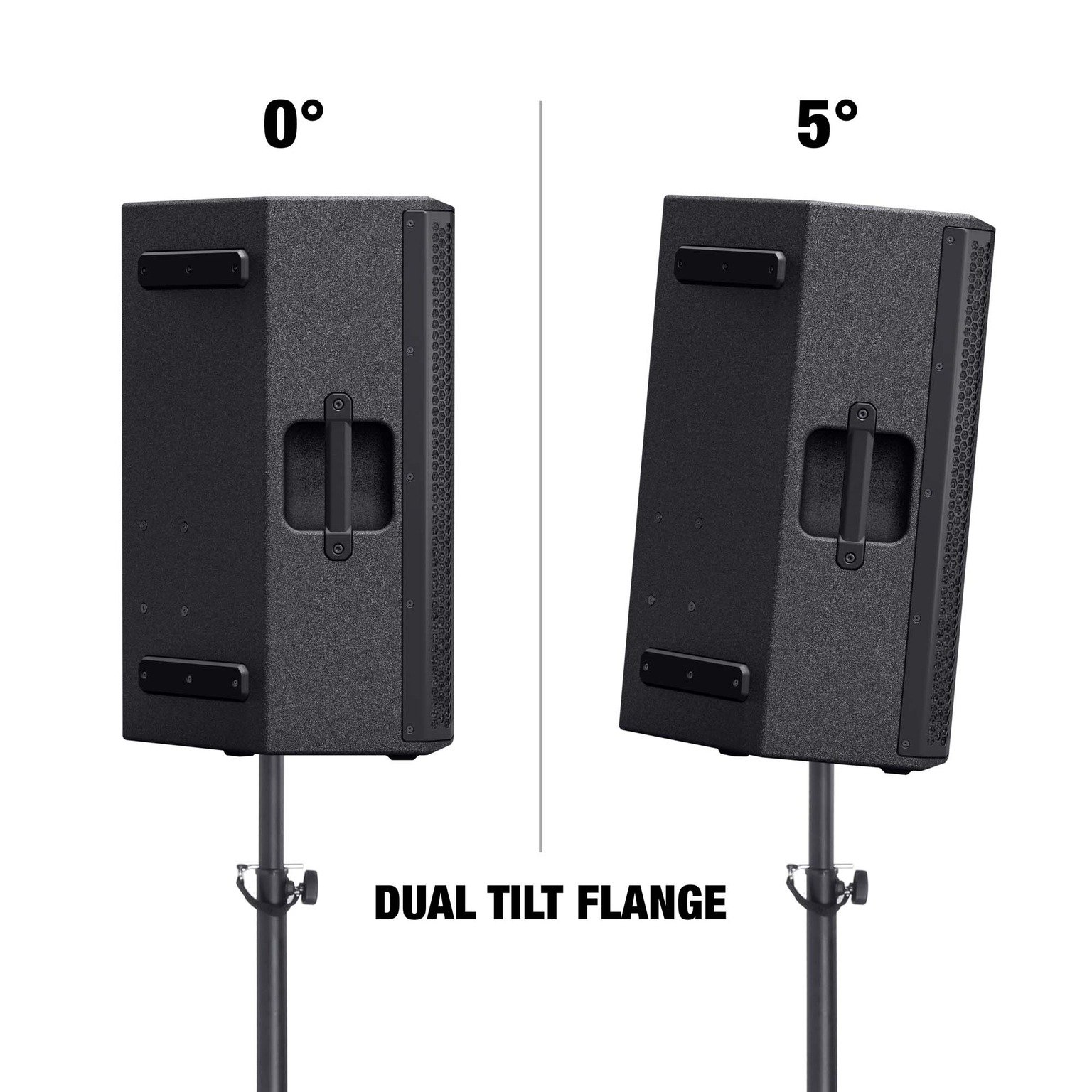

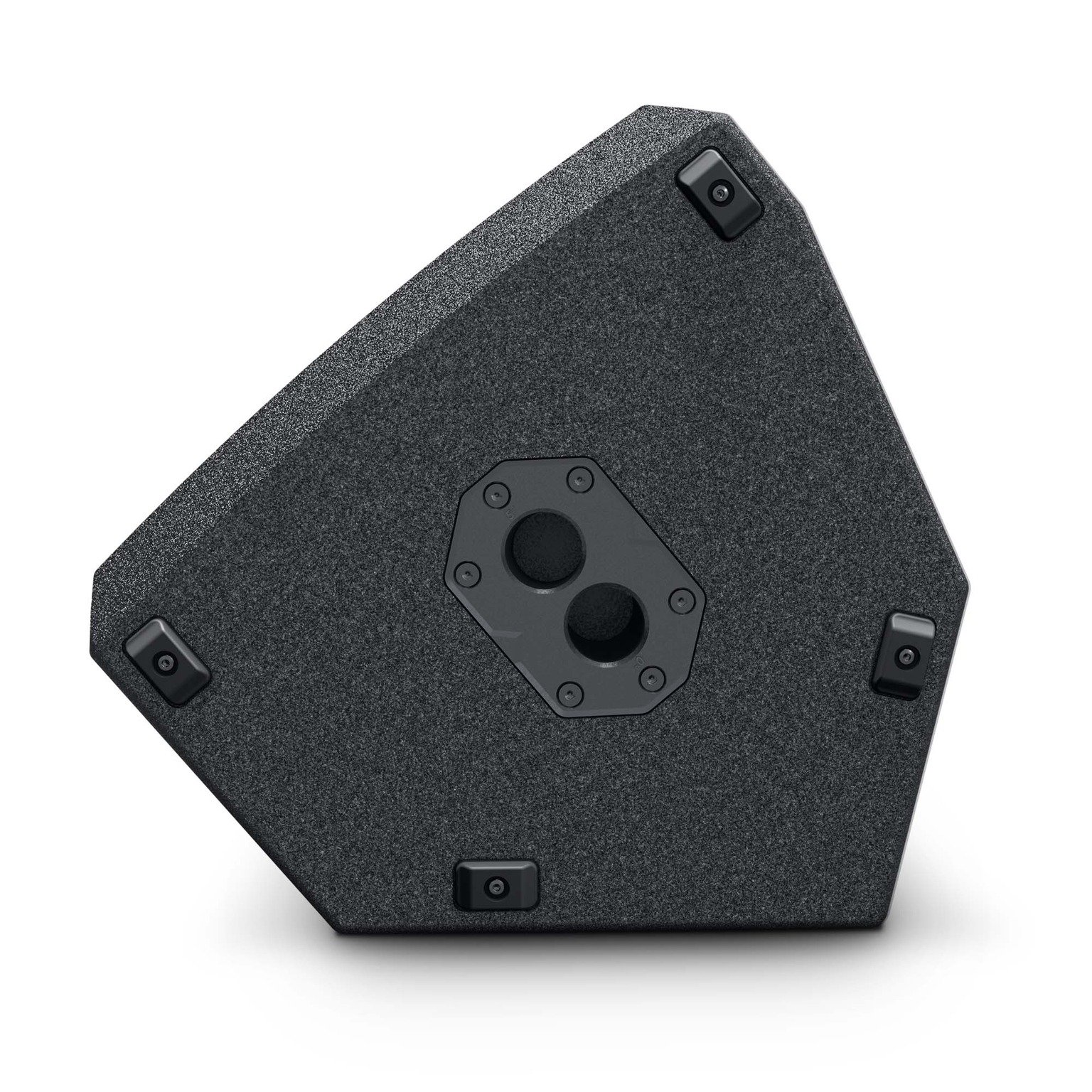

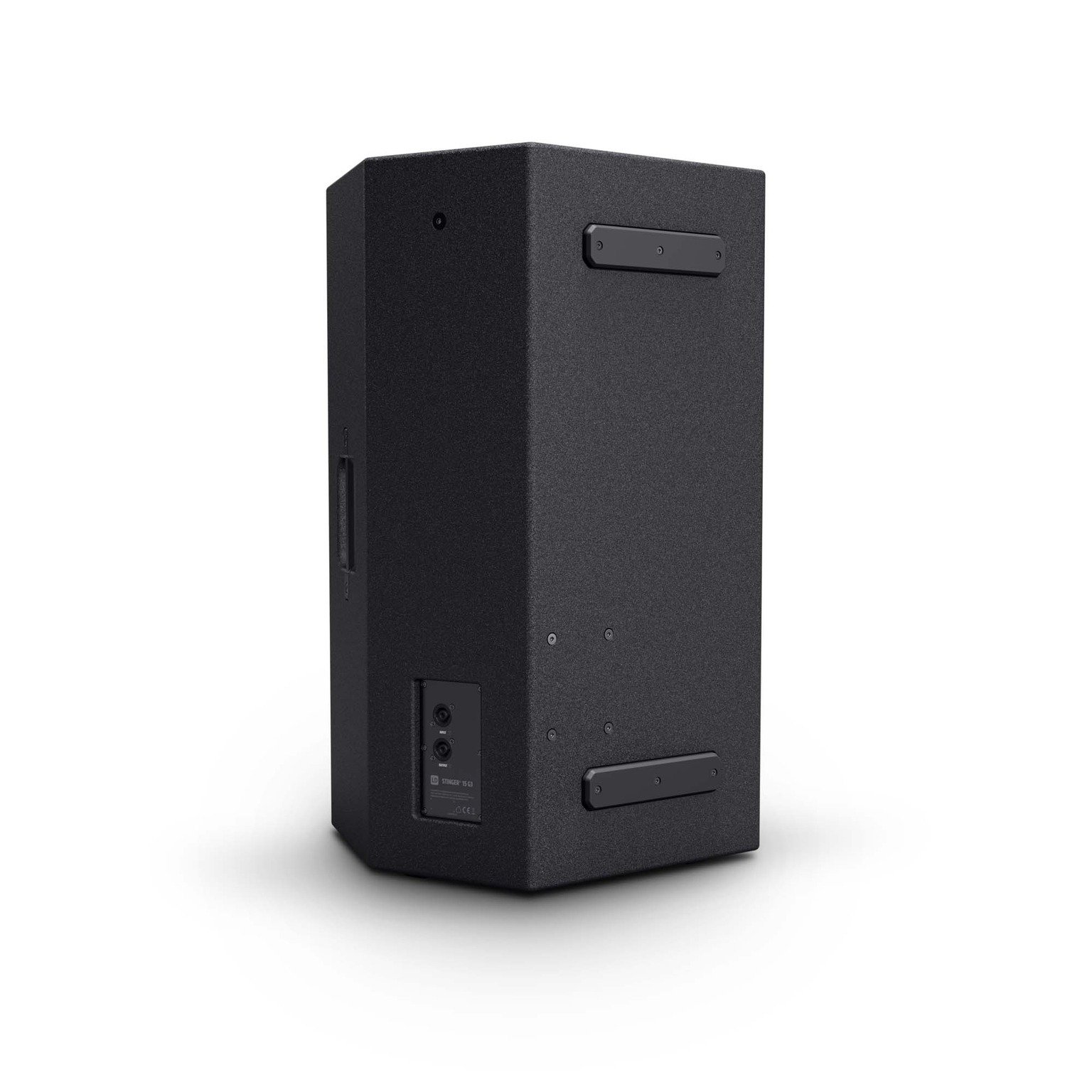

The STINGER® 15 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 15 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

Truss Suspension Bracket for EasyMount®-Compatible Loudspeakers

Wall Bracket for STINGER G3 12" and 15" Models

Padded protective Cover for Stinger® G3 PA Loudspeaker 15"

Tilt & Swivel Wall Mount for STINGER G3 12" and 15" Models

Technical Specifications

Type (active/passive)Passive
Power handling (Peak)1000 W
Power handling (RMS)500 W
SPL (1 W/1 m)100 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)127 dB
Frequency response50 Hz – 20000 Hz
Impedance8 Ω
Speaker system2-way system
DispersionHor.: 90° / Vert.: 50°
Monitor angle54 °
Number of inputs1

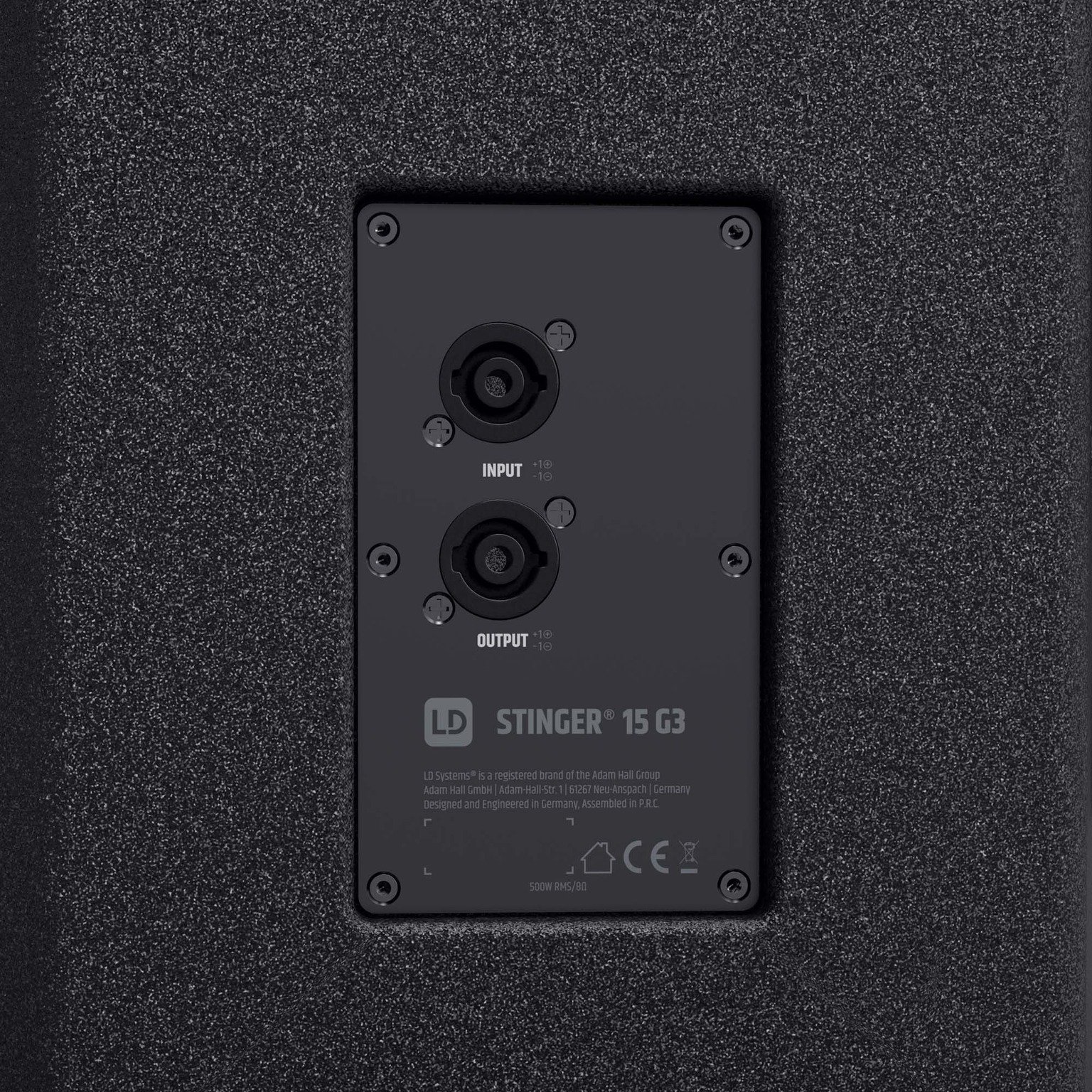

Input connector typesStandard speaker connector 4-pole male & speakON®
Number of outputs1
Output connector typesStandard speaker connector 4-pole male & speakON®
ColourBlack

Item No.: LDEB152G3

Series

]

Colour

Black
