LD Systems SAT 82 A G2 W
The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

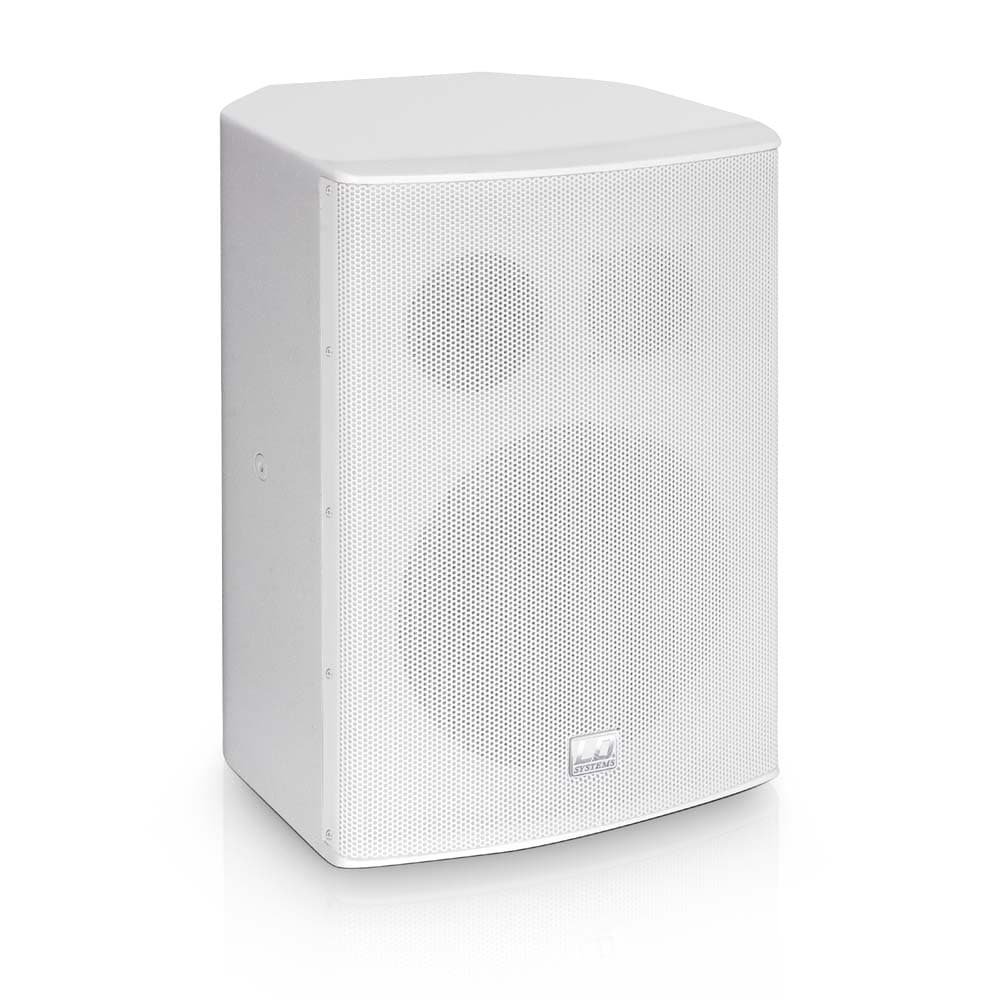

SAT 82 A G2 W – 8" Active Installation Monitor white.
The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

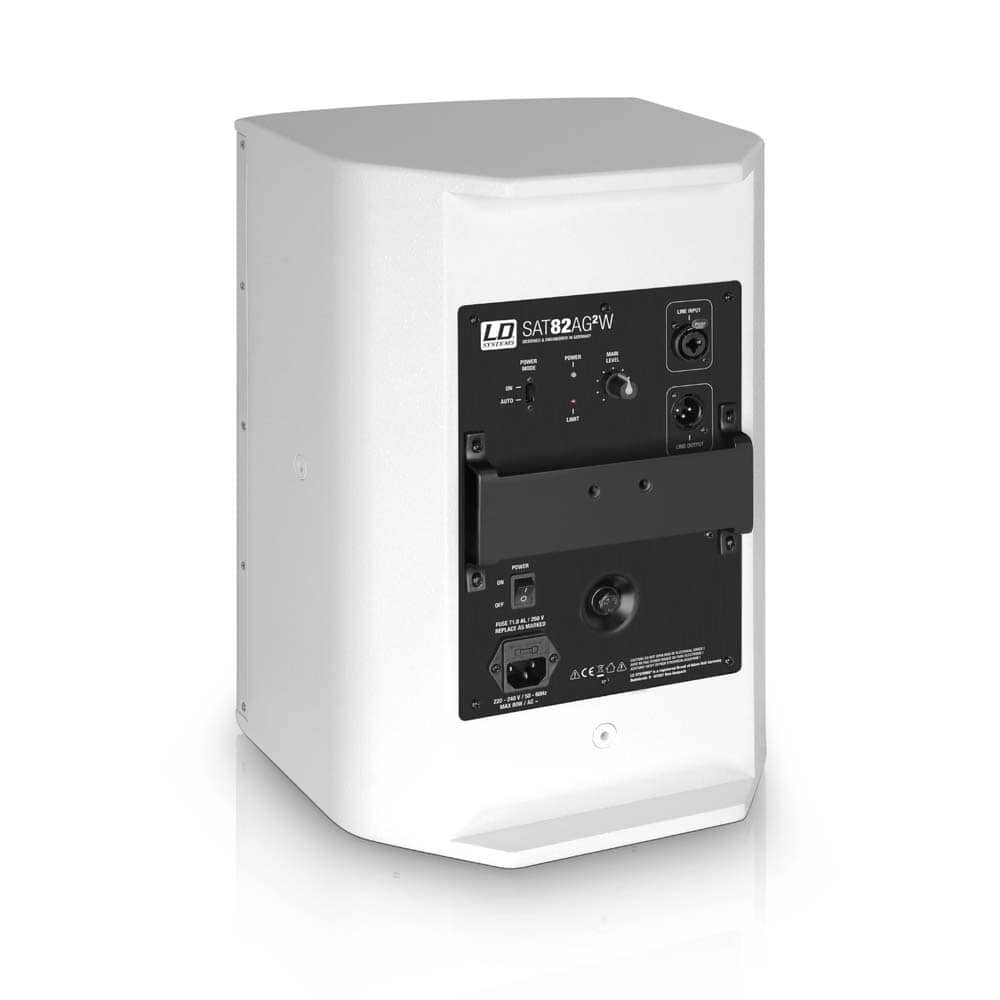

The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz – 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

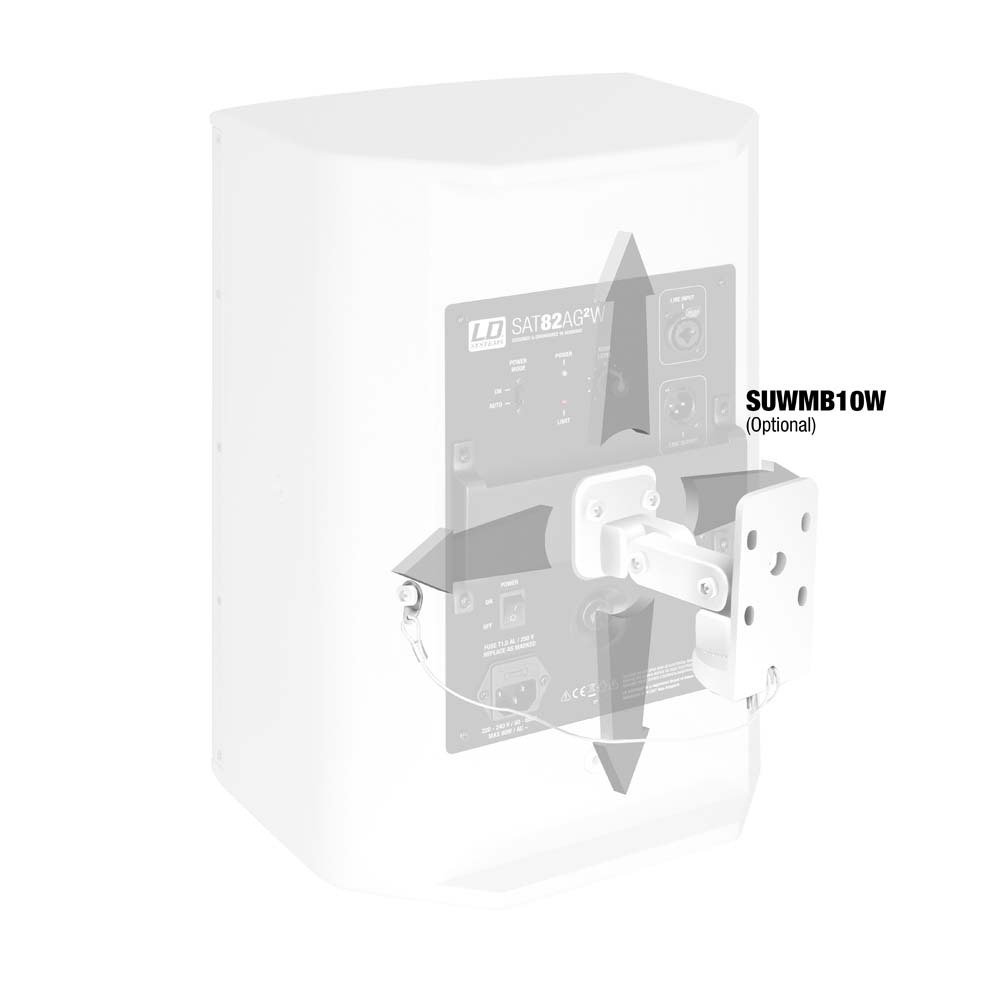

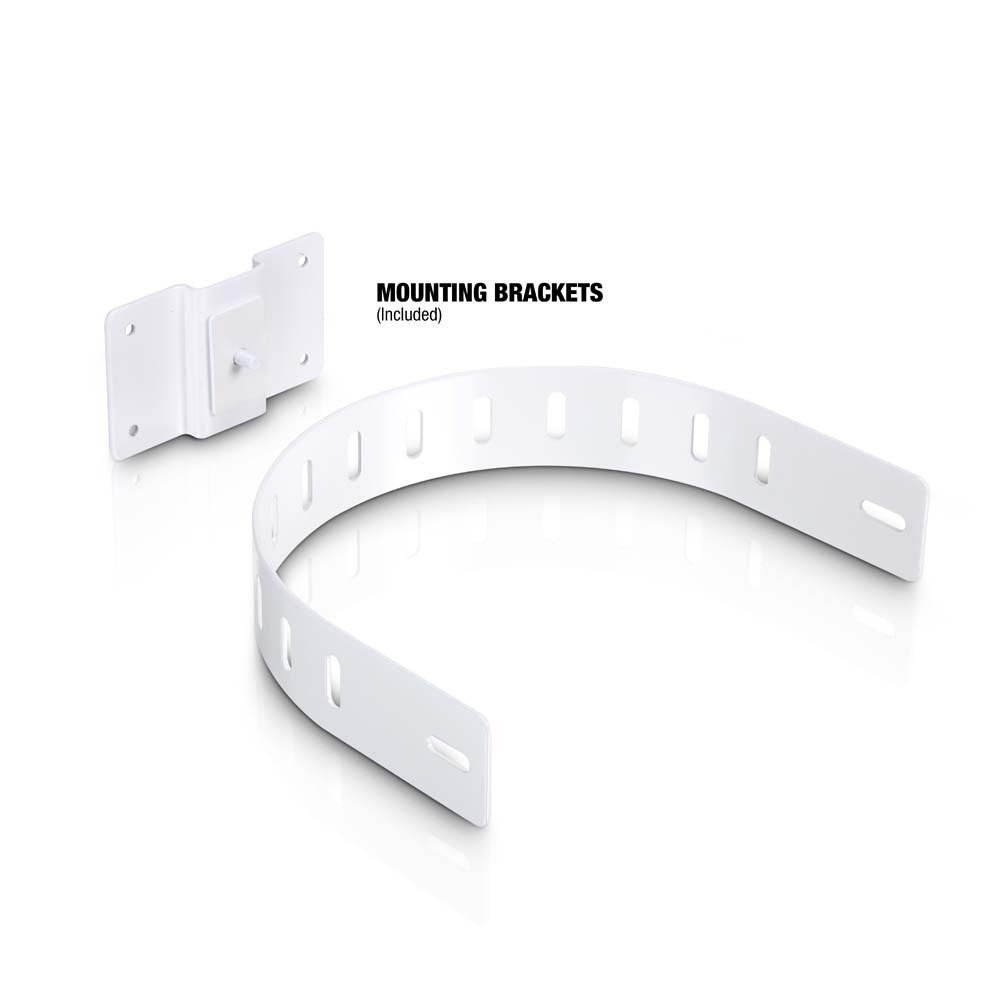

The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
Wall Mount for Speakers, White
or
LD Systems® is a brand of the Adam Hall Group
Technical Specifications
| Type (active/passive) | Active |
|---|---|
| RMS output power | 80 W |
| SysLink® | 0 |
| Max. SPL peak | 114 dB |
| Frequency response | 50 Hz – 20000 Hz |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 1 |
| Input connector types | XLR combo socket |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole female |
| Protection features | Overvoltage |
| Colour | White |
Item No.: LDSAT82AG2W
| Series | ] |
|---|---|
| Colour | White |
