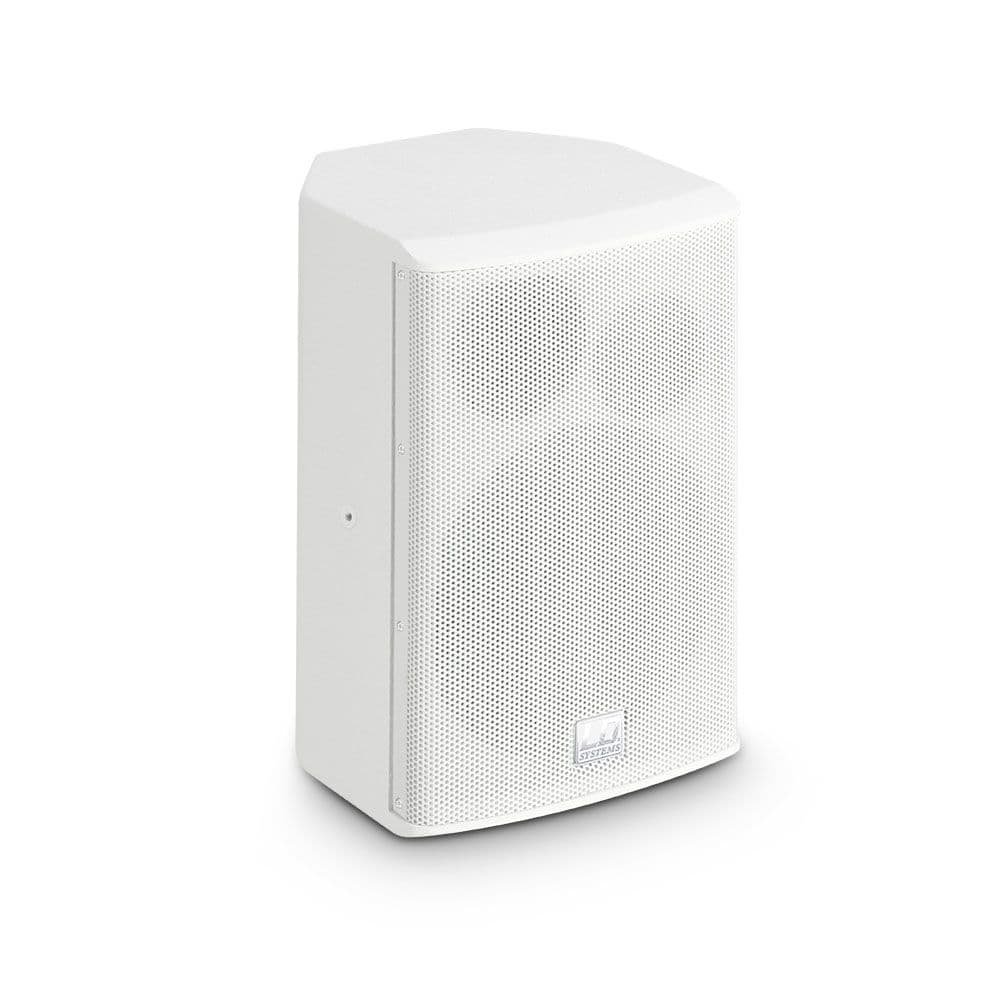

LD Systems SAT 62 A G2 W
The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.
SAT 62 A G2 W – 6.5" active Installation Monitor white.
The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.

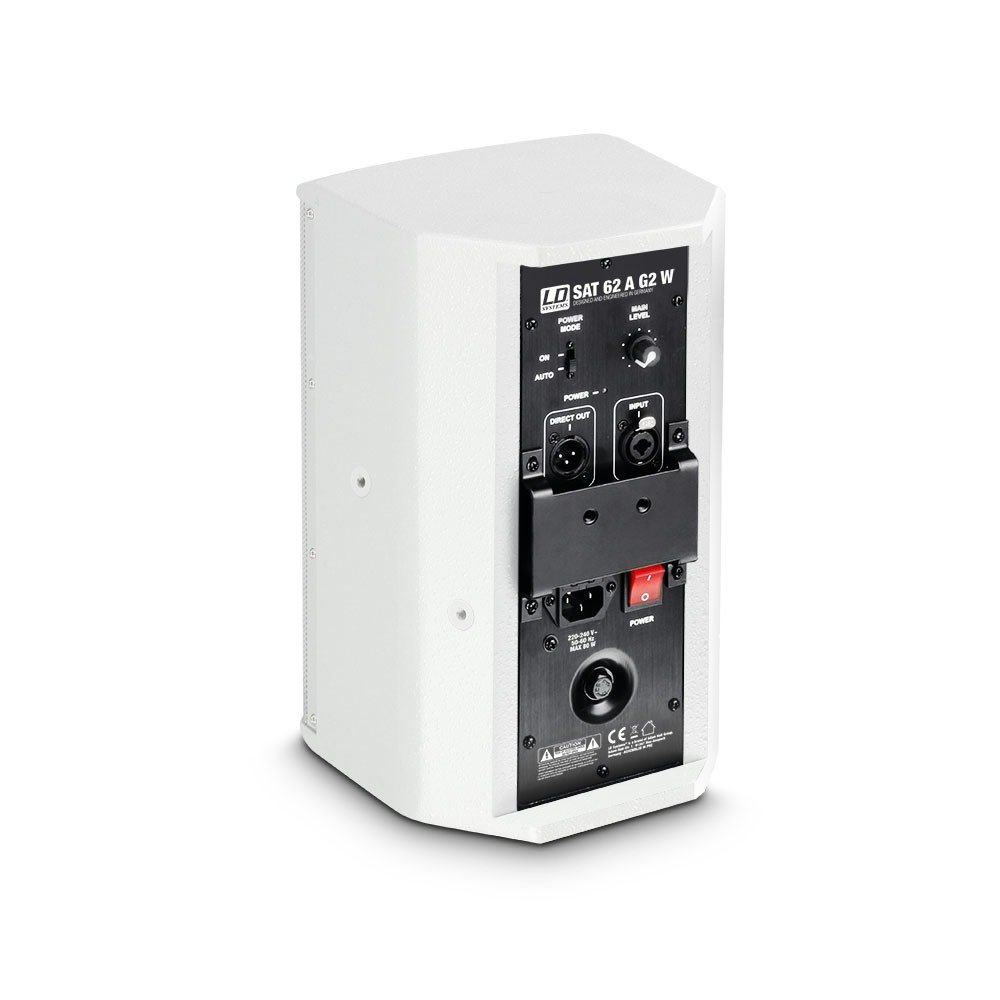

The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz – 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

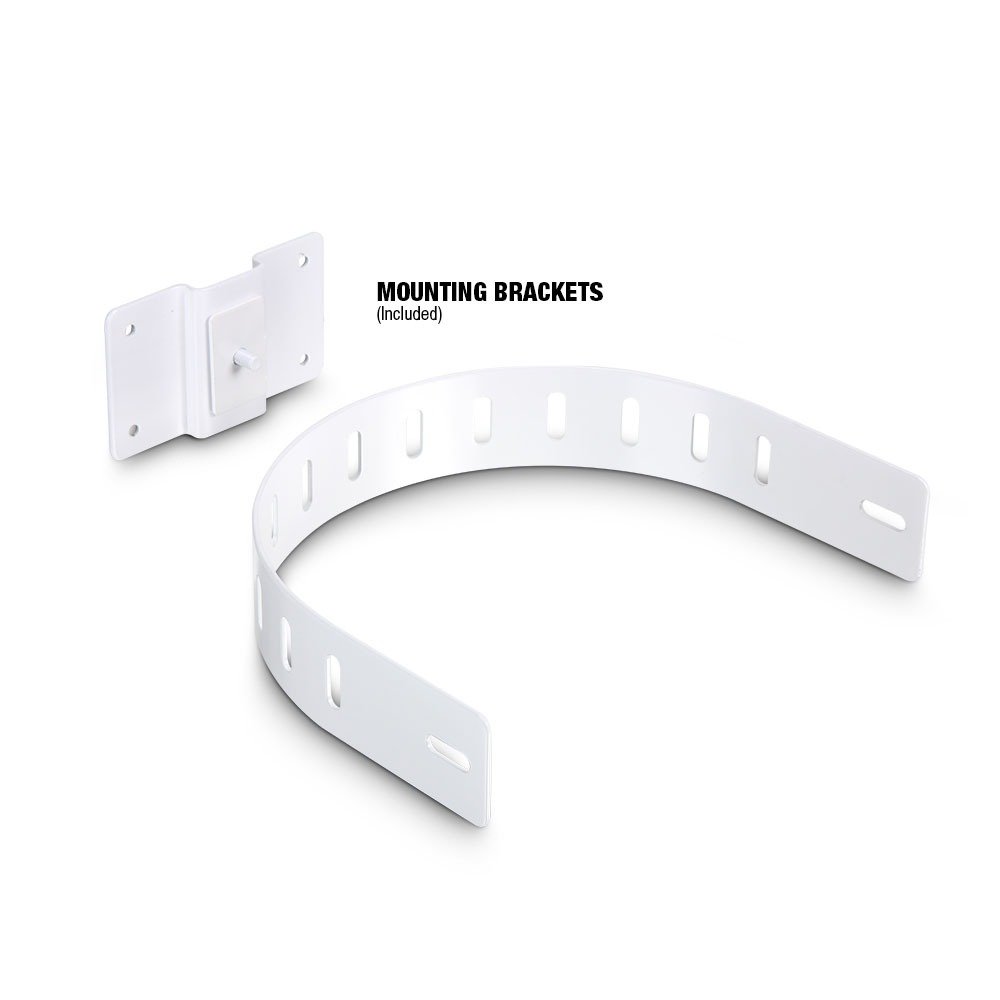

The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
Wall Mount for Speakers, White
or
LD Systems® is a brand of the Adam Hall Group
Technical Specifications
| Type (active/passive) | Active |
|---|---|
| RMS output power | 50 W |
| Amp class | Class A/B |
| SysLink® | 0 |
| Max. SPL average | 108 dB |
| Frequency response | 55 Hz – 20000 Hz |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 1 |
| Input connector types | XLR combo socket |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole male |
| Protection features | Overvoltage |
| Colour | White |
Item No.: LDSAT62AG2W
| Series | ] |
|---|---|
| Colour | White |
