LD Systems SAT 262 G2
With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5″ custom woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This…
SAT 262 G2 – 2 x 6.5" passive Installation Speaker black.
With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5" custom woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.
The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65–19 kHz with a permanent load capacity of 180 watts. The reflex casing made of 12 mm MDF has four M8 mounting holes. The inputs are a speakON-compatible socket and a terminal block, while an additional terminal block serves as an output for convenient parallel connection.

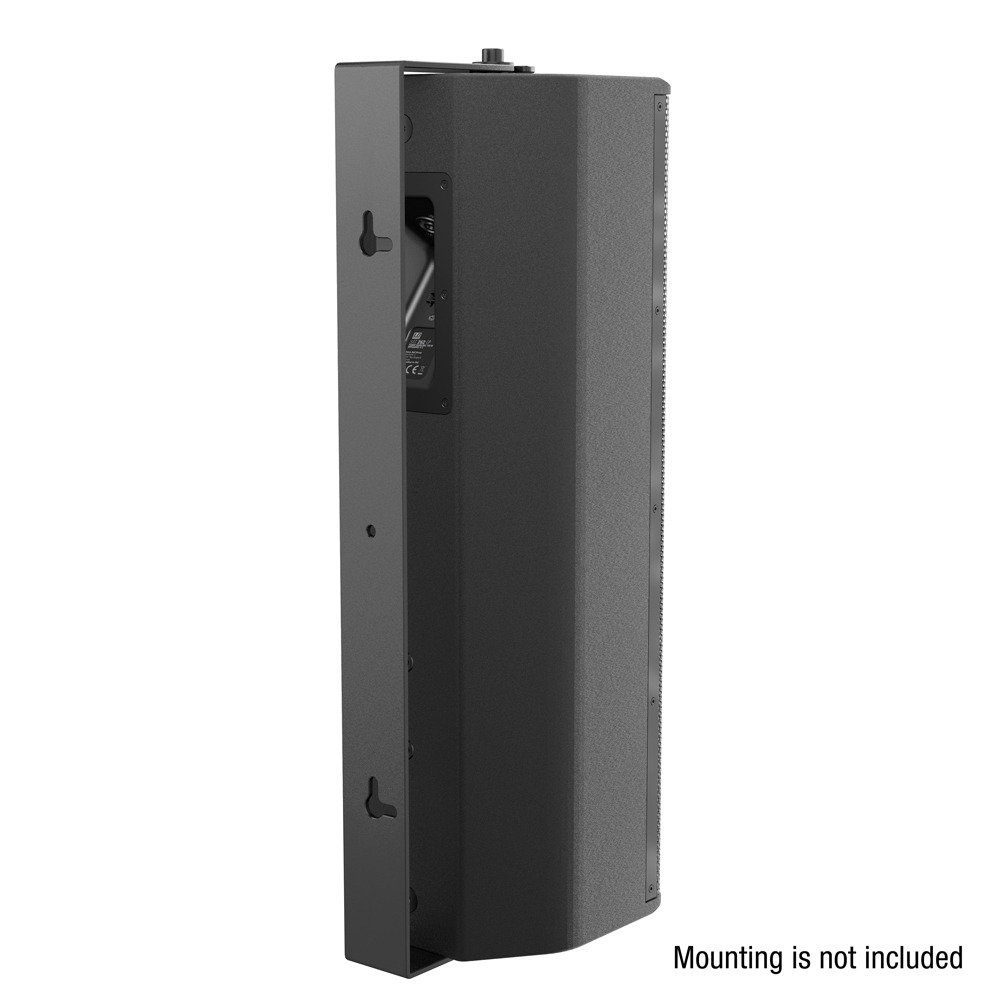

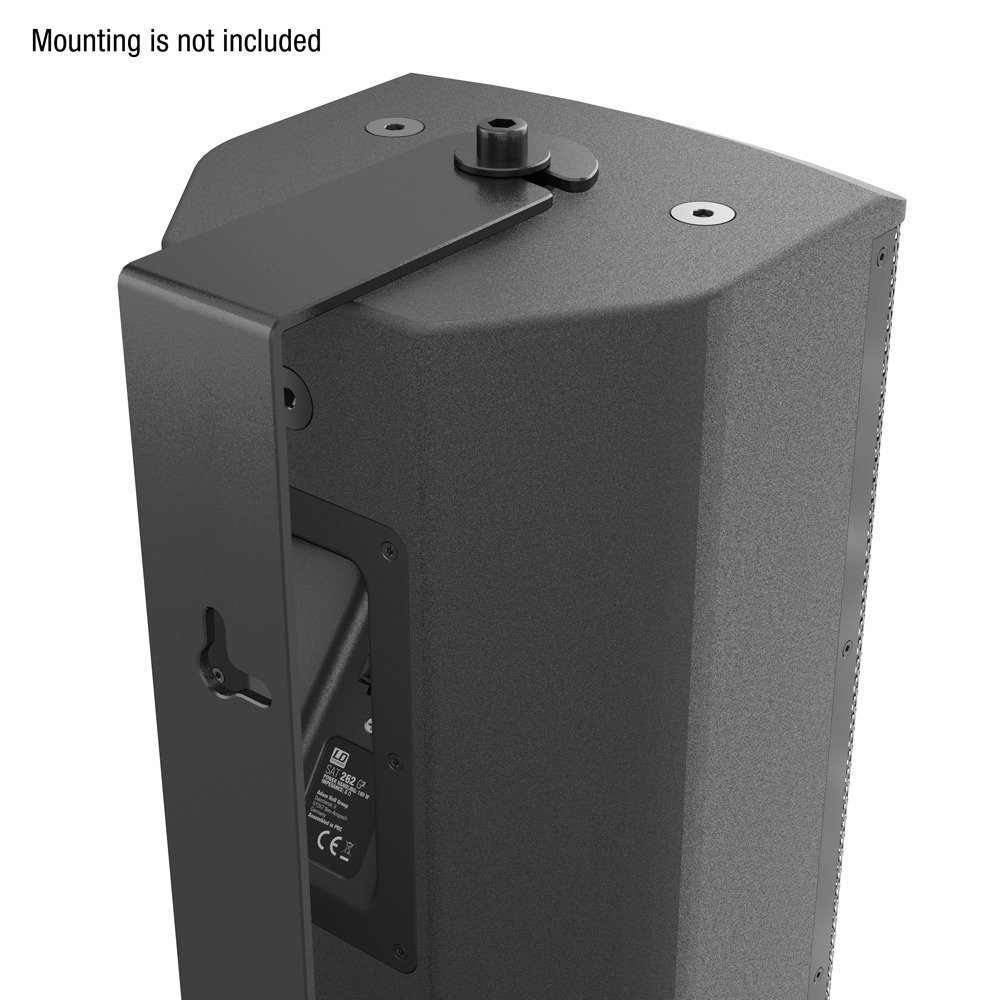

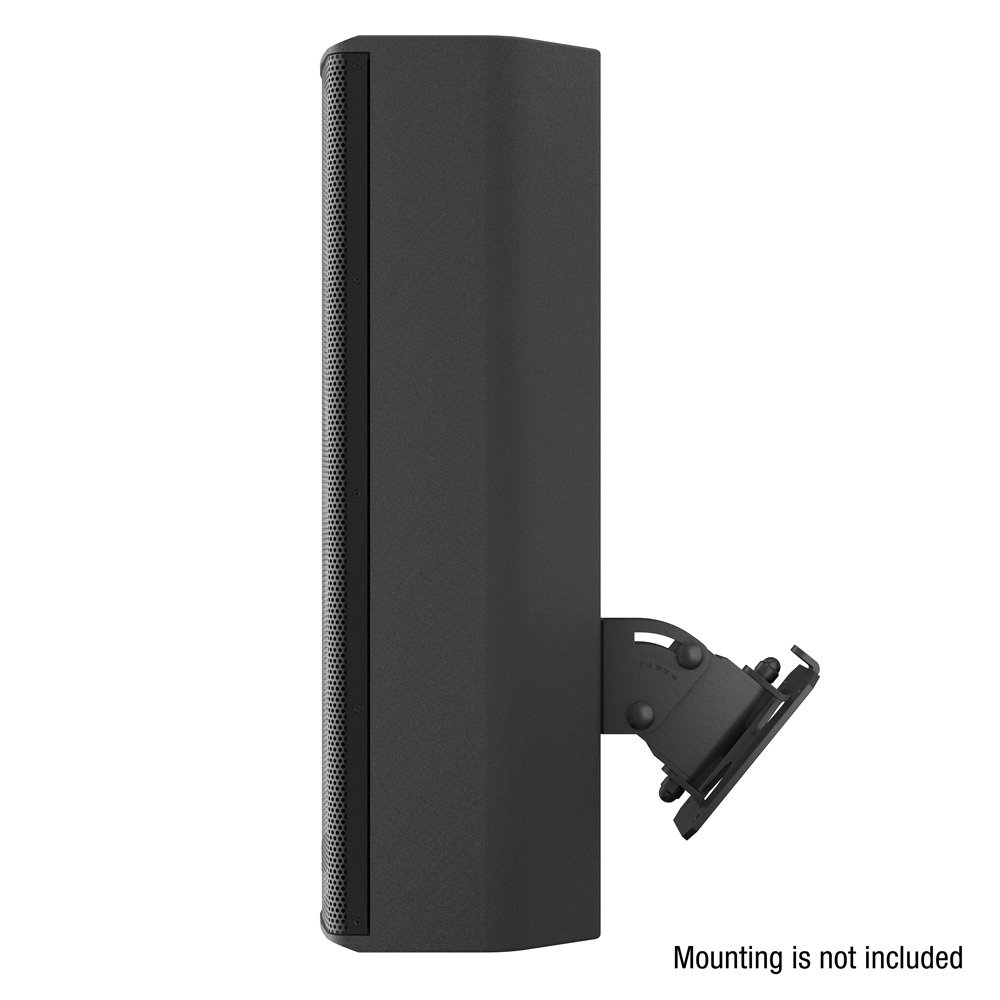

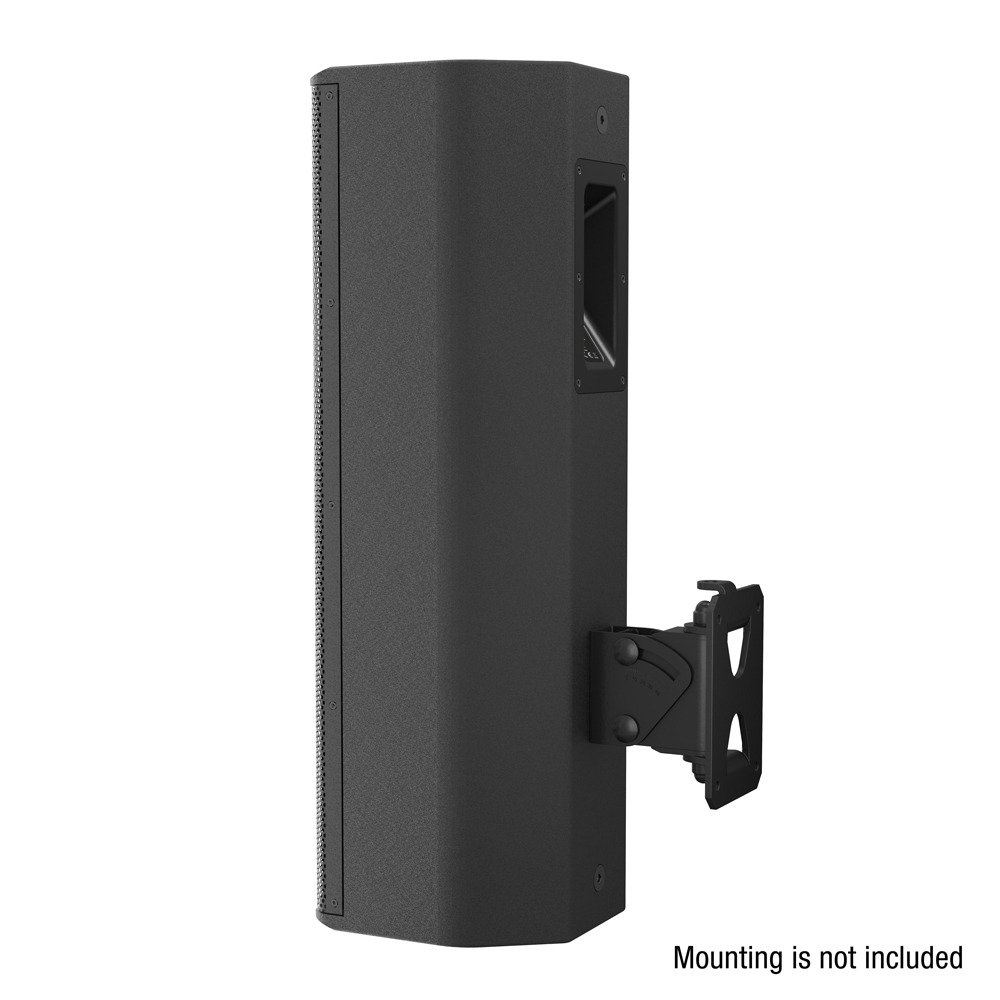

Special wall holders are available as an accessory to facilitate wall mounting. The SAT 262 G2 is available in black (Art. No. LDSAT262G2) or white textured finish (Art. No. LDSAT262G2W).
Swivel Wall Mount for LDSAT262G2 Black
Super Clamp Truss Mount for Loudspeaker
Ring Screw Stainless Steel M8 x 30 mm Incl. Washer
Technical Specifications
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 360 W |
| Power handling (RMS) | 180 W |
| SPL (1 W/1 m) | 93 dB |
| Frequency response | 65 – 19000 |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Dispersion | Hor.: 80° / Vert.: 60° |
| Number of inputs | 2 |
| Input connector types | Terminal block 4 pin (Euroblock) / 5.08 mm pitch, Standard speaker connector 4-pole male & speakON® |
| Number of outputs | 1 |
| Colour | Black |
Item No.: LDSAT262G2
| Series | ] |
|---|---|
| Colour | Black |
