LD Systems QTP 8
The Questra® Touchscreen Panel 8″ is powered by Andriod 11 OS and designed to control LD integrated systems solutions and other professional audio and video applications. Install the QUESTRA® Panel app to control your custom panels, designed with the QUESTRA® software. With this display, you can…
QTP 8 – QUESTRA Touchscreen Display 8-inch with Android 11 and PoE.
The Questra® Touchscreen Panel 8" is powered by Andriod 11 OS and designed to control LD integrated systems solutions and other professional audio and video applications. Install the QUESTRA® Panel app to control your custom panels, designed with the QUESTRA® software. With this display, you can conveniently and intuitively control your audio settings, lighting and other building functions.
The LD Systems QTP 8 features universal wall mounting options as well as PoE (Power over Ethernet) making installation a breeze. If you require an alternative power source, an optional power supply is also available.
This display in combination with the QUESTRA® Panel app is the perfect choice for professional AV integrators seeking a user-friendly solution for their clients.
or
LD Systems® is a brand of the Adam Hall Group
© 2026 Adam Hall Group. All Rights Reserved.
Technical Specifications
| Product type | Installation Accessories |
|---|---|
| Type | 8" QUESTRA Touchpanel |
| Processor | RK3566 – Quad-core up to 1.8 GHz |
| RAM | 2 GB |
| Internal memory | 16 GB |
| Controls | 8 " Touch display, Set, Restart |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 300 nits |
| Touch panel type | 5-points capacitive IPS Touch Panel |
| Mounting position | Landscape or portrait format (landscape format recommended) |
| Operating system | Android 11 |

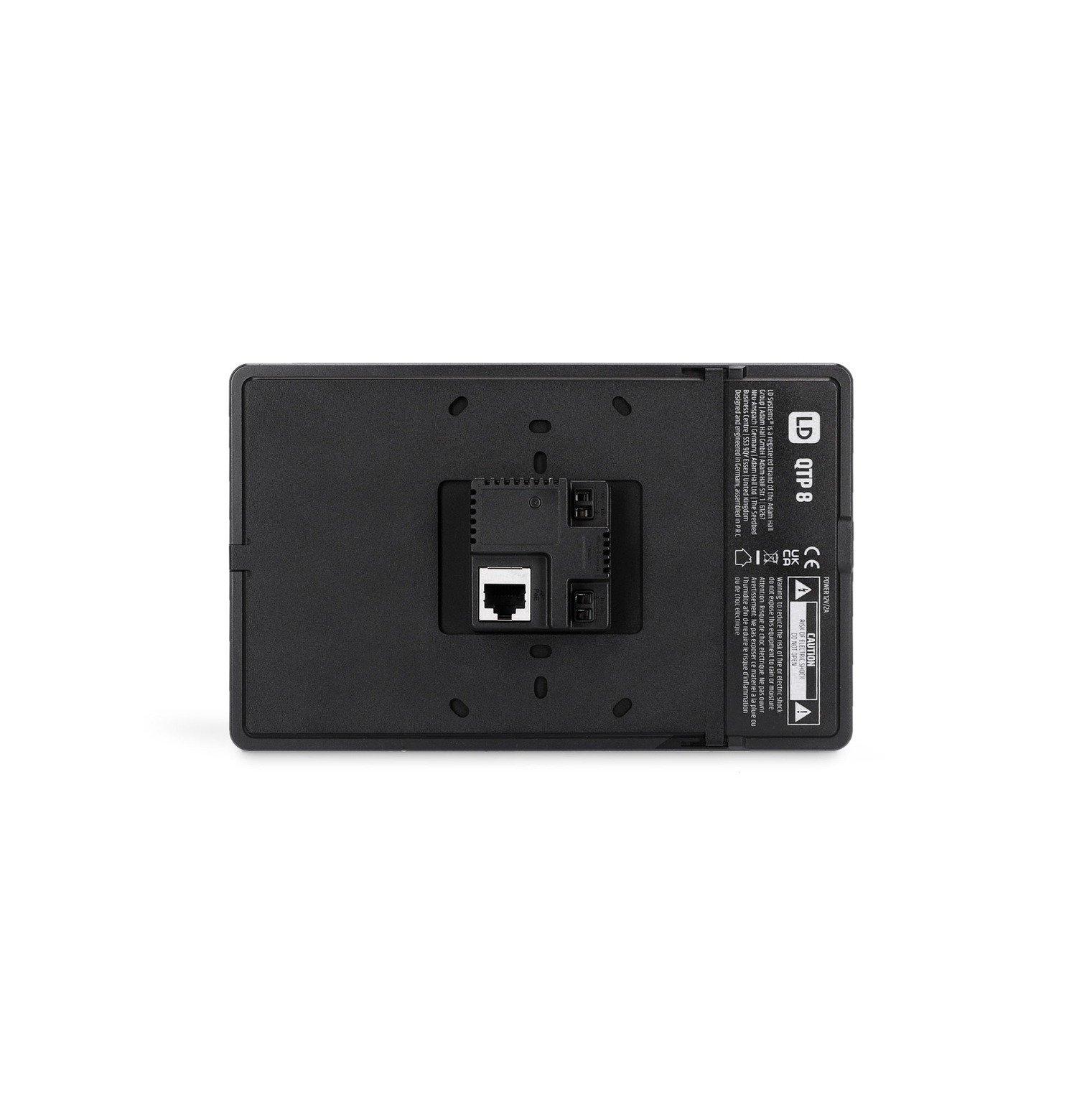

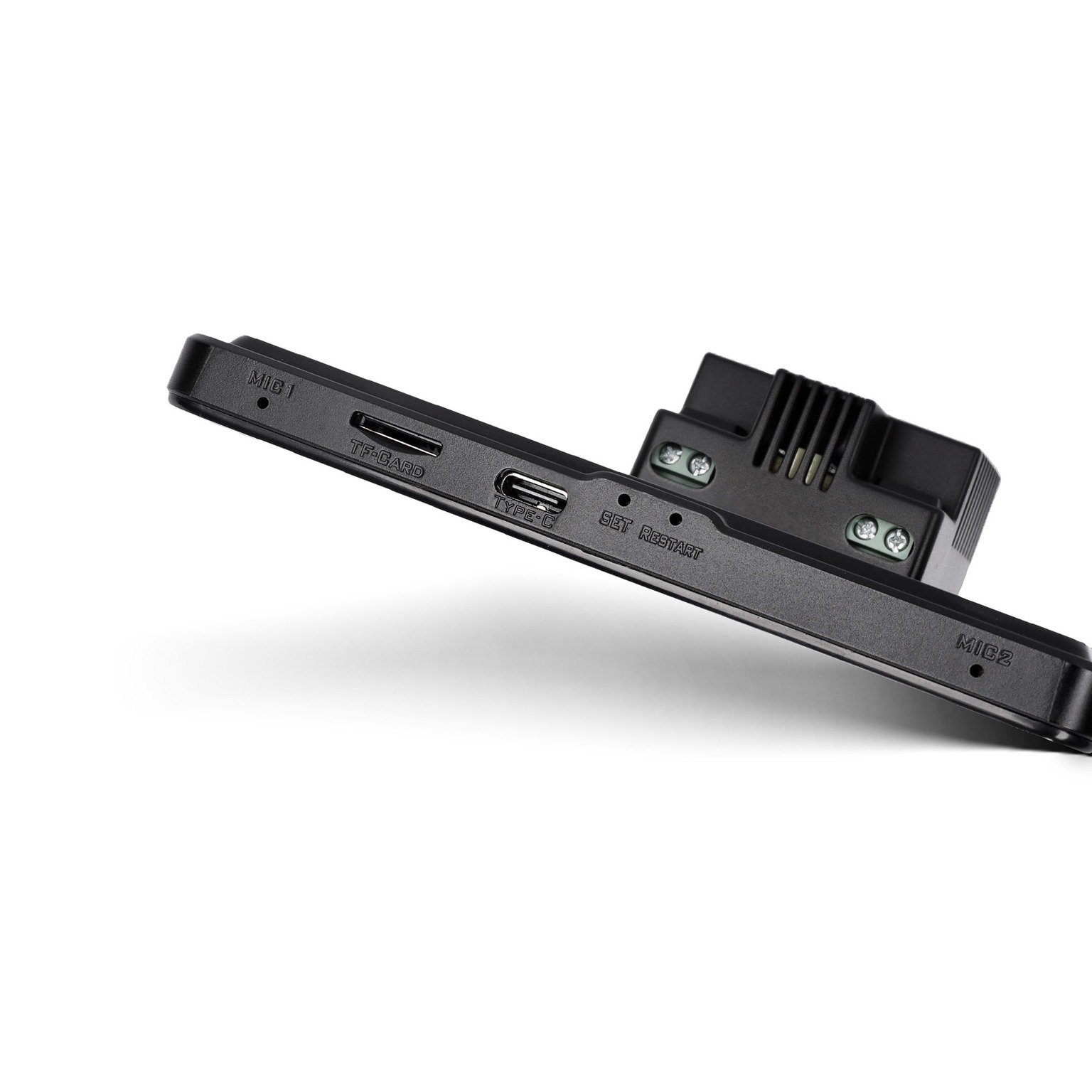

| Connectors | RS485 (currently without function), Power in, Ethernet RJ45, USB-C |
| Card reader | TF-Card / MicroSD |
| Connection | 2.4 GHz WIFI, Bluetooth 4.0, 10M / 100M Ethernet |
| Power supply | External power supply unit 12 V DC 2 A (optionally available), PoE ( Power over Ethernet ), IEEE 802.3at compliant |
| Mounting options | US – 2 – gang-electrical Box, EU – flush-mounted box, 86-Type Electrical Box |
| Dimensions (W x H x D) | 200 mm x 124.6 mm x 37.7 mm |
| Operating temperature | 0° – 40°C |
| Relative Humidity | < 80 % ( non-condensing ) |
| Accessories (included) | Mounting plate plus locking screw, Mounting screws |
| Optional accessories | External power supply 12 V DC 2 A |
Item No.: LDQTP8
| Series | ] |
|---|---|
| Product Type | Installation Accessories |
| Type | 8" QUESTRA Touchpanel |
