LD Systems MON 15 A G3 W

The MON 15 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These…

SKU: LDMON15AG3W Category: Tags: ,

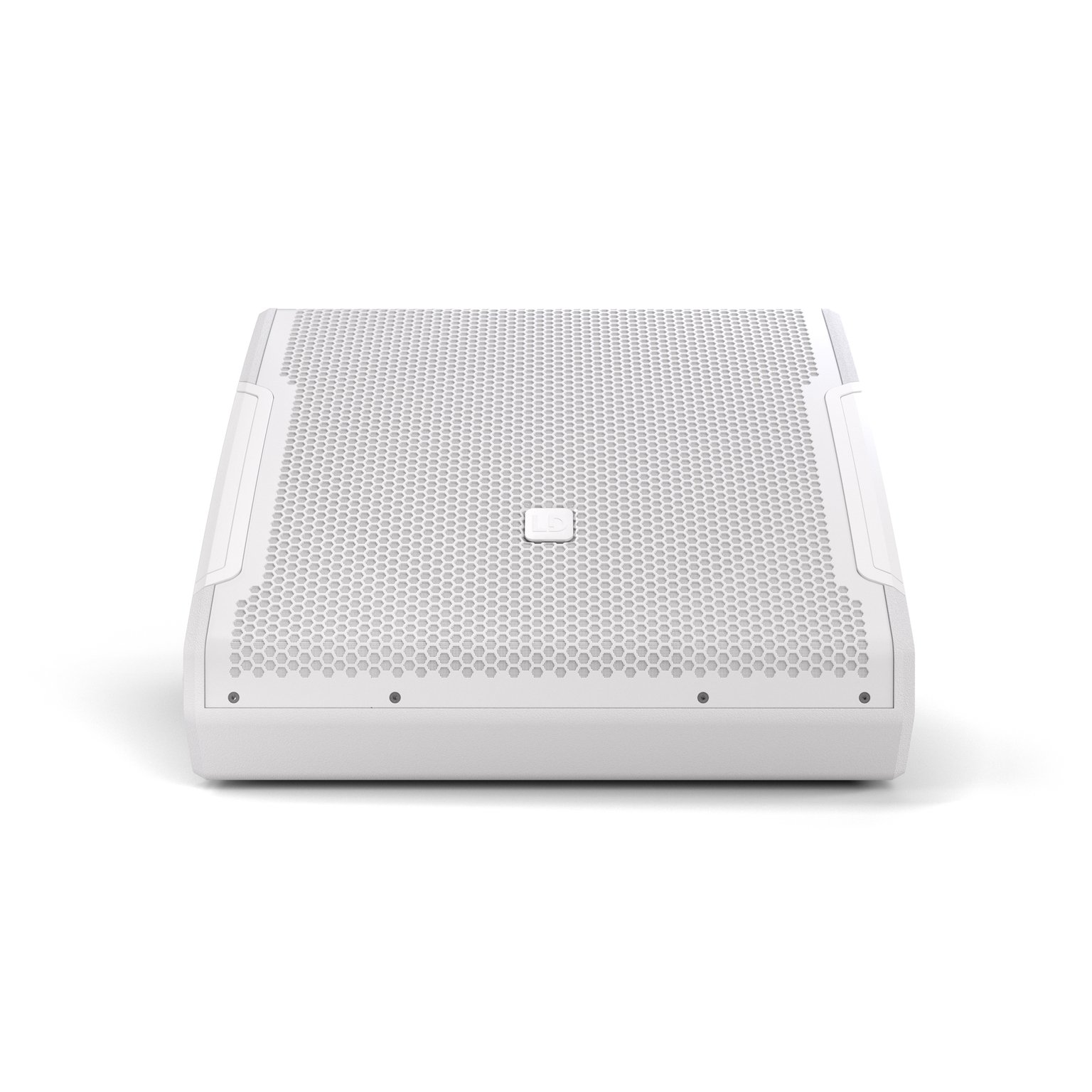

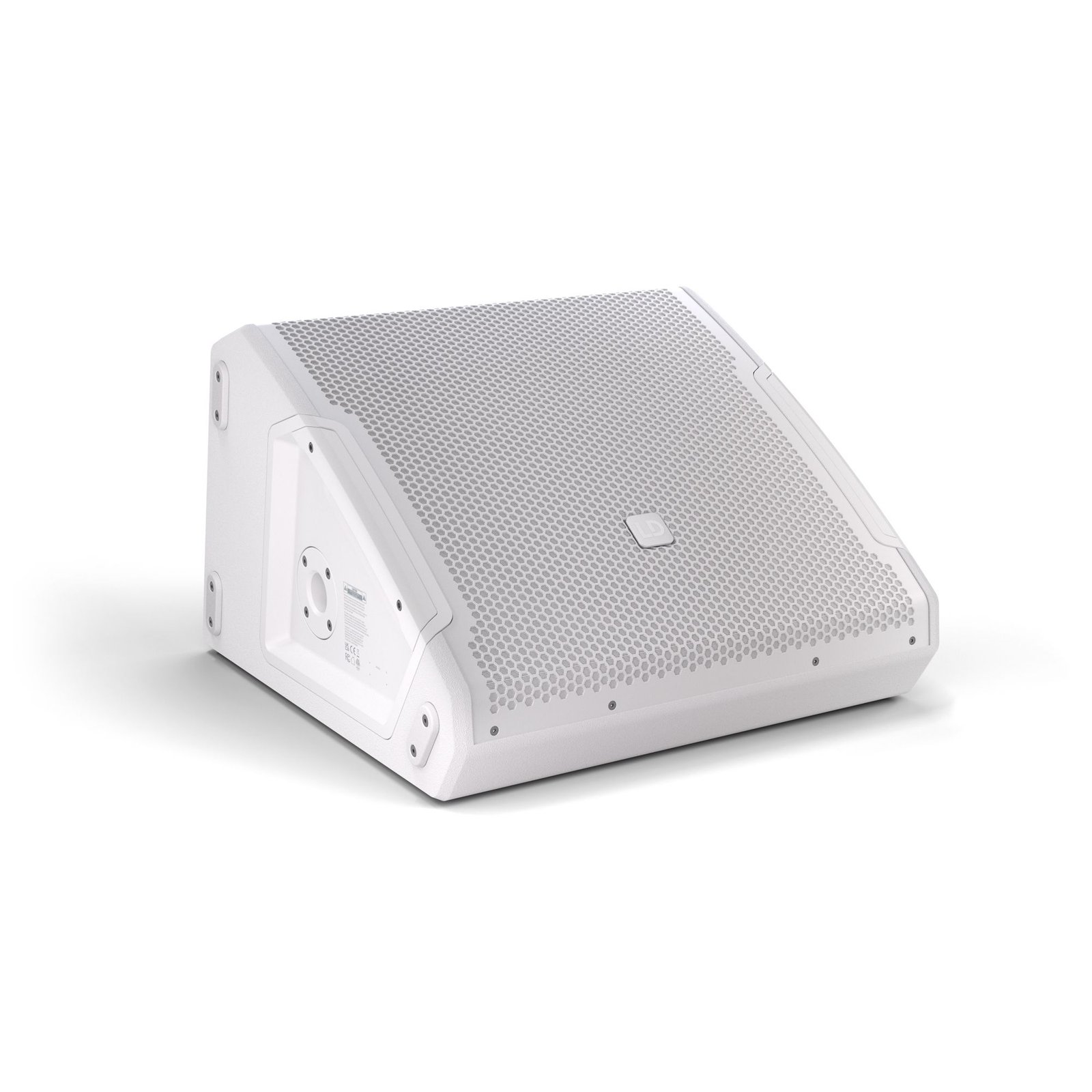

MON 15 A G3 W – 15" powered coaxial stage monitor, white.

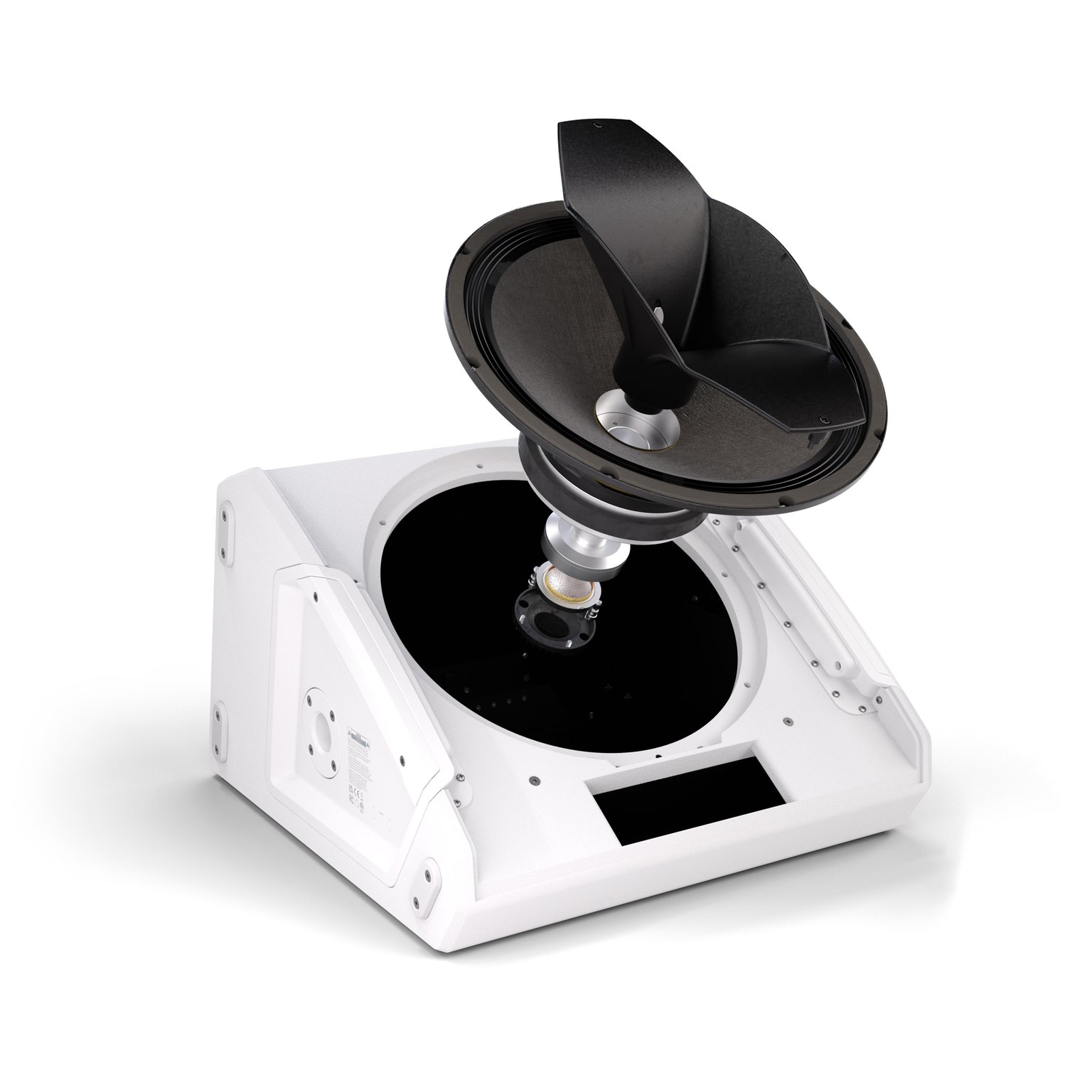

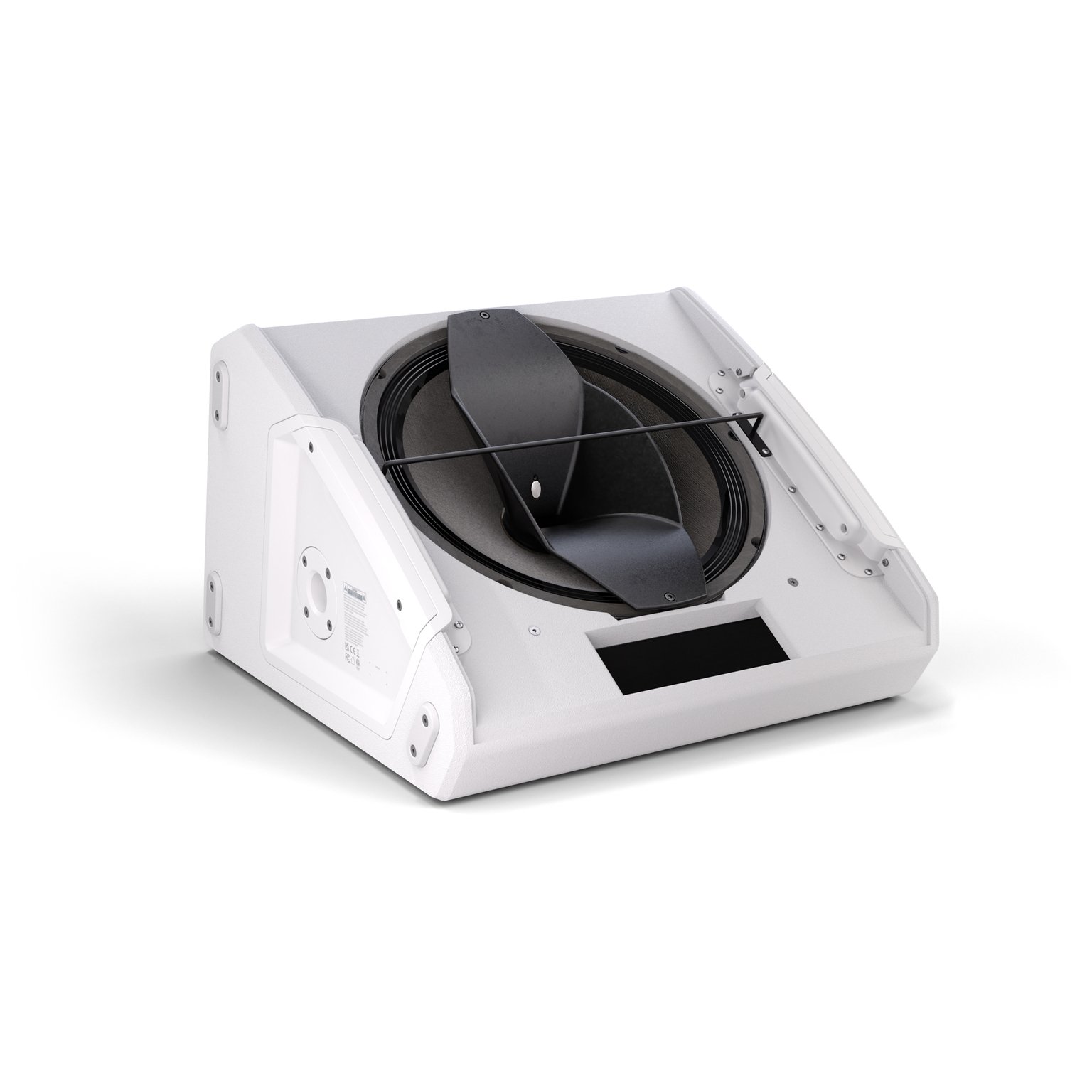

The MON 15 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 W the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

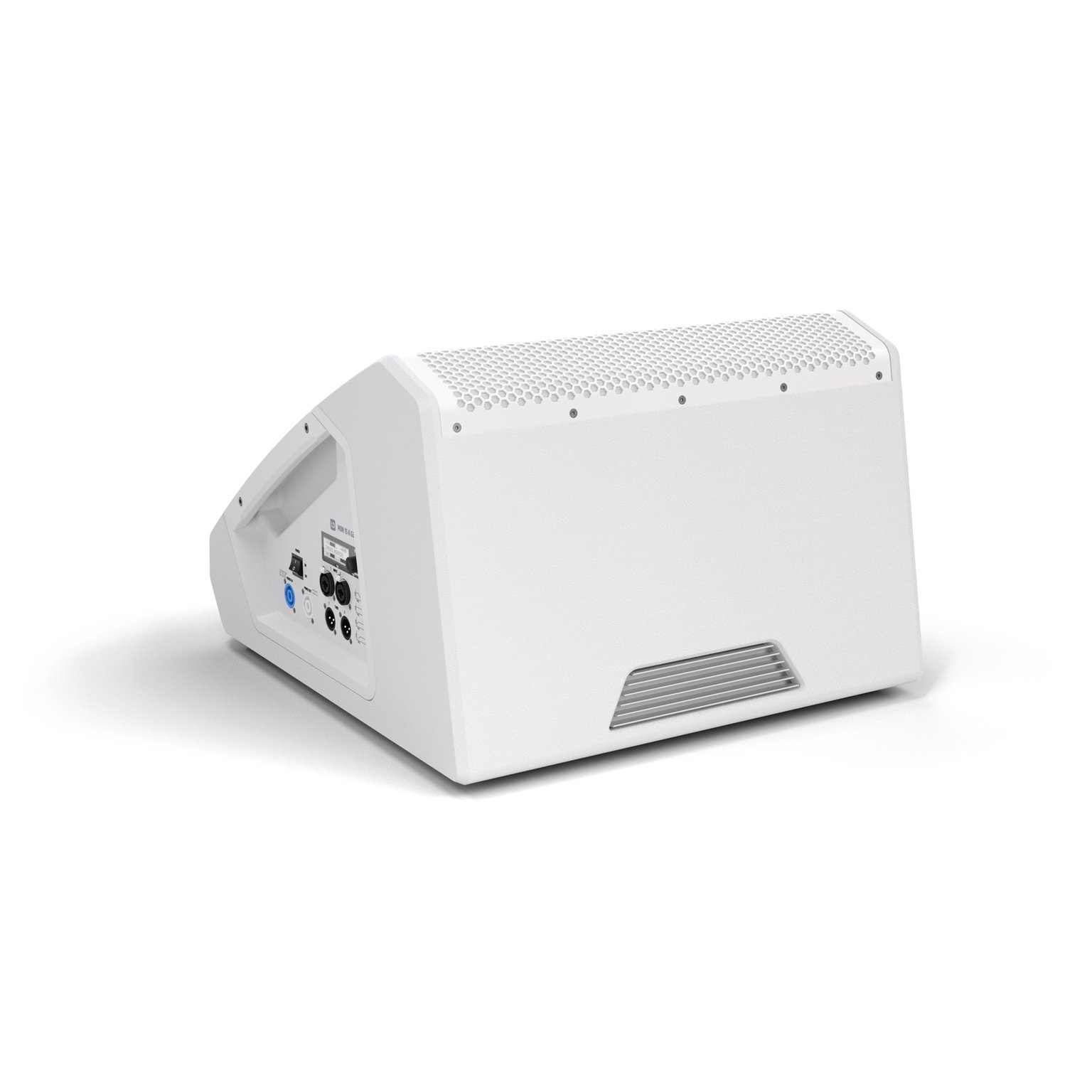

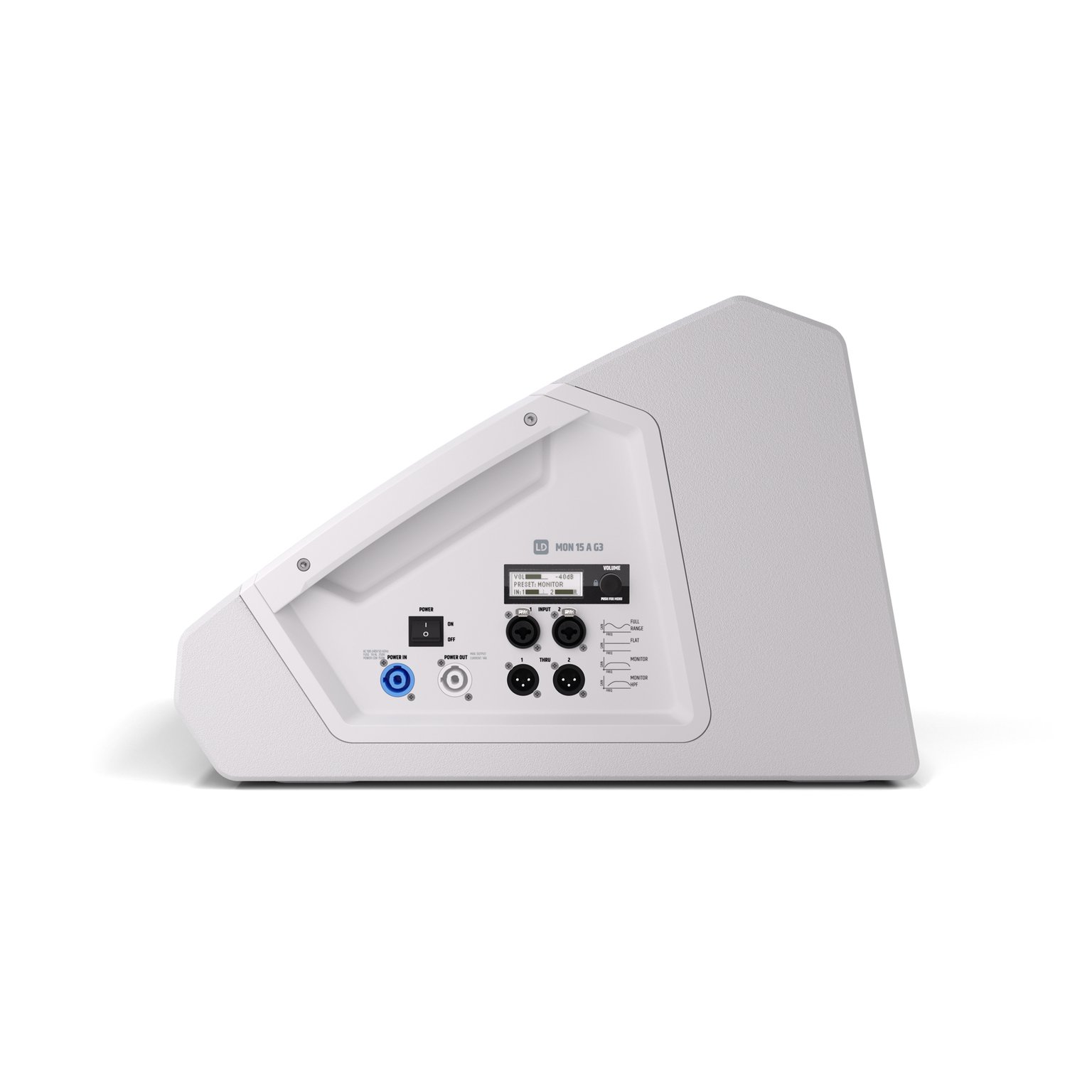

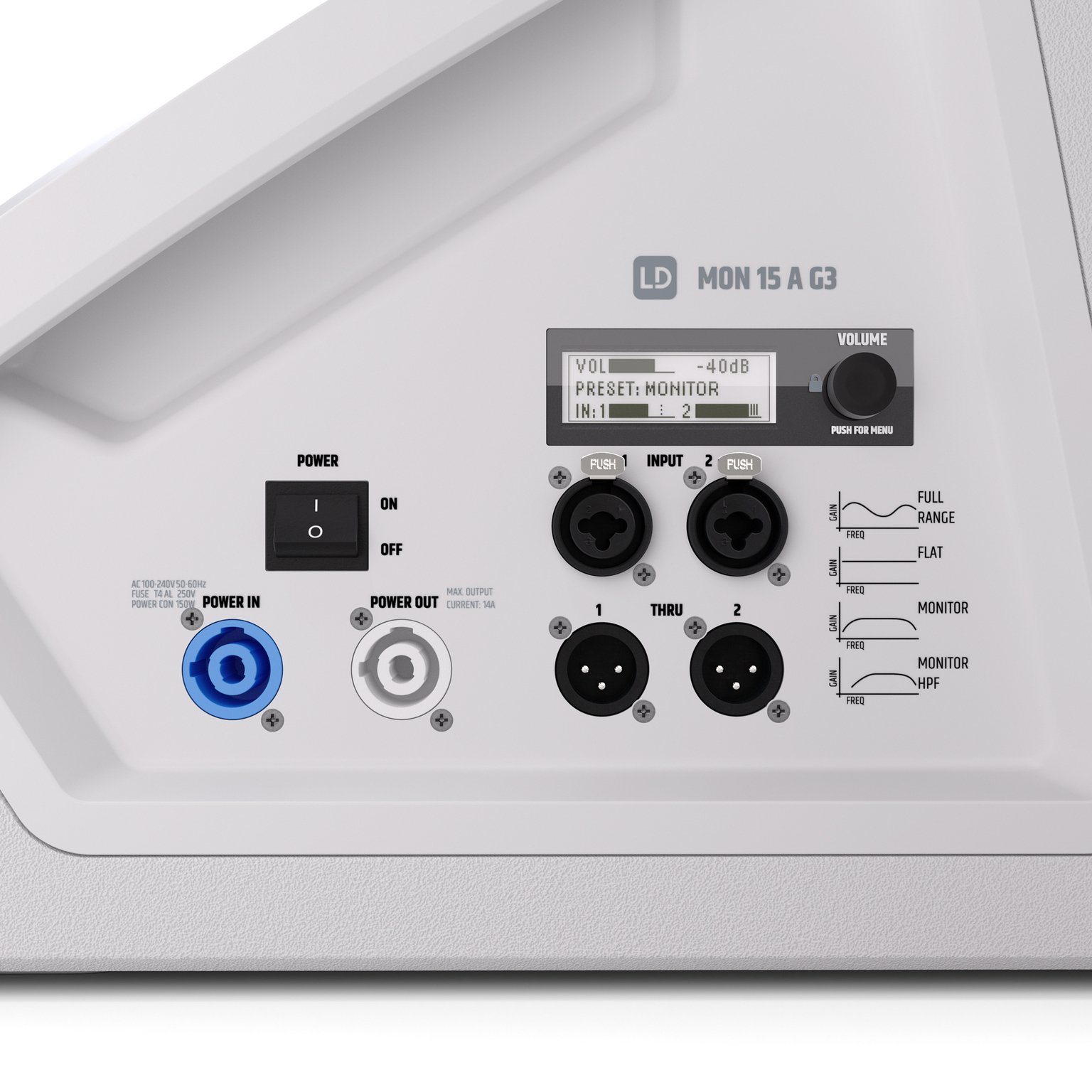

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Padded protective cover for MON 15 A G3

or

LD Systems® is a brand of the Adam Hall Group

Technical Specifications

Type (active/passive)Active
Peak output power1200 W
RMS output power300 W
Amp classClass D
SysLink®0
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)129 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)122 dB
Frequency response (-3 dB, rel. Avg)58 Hz – 18000 Hz
Frequency response (-10 dB, rel. Avg)48 Hz – 20000 Hz
Speaker system2-way coaxial system
Crossover frequency1300 Hz
DispersionHor.: 50° / Vert.: 90°
Monitor angle33 °
Number of inputs2
Input connector typesXLR combo socket, 6.3 mm Jack TRS female
Number of outputs2
Output connector typesXLR 3-pole female
ColourWhite

Item No.: LDMON15AG3W

Colour

White
