LD Systems MON 12 A G3

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These…

SKU: LDMON12AG3 Category: Tags: ,

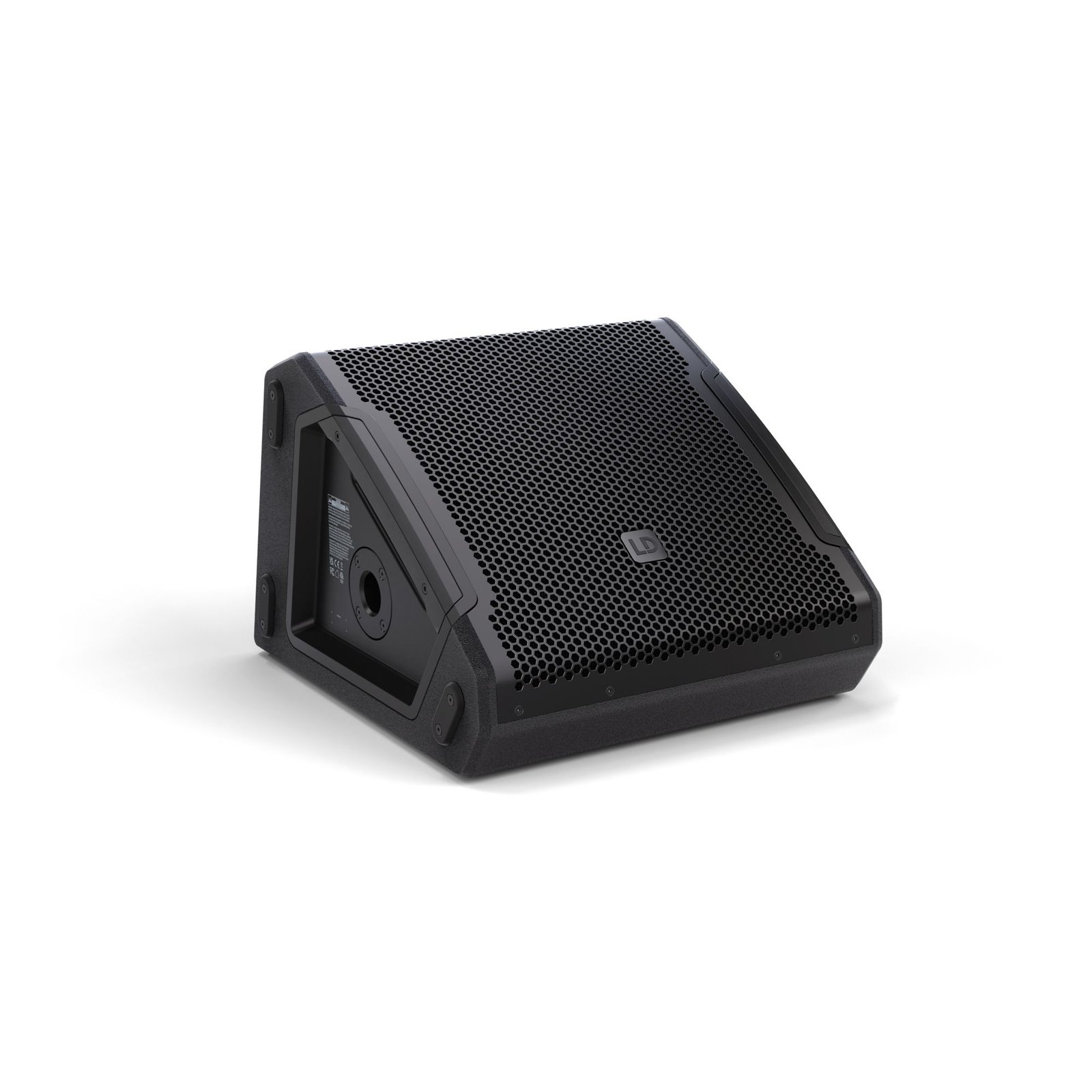

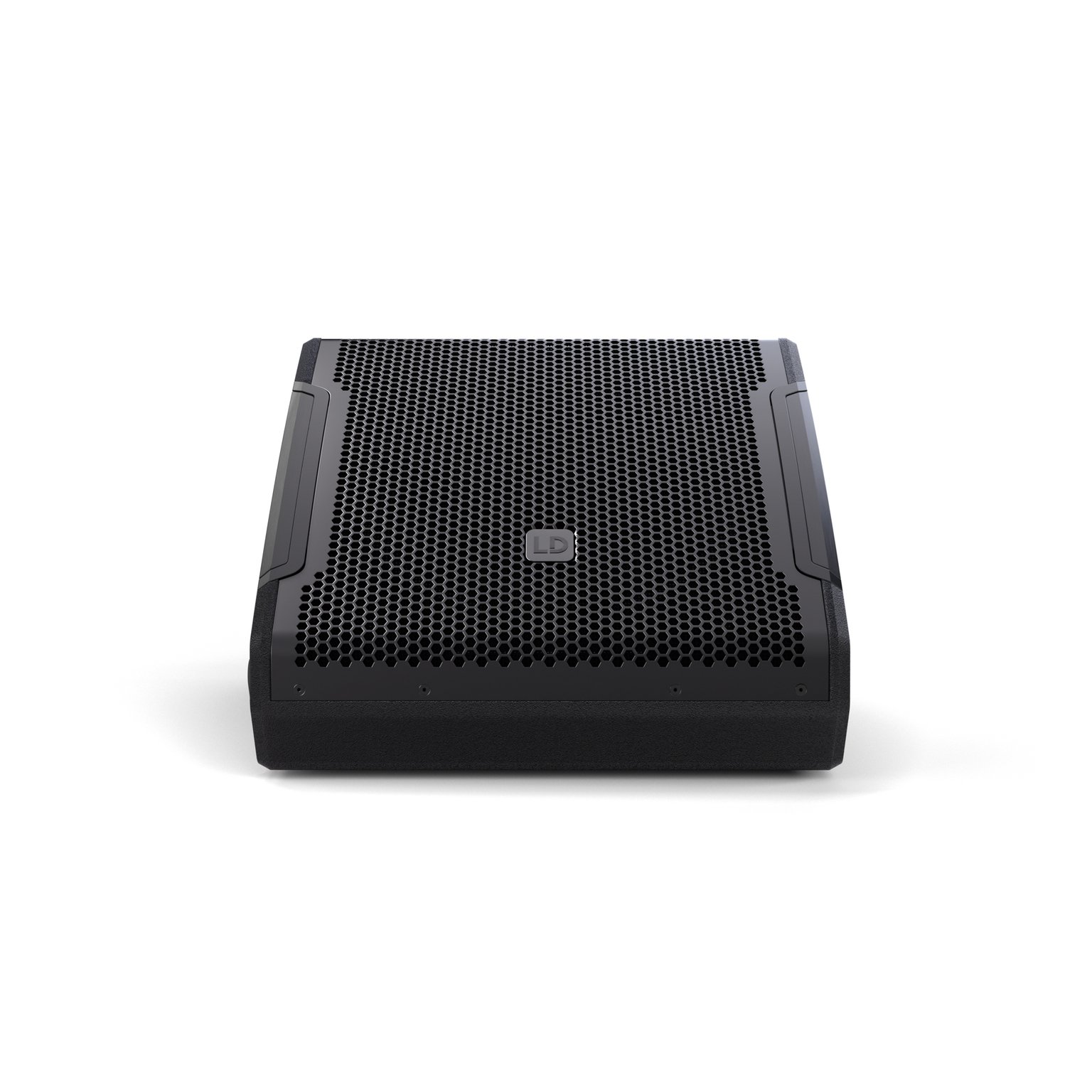

MON 12 A G3 – 12" powered coaxial stage monitor.

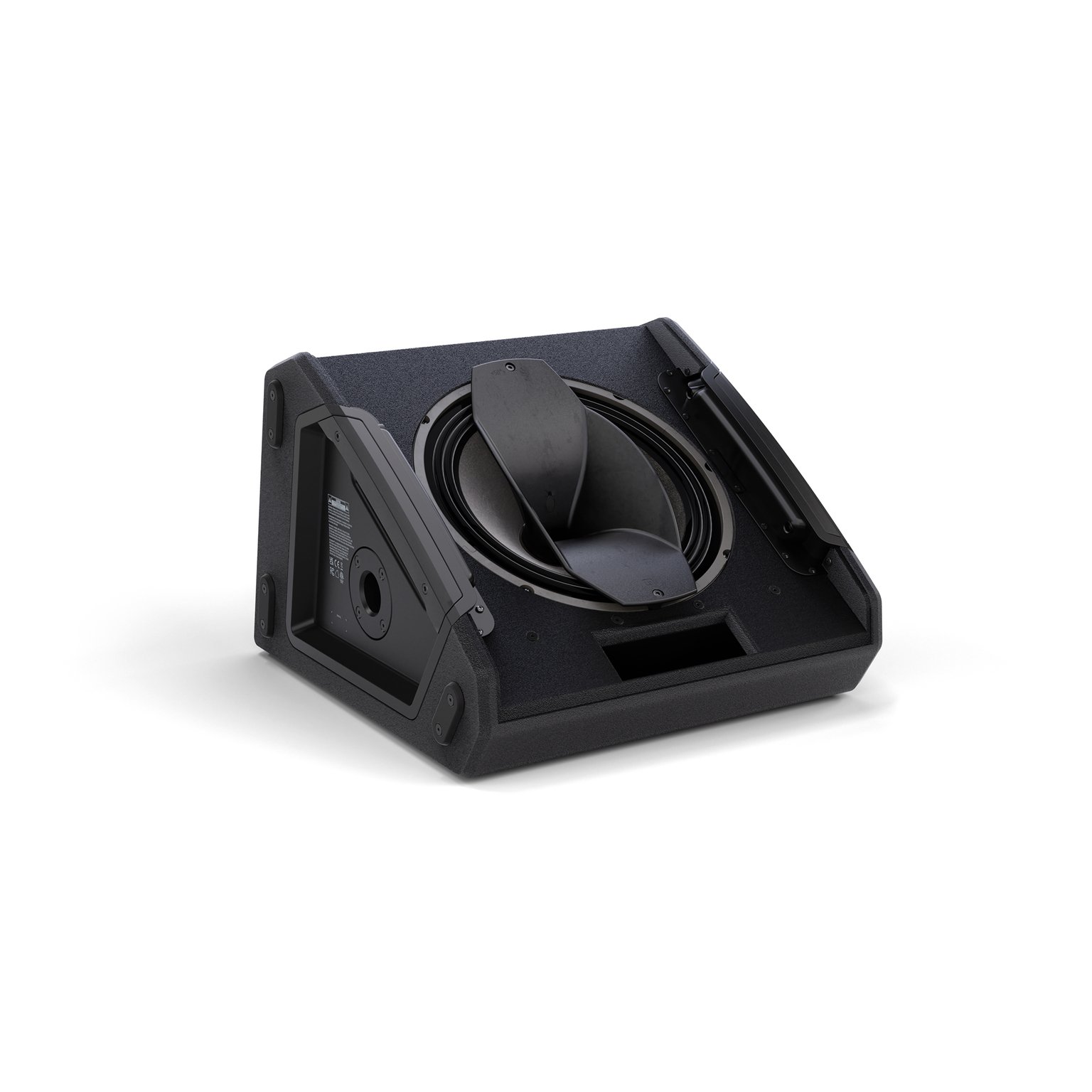

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

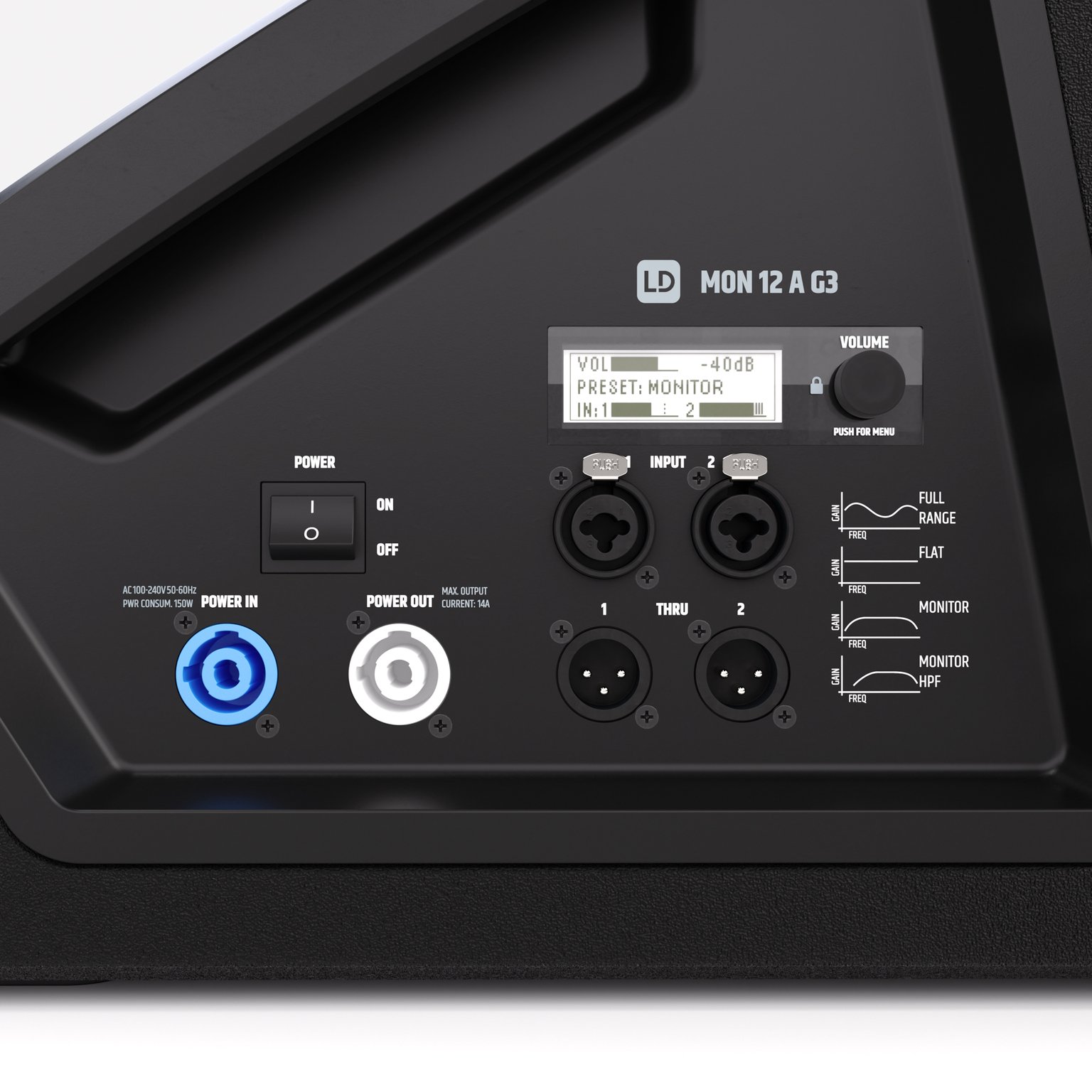

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Padded protective cover for MON 12 A G3

or

LD Systems® is a brand of the Adam Hall Group

Technical Specifications

Type (active/passive)Active
Peak output power1200 W
RMS output power300 W
Amp classClass D
SysLink®0
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)127 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)120 dB
Frequency response (-3 dB, rel. Avg)68 Hz – 18000 Hz
Frequency response (-10 dB, rel. Avg)55 Hz – 20000 Hz
Speaker system2-way coaxial system
Crossover frequency1400 Hz
DispersionHor.: 50° / Vert.: 90°
Monitor angle33 °
Number of inputs2
Input connector typesXLR combo socket, 6.3 mm Jack TRS female
Number of outputs2
Output connector typesXLR 3-pole female
Protection featuresMultiband Limiter, Overheating, Overload, Overvoltage
ColourBlack

Item No.: LDMON12AG3

Colour

Black
