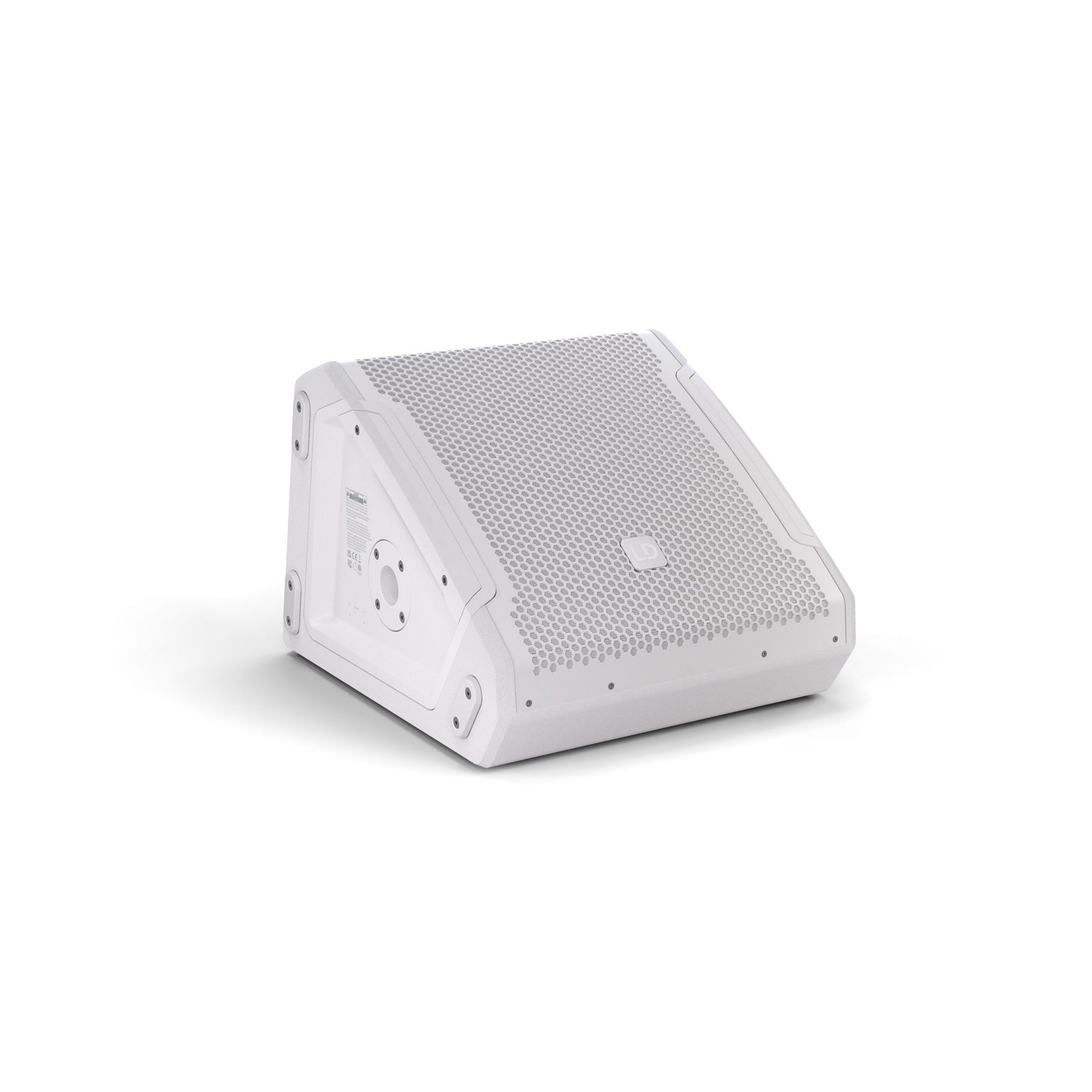

LD Systems MON 10 A G3 W
The MON 10 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These…

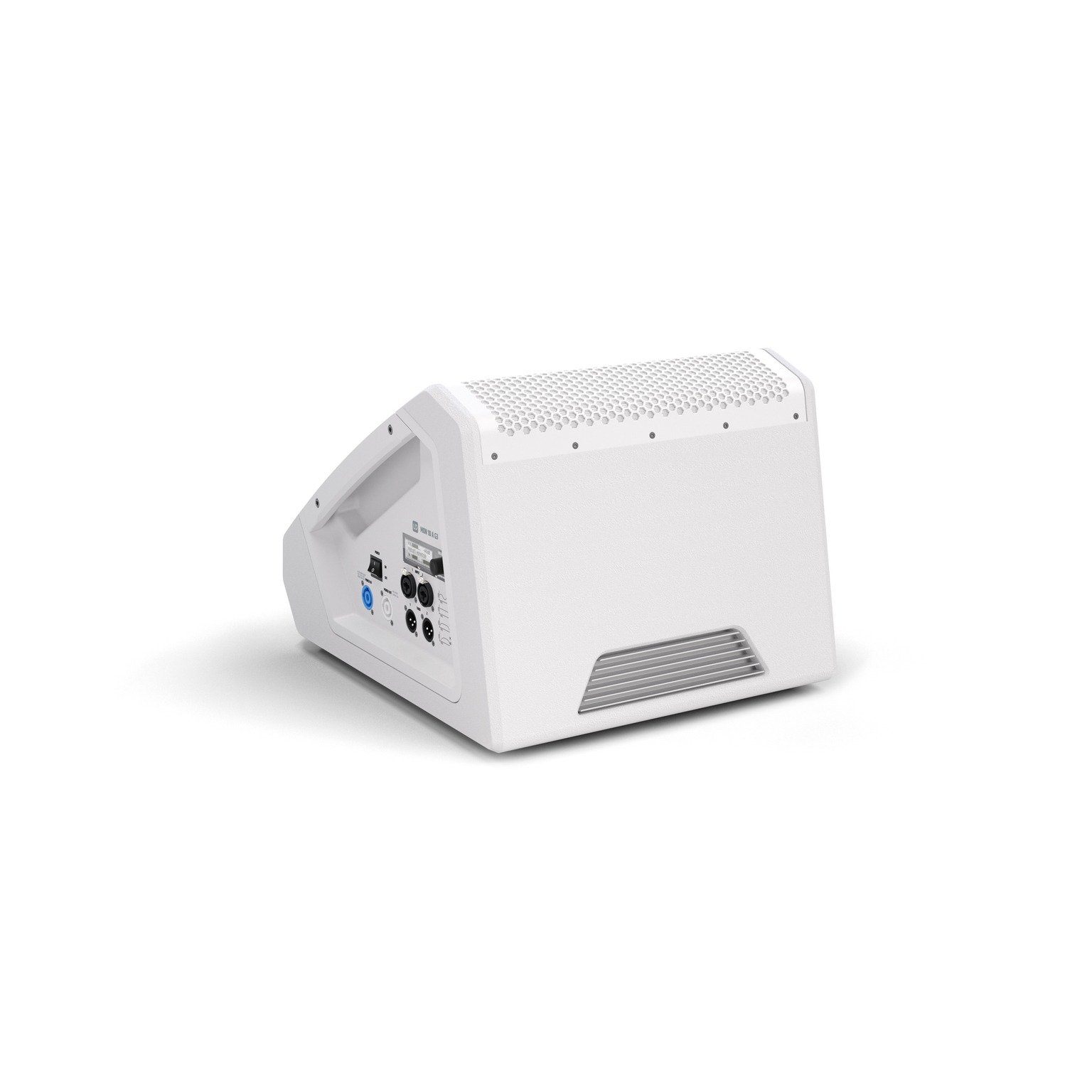

MON 10 A G3 W – 10" powered coaxial stage monitor, white.

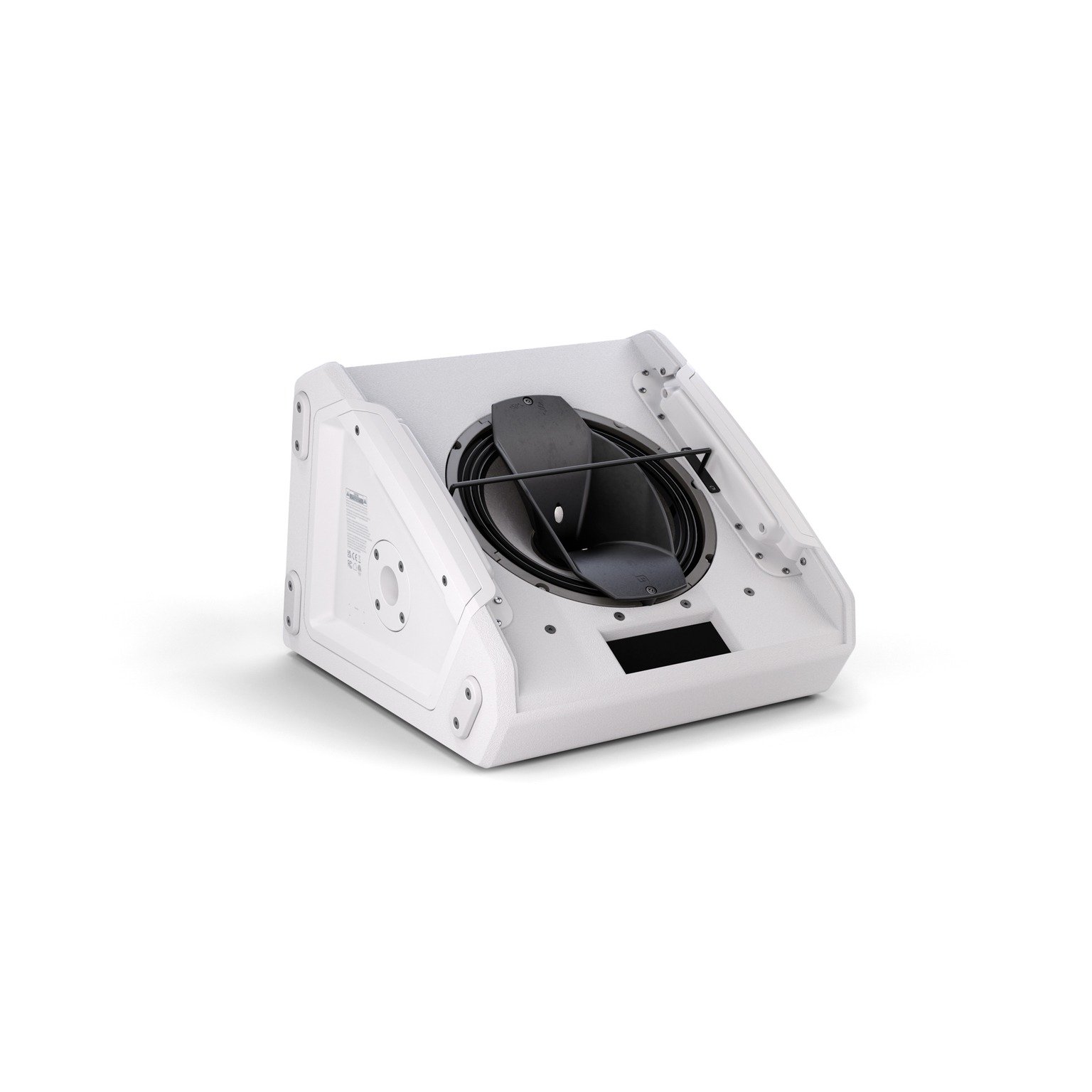

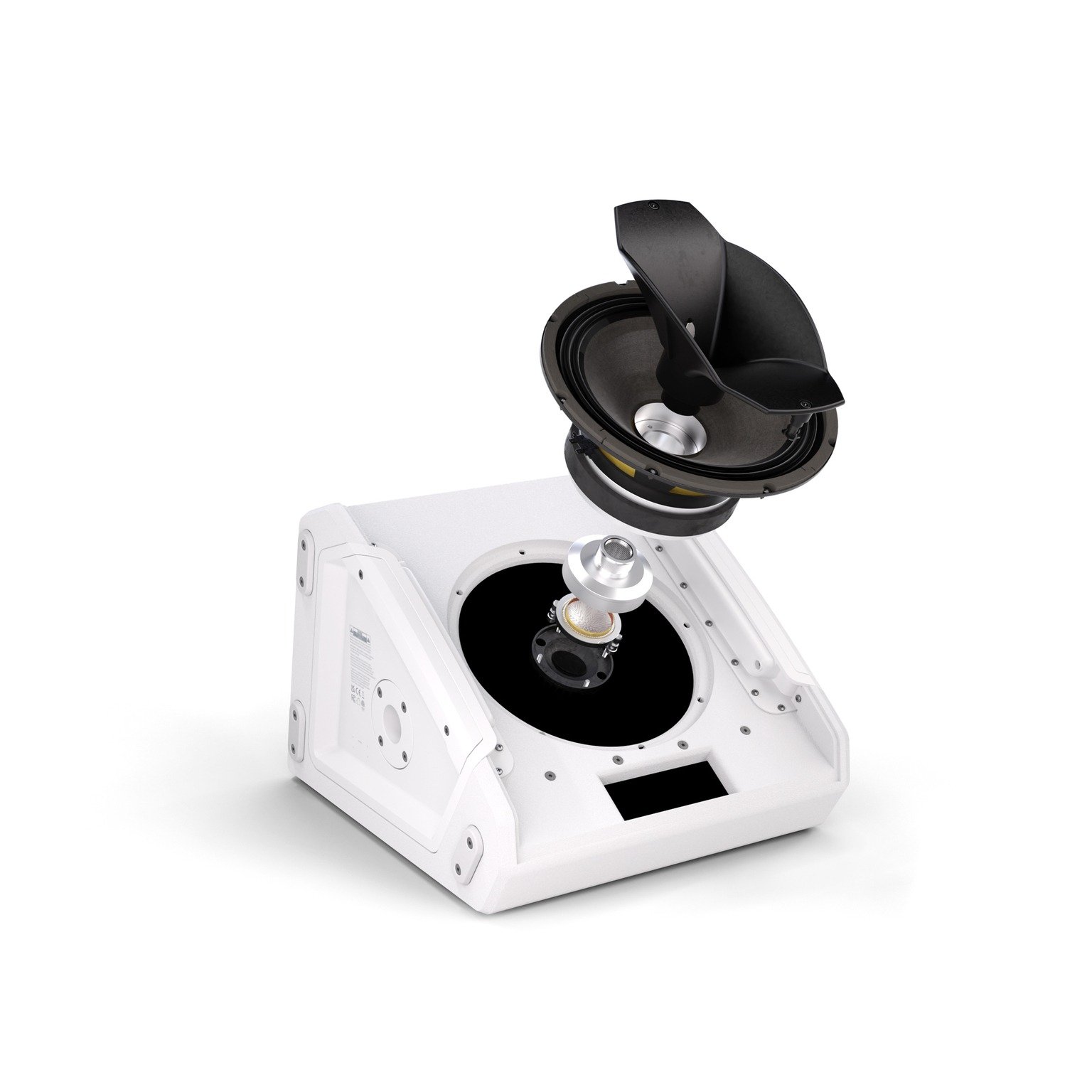

The MON 10 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
Although it is still very compact and can therefore be integrated inconspicuously into the stage set, the MON 10 A G3 W delivers sufficient sound pressure to assert itself even in louder band situations. The ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use make it a multi-talent that offers the right solution for many different tasks.

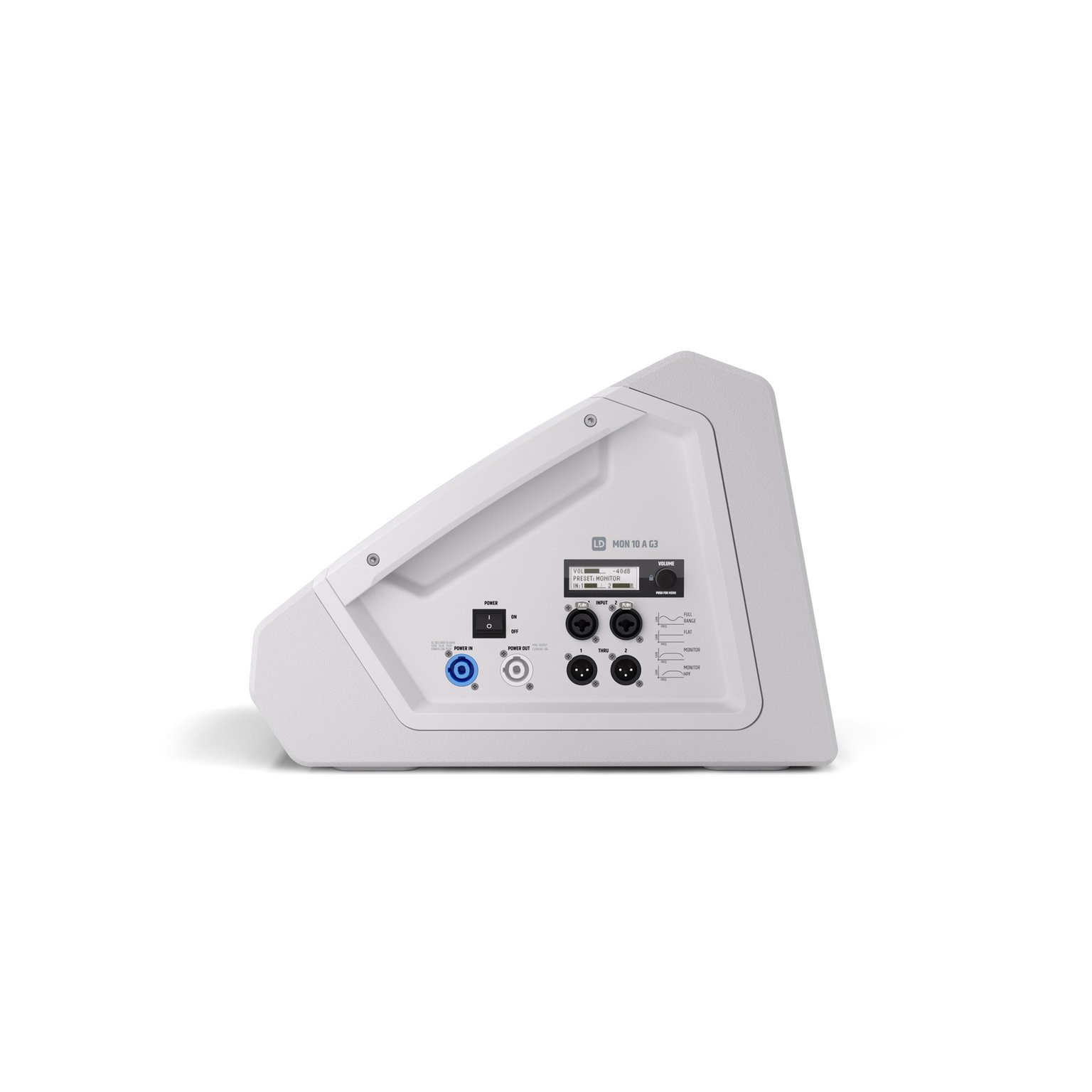

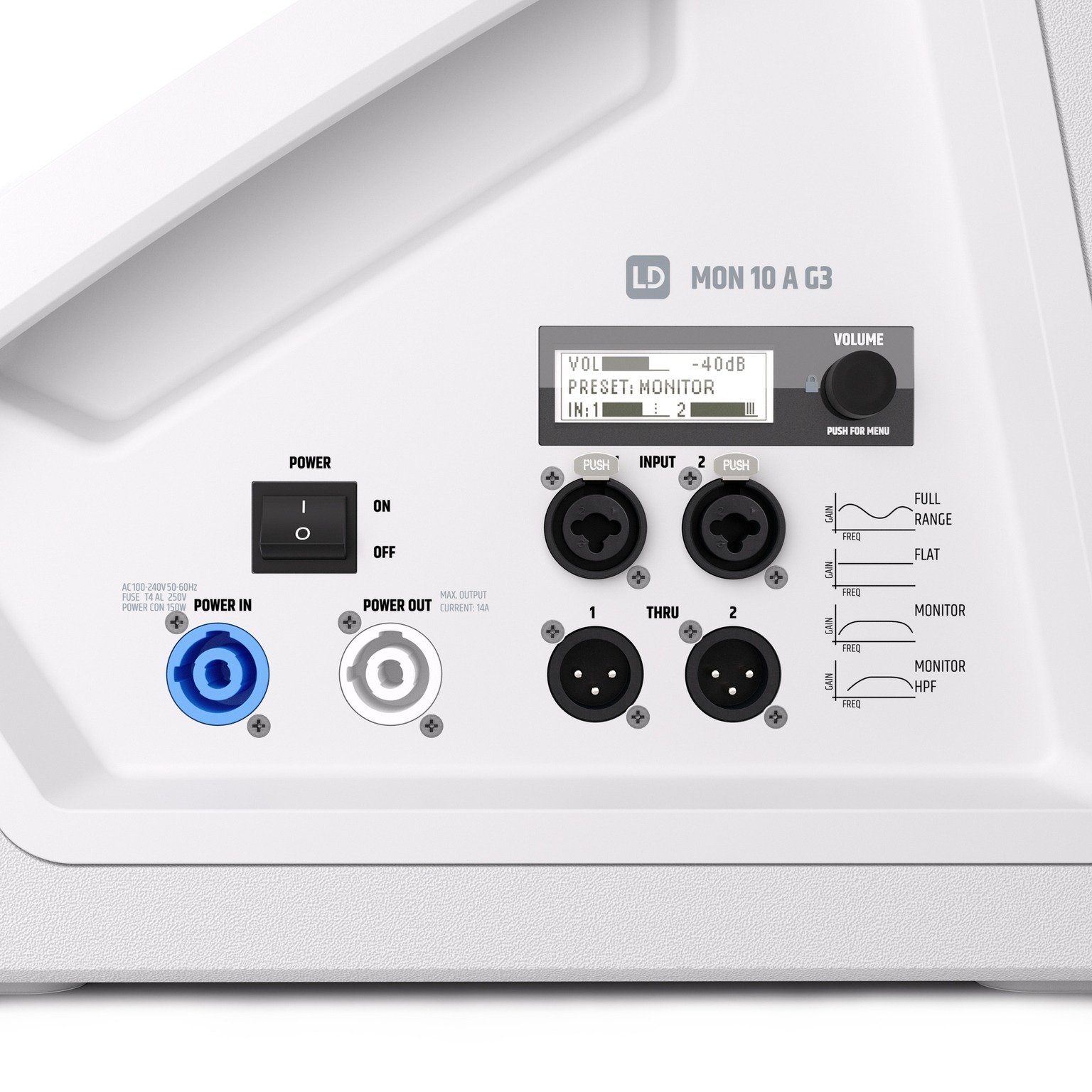

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
Padded protective cover for MON 10 A G3
or
LD Systems® is a brand of the Adam Hall Group
Technical Specifications
| Type (active/passive) | Active |
|---|---|
| Peak output power | 1200 W |
| RMS output power | 300 W |
| Amp class | Class D |
| SysLink® | 0 |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 126 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 118 dB |
| Frequency response | 58 Hz – 20000 Hz |
| Frequency response (-3 dB, rel. Avg) | 72 Hz – 18000 Hz |
| Frequency response (-10 dB, rel. Avg) | 58 Hz – 20000 Hz |
| Speaker system | 2-way coaxial system |
| Crossover frequency | 1700 Hz |
| Dispersion | Hor.: 50° / Vert.: 90° |
| Monitor angle | 33 ° |
| Number of inputs | 2 |
| Input connector types | XLR combo socket, 6.3 mm Jack TRS female |
| Number of outputs | 2 |
| Output connector types | XLR 3-pole female |
| Protection features | Multiband Limiter, Overheating, Overload, Overvoltage |
| Colour | White |
Item No.: LDMON10AG3W
| Colour | White |
|---|
