LD Systems MAILA SUB 15 P W

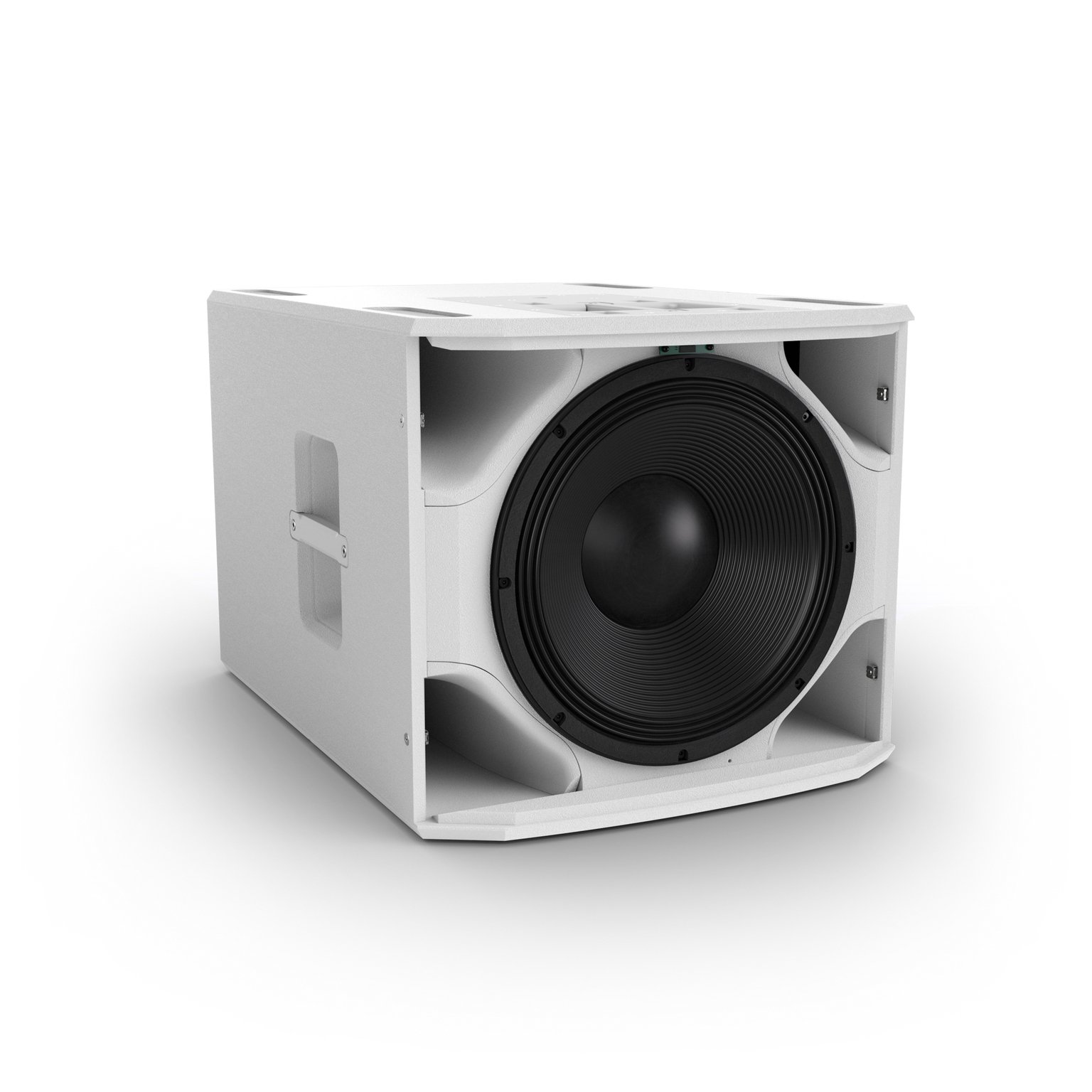

MAILA SUB 15 P W is the compact, low-frequency option within the passive MAILA system, delivering strong bass extension in a compact housing. This high-performance 1 × 15″ bass reflex subwoofer delivers controlled low-end with the punch and definition required for modern live sound.

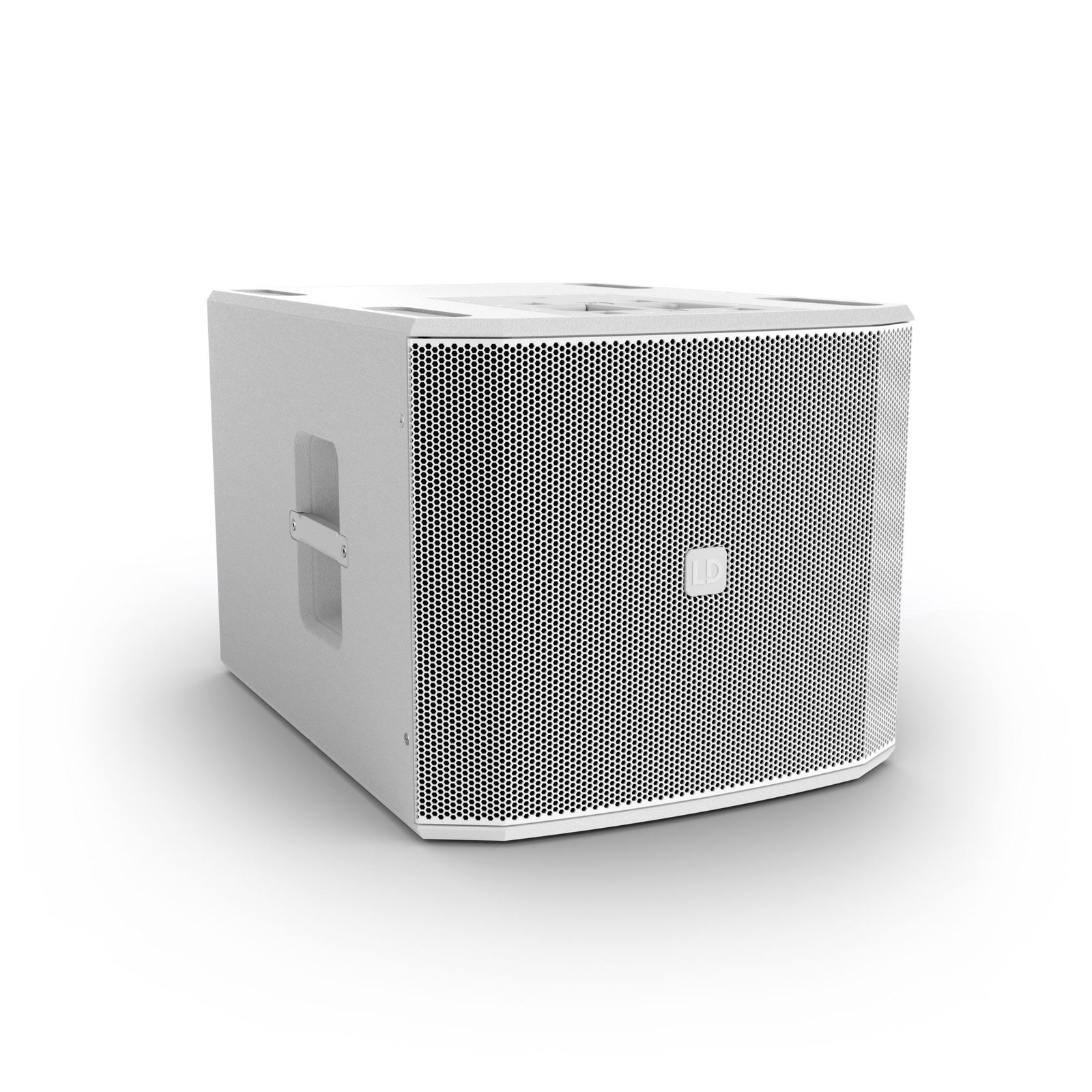

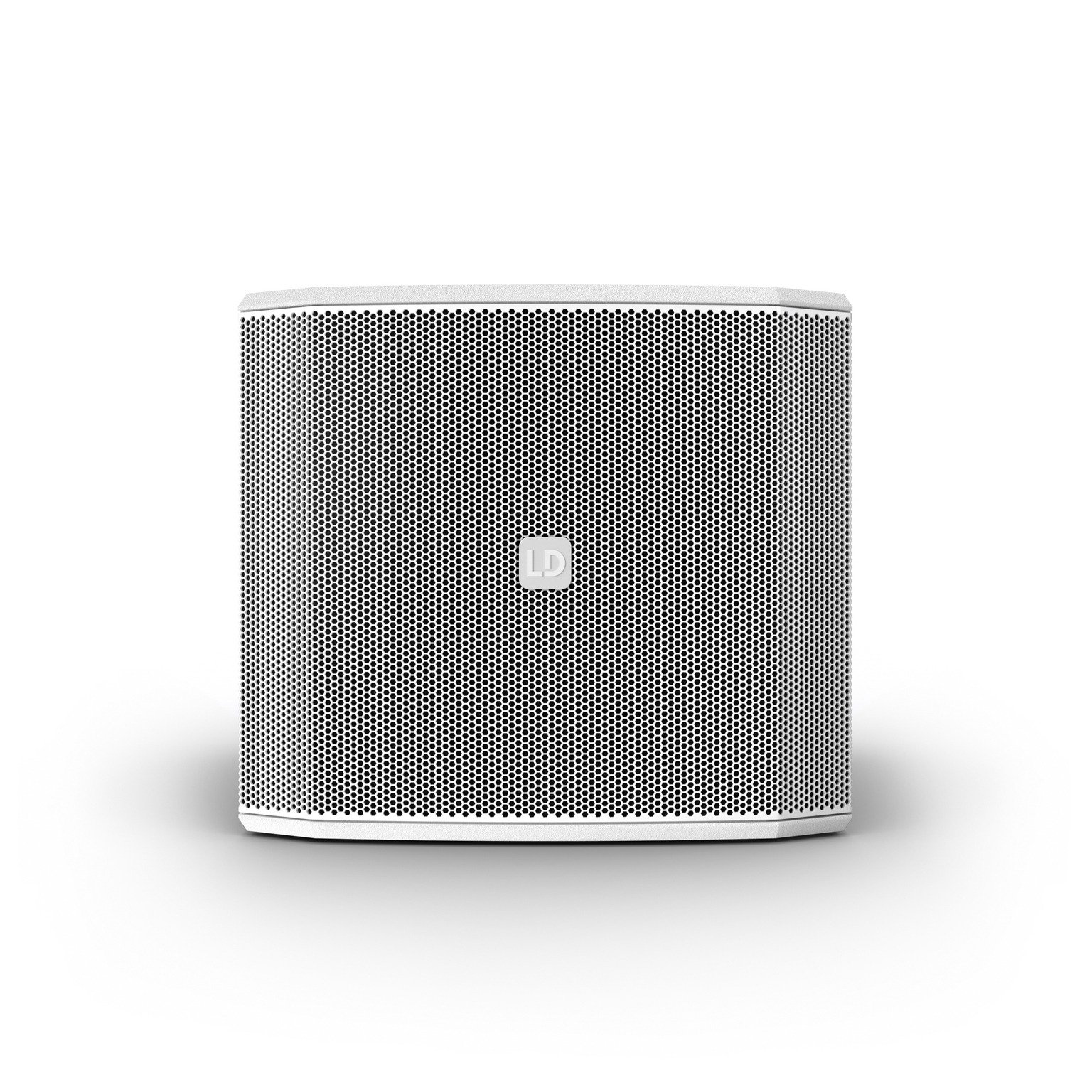

MAILA SUB 15 P W – 15" Passive Bass Reflex PA Subwoofer, white.
MAILA SUB 15 P W is the compact, low-frequency option within the passive MAILA system, delivering strong bass extension in a compact housing. This high-performance 1 × 15" bass reflex subwoofer delivers controlled low-end with the punch and definition required for modern live sound.

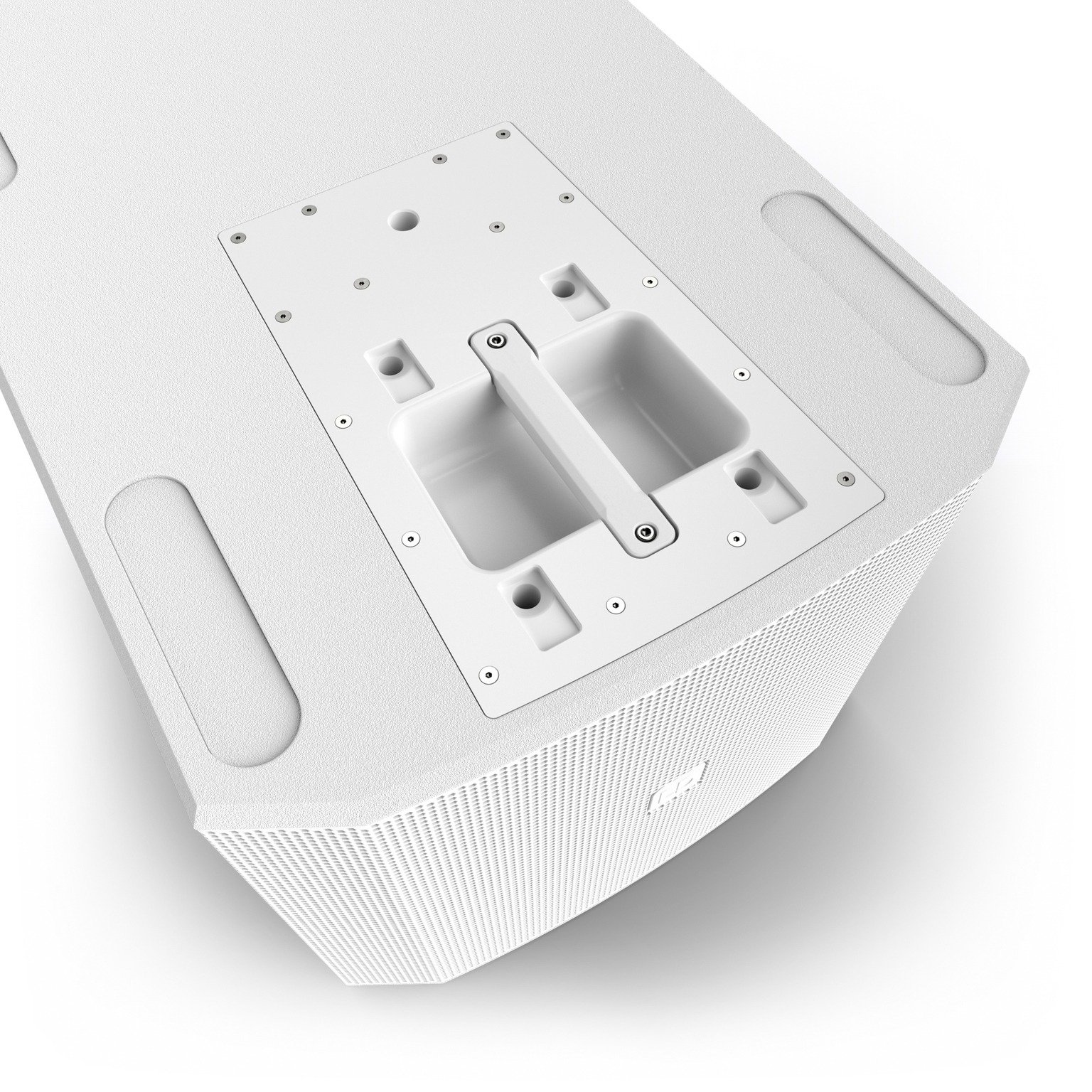

SUB 15 P W supports ground stacks of up to three units. The docking plate on the top side allows a M20 speaker pole or a MAILA COL to be mounted directly onto the subwoofer.

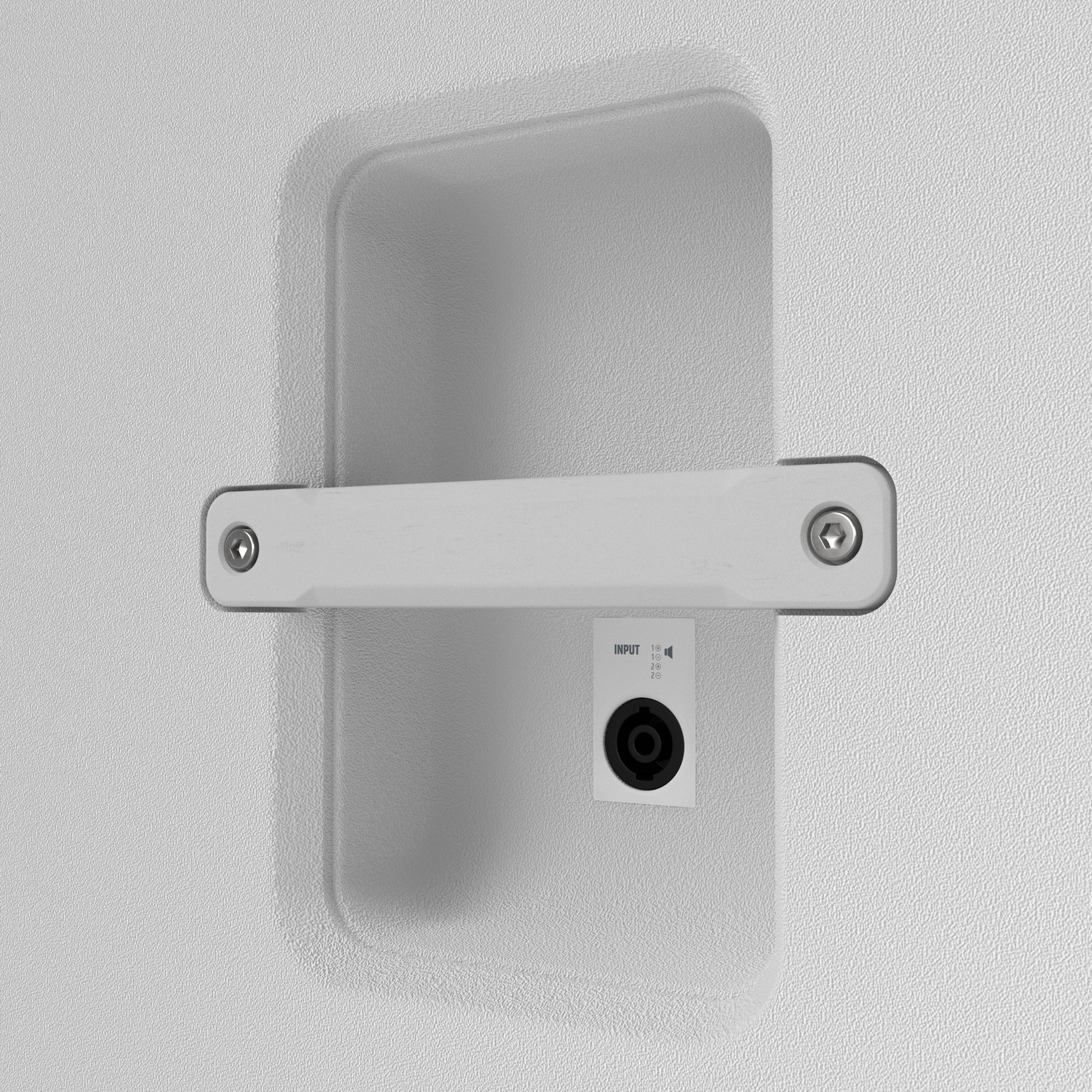

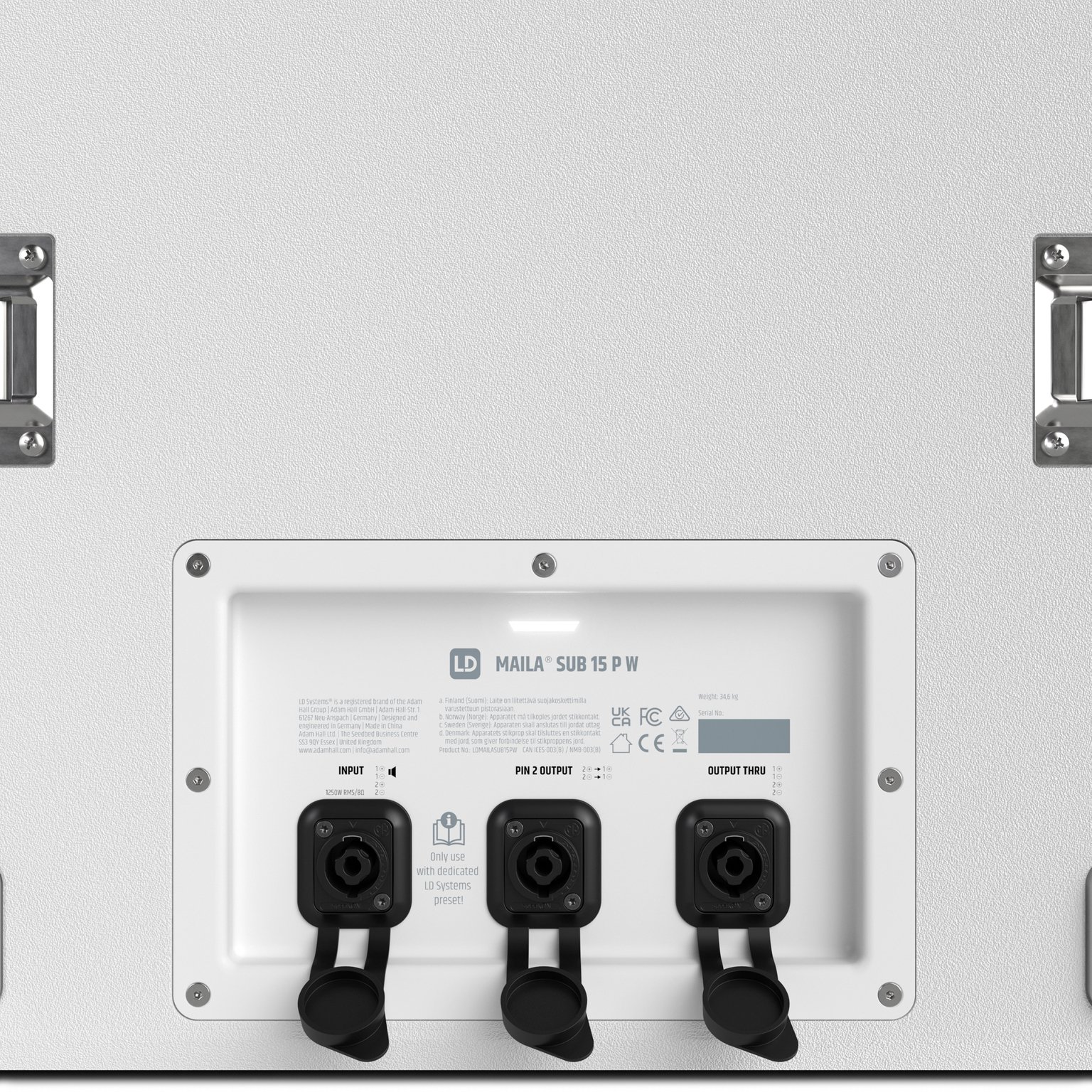

For clean cabling, the SpeakON input is integrated into the side handle recess for neat wiring even in cardioid set-ups.
Built in a rugged wooden cabinet with a durable touring-grade polyurea coating, MAILA SUB 15 P W is designed to withstand demanding day-to-day use.
For passive MAILA systems, ADA amplifiers in combination with ArmoníaPlus provide a structured, repeatable setup workflow. We have transferred the MAILA Quick Setup approach into ArmoníaPlus by creating dedicated manufacturer EQs (MEQ) and presets for 250+ MAILA configurations. Select your MAILA configuration and receive the key setup guidance you need – such as pick-up points and satellite curving. The selected configuration includes the required compensation for loudspeaker coupling and air loss over distance, providing a reliable starting point. ArmoníaPlus supports our Wink-LED identification for passive MAILA components and offers further tuning options, including live Smaart integration, plus valuable insight into system health and available headroom.
12-Channel Amplifier Rack with Patch Panel and Power Distribution
Technical Specifications
| Power handling (Peak) | 2500 W |
|---|---|
| Power handling (AES) | 1250 W |
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %) | 126 dB |
| Max. SPL peak (pink noise, halfspace/1 m, CF 4) | 132 dB |
| Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %) | 123 dB |
| Low frequency limit (-3 dB, rel. Avg.) | 35 Hz |
| Low frequency limit (-6 dB, rel. Avg.) | 33 Hz |
| Low frequency limit (-10 dB, rel. Avg.) | 30 Hz |
| Impedance | 8 Ω |
| Number of inputs | 1 |
| Input connector types | speakON® 4-pole female socket |
| Number of outputs | 3 |
| Output connector types | speakON® 4-pole female socket |
| Colour | White |
Item No.: LDMAILASUB15PW
