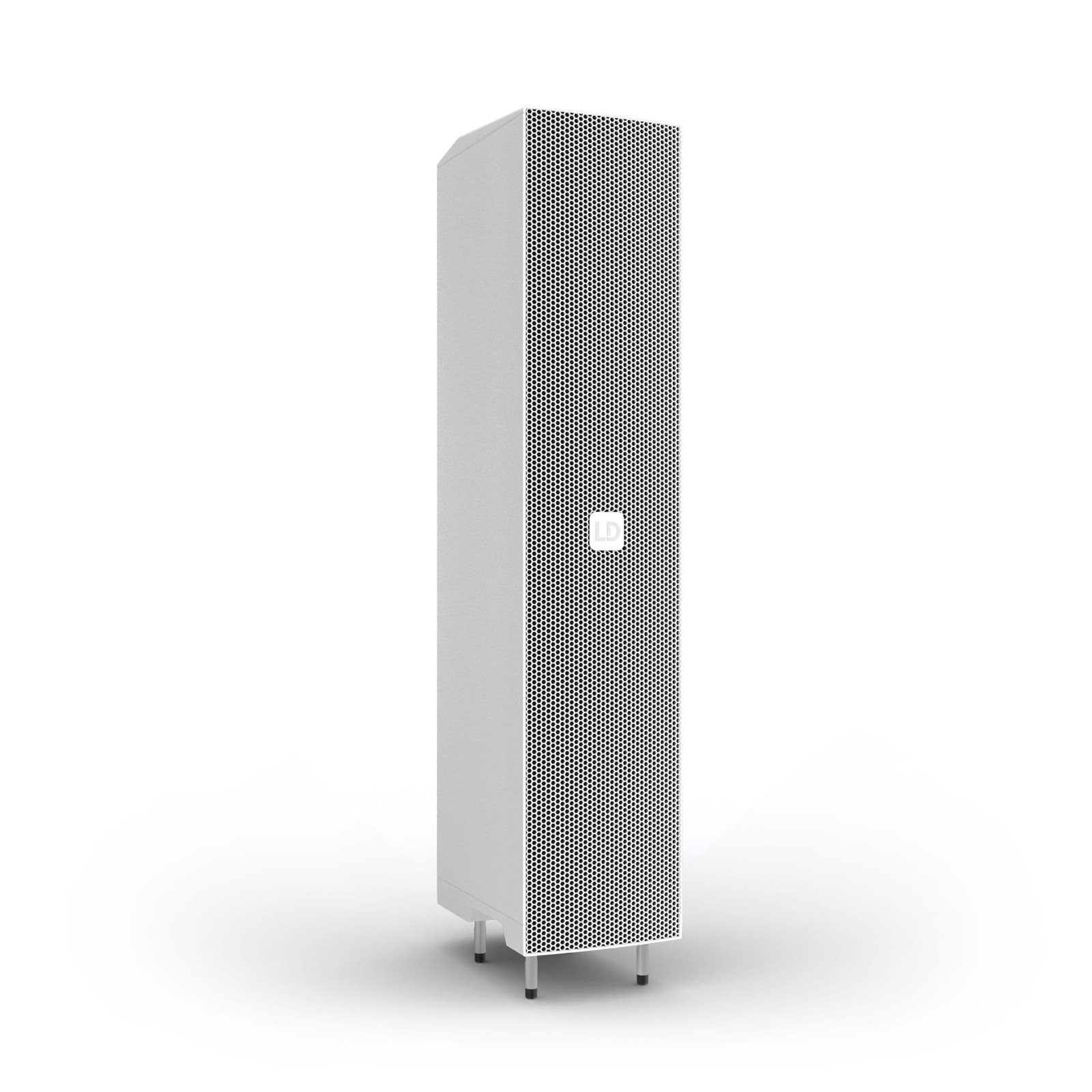

LD Systems MAILA COL P W

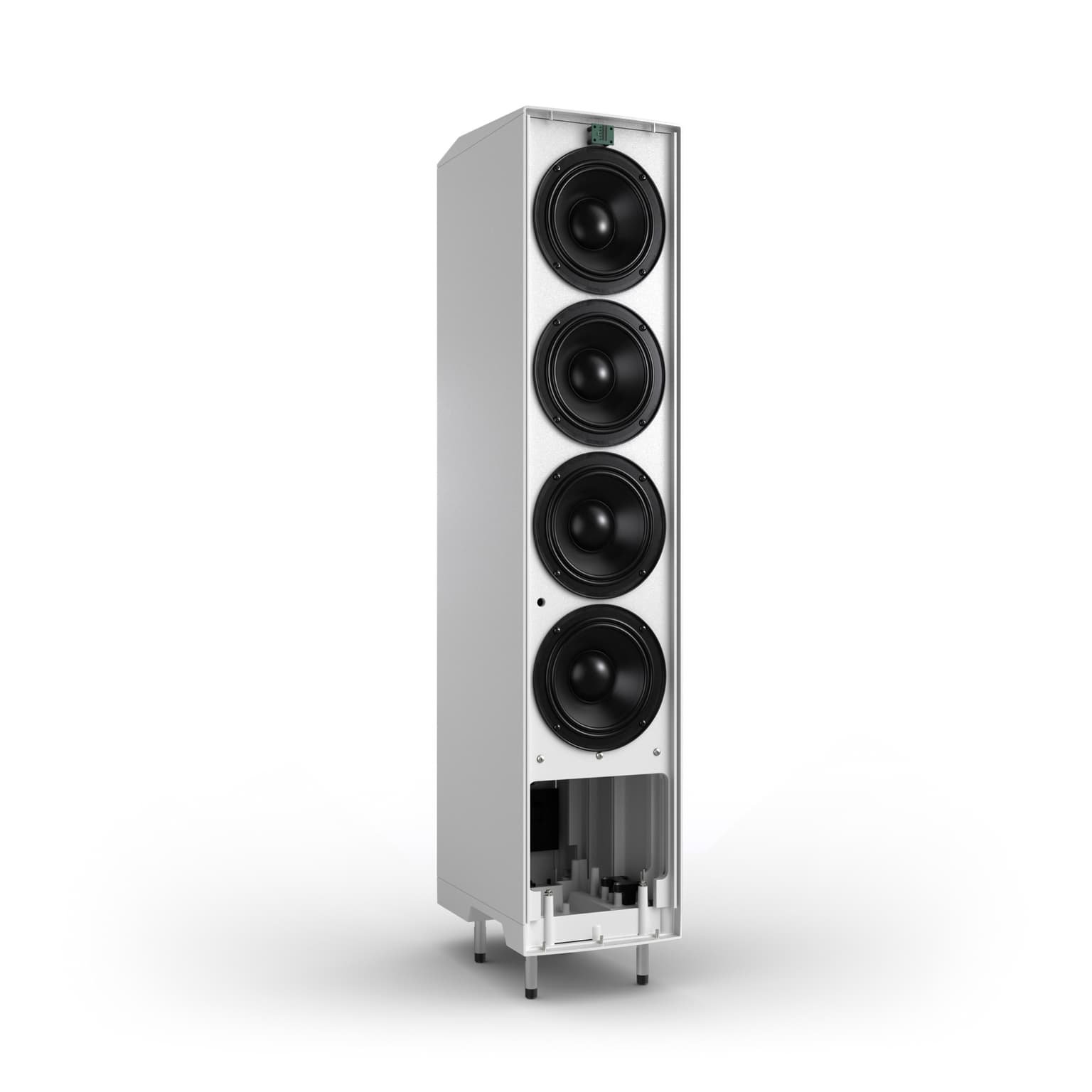

The MAILA COL P W is the passive full-range column module with four high-performance 6.5″ woofers. It reinforces the crucial low-mid band, adding headroom and authority where speech intelligibility, punch, and consistent throw matter most.

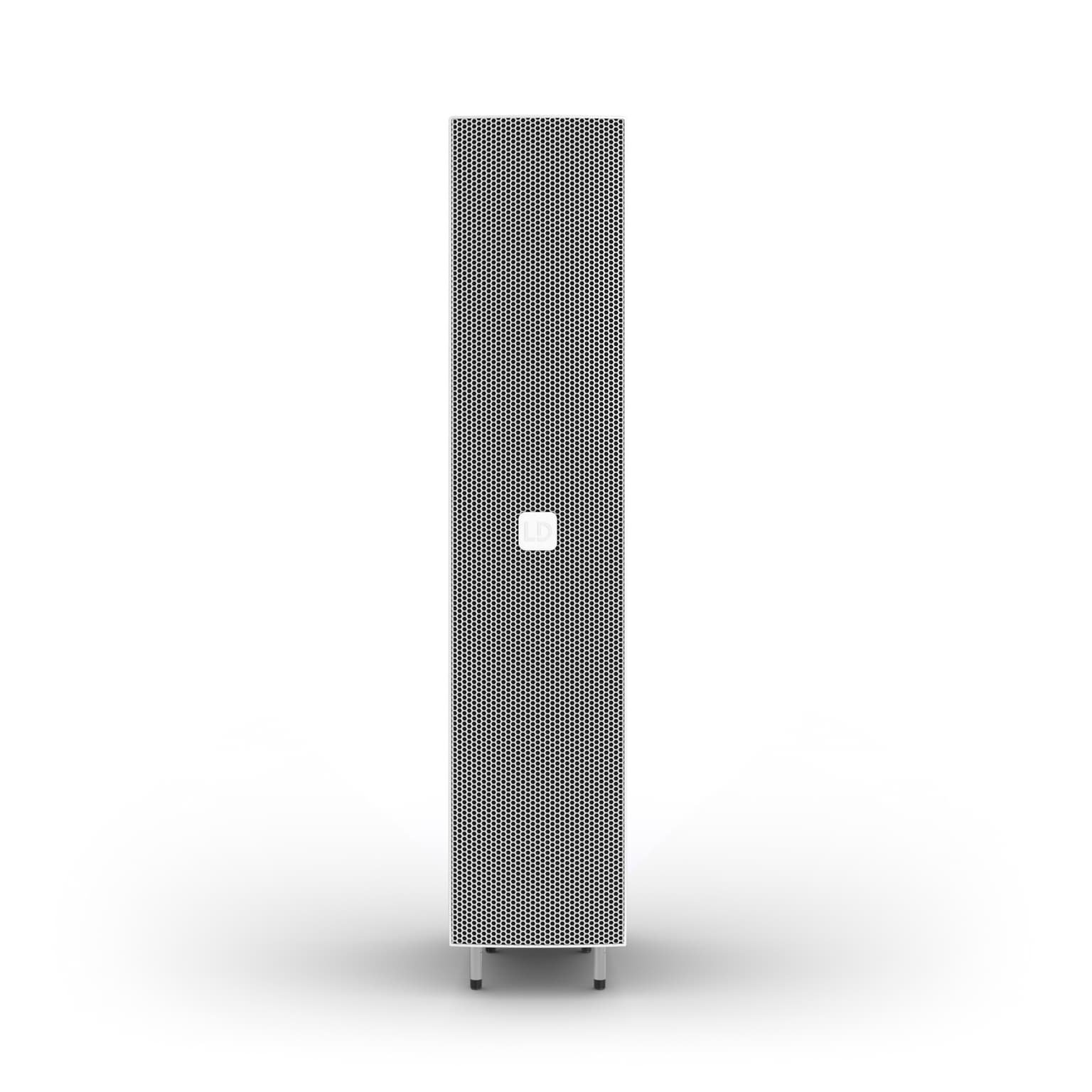

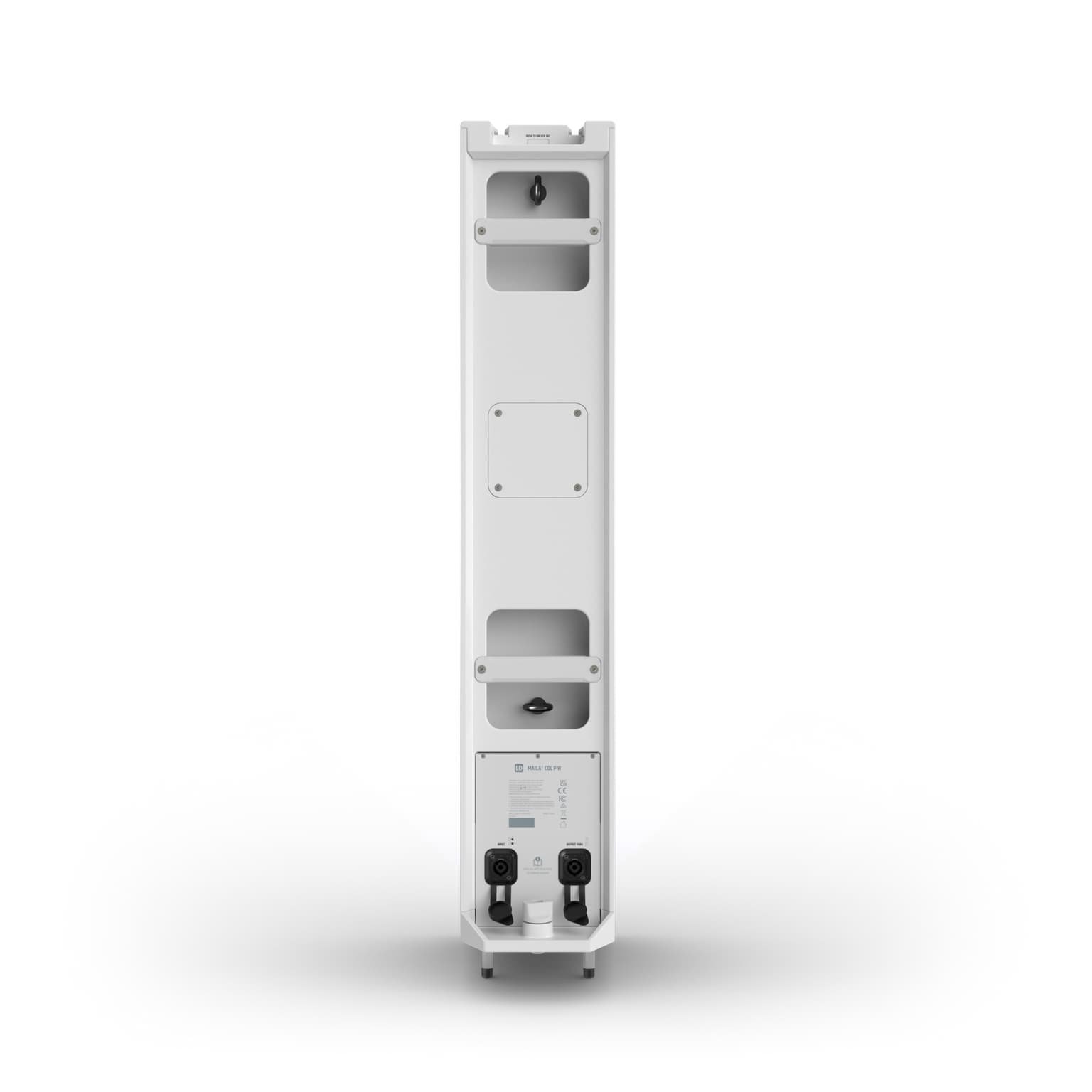

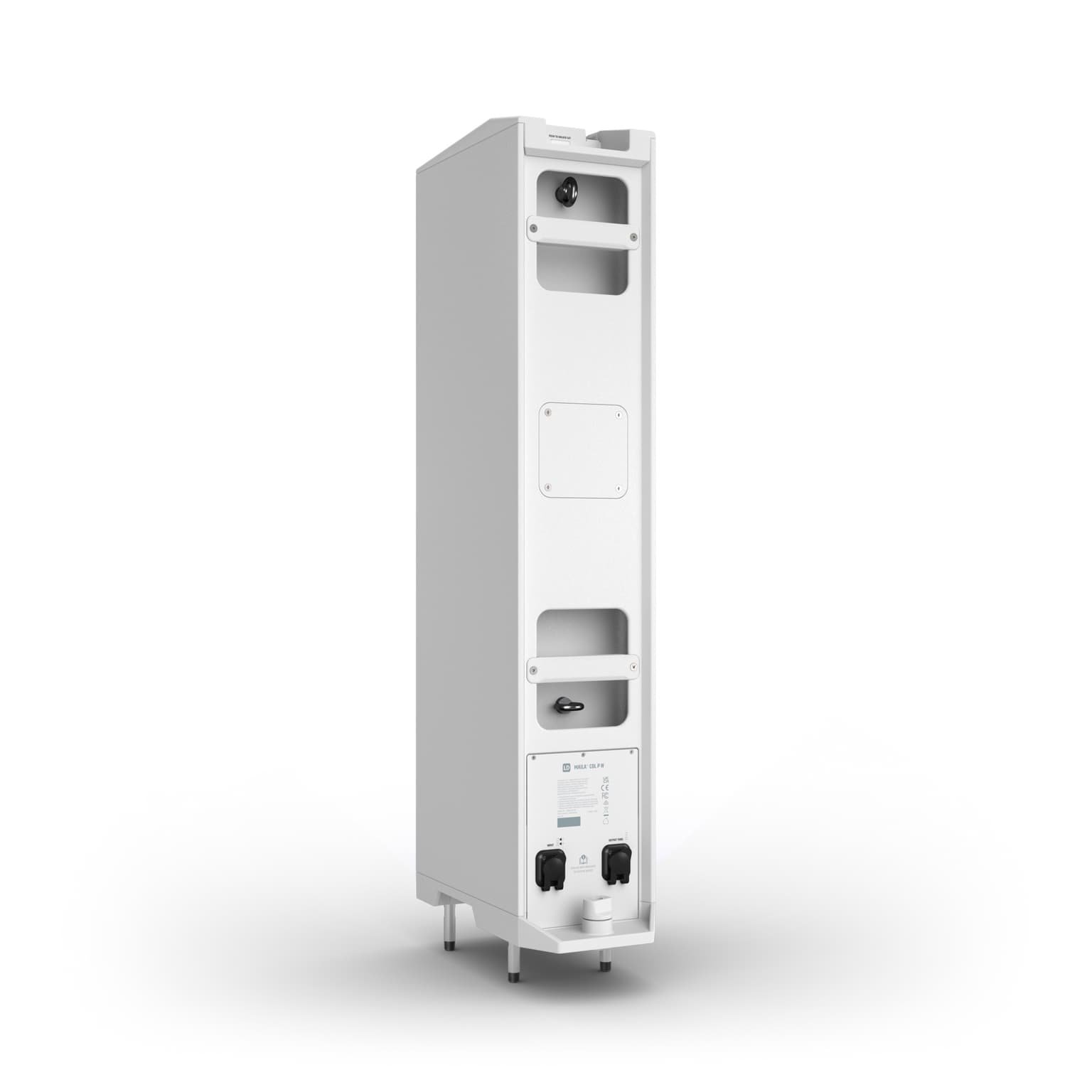

MAILA COL P W – 4 × 6.5" Passive Column Module, white.
The MAILA COL P W is the passive full-range column module with four high-performance 6.5" woofers. It reinforces the crucial low-mid band, adding headroom and authority where speech intelligibility, punch, and consistent throw matter most.

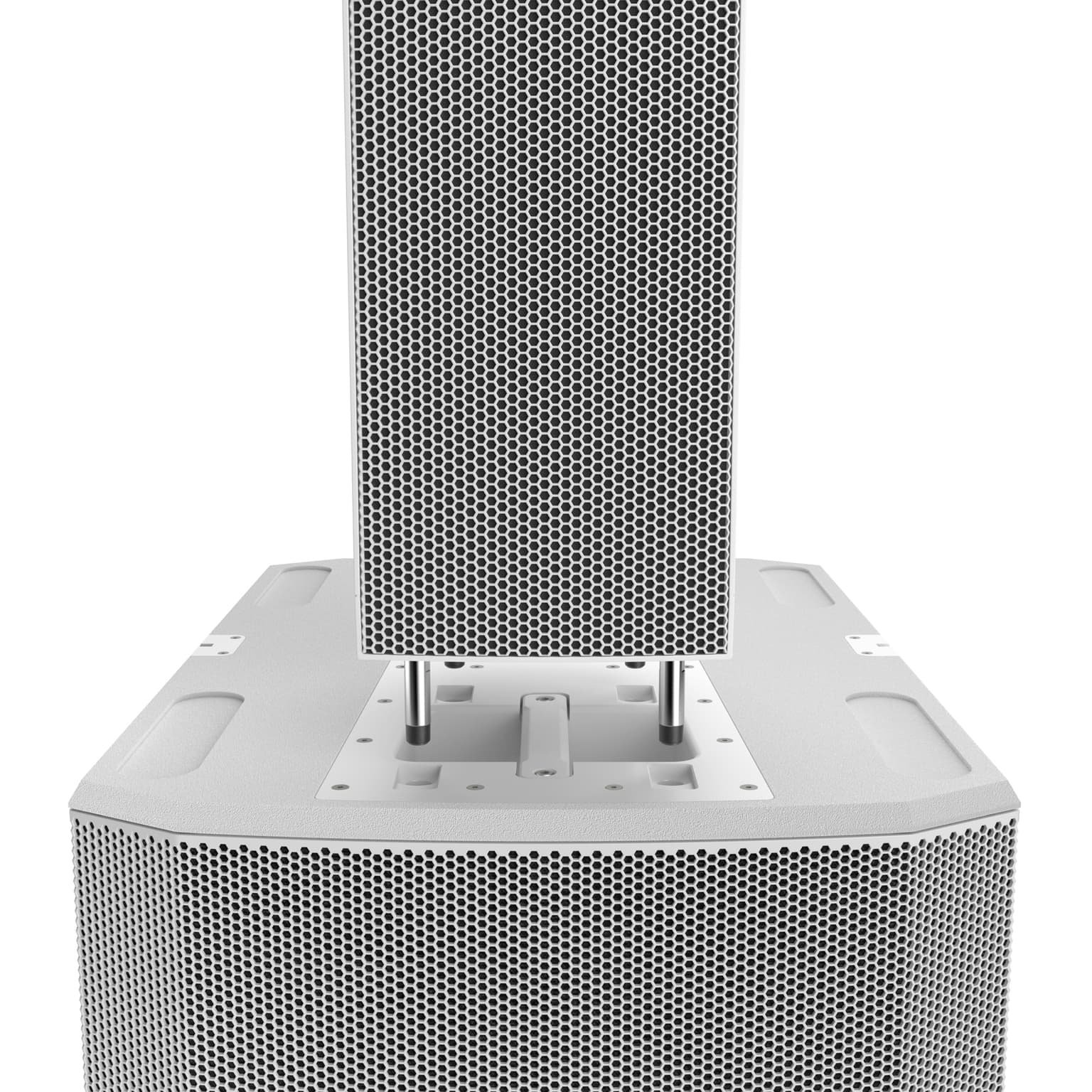

In ground-stacked setups, the column module enables significantly taller system builds for improved projection and more even coverage into the far field.

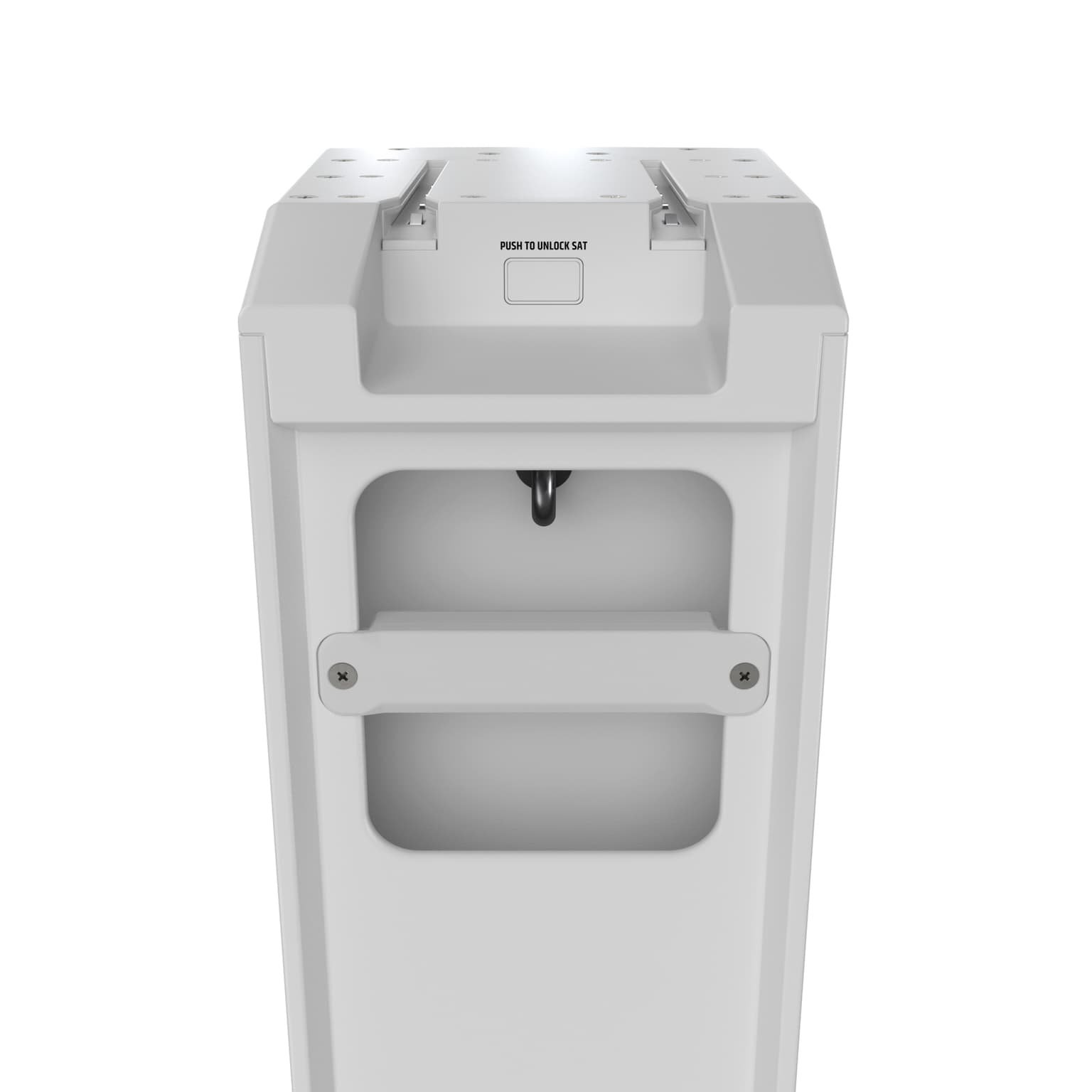

Flown, MAILA COL P W forms a slim, visually discreet array base that integrates cleanly with up to eight MAILA SAT. Mounted directly via SmartLink+®, it enables a fast, tidy build without patch cables between modules – supporting clean, scalable system layouts from compact event coverage through to larger venues and fixed installations.
For passive MAILA systems, ADA amplifiers in combination with ArmoníaPlus provide a structured, repeatable setup workflow. We have transferred the MAILA Quick Setup approach into ArmoníaPlus by creating dedicated manufacturer EQs (MEQ) and presets for 250+ MAILA configurations. Select your MAILA configuration and receive the key setup guidance you need – such as pick-up points and satellite curving. The selected configuration includes the required compensation for loudspeaker coupling and air loss over distance, providing a reliable starting point. ArmoníaPlus supports our Wink-LED identification for passive MAILA components and offers further tuning options, including live Smaart integration, plus valuable insight into system health and available headroom.
12-Channel Amplifier Rack with Patch Panel and Power Distribution
4-Channel Amplifier Rack with Patch Panel
Technical Specifications
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 2000 W |
| Power handling (AES) | 1000 W |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 125.4 dB |
| Max. SPL peak (pink noise, fullspace/1 m, CF 4) | 130 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 122 dB |
| Frequency response (-6 dB, rel. Avg) | 105 Hz – 500 Hz |
| Impedance | 6 Ω |
| Number of inputs | 1 |

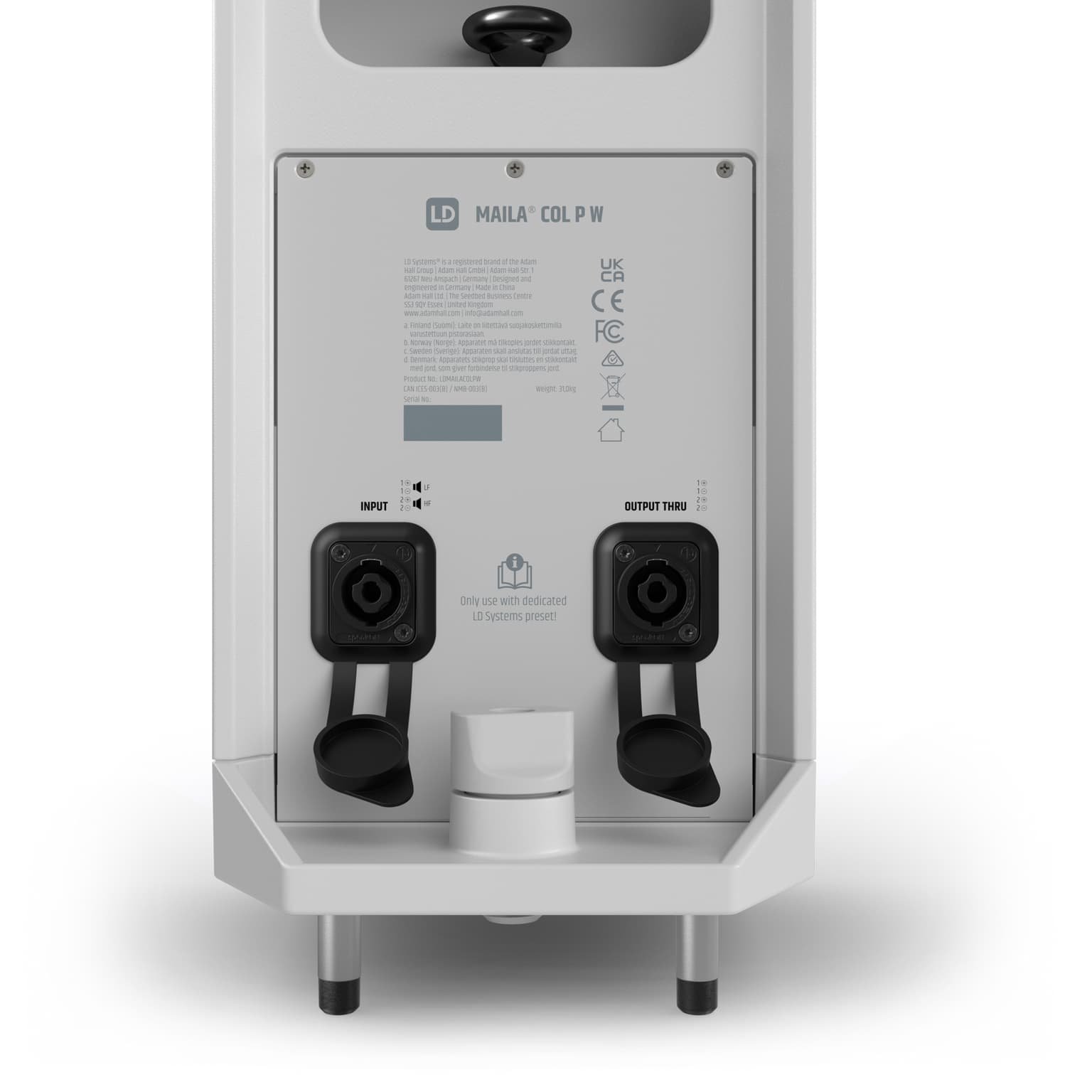

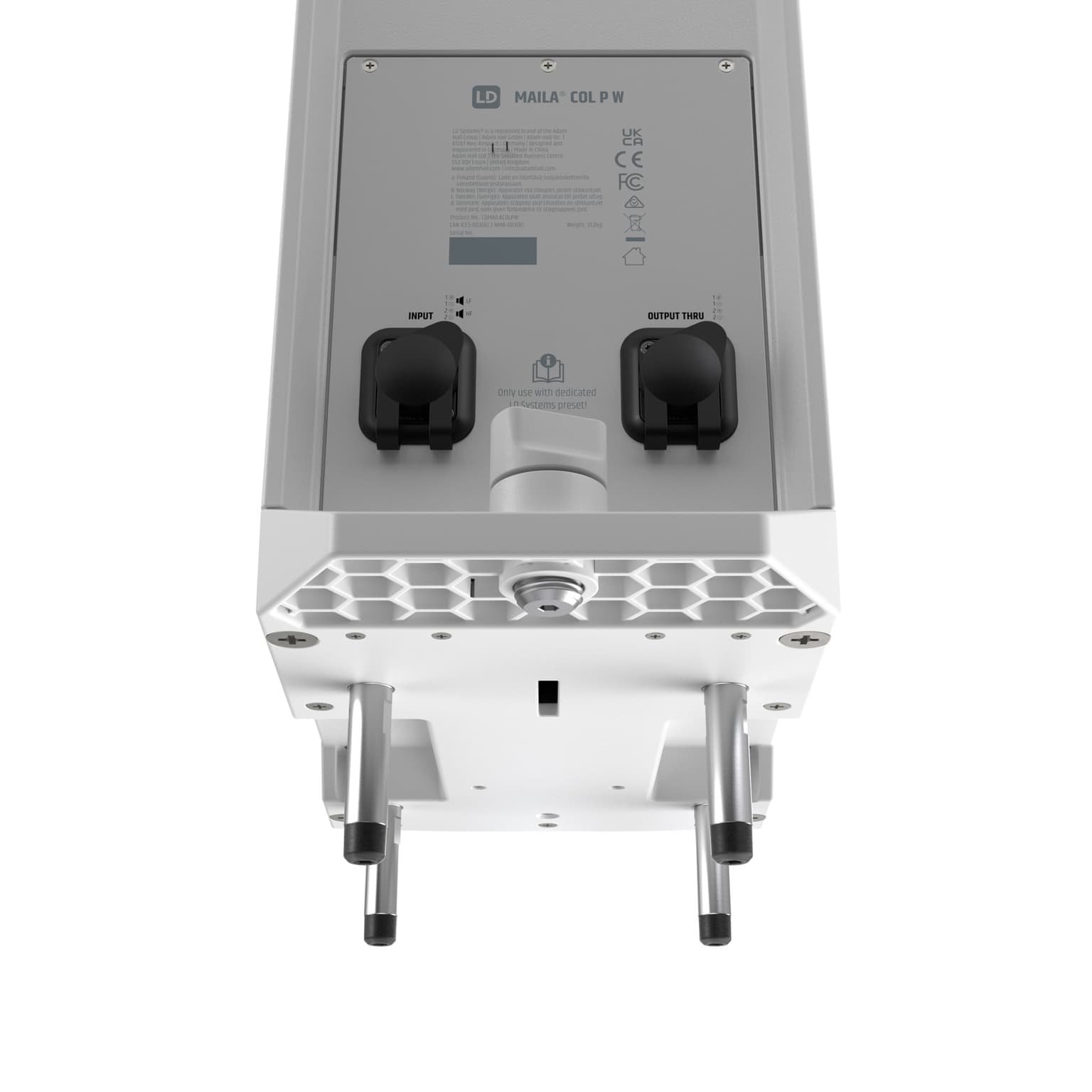

| Input connector types | speakON® 4-pole female socket |
| Number of outputs | 1 |
| Output connector types | speakON® 4-pole female socket, SmartLink+® |
| Colour | White |
Item No.: LDMAILACOLPW
| Colour | White |
|---|
