ICOA® PRO 15 A – 15" Powered Coaxial High-Performance PA Loudspeaker with Bluetooth and App.
The ICOA PRO 15 A combines the sonic precision of a true coaxial system with the force of a powerful 15ʺ loudspeaker. Its professional full-range performance and robust design make it exceptionally versatile and ideal for a wide range of applications, from club gigs to live events and permanent installations.
The coaxial design combines a specially manufactured 15ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point source. The common motor design used also ensures the audio signal's improved coherence and time accuracy. The result is a particularly natural and detailed playback.
The rotatable, BEM-optimised horn ensures precise dispersion characteristics and simultaneously provides horn loading for the woofer and tweeter. This double horn loading allows the sound waves to be precisely focused deep into the mid-range (approx. 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.
Thanks to its flow-optimised bass reflex ports, the ICOA PRO 12 A delivers a solid low end up to 53 Hz and thus an impressive full-range experience. The powerful Class D amplifier delivers up to 1500 W RMS (3000 W peak) and 135 dB max. SPL, ensuring sufficient headroom when powerful, distortion-free sound is required.
The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation with maximum clarity and punch – even at the limits.

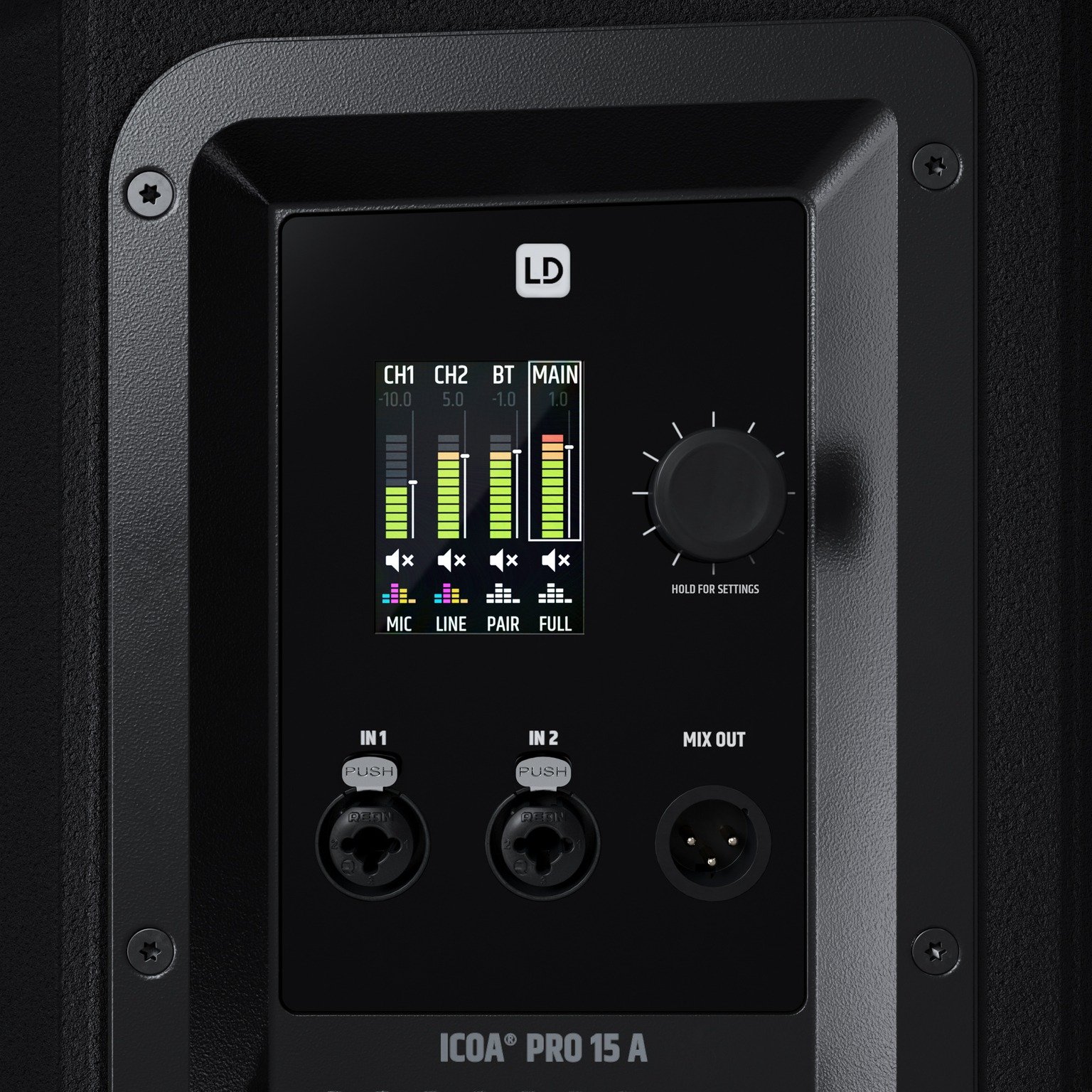

Two line/mic input channels and an XLR mix tap enable various signal sources to be connected and forwarded.
Technical Specifications
| Type (active/passive) | Active |
|---|---|
| Peak output power | 3000 W |
| RMS output power | 1500 W |
| Amp class | Class D |
| SysLink® | 0 |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 130 dB |
| Max. SPL peak (pink noise, fullspace/1 m, CF 4) | 135 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 120 dB |
| Frequency response (-10 dB, rel. Avg) | 50 Hz – 20000 Hz |
| Speaker system | 2-way coaxial system (Common Motor Design) |
| Crossover frequency | 800 Hz |
| Dispersion | Hor.: 90° / Vert.: 50° |

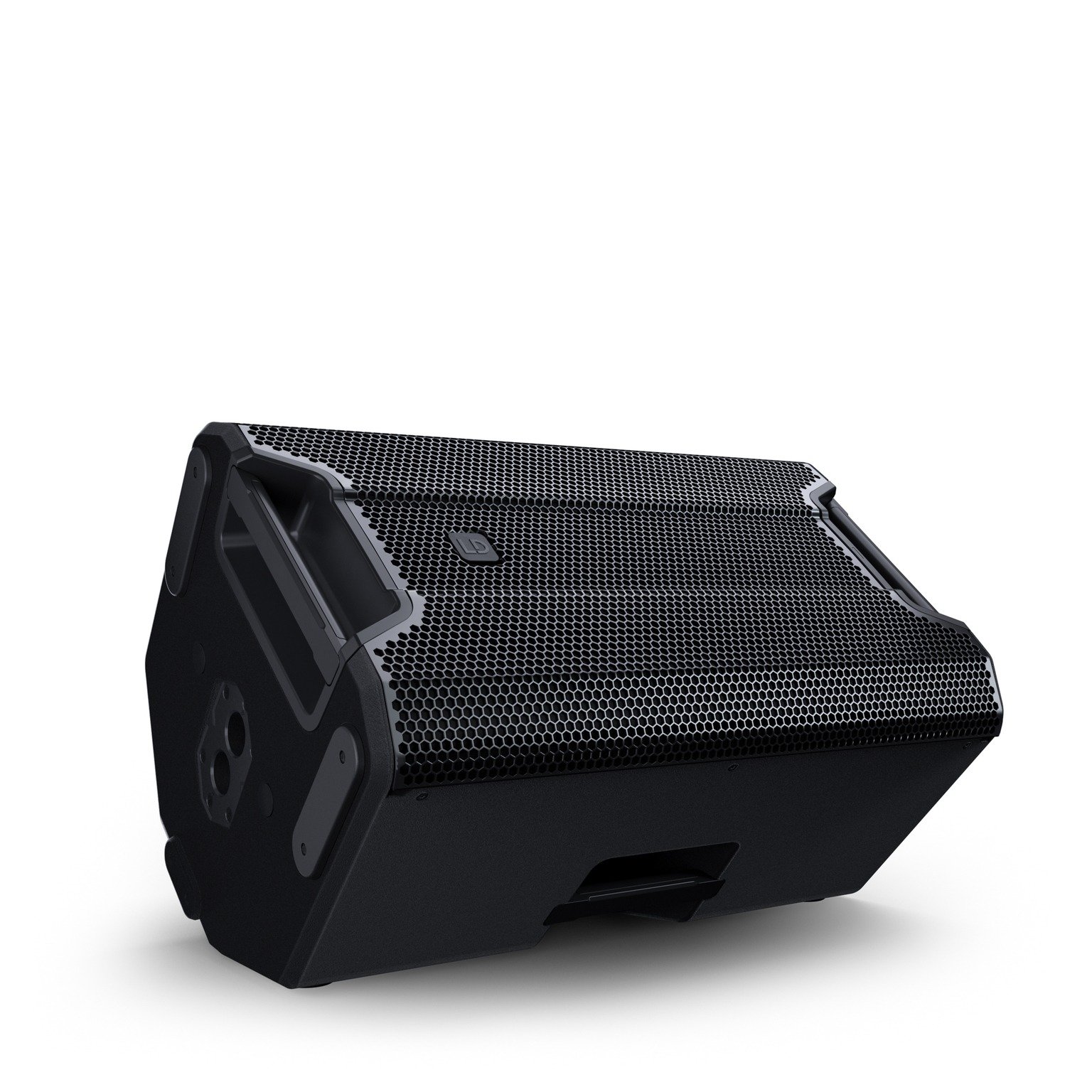

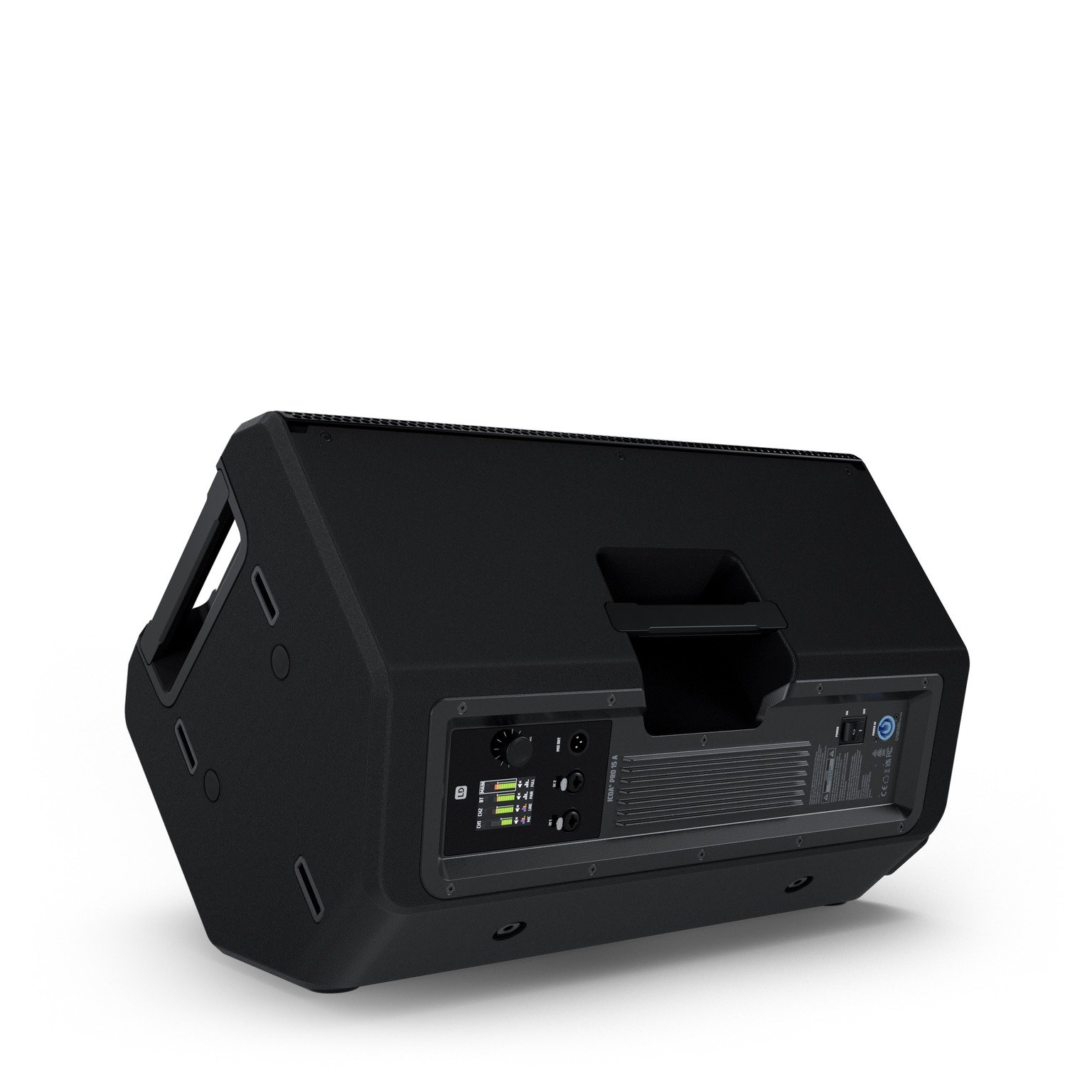

| Monitor angle | 50 ° |
| Protection features | Direct current, Short circuit, Overheating, Multiband Limiter |
| Colour | Black |
Item No.: LDICOA15APRO
