LD Systems DQOR® SUB 8 D
Part of the DQOR® series, the DQOR® SUB 8 D is a powered installation indoor/outdoor subwoofer with an 8″ woofer and a 10″ passive radiator. With a built in Dante audio connection, it easily connects to any networked audio system and is AES67 compliant for compatibility with thousands of audio…
DQOR® SUB 8 D – Powered Dante Indoor/Outdoor Installation Subwoofer, black.

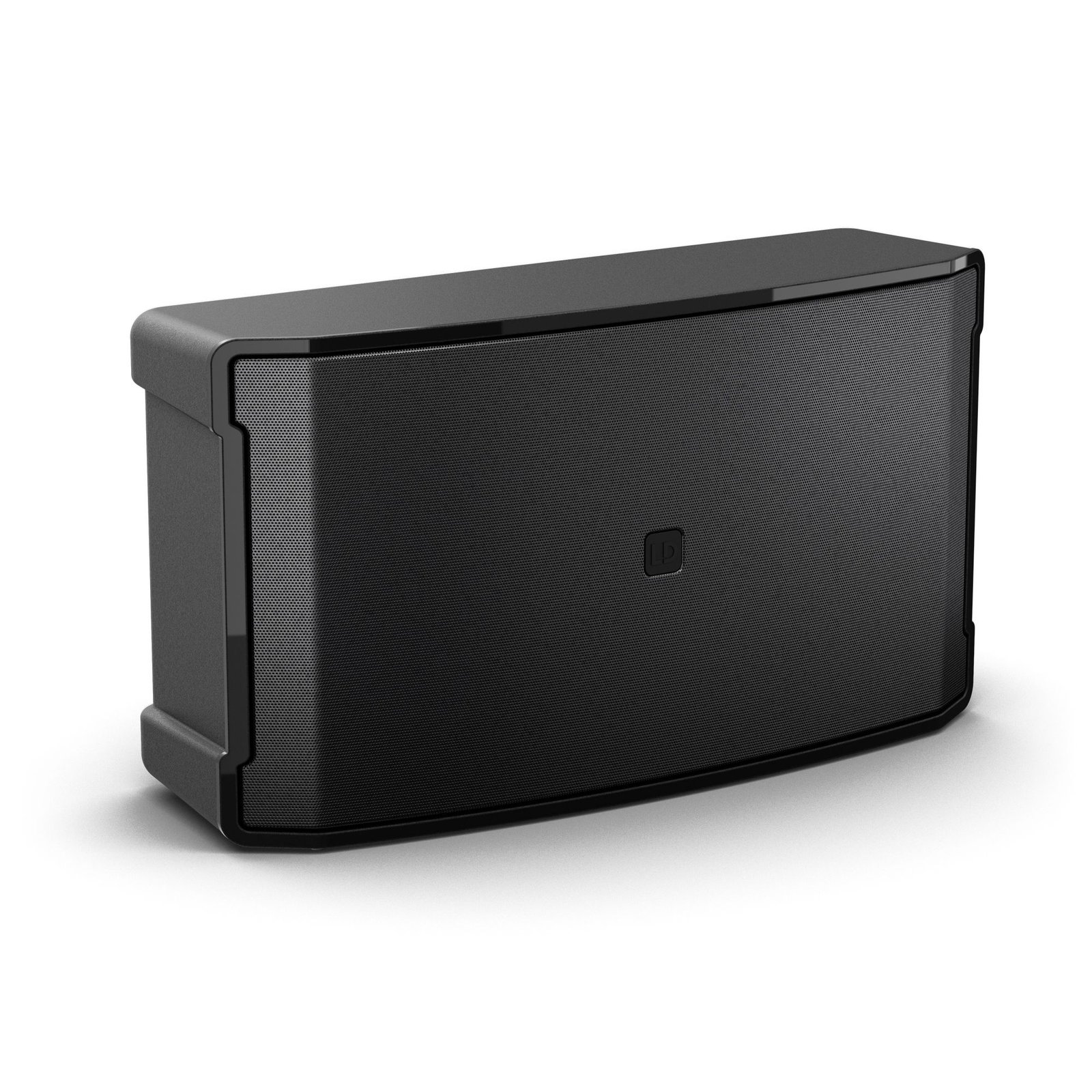

Part of the DQOR® series, the DQOR® SUB 8 D is a powered installation indoor/outdoor subwoofer with an 8" woofer and a 10" passive radiator. With a built in Dante audio connection, it easily connects to any networked audio system and is AES67 compliant for compatibility with thousands of audio devices.
Designed for high performance in a compact form factor, it delivers powerful bass audio with no need for separate amplifier racks.

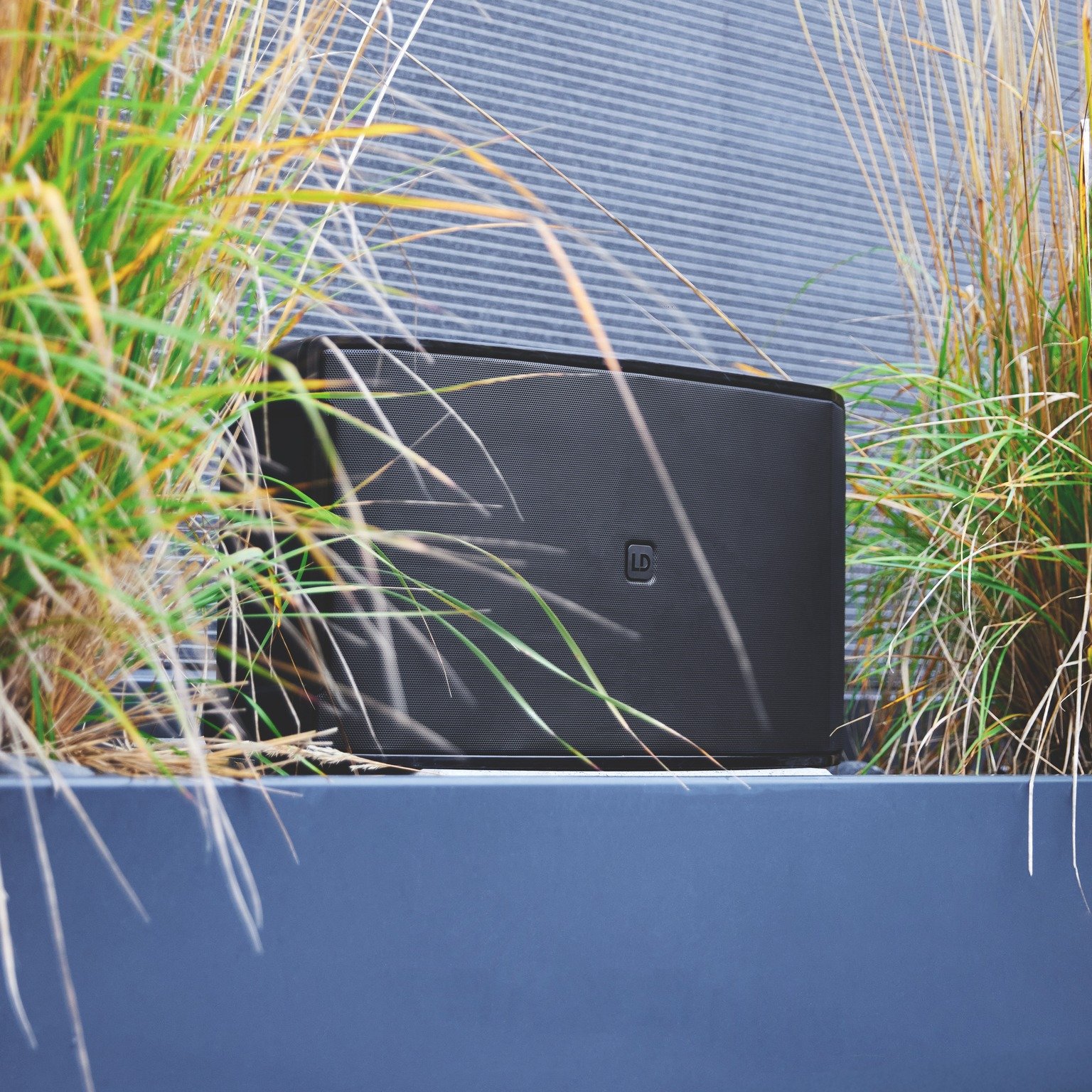

Uniquely the DQOR® SUB 8 D is the only outdoor rated Dante sub bass loudspeaker available.

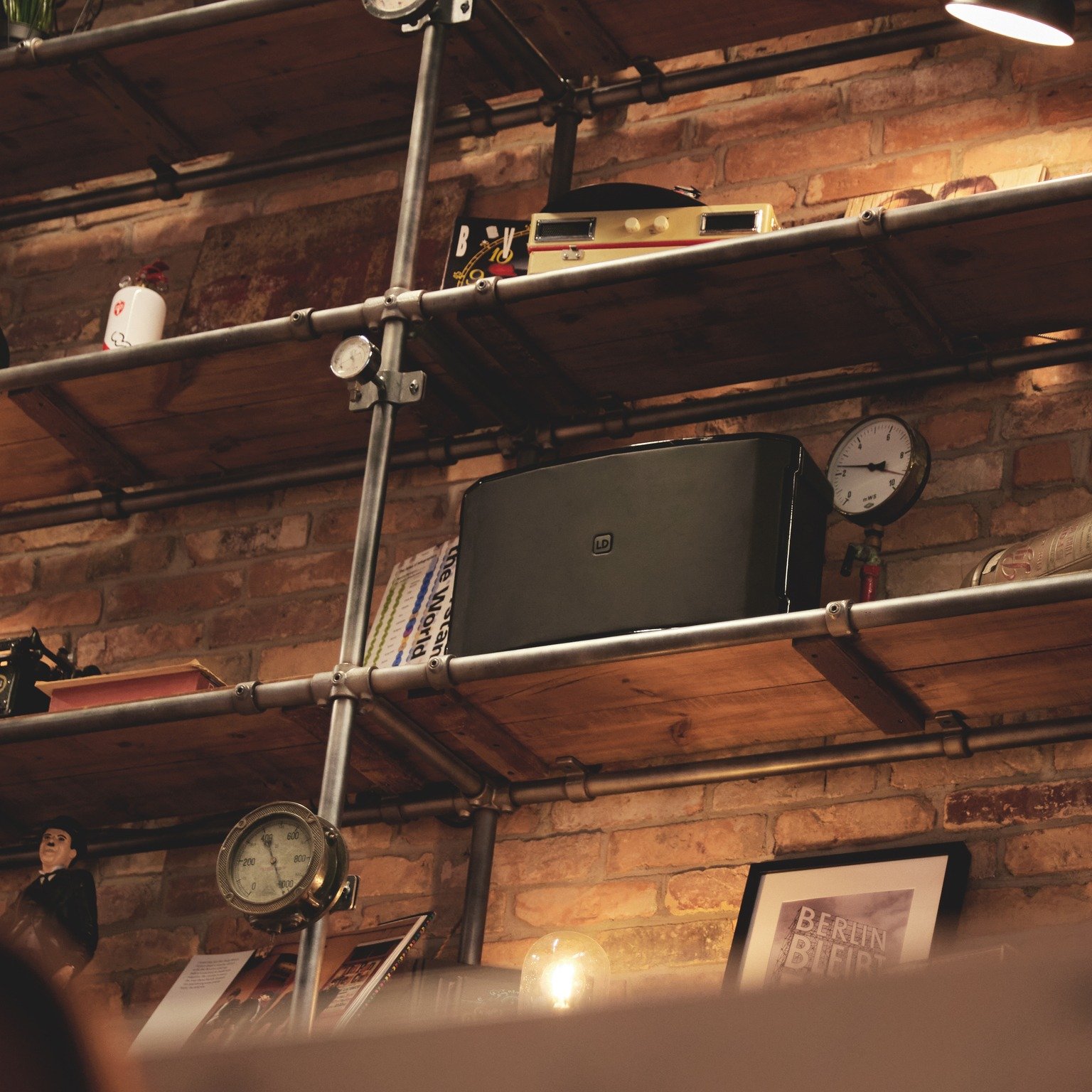

The clean and low-profile design ensures the DQOR® SUB 8 D is a sleek addition to any room, combining aesthetics with powerful audio performance. Rated at 190 W RMS and max power of 230 W, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.
The DQOR® SUB 8 D has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup.

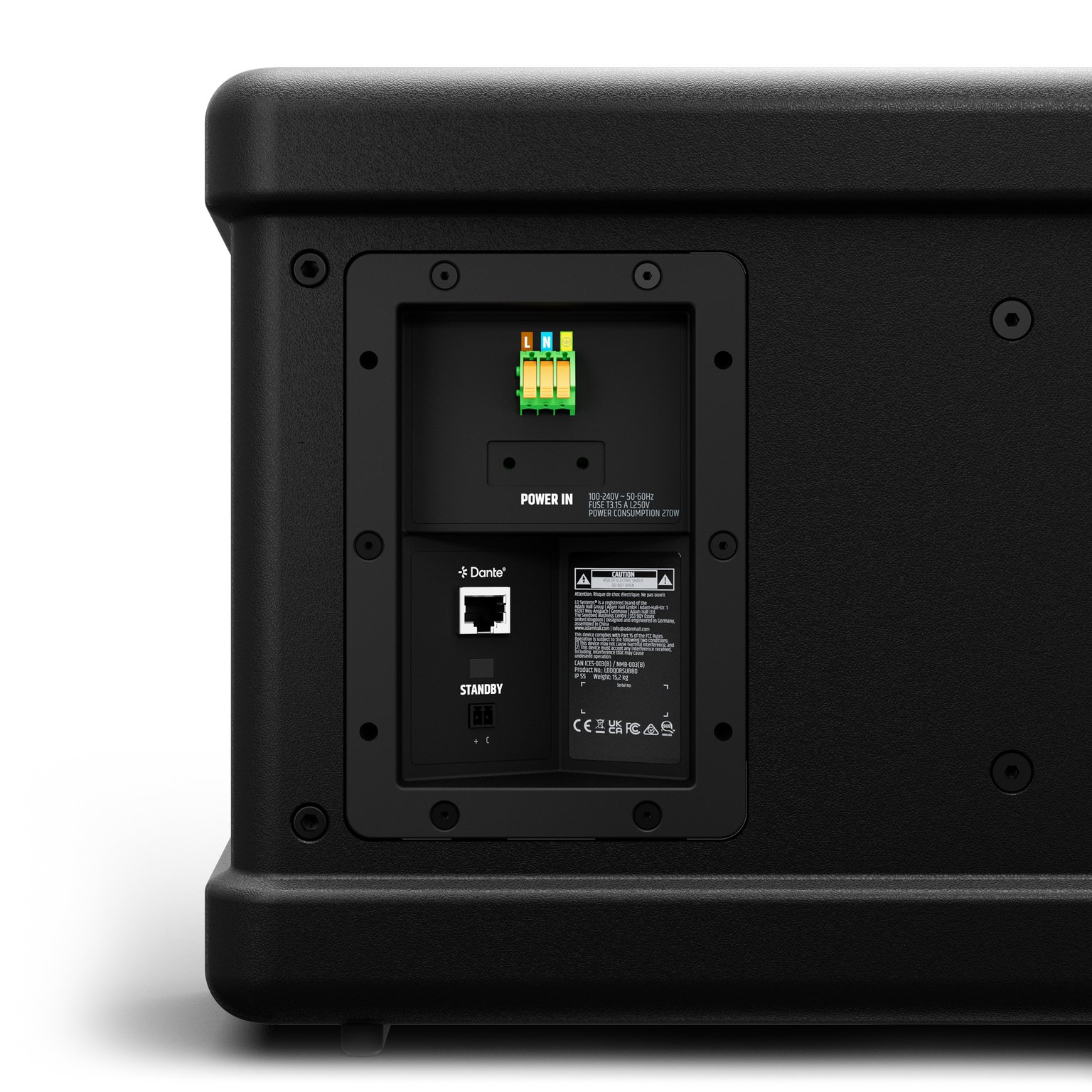

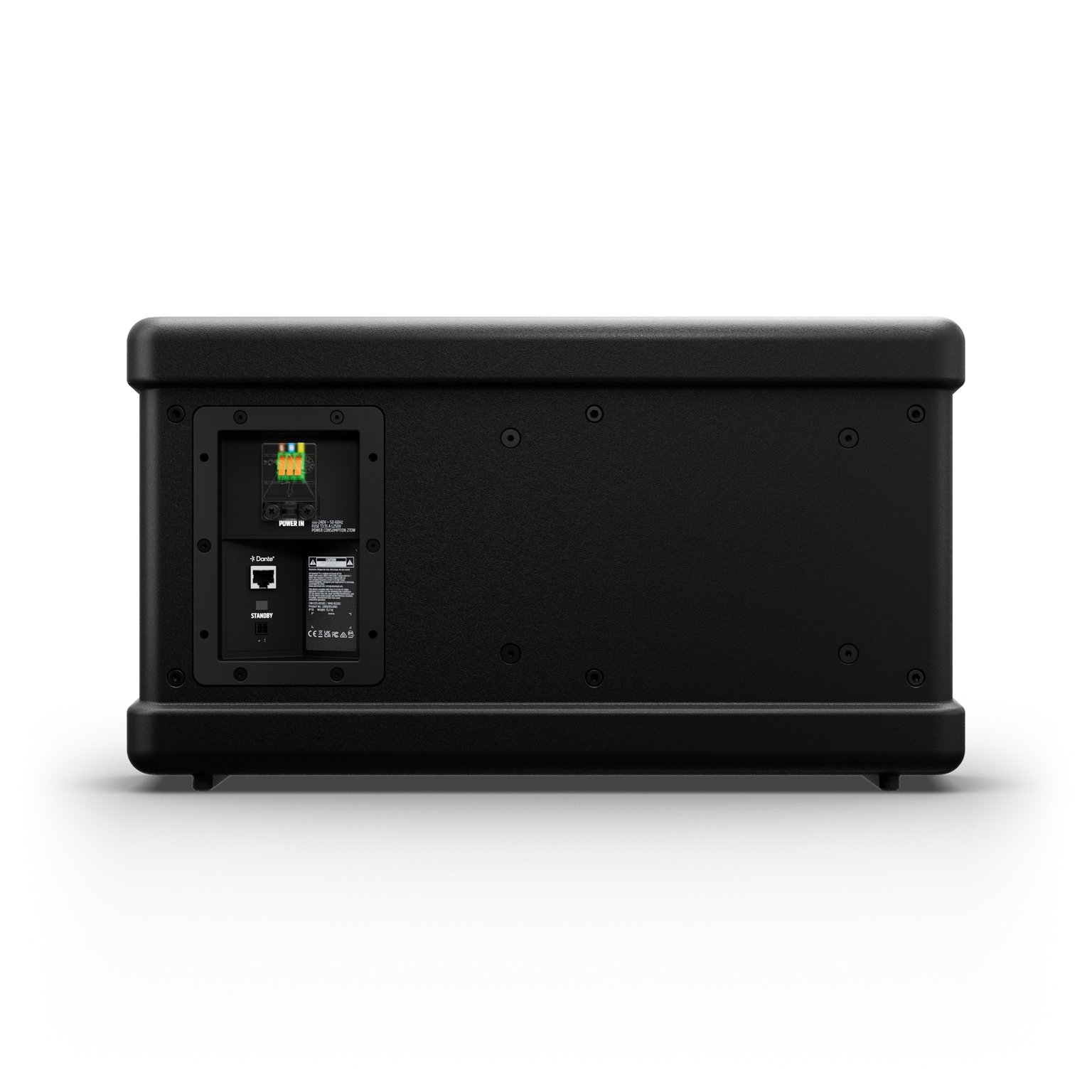

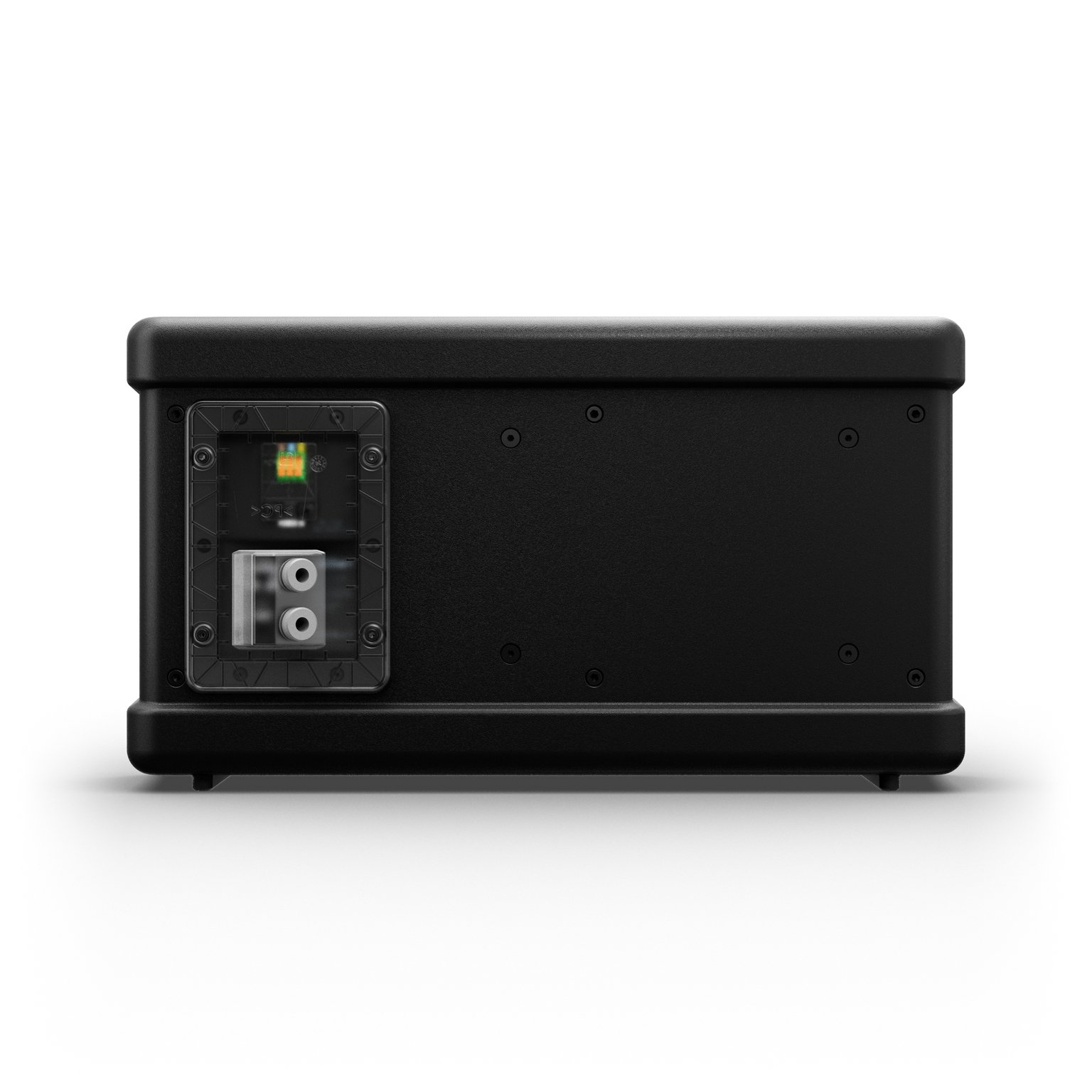

AC inputs are connected with a 3-pole phoenix contact terminal block with lever push-in connector for reliable and safe connection of the power cables. Terminal block connectors allow for remote standby control.
Technical Specifications
| Directivity | Omnidirectional |
|---|---|
| Peak output power | 230 W |
| RMS output power | 190 W |
| Amp class | Class D |
| SysLink® | 0 |
| SPL (1 W/1 m) | 86 dB |
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %) | 110 dB |
| Max. SPL peak (pink noise, halfspace/1 m, CF 4) | 119 dB |
| Low frequency limit (-3 dB, rel. Avg.) | 43 Hz |
| Low frequency limit (-10 dB, rel. Avg.) | 37 Hz |
| Crossover frequency | 110 Hz |
| Protection features | Direct current, Overheating, Overvoltage, Undervoltage, Short circuit |
| Colour | Black |
| RAL code | RAL 9005 |
Item No.: LDDQORSUB8D
| Colour | Black |
|---|
