LD Systems DQOR® SUB 8 A
Part of the DQOR® series, the DQOR® SUB 8 A is a powered indoor installation subwoofer with an 8″ woofer and a 10″ passive radiator. It features two 110 W RMS powered outputs, specifically designed for connecting external full-range loudspeakers. These outputs are fine-tuned by DSP presets to…
DQOR® SUB 8 A – Powered Installation Subwoofer with integrated satellite amplification, black.

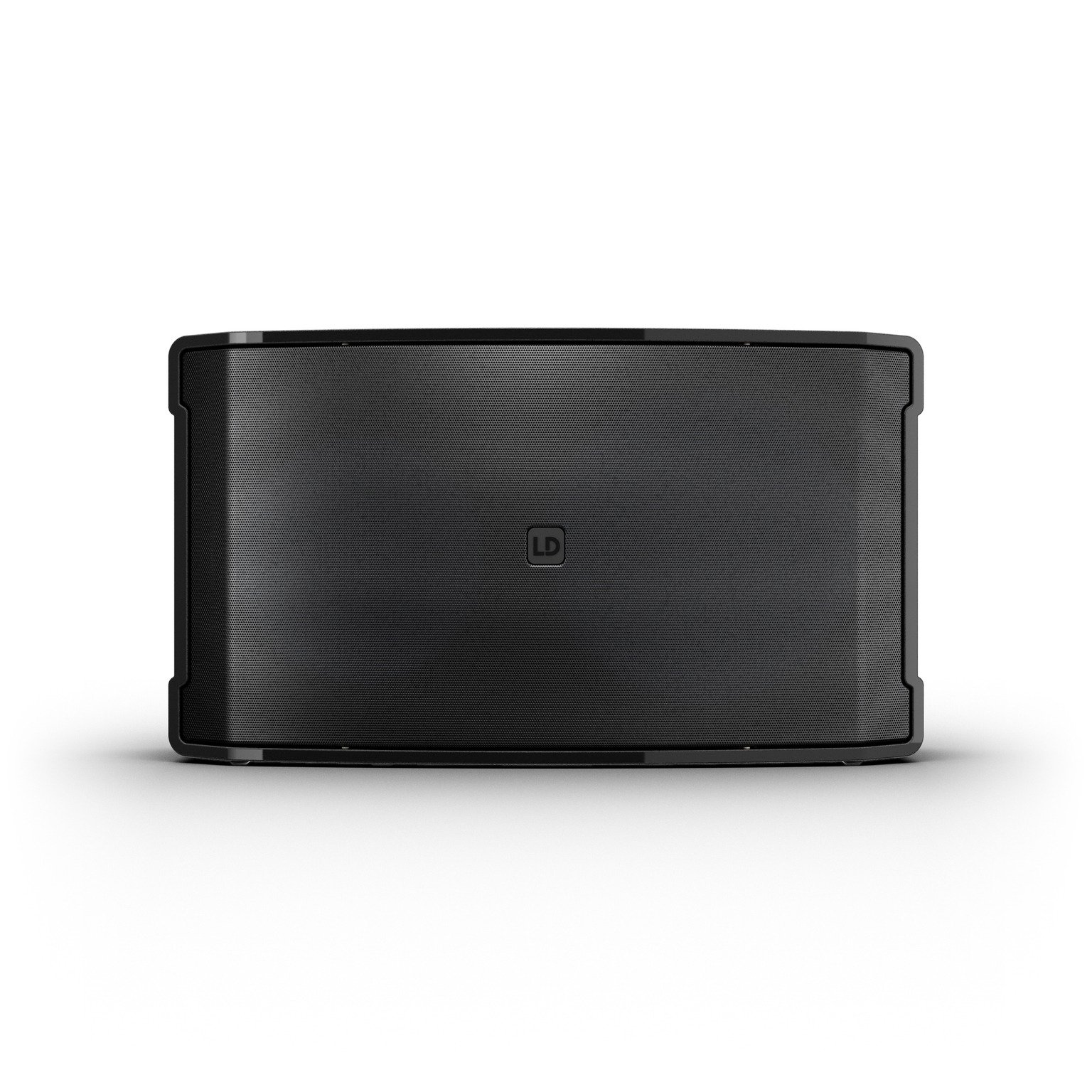

Part of the DQOR® series, the DQOR® SUB 8 A is a powered indoor installation subwoofer with an 8" woofer and a 10" passive radiator. It features two 110 W RMS powered outputs, specifically designed for connecting external full-range loudspeakers. These outputs are fine-tuned by DSP presets to ensure an optimal audio pairing with DQOR® series loudspeakers or any other loudspeaker.
Designed for high performance in a compact form factor, it enables a powerful 2.1 audio system with no need for separate amplifier racks.
The clean and low-profile design ensures the DQOR® SUB 8 A is a sleek addition to any room, combining aesthetics with powerful audio performance. Rated at 250 W RMS, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.
The DQOR® SUB 8 A has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup.

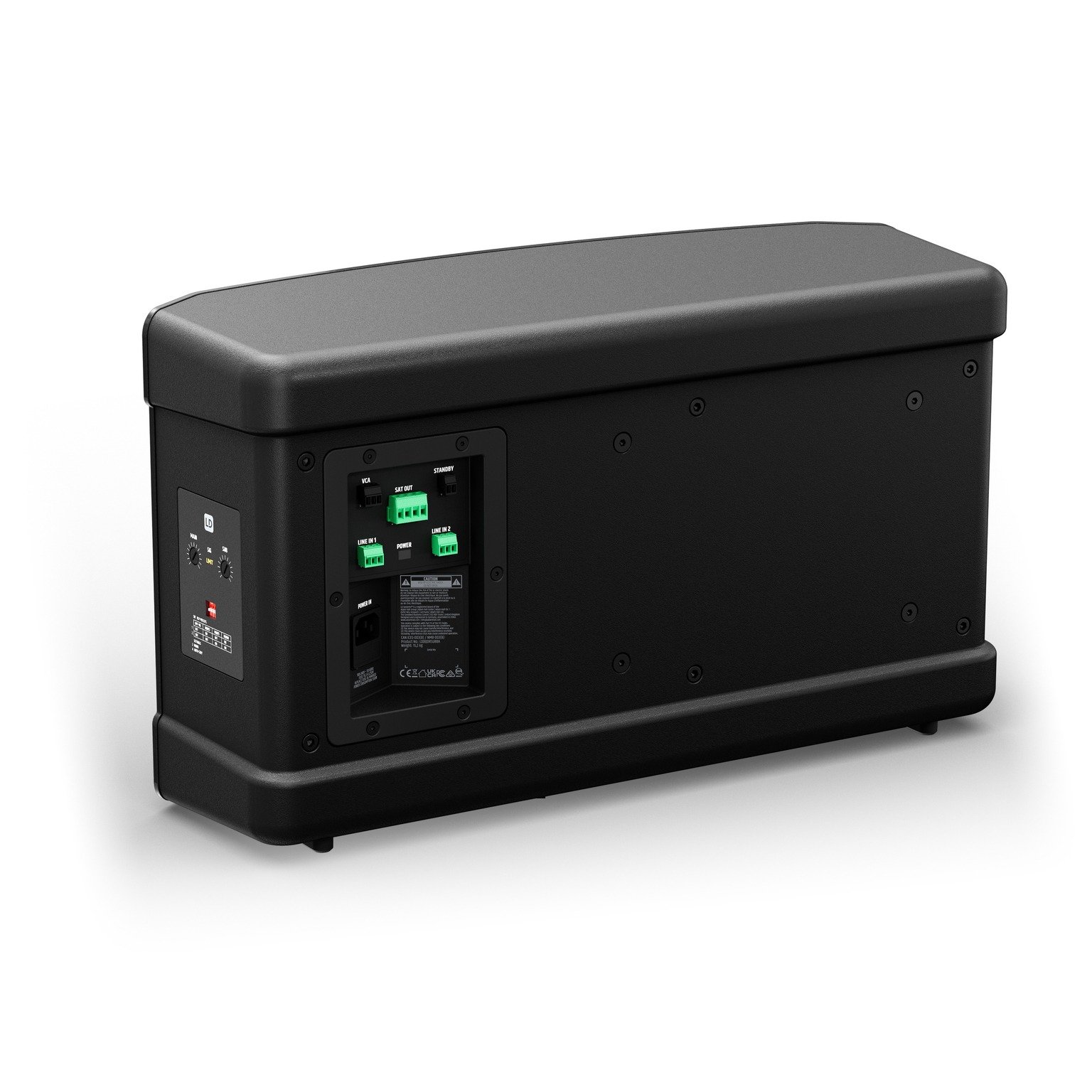

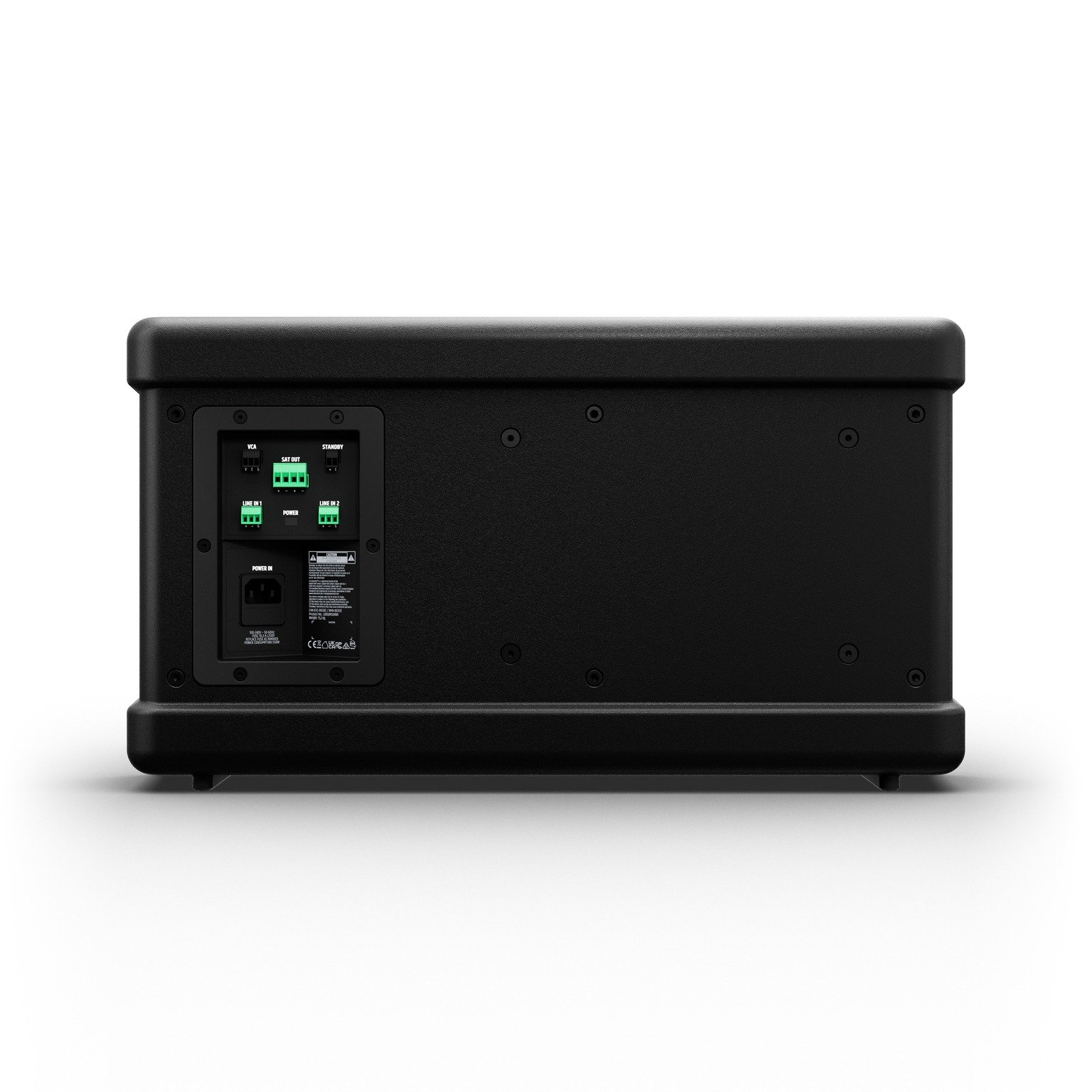

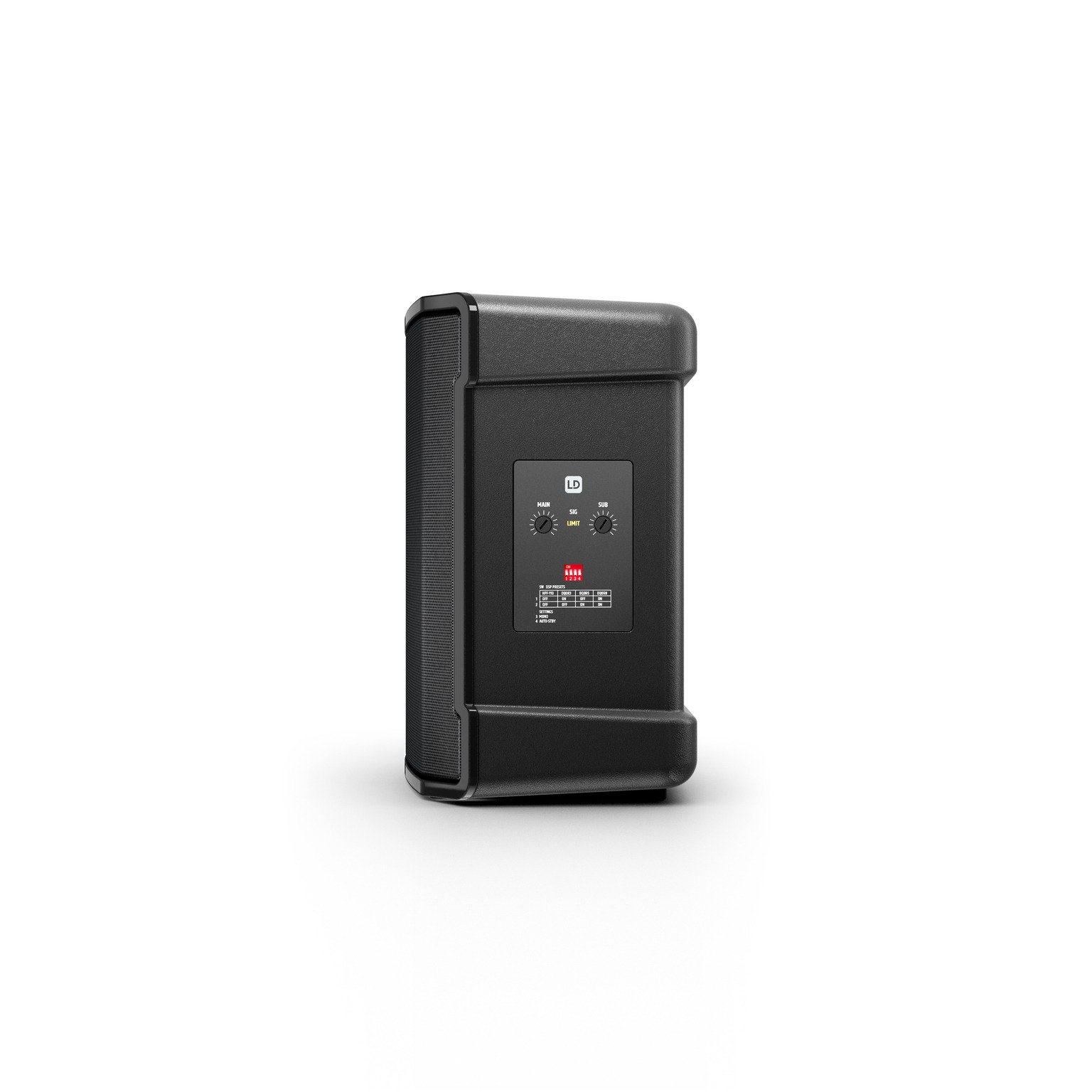

Four terminal block connectors allow for balanced stereo input, VCA volume control and remote standby control. Dip switches allow for stereo/mono mode, auto standby mode and DSP preset selection.
The indoor installation subwoofer can be used in a wide variety of applications including hospitality, retail, entertainment or corporate settings.
Technical Specifications
| Directivity | Omnidirectional |
|---|---|
| RMS output power | 250 W |
| Amp class | Class D |
| SysLink® | 0 |
| SPL (1 W/1 m) | 86 dB |
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %) | 110 dB |
| Max. SPL peak (pink noise, halfspace/1 m, CF 4) | 119 dB |
| Low frequency limit (-3 dB, rel. Avg.) | 43 Hz |
| Low frequency limit (-10 dB, rel. Avg.) | 37 Hz |
| Crossover frequency | 200 Hz |
| Protection features | Undervoltage, Overvoltage, Overheating, Short circuit, Direct current, Soft-Start |
| Colour | Black |
| RAL code | RAL 9005 |
Item No.: LDDQORSUB8A
| Colour | Black |
|---|
