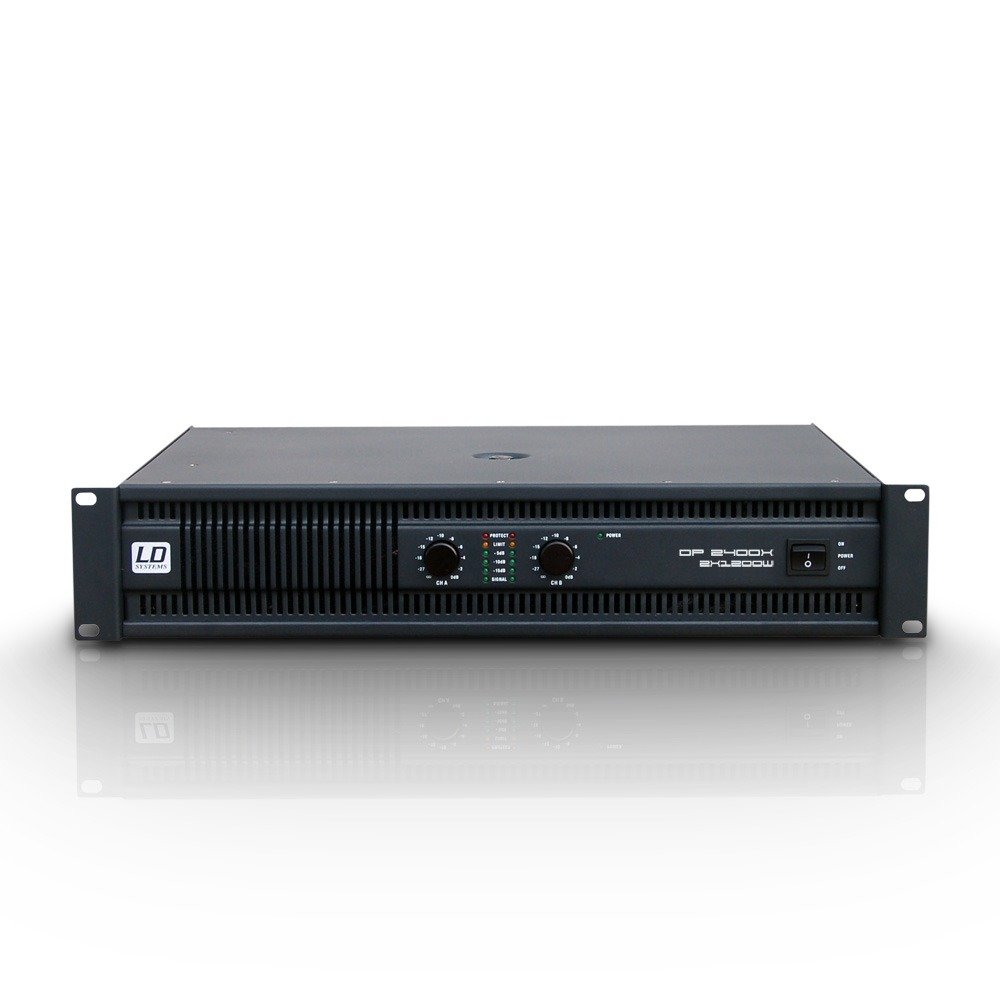

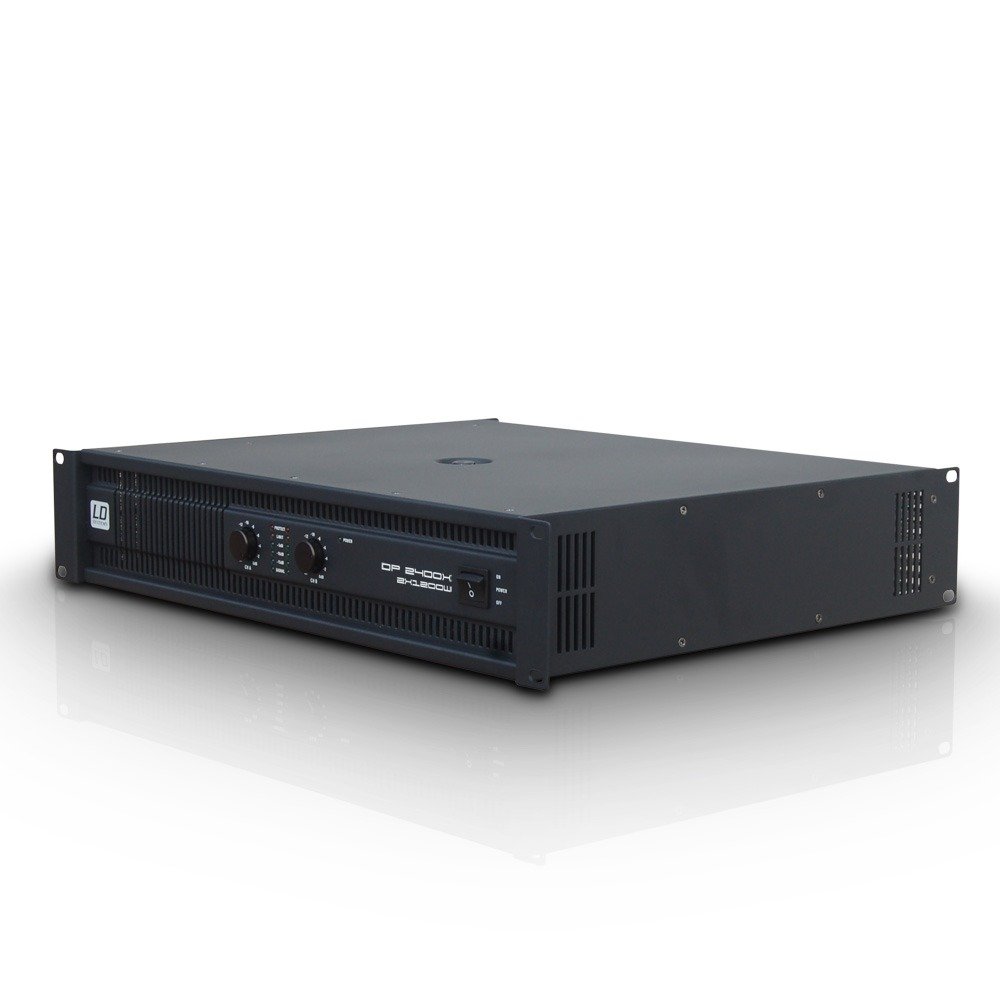

LD Systems DEEP2 2400 X
In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series,…
DEEP2 2400 X – PA Power Amplifier 2 x 1200 W 2 ohm.

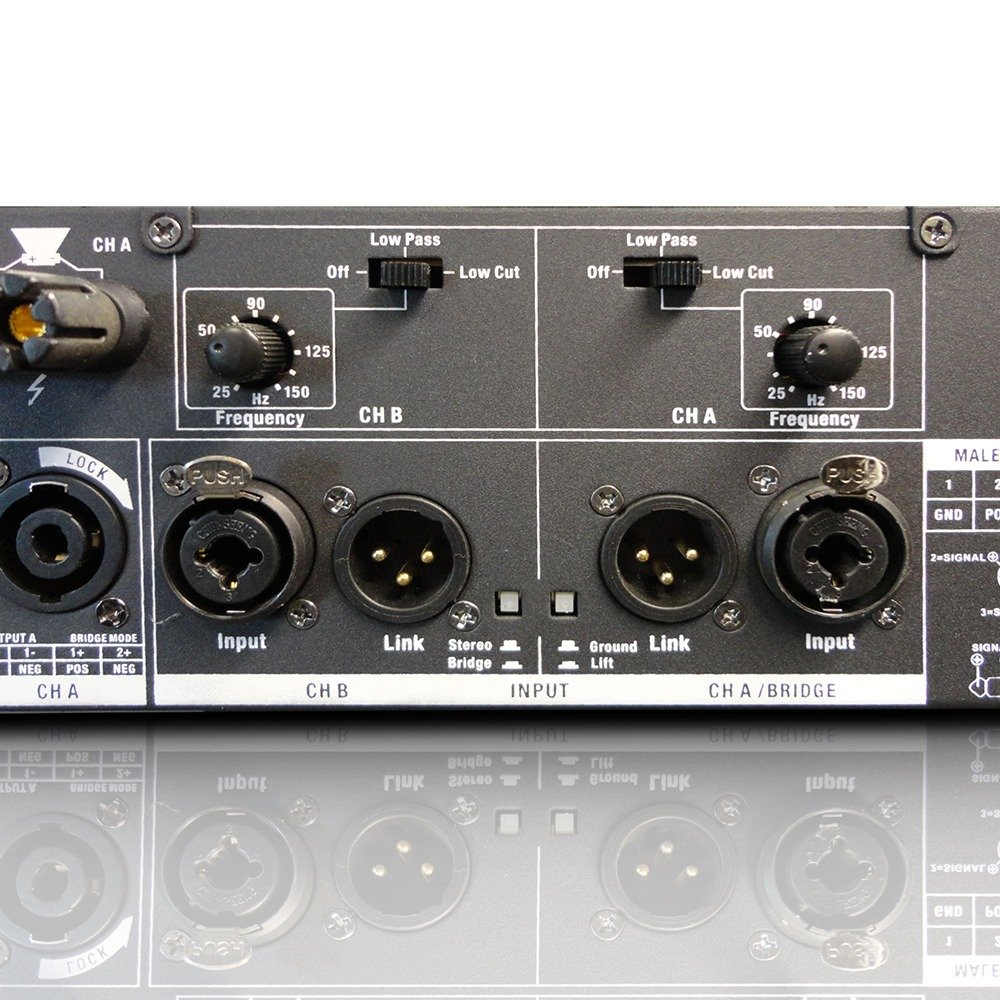

In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP2 series. It also follows the DEEP2 design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.
or
LD Systems® is a brand of the Adam Hall Group
© 2026 Adam Hall Group. All Rights Reserved.
Adam Hall Group is an EMAS validated company.
Adam Hall Group is an
Technical Specifications
| Product type | Power Amplifiers |
|---|---|
| Type | PA Power Amplifiers |
| Rated ouput power (1kHz @ 2 Ohms) | 2 x 1200 W |
| Rated ouput power (1kHz @ 4 Ohms) | 2 x 950 |
| Rated ouput power (1kHz @ 8 Ohms) | 2 x 600 |
| Rated ouput power (1 kHz @ 4 Ohms, bridged) | 2200 W |
| Rated ouput power (1kHz @ 8 Ohms, bridged) | 1800 W |
| Output circuitry | Class H |
| Frequency response | 20 – 20000 |
| Total Harmonic Distortion (THD) | < 0.1 % |
| Signal-to-noise ratio | 106 dB |
| Damping factor (20Hz-500Hz @8ohm) | > 450 |
| Crosstalk | >76 dB |
| Gain | 39 dB |
| Input sensitivity | 0.775 V |
| Protection circuits | thermal overload, DC protection, Short circuit, clip limiter |
| Controls | mains switch (on/off), bridge/stereo mode selector, ground lift, 2 x highpass/lowpass (switchable), 2 x volume |
| Indicators | Limit, Signal, Power, Protect (protection circuit engaged), level |
| Loudspeaker outputs | 2 |

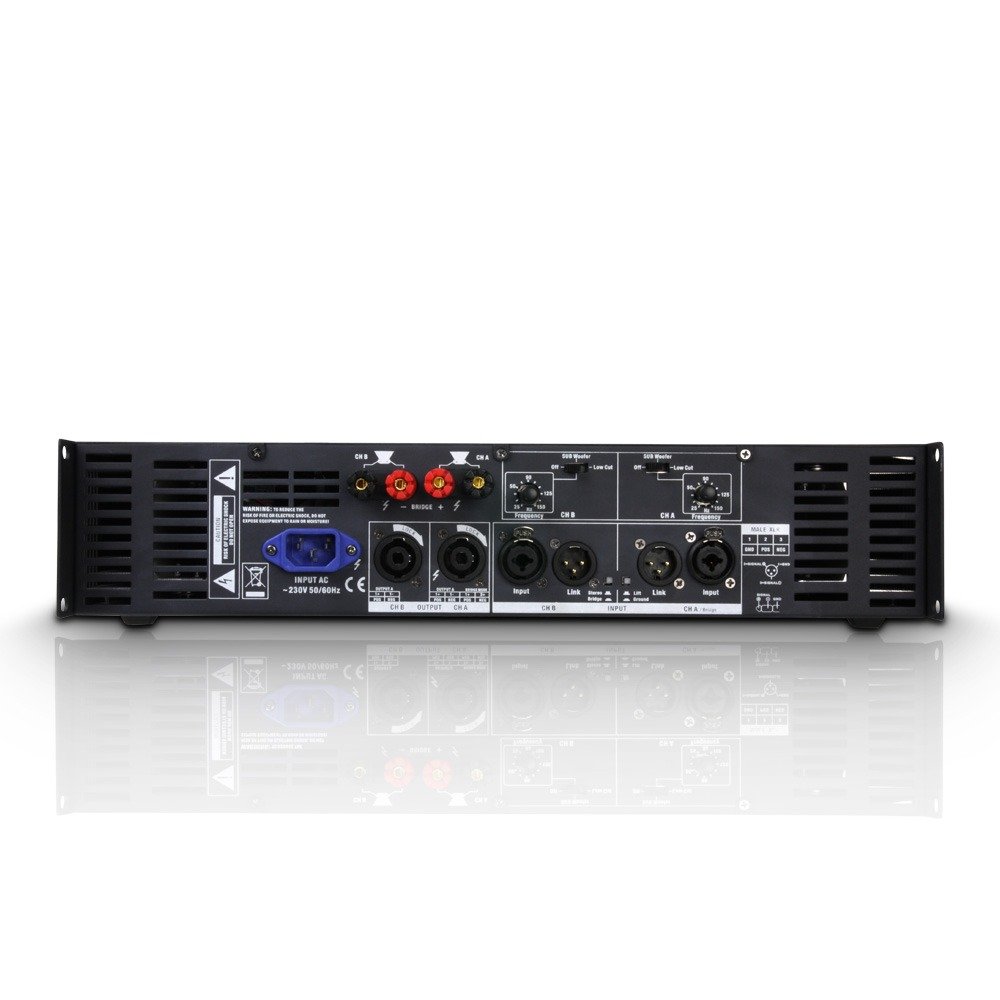

| Speaker output connections | Speakon compatible, Terminal posts |
| Cooling | highly efficient, automatic |
| Power supply | transformer |
| Operating voltage | 230 V AC / 50-60 Hz |
| Features | Volex mains socket |
Item No.: LDDP2400X
| Series | ] |
|---|
