LD Systems CURV 500 TS
The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4″ midrange and triple 1″ high frequency…
CURV 500 TS – Compact Touring Array System.
The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

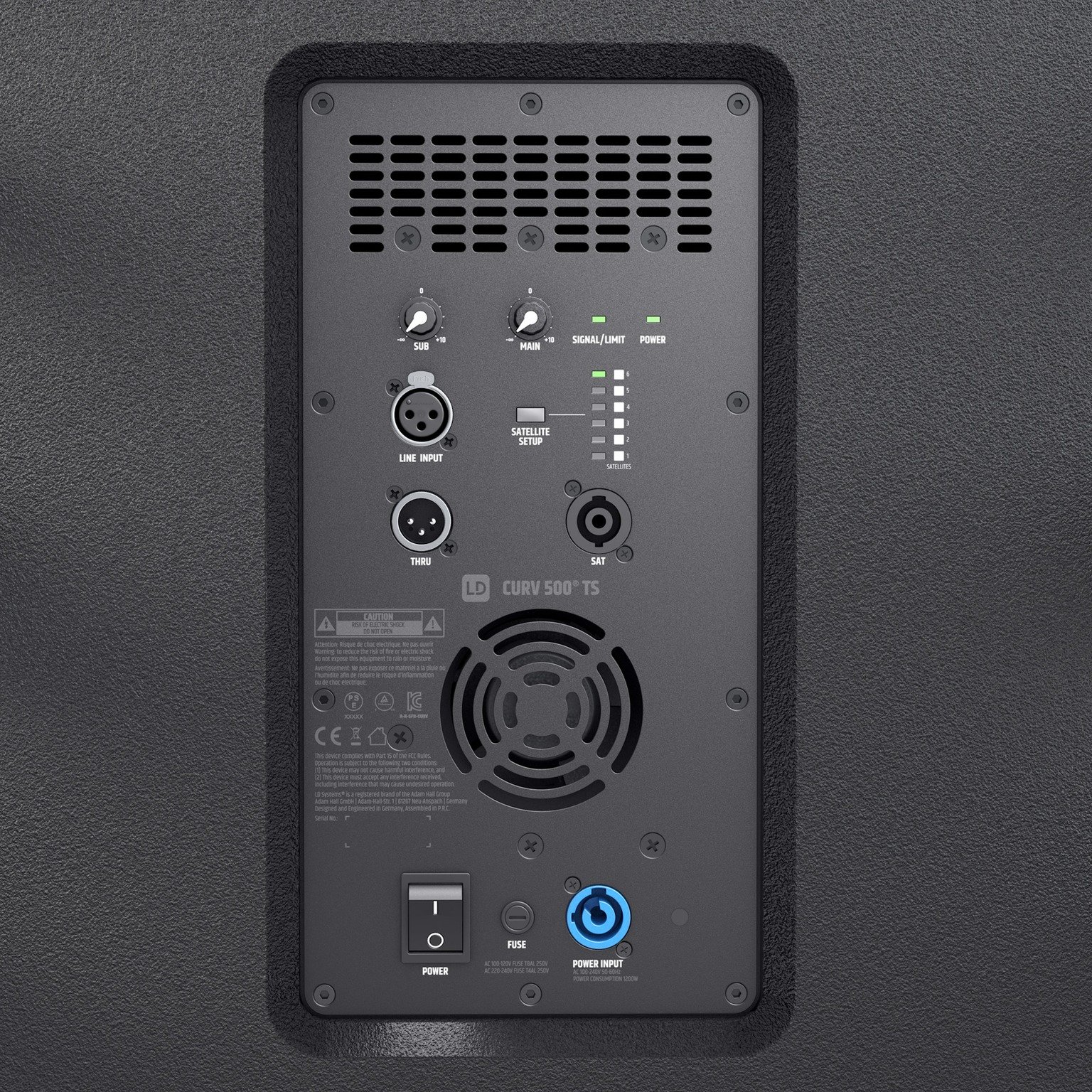

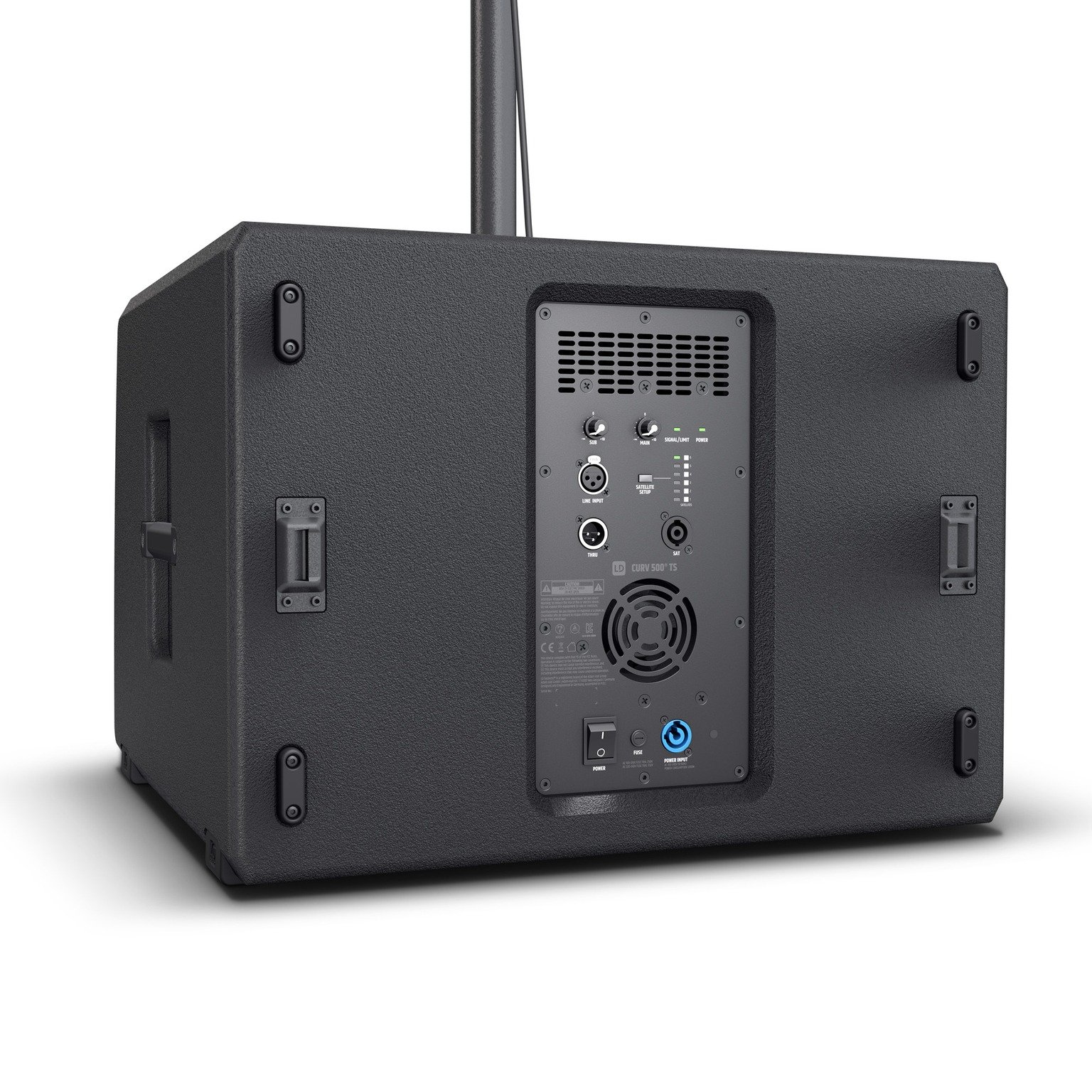

The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.
Castor board for LD CURV 500 TS subwoofer
Padded Carry Bag for CURV 500 TS Duplex Satellites
Padded protective Cover for LD CURV 500® TS Subwoofer
Speaker rod for LDCURV500TS
Technical Specifications
| Product type | PA Complete Systems |
|---|---|
| System output (RMS) | 1000 W |
| Color | Black |
| Number of array satellites | 4 |
| Number of Smartlink adapters | 1 |
| Number of subwoofers | 1 |
| Max. SPL (continuous) | 125 dB |
| Max. SPL (Peak) | 131 dB |
| Frequency response | 40 – 20000 |
| Dispersion (H x V) | 110° horizontal, vertical 34 ° |
| RMS | Subwoofer: 700 W , Array Satellites: 300 W |
| Peak power | Subwoofer: 1400 W , Array Satellites: 600 W |
| Amplifier | Class D |
| Protection circuits | DSP-based multiband limiter, thermal overload, overload, Short circuit |
| Accessories (included) | Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m) |
Item No.: LDCURV500TS
| Series | ] |
|---|---|
| Product Type | PA Complete Systems |
| Color | Black |
