LD Systems CURV 500 SLA
The innovative SmartLink® Adapter is the perfect base for the CURV 500® system. With the patented click mechanism, up to 6 satellites can be connected with each other, without the need for any cables. Two 16 mm flanges allow for different angles on the stand. So, depending on the assembly option,…

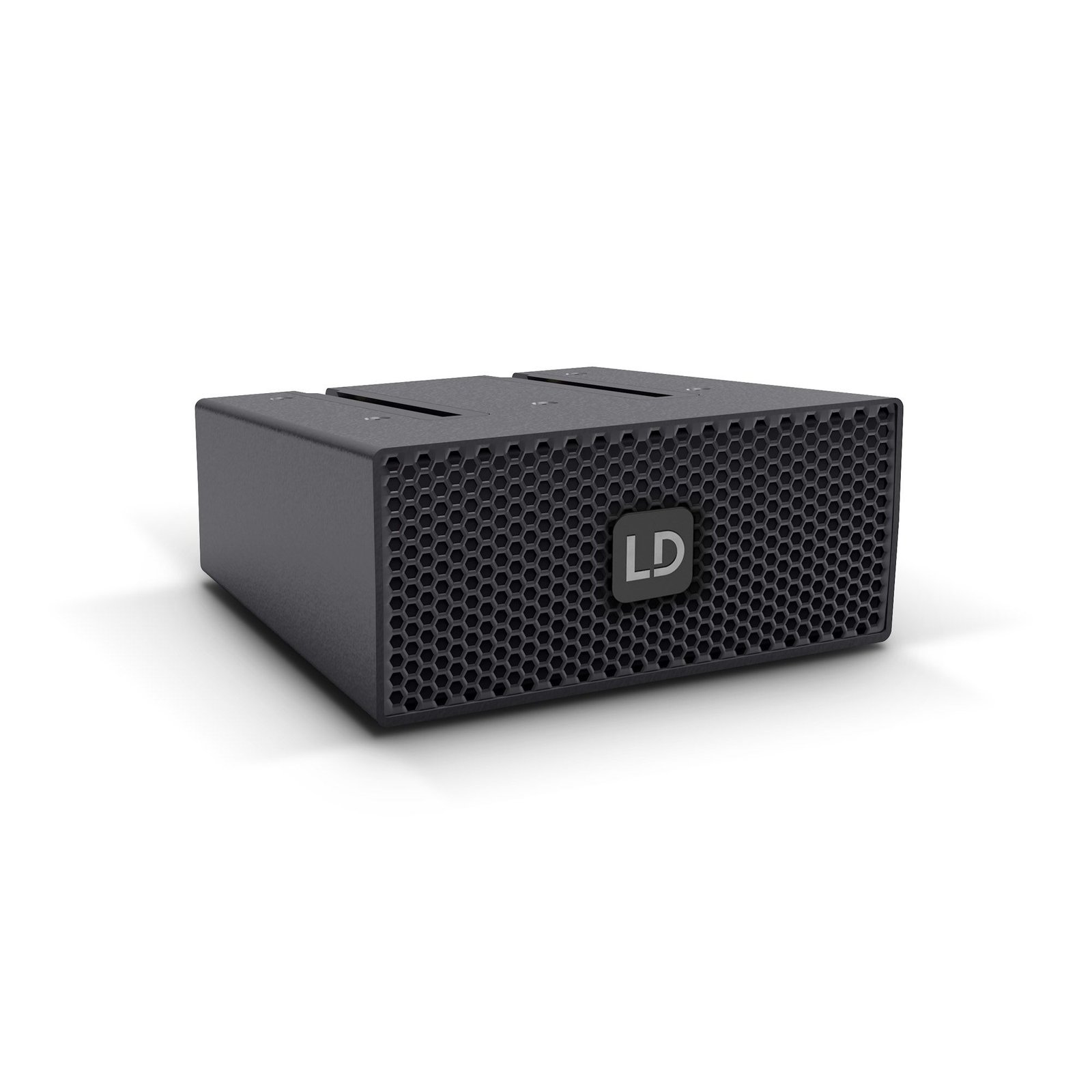

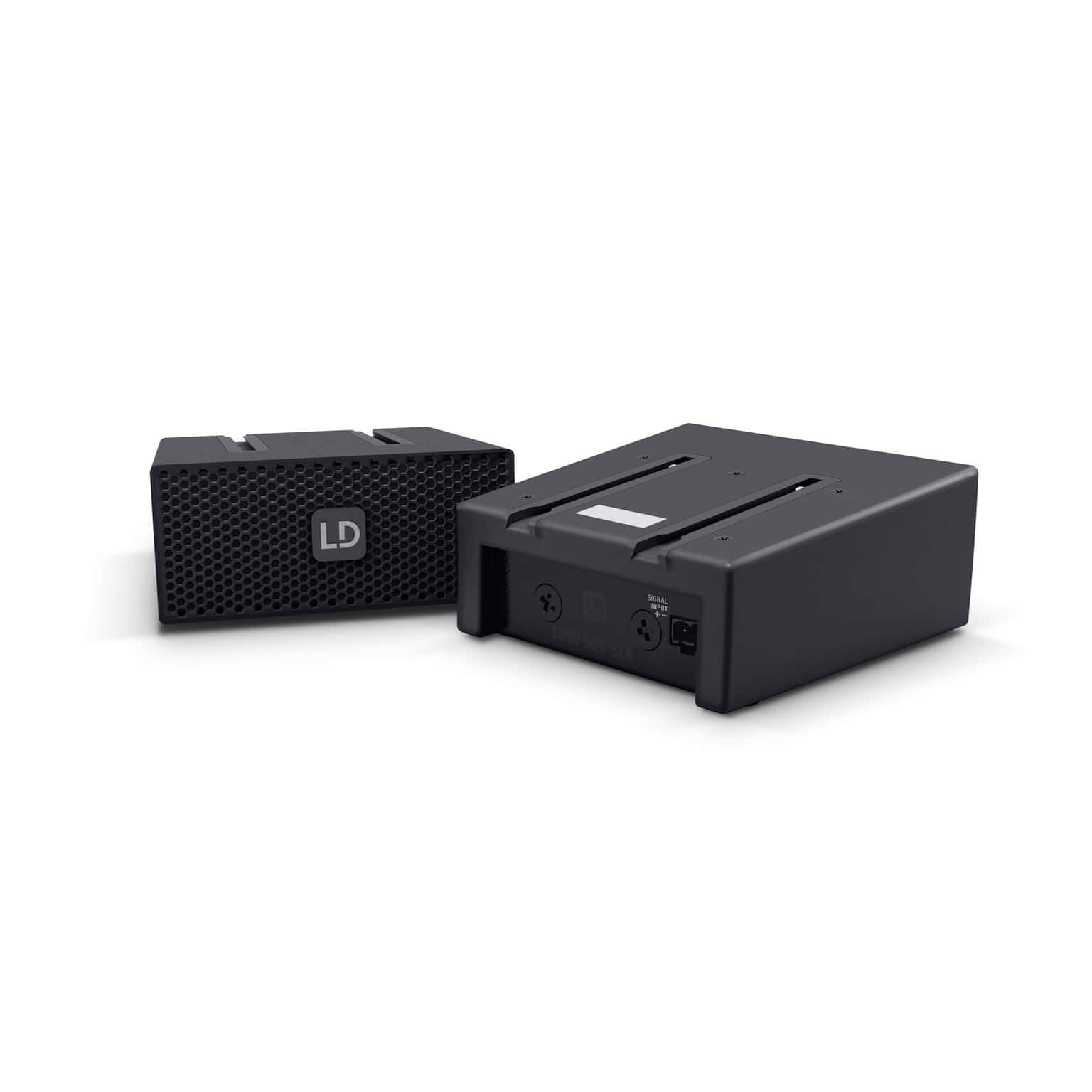

CURV 500 SLA – SmartLink Adapter for up to six LD CURV 500® Satellites, Black.

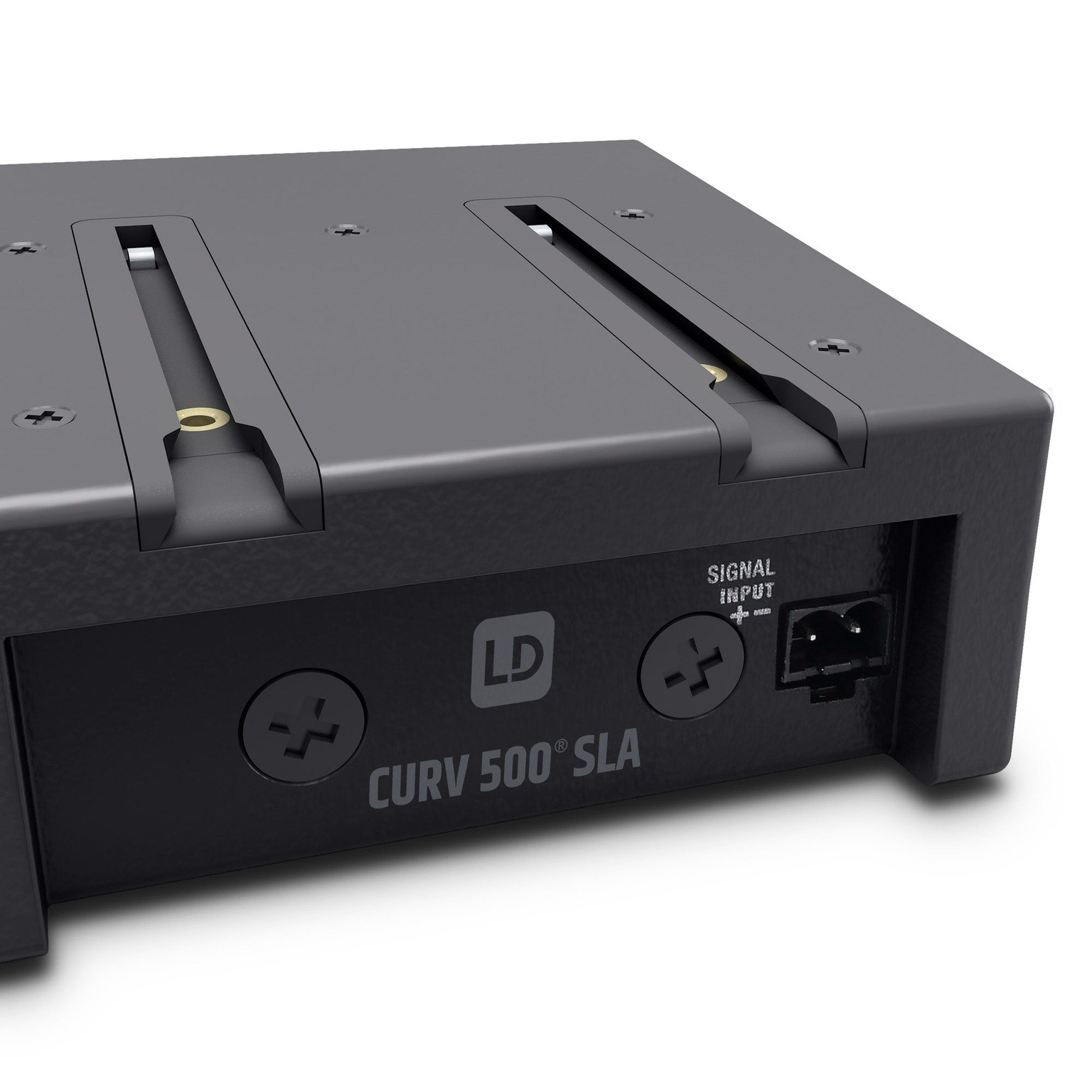

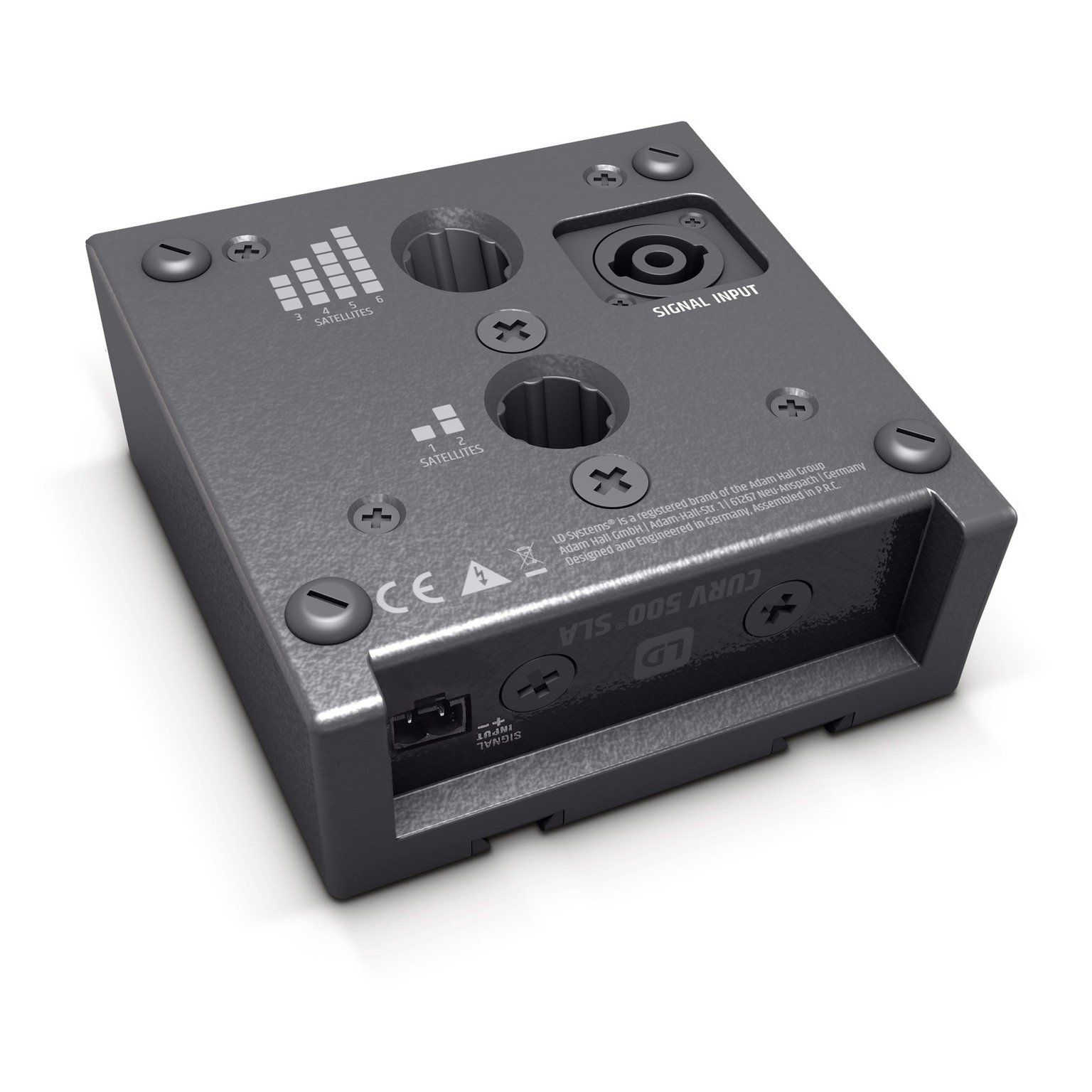

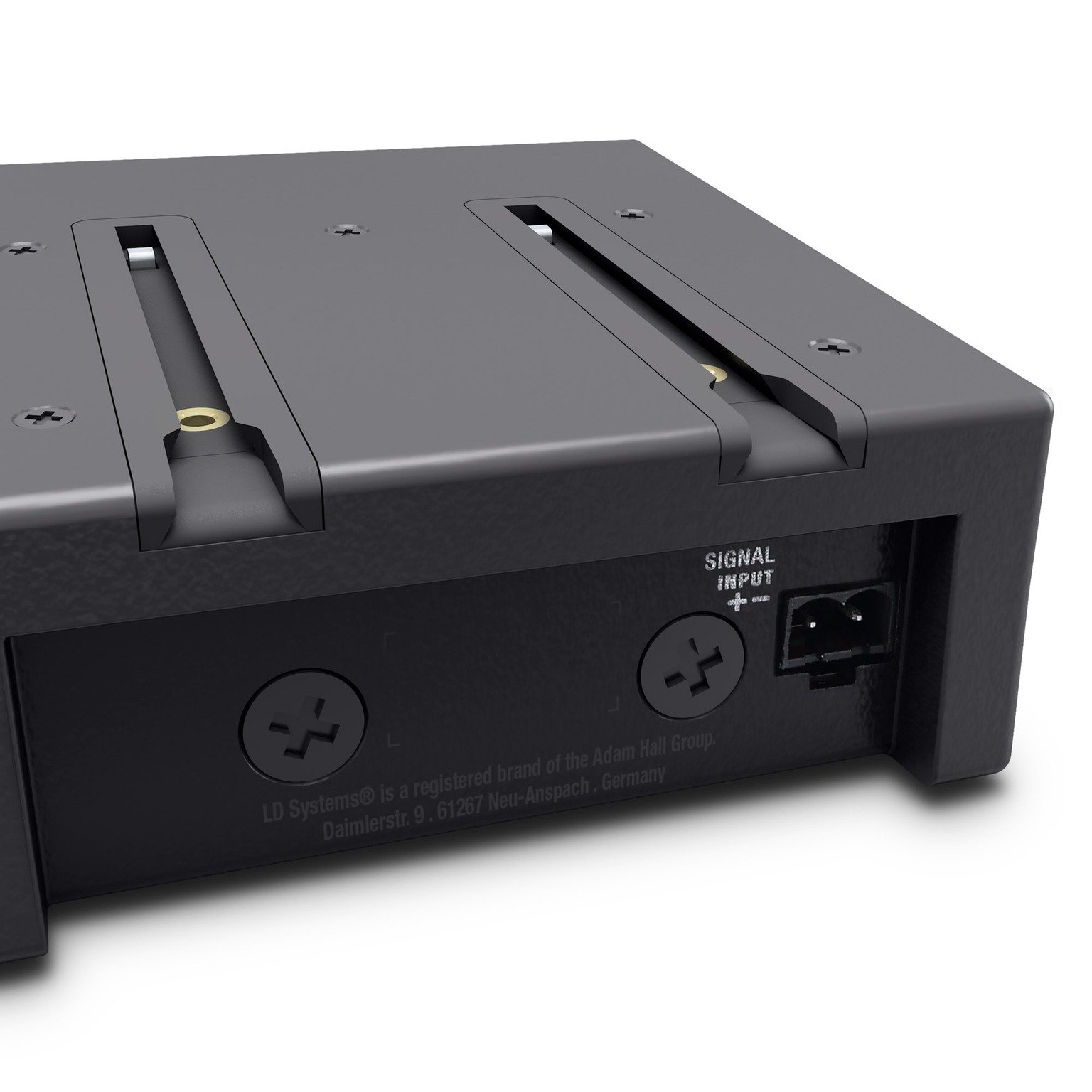

The innovative SmartLink® Adapter is the perfect base for the CURV 500® system. With the patented click mechanism, up to 6 satellites can be connected with each other, without the need for any cables. Two 16 mm flanges allow for different angles on the stand. So, depending on the assembly option, an optimised sound is possible. Four M6 threads for wall mounting, four M3 threads for the ceiling and four rubber feet provide a wide range of possibilities. Thanks to the Speakon-compatible socket and the terminal block, two input variants are available. In case of ceiling mounting, the LD Systems logo simply rotates. The powder-coated cabinet made of die-cast aluminium, with dimensions of 122 x 57 x 122 mm, weighs 0.54 kg.
Truss Mount for CURV 500 Satellites, Black
or
LD Systems® is a brand of the Adam Hall Group
© 2026 Adam Hall Group. All Rights Reserved.
Adam Hall Group is an EMAS validated company.
Technical Specifications
| Product type | PA Complete Systems Accessories |
|---|---|
| Type | Smartlink® Adapter |
| Material | Die-cast aluminium |
| Surface | Powder coated |
| Connectors | 1x Phoenix, 1x Speakon compatible |
| Color | Black |
| Width | 122 mm |
| Height | 57 mm |
| Depth | 57 mm |
| Features | 2 x 16 mm flanges, 2x M6 thread for optional wall mount |
Item No.: LDCURV500SLA
| Series | ] |
|---|---|
| Product Type | PA Complete Systems Accessories |
| Type | Smartlink® Adapter |
