LD Systems BM1
For micing upright and grand pianos on stage or in the studio. Additional applications in the area of conference technology, transmission of roundtable discussions and theatrical performances.

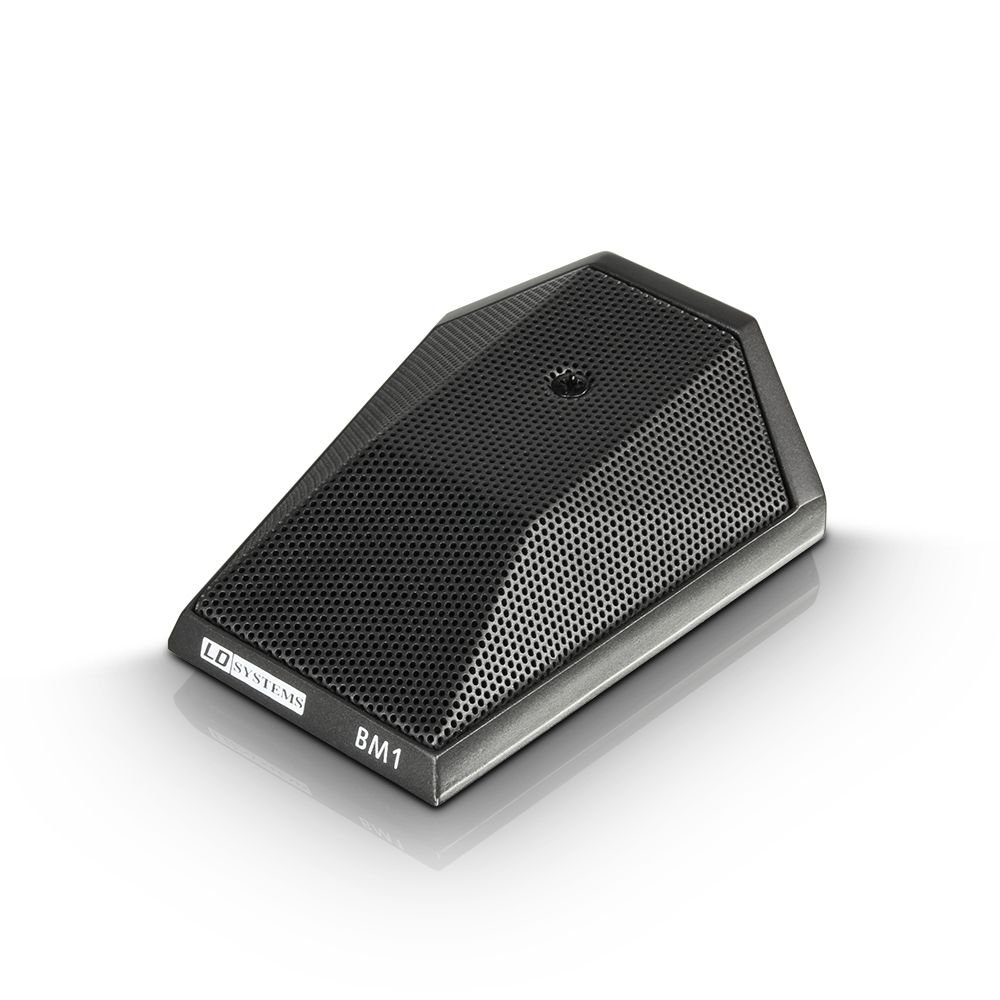

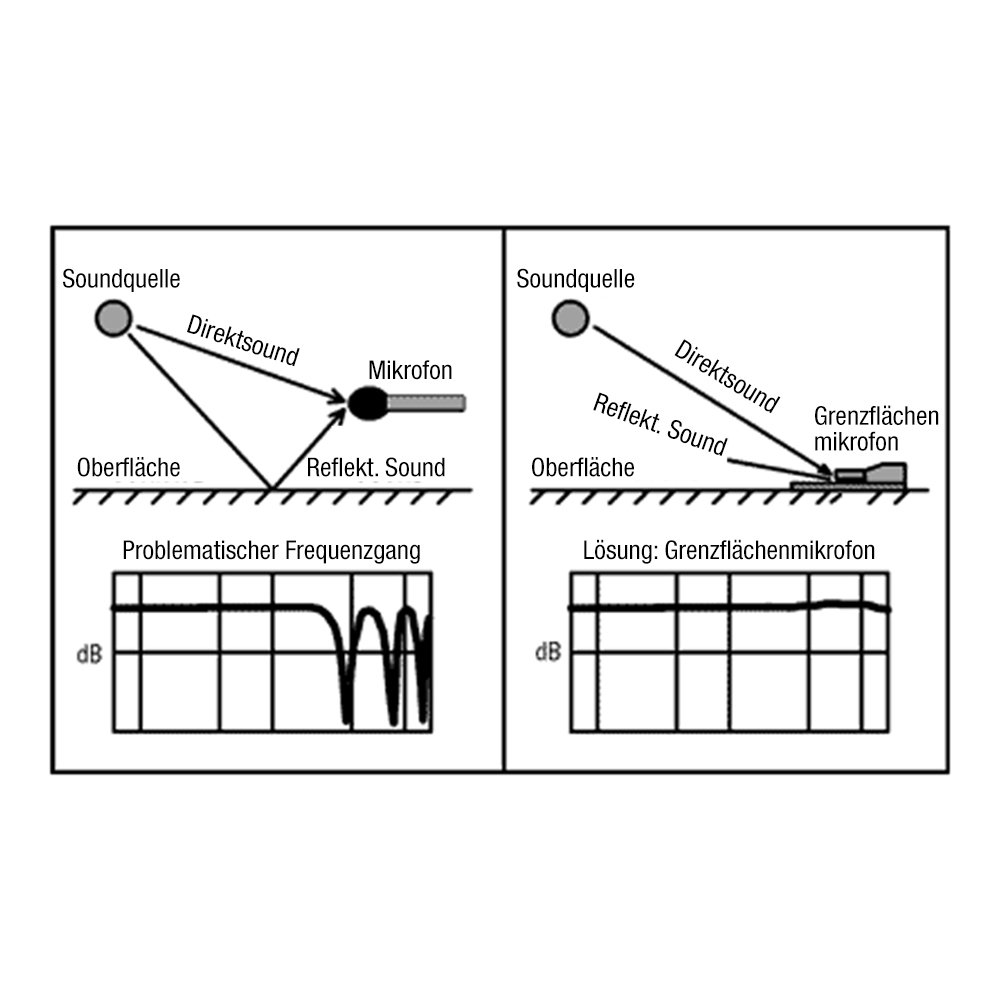

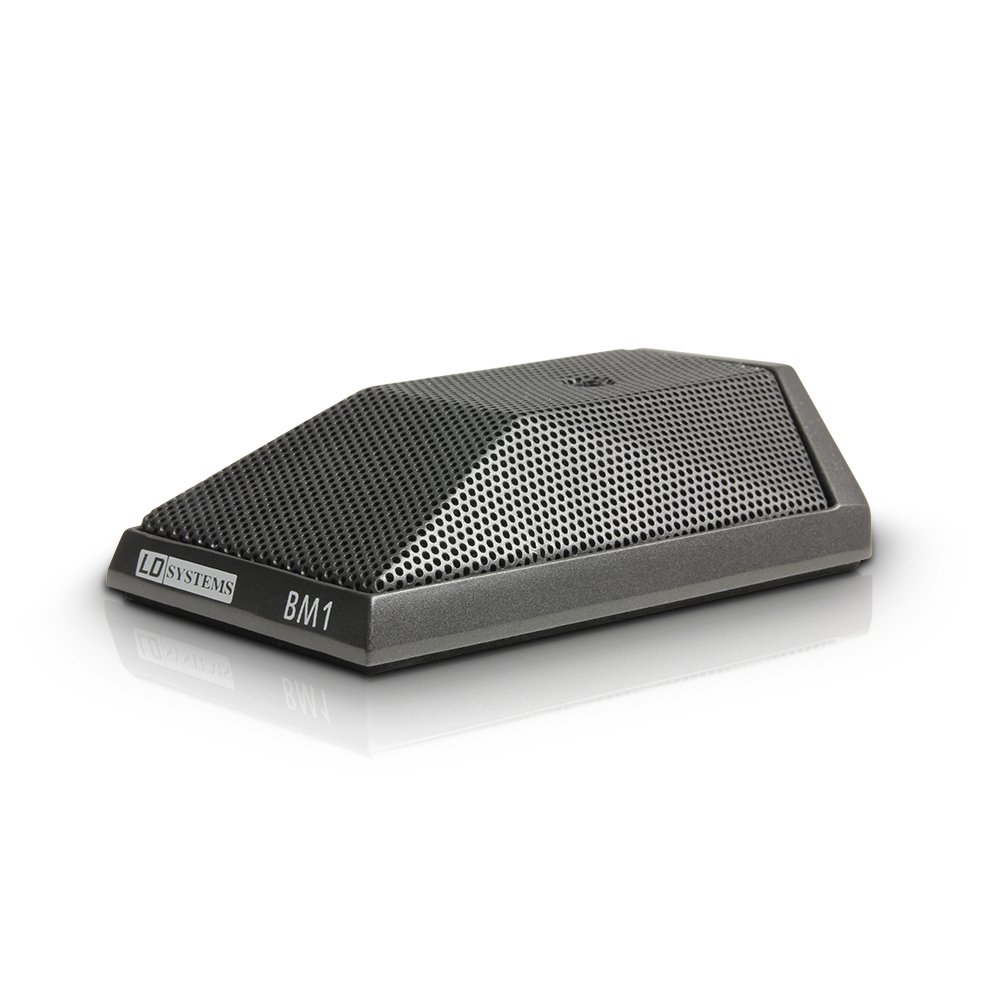

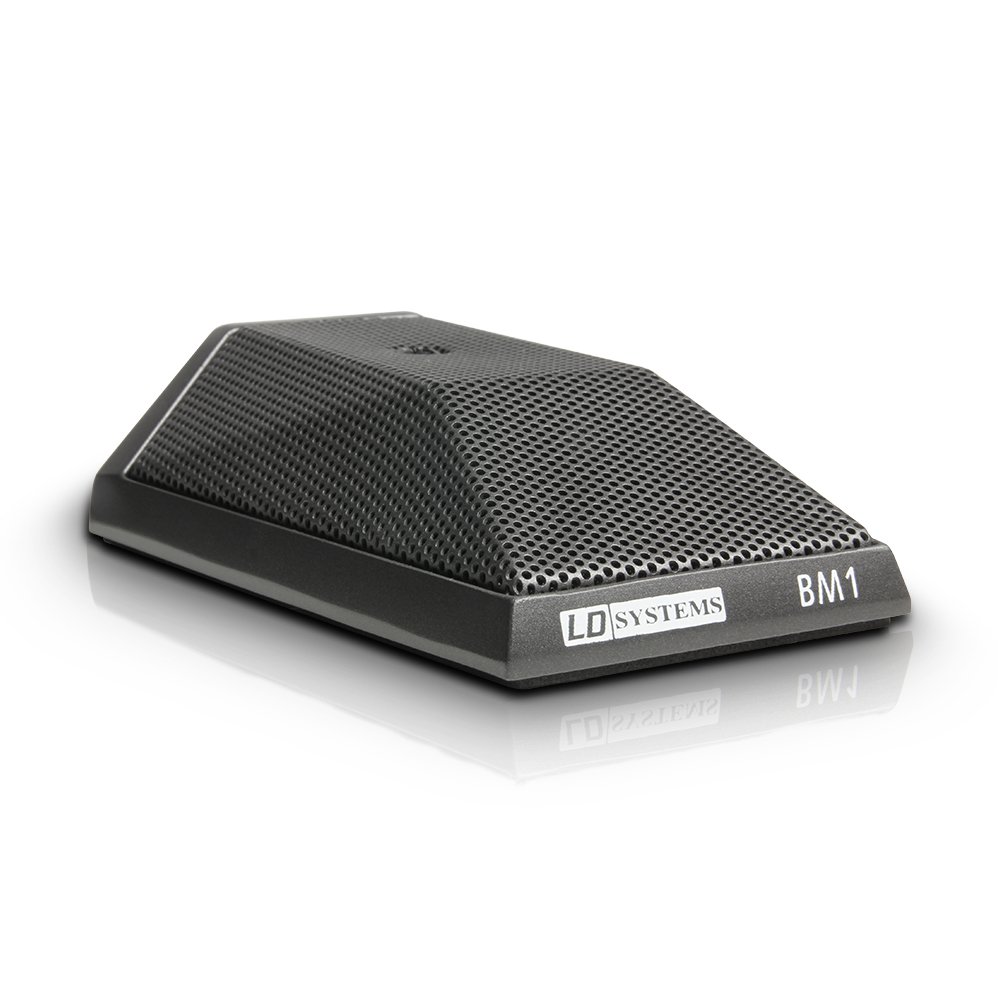

BM1 – Boundary-layer Microphone.
For micing upright and grand pianos on stage or in the studio. Additional applications in the area of conference technology, transmission of roundtable discussions and theatrical performances.
or
LD Systems® is a brand of the Adam Hall Group
© 2026 Adam Hall Group. All Rights Reserved.
Adam Hall Group is an EMAS validated company.
Adam Hall Group is an
Technical Specifications
| Directivity | Omnidirectional |
|---|---|
| Capsule type | Electret condenser |
| Nominal impedance | 250 Ω |
| Phantom power | 48 V |

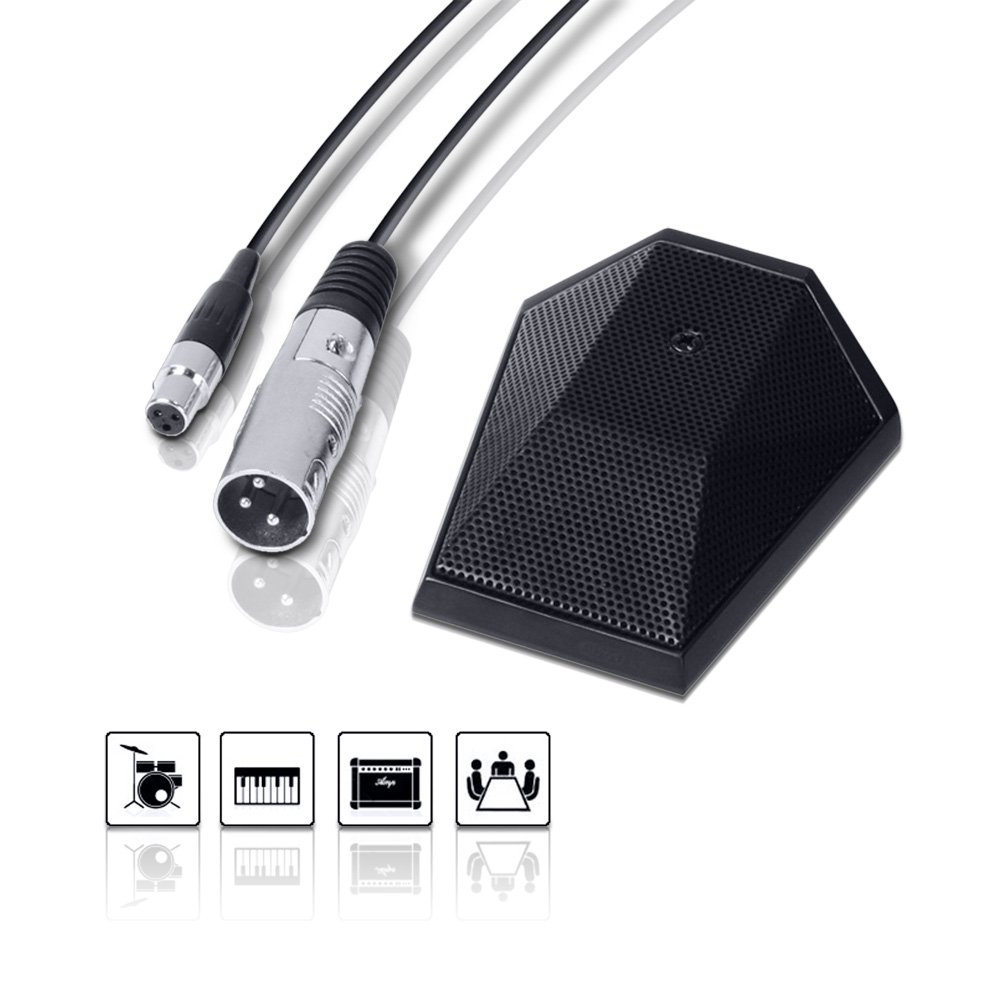

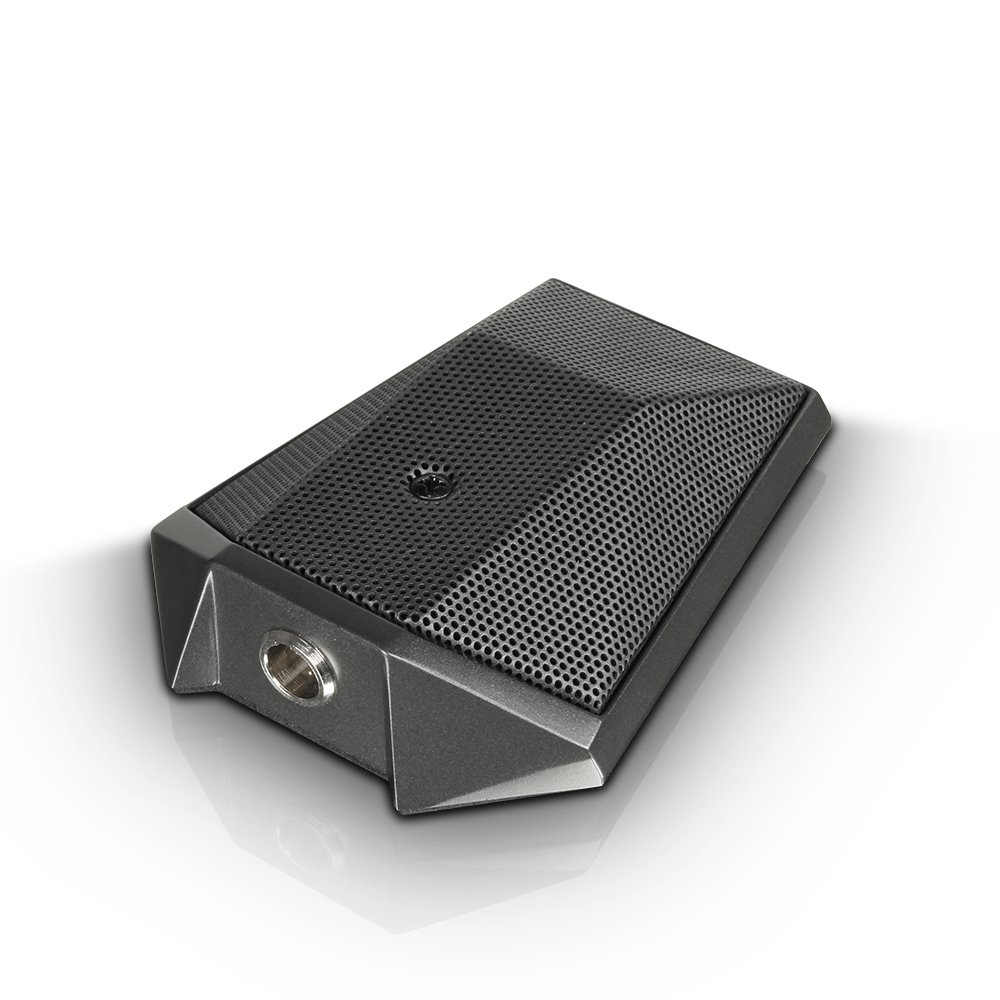

| Output connector type | Mini XLR male |
| Max. SPL peak | 135 dB |
| Frequency response (-3 dB, rel. Avg) | 50 Hz – 20000 Hz |
Item No.: LDBM1
