LD Systems AMP 405
Part of the TICA® series, AMP405 combines compact size, passive cooling, and high efficiency – ideal for a wide range of audio installation applications.
AMP 405 – 4-Channel Mini Installation Power Amplifier 4 × 50 W @ 4 Ohm.
Part of the TICA® series, AMP405 combines compact size, passive cooling, and high efficiency – ideal for a wide range of audio installation applications.
The highly efficient four-channel 50 W Class-D amplifier can drive low-impedance loudspeakers in different zones.
Its tiny 142 × 44 × 222 form factor and included mounting plates allow it to be installed discreetly almost anywhere: behind screens, under tables, or even in air-handling spaces and above plenum ceilings. Alternatively, it fits into a 1/3 19″ rack. Use the optional rack tray to slot up to three TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

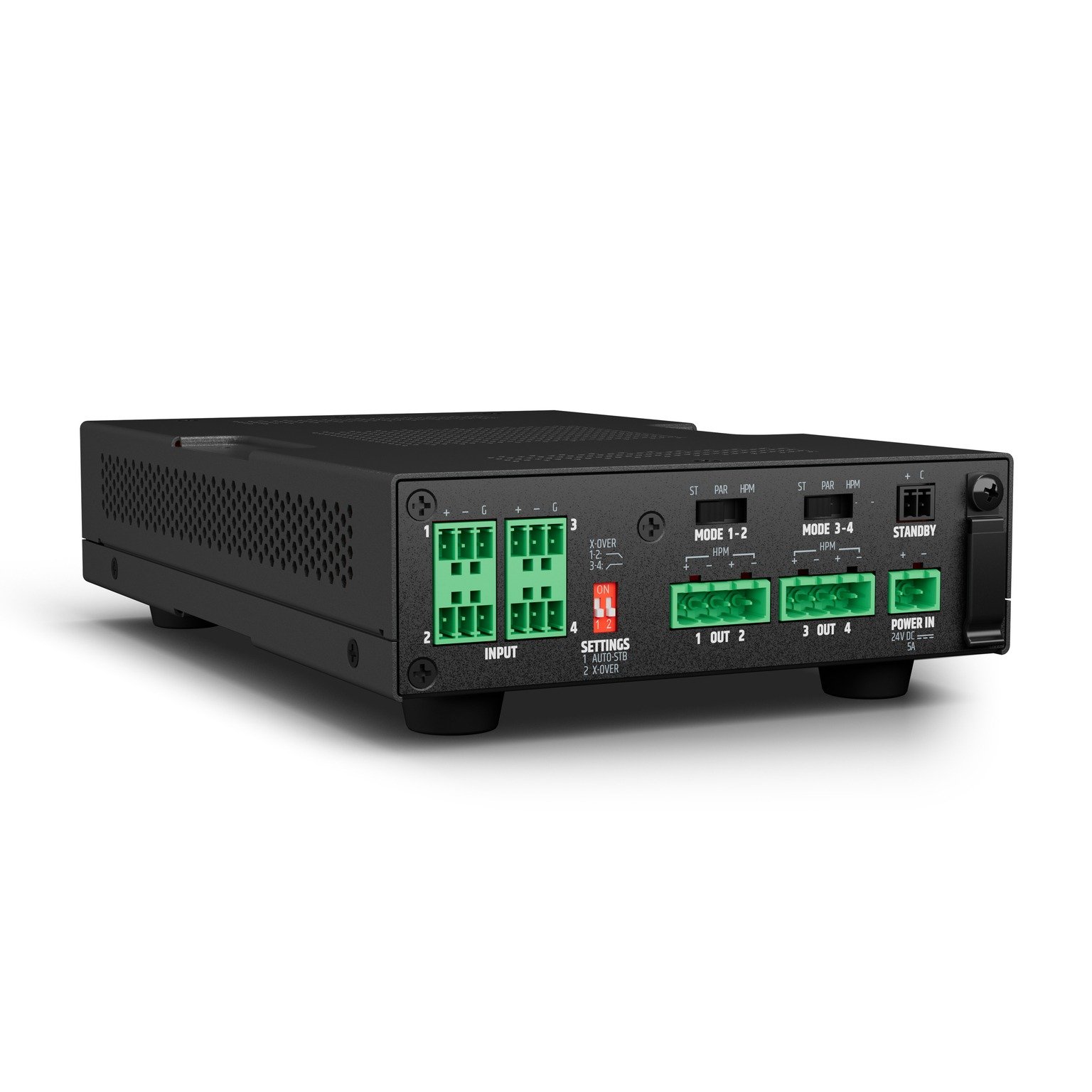

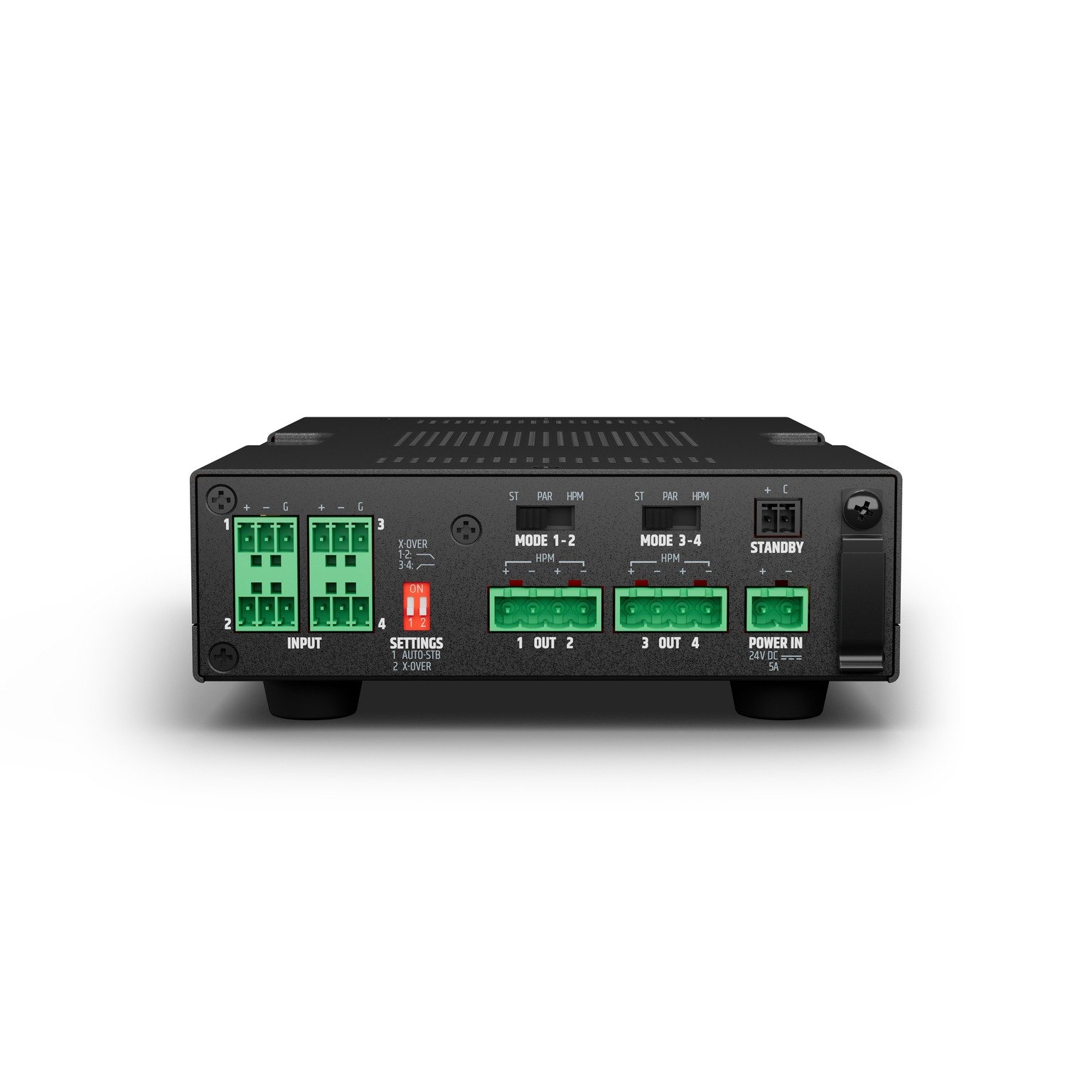

Terminal strip connections on the balanced line input and speaker output make wiring easy.
With remote-control connectivity to put the power amplifier into standby mode at any time, even when it’s hidden. Optional auto-standby saves power when no audio is running.
The perfect solution for professional installers and users looking for a compact, highly efficient, and easy-to-integrate solution.
Technical Specifications
| Peak output power | 220 W |
|---|---|
| RMS output power | 200 W |
| Amp class | Class D |
| Frequency response (±0.5 dB, rel. Avg) | 20 Hz – 20000 Hz |
| Crossover frequency | 125 Hz |
| Protection features | Overheating, Short circuit, Direct current, Overvoltage, Undervoltage |
Item No.: LDAMP405
| Series | ] |
|---|
