LD Systems AMP 205 D
The LD Systems AMP 205 D is the perfect complement to deliver sound from any Dante audio system.
AMP 205 D – Dante- Enabled Amplifier 2× 50 W @ 4 Ohm.
The LD Systems AMP 205 D is the perfect complement to deliver sound from any Dante audio system.

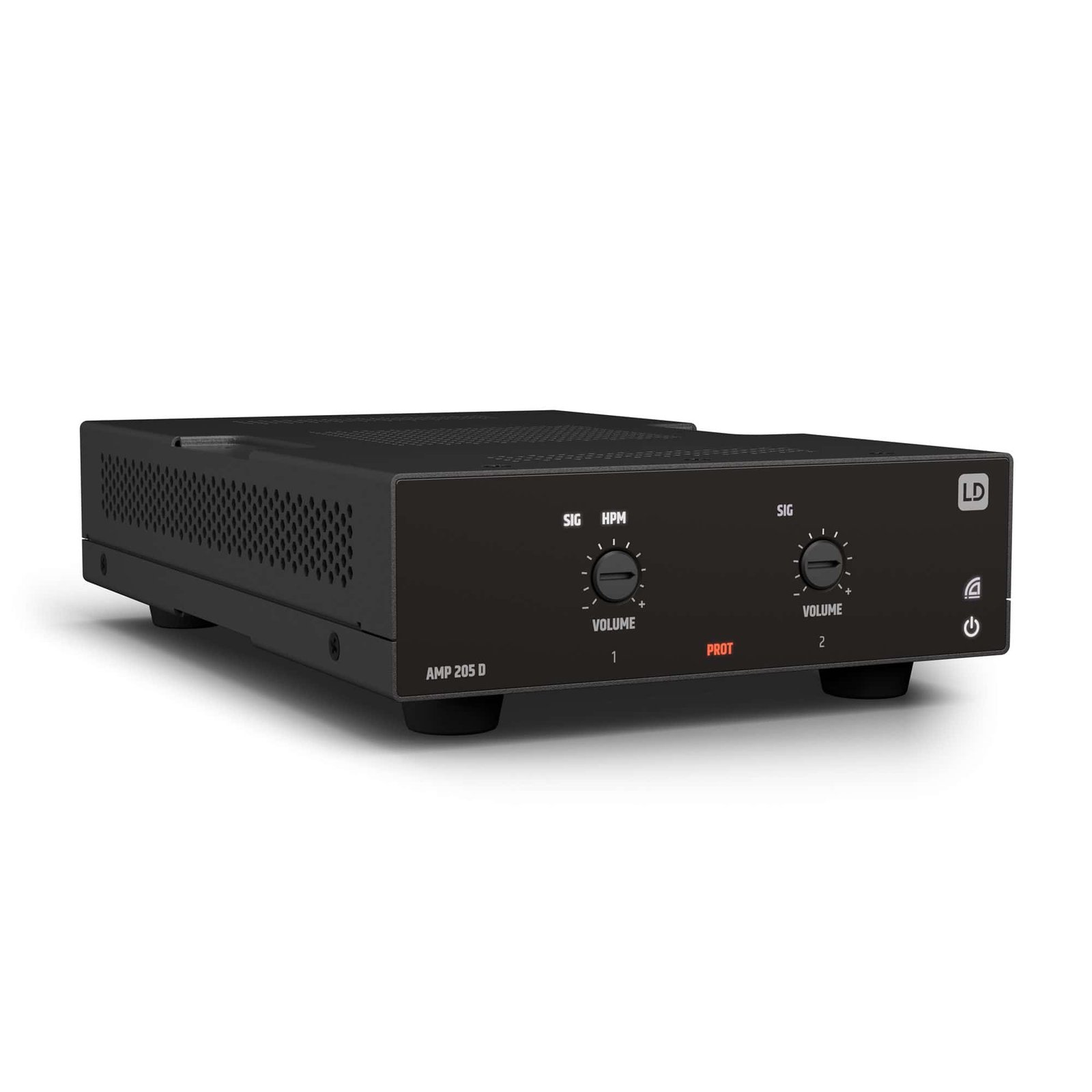

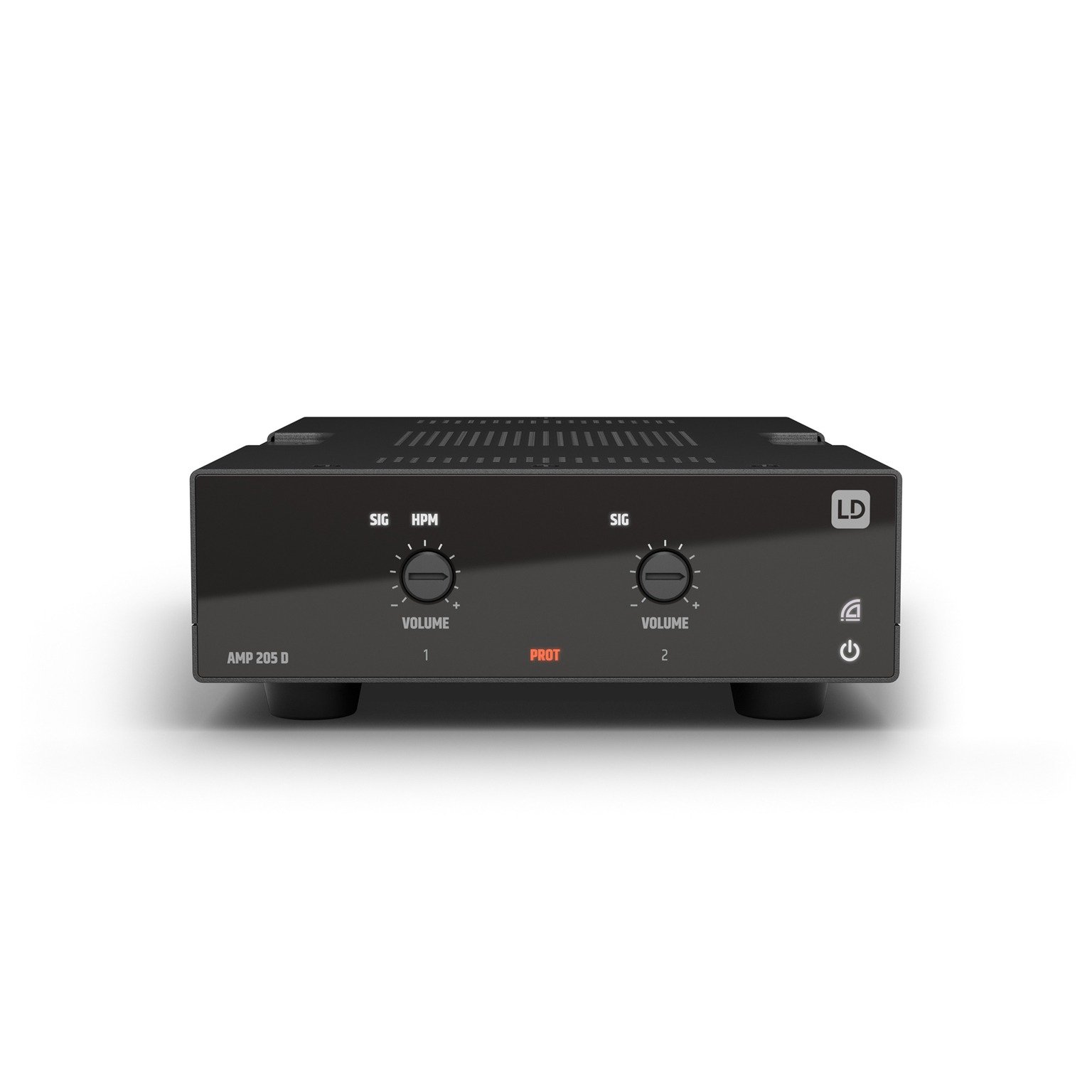

Powered by a highly efficient 2× 50 W Class-D amplifier, it features 4 Ohm outputs and a user-friendly front panel, equipped with signal and protection LEDs.
Dante connectivity lets you connect from the vast ecosystem of Dante-enabled products with full AES 67 and Dante Domain Manager compatibility.
The AMP 205 D can be powered using PoE+ or using the included 24 V power supply.
Its tiny 106 × 44 × 222 form factor and included mounting plates allow it to be installed discreetly almost anywhere: behind screens, under tables, or even in air-handling spaces and above plenum ceilings. Alternatively, it fits into a 1/3 19″ rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

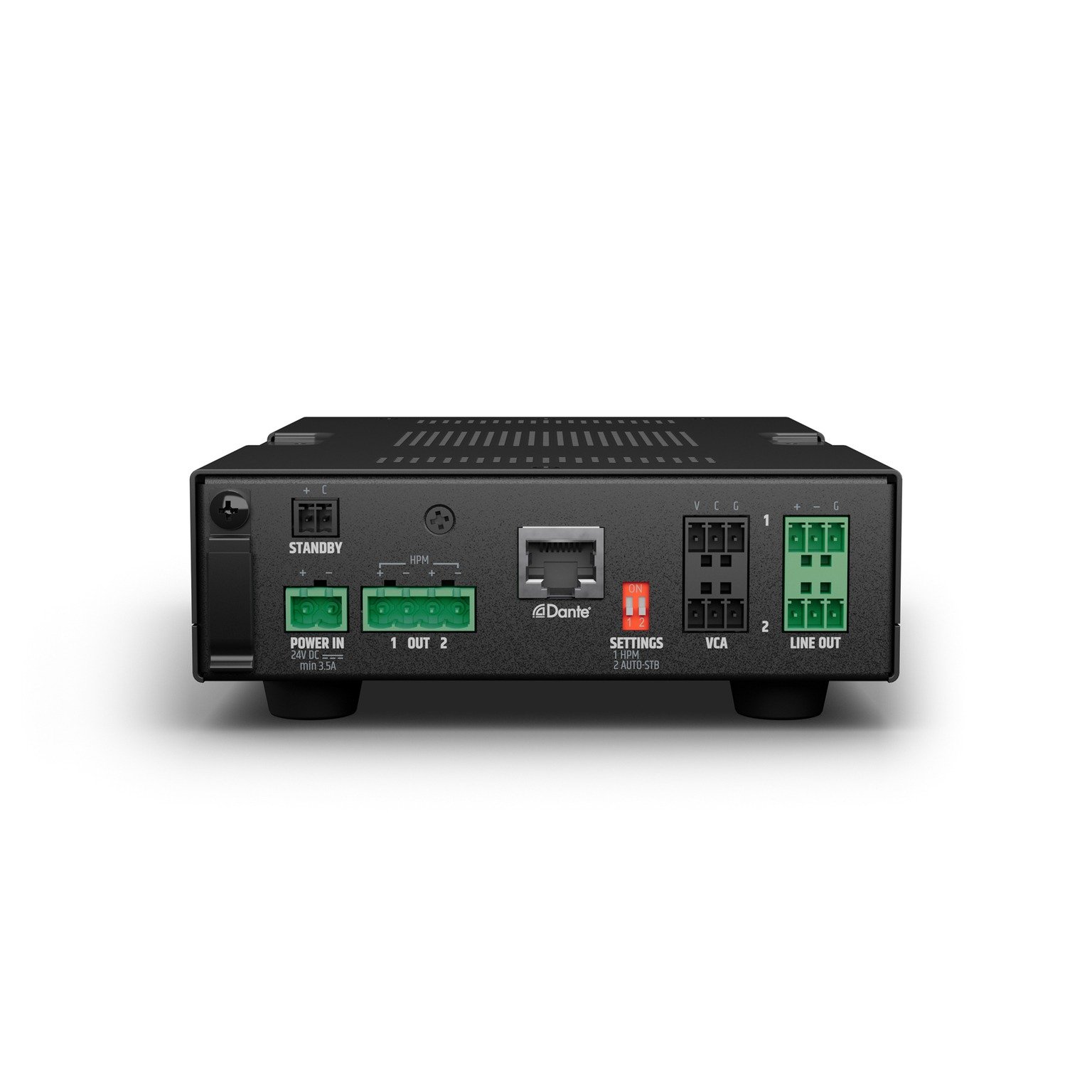

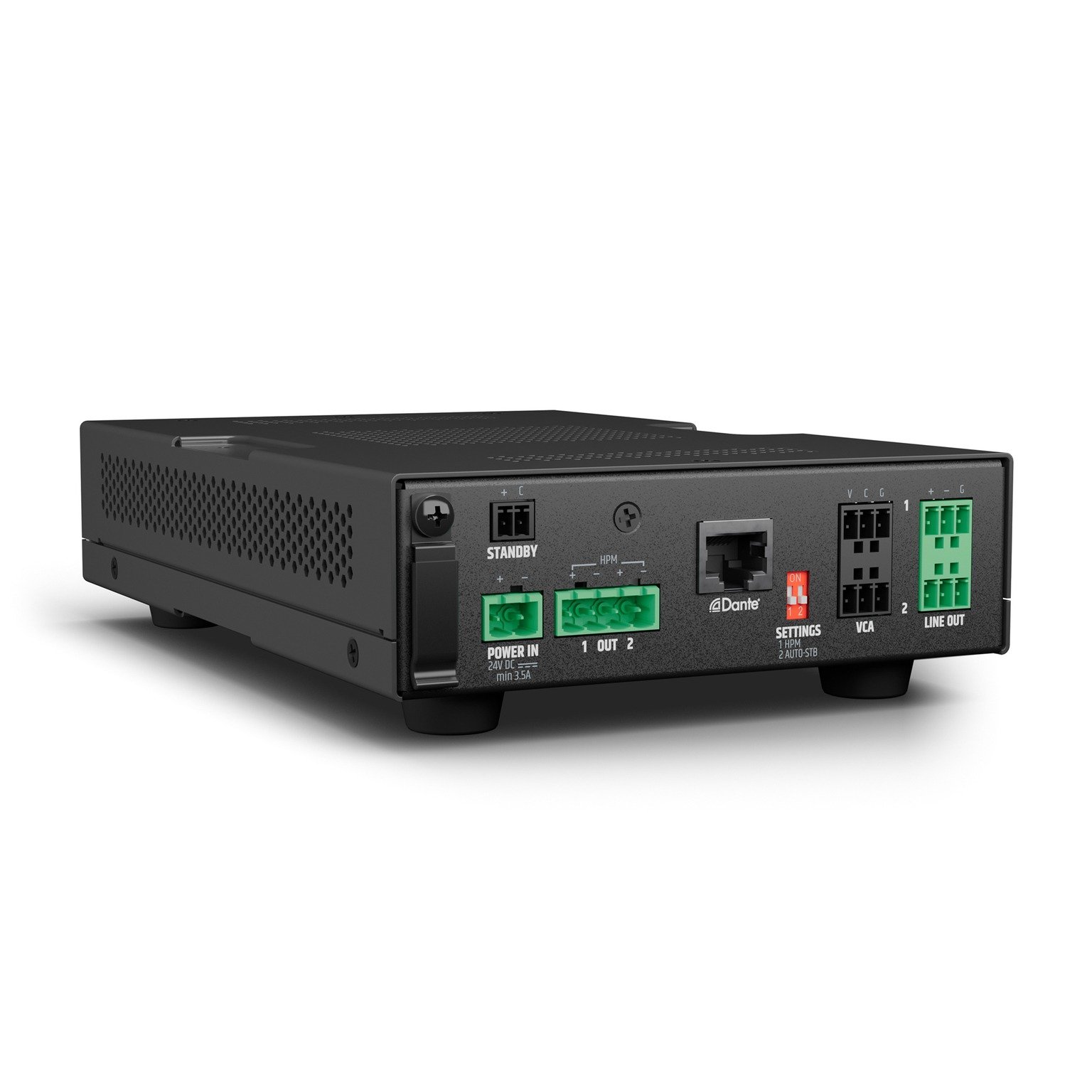

Terminal block connections for the analogue outputs and GPIO connections make wiring easy.
Technical Specifications
| Product type | Amplifier |
|---|---|
| Digital inputs | 1 x Dante (2 channels), 100 BASE-T |
| Line outputs | 2 |
| Line output connectors | Balanced line level with auto mute relay on loss of Dante/AES67 signal |
| Powered outputs | 2 with output mode selector (Stereo / High Power Mode) |
| Cooling | Convection |
Item No.: LDAMP205D
| Series | ] |
|---|---|
| Product Type | Amplifier |
