LD Systems AMP 205 AV

AMP 205 AV – HDMI Audio De-Embedder & Amplifier 2x50W @ 4 Ohm.

The LD Systems AMP 205 AV is the perfect complement to deliver sound from an AV system. Just connect your video source and it extracts the audio and delivers stereo audio to your loudspeakers. An HDMI pass though connection makes connection to your display device easy.

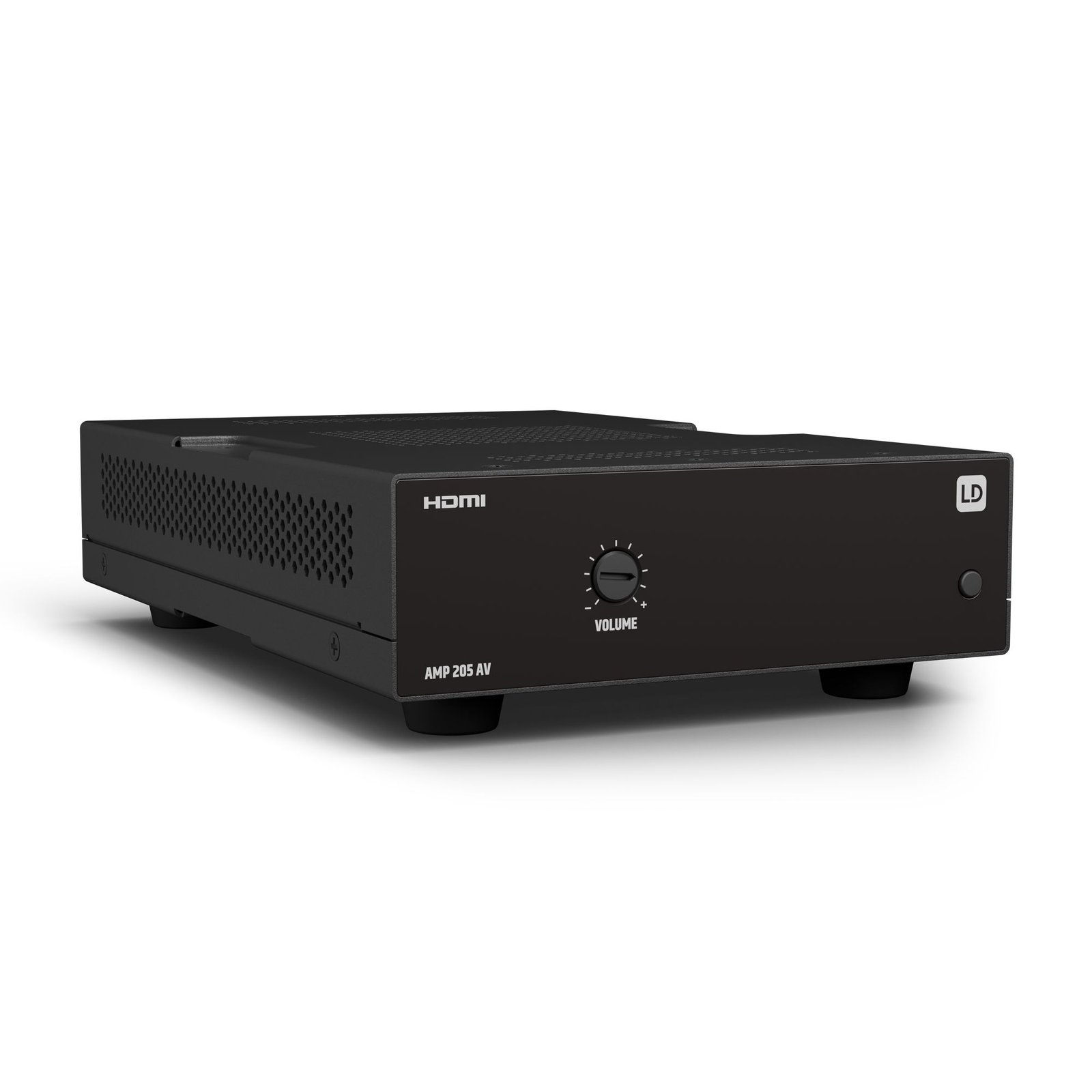

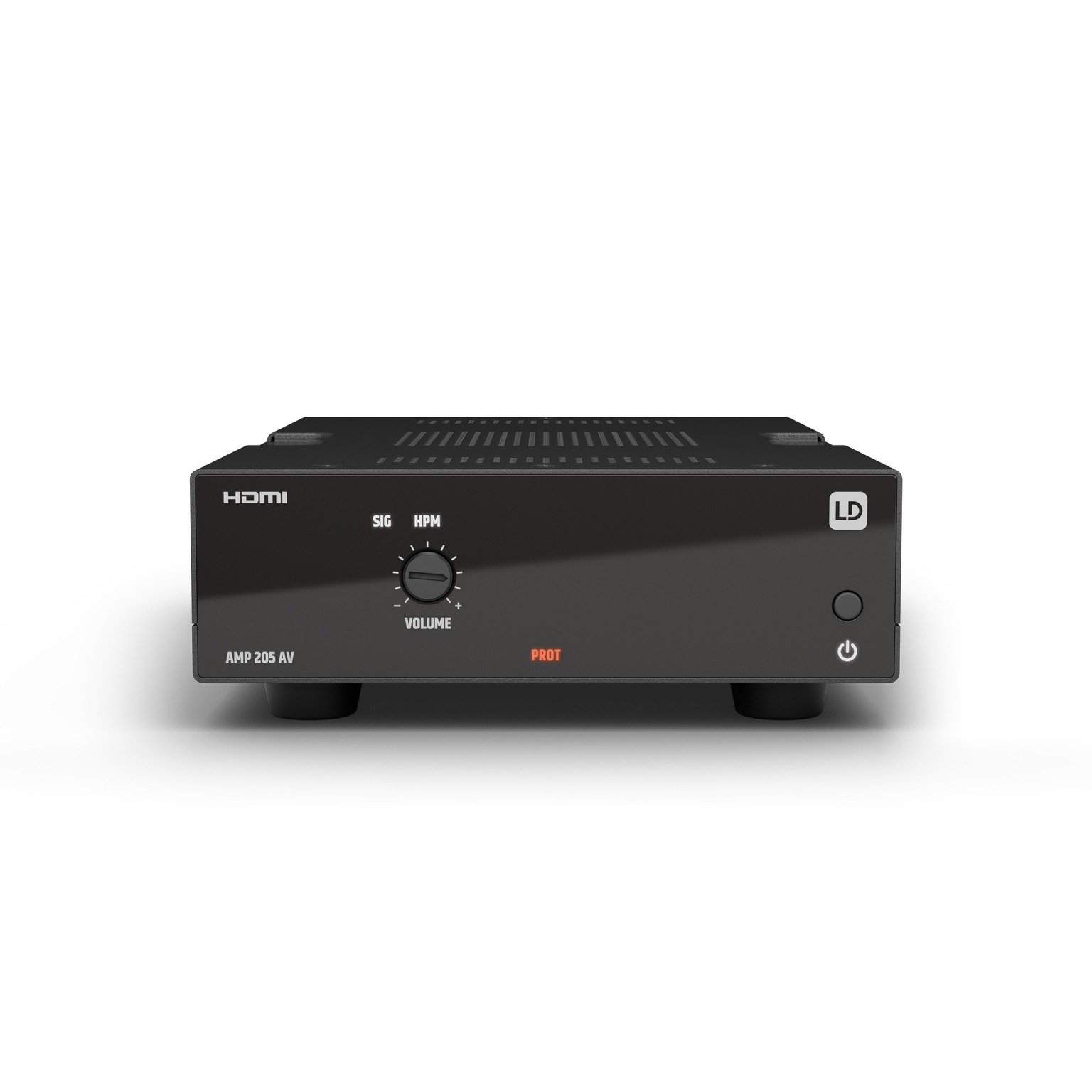

Powered by a highly efficient 2x50W Class-D amplifier, it features 4 Ohm outputs and a user-friendly front panel, equipped with signal, clip, and protection LEDs.

Its tiny form factor (142 x 44 x 222) and included mounting plates allow it to be installed discreetly almost anywhere; behind screens, under tables or even in air-handling spaces and above plenum ceilings. Alternatively, it fits into 1/3 19 inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

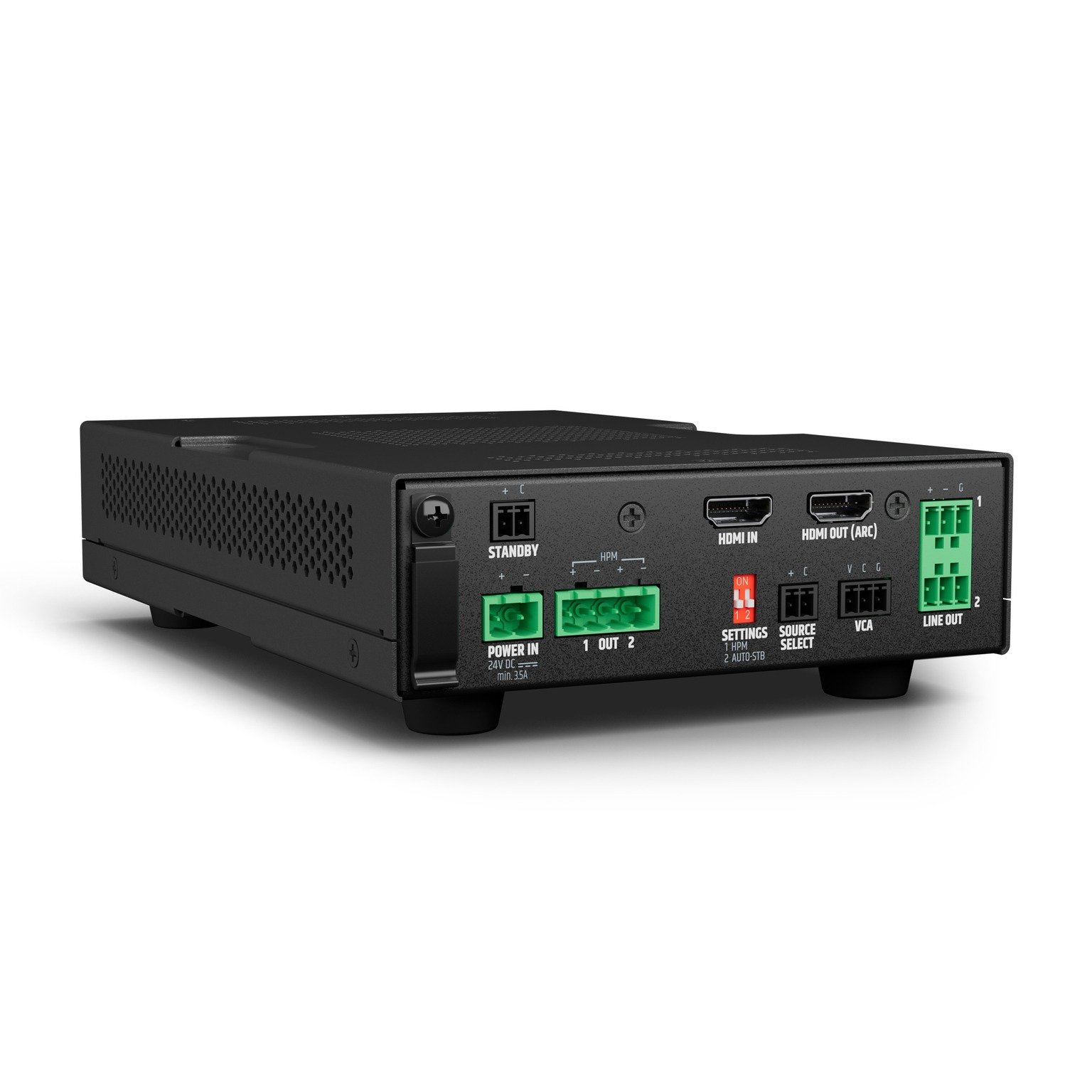

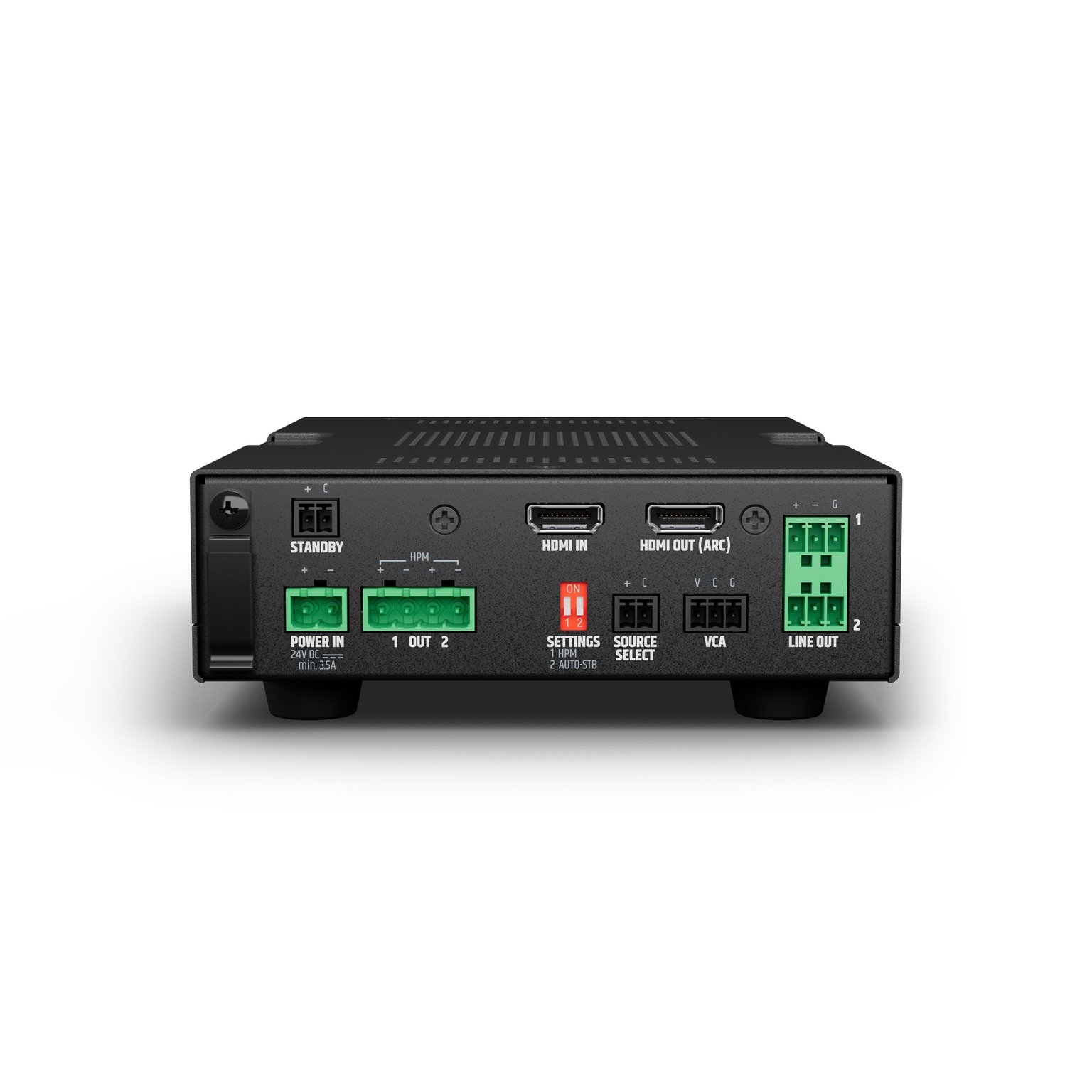

The AMP 205 AV uses an external 24V power supply. Terminal block connections for the analogue outputs and GPIO connections make wiring easy.

Remote control connectivity for third-party devices lets you select between HDMI input and HDMI out (ARC). You can also adjust volume on either channel, and put the power amplifier into standby mode at any time, ideal for when the amp is hidden away. Optional auto-standby saves power when no audio is running.

The perfect solution for professional installers and users looking to deliver higher performance audio for the video systems.

Technical Specifications

Item No.: LDAMP205AV
