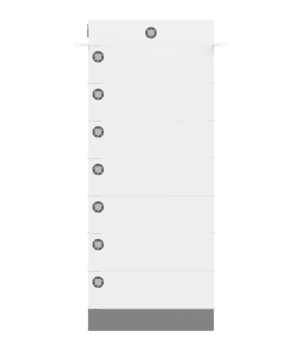

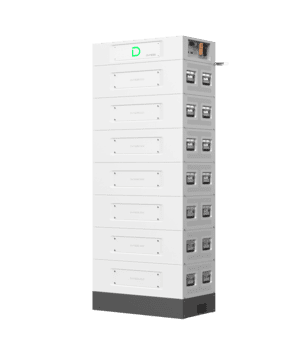

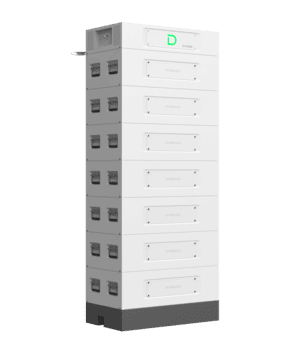

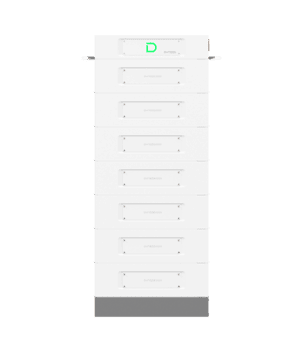

Dyness STACK314 High Voltage Stackable Battery 48.228-241.14kWh (C&I)
Dyness STACK314: modular high-voltage LiFePO4 battery system for small C&I storage, 16.08kWh modules, 48.228-241.14kWh per cluster, up to 12 clusters (2.89MWh), 10-year warranty.
STACK314 is a modular high-voltage battery system designed for small commercial and industrial energy storage applications. With 16.08kWh per module, up to 241.14kWh per system, and parallel expansion up to 2.89MWh, it offers a flexible solution for solar storage, peak shaving and backup power. It uses high-capacity 314Ah cells, with a rackless, stackable plug-and-play design and a built-in aerosol fire extinguisher.
- Flexible expansion: up to 12 clusters in parallel, 48.23kWh to 2.89MWh capacity
- Ultimate security: intelligent fire extinguishing system detects and extinguishes fires in 5s
- Easy installation: cable-free connection between modules, plug-and-play
- Long-term reliability: LFP cells, 8000+ cycles, 10 years warranty
- Module mixing: mixing of modules within three years
- Fast charge/discharge: max. continuous charge/discharge current 200A
| Battery Type | LiFePO4 (LFP) |
| System Energy Range | 48.228 kWh – 241.14 kWh |
| Modules per Cluster | 3-15 pcs |
| Depth of Discharge | 95% |
| Operating Temperature | -20 degrees C to 55 degrees C |
| Installation | Cable-free stacking |
| Expansion | Up to 12 clusters in parallel |
| Communication | CAN / RS485 |
| Cycle Life | 8000+ cycles |
| Protection Level | IP20 |
| Brand | Dyness |
|---|---|
| Series | STACK314 |
| Battery Type | LiFePO4 (LFP) |
| Voltage Type | High Voltage |
| System Energy Range | 48.228 kWh – 241.14 kWh |
| Module Capacity | 16.08 kWh (314Ah cells) |
| Modules per Cluster | 3 to 15 modules |
| Max Parallel Clusters | 12 (up to 2.89 MWh) |
| Cycle Life / Warranty | 8000+ cycles / 10 years |
| Protection / Temp | IP20 / -20 to 55 degrees C |
