Deye SE-F16 (AS, AF, EU, LATAM)
Residential Battery | SE-F16 | LiFePO4

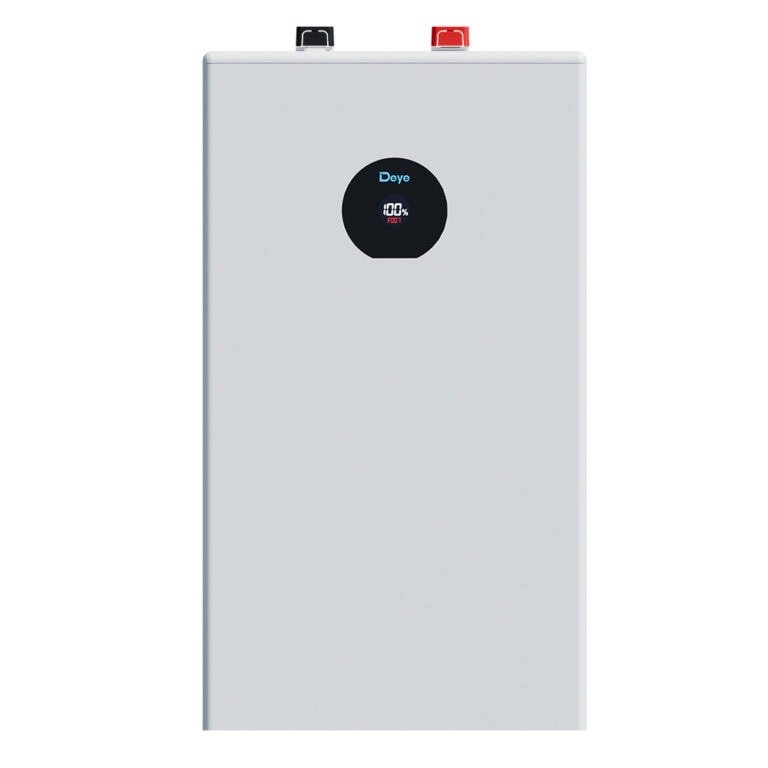

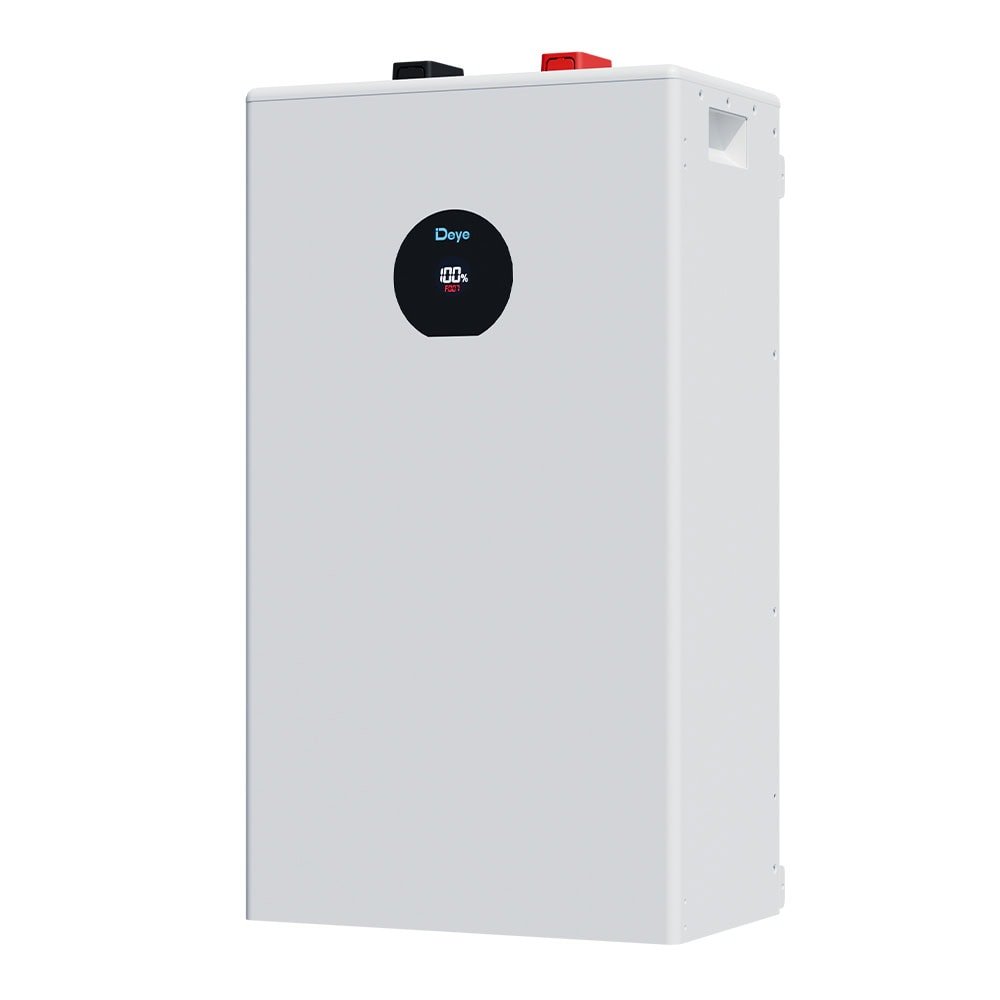

The Deye SE-F16 (AS, AF, EU, LATAM) is a residential lithium battery from Deye, built for reliable home solar energy storage and backup power. It uses safe LiFePO4 battery chemistry, an intelligent BMS, and supports modular expansion so you can scale capacity as your energy needs grow.
Why Choose the Deye SE-F16?
- Safe LiFePO4 Chemistry – Long cycle life and high thermal stability
- Smart BMS Protection – Active monitoring and multi-level safety protection
- Modular & Scalable – Expand capacity by connecting multiple units in parallel
- Easy Monitoring – Real-time status via app, CAN, RS485 or Bluetooth (model dependent)
- Backup Ready – Designed for seamless integration with Deye hybrid inverters
Key Features
- HomeESS BatteryResidential ESSLow Voltage Series (LV)SE-F16 (AS, AF, EU, LATAM)
- High Energy Capacity: 16 kWh of power with a 314 Ah nominal capacity
- Powerful Performance: Delivers a high continuous discharge current of 230 A
- Advanced Safety: Integrated Battery Management System (BMS) with an active fuse
- Flexible Monitoring: Easily monitor status via Bluetooth app, CAN2.0, and RS485
- Nominal Voltage 51.2 V
- Operating Voltage 44.8 V ~ 57.6 V
Technical Specifications
| Specification | Value |
|---|---|
| Model | SE-F16 |
| Battery Chemistry | LiFePO4 |
| Nominal Energy | 16 kWh |
| Nominal Voltage | 51.2 V |
| Capacity | 314 Ah |
| Scalability | Max. 32 pcs in parallel |
| Warranty | 5 Years / 10 Years The warranty period depends on the final installation site of the battery system. For more information, please refer to the warranty policy. |
| Weight Approximate | 109 kg |
| Dimension（W×H×D） | 400 × 708 × 233 mm |
| Operating Voltage | 44.8 V ~ 57.6 V |
Looking for a dependable Deye SE-F16 battery for your solar installation? The Deye SE-F16 (AS, AF, EU, LATAM) delivers proven performance, flexible expansion, and full compatibility with Deye hybrid inverters. Contact us for pricing, datasheets, and installation support.
| Brand | Deye |
|---|---|
| Product Type | Residential Battery |
| Chemistry | LiFePO4 |
