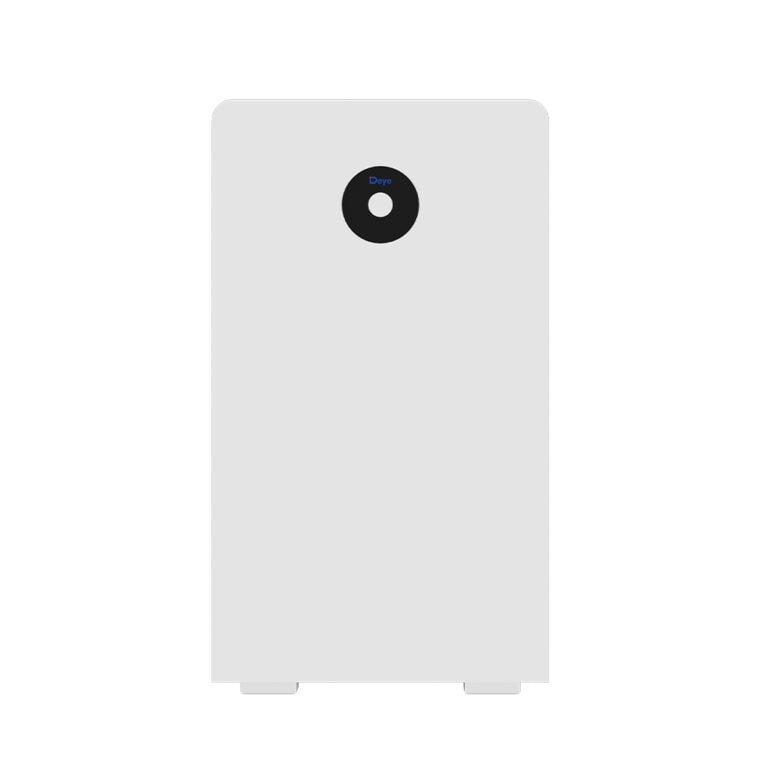

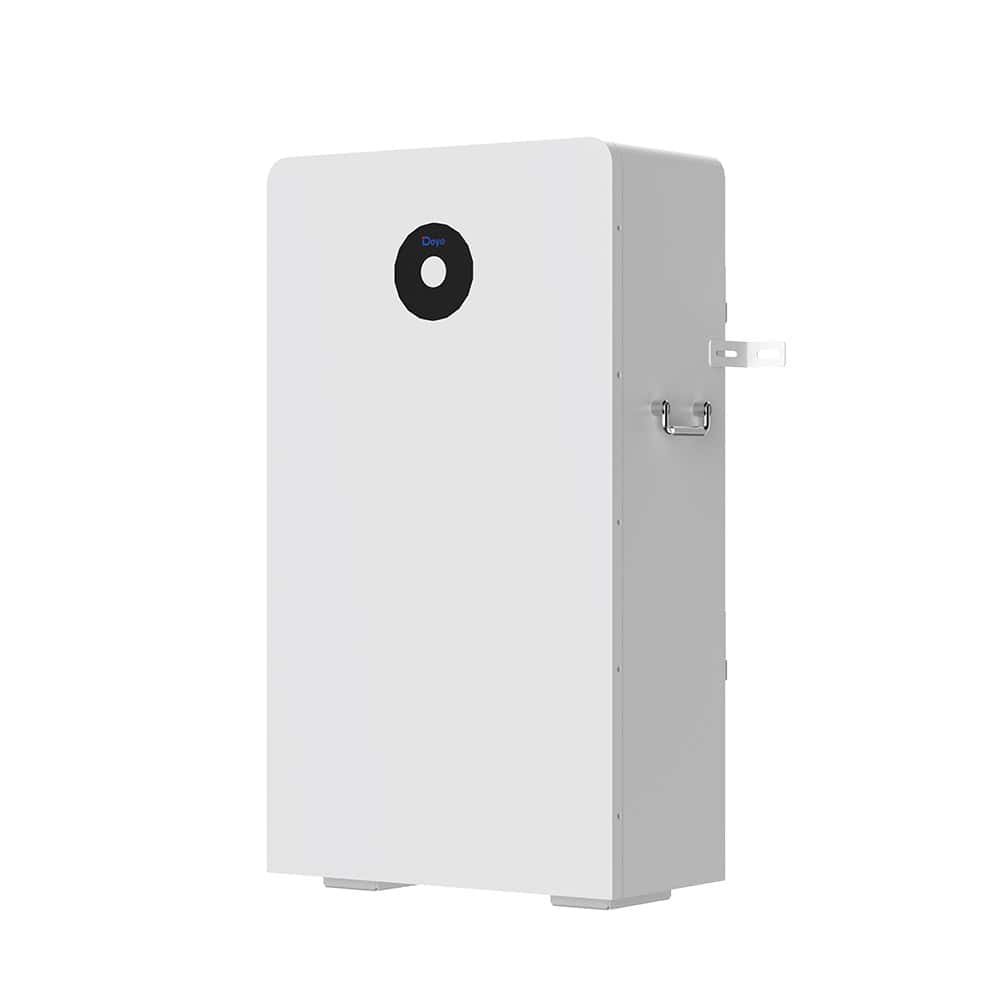

Deye RW-F16 (AS, AF, EU, LATAM)
Residential Battery | RW-F16 | LiFePO4
The Deye RW-F16 (AS, AF, EU, LATAM) is a residential lithium battery from Deye, built for reliable home solar energy storage and backup power. It uses safe LiFePO4 battery chemistry, an intelligent BMS, and supports modular expansion so you can scale capacity as your energy needs grow.
Why Choose the Deye RW-F16?
- Safe LiFePO4 Chemistry – Long cycle life and high thermal stability
- Smart BMS Protection – Active monitoring and multi-level safety protection
- Modular & Scalable – Expand capacity by connecting multiple units in parallel
- Easy Monitoring – Real-time status via app, CAN, RS485 or Bluetooth (model dependent)
- Backup Ready – Designed for seamless integration with Deye hybrid inverters
Key Features
- High Power Output: Delivers up to 8 kW with the ability to connect up to 32 units, scalable to 512 kWh
- Built-in Circuit Protection: Features a built-in circuit breaker for safe charging (160A) and discharging (160A)
- Efficient Energy Use: Achieves 90% round-trip efficiency with a nominal usable energy of 14.4 kWh
- Warranty 5 Years / 10 Years
Technical Specifications
| Specification | Value |
|---|---|
| Model | RW-F16 |
| Battery Chemistry | LiFePO4 |
| Nominal Energy | 16kWh |
| Nominal Voltage | 51.2V |
| Capacity | 314Ah |
| Scalability | Max. 32 pcs pack in parallel |
| Warranty | 5 Years / 10 Years The warranty period depends on the final installation site of the battery system. For more information, please refer to the warranty policy. |
| Weight Approximate | 122kg |
| Dimension（W×H×D） | 480×830×235 mm |
| Operating Voltage | 44.8V~ 57.6V |
Looking for a dependable Deye RW-F16 battery for your solar installation? The Deye RW-F16 (AS, AF, EU, LATAM) delivers proven performance, flexible expansion, and full compatibility with Deye hybrid inverters. Contact us for pricing, datasheets, and installation support.
| Brand | Deye |
|---|---|
| Product Type | Residential Battery |
| Chemistry | LiFePO4 |
